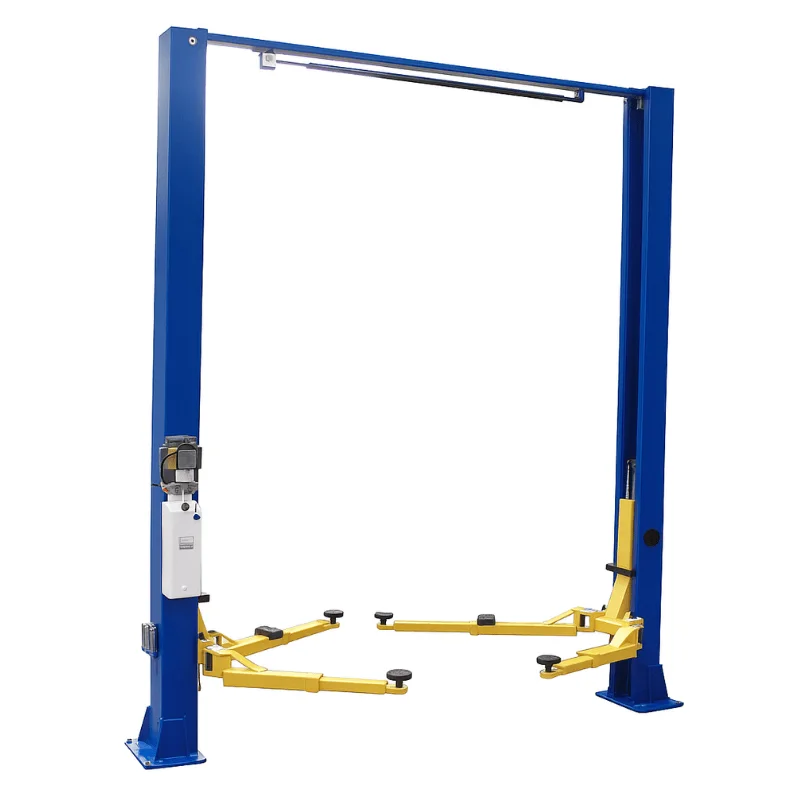

Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift
$3,065.00
Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift is part of our 2 post lifts selection from Tuxedo.
- Lifting capacity: 9000 lb
11 in stock
Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift
Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift is part of our 2 post lifts selection from Tuxedo.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb lifting capacity
- High Quality Construction
- Chain Drive
- Dual Point Lock Release
- Saddle Pad Adapters included (1 pair
- Powder coat finish

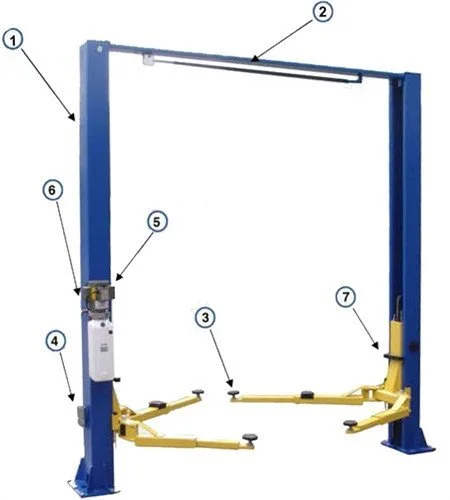

- 1) Single Piece Column construction (TP9KACX – TP9KSCX)
- 2) Padded ‘Shut-Off’ Bar w/ Kill Switch (TP9KACX – TP9KSCX)

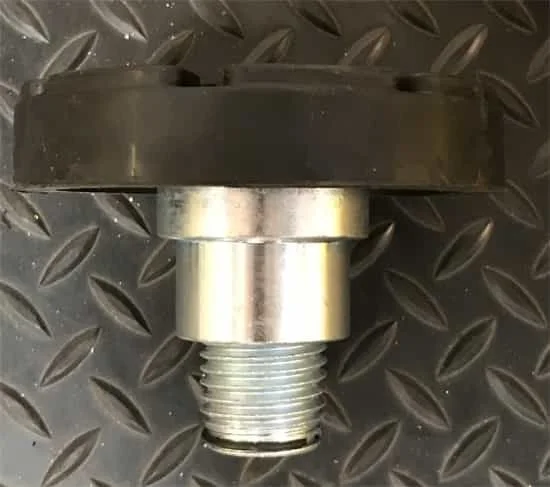

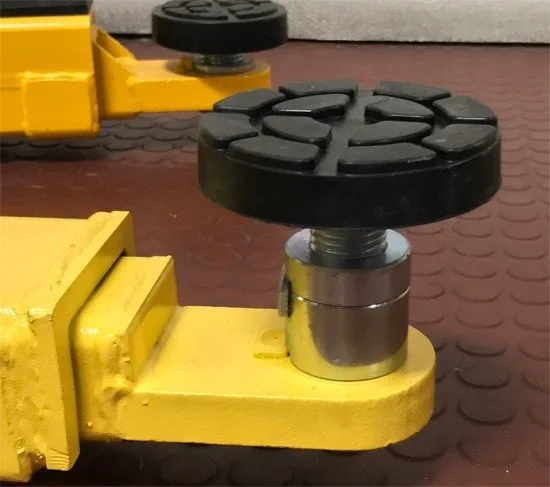

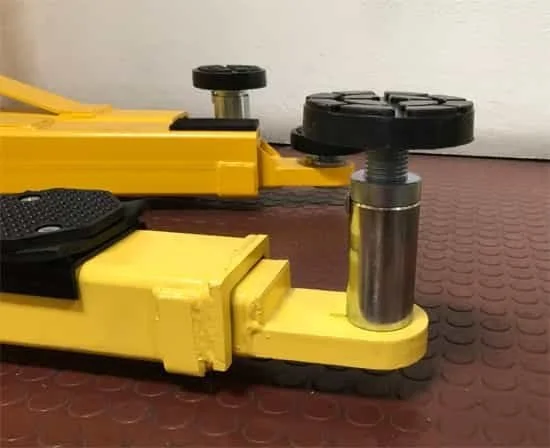

- 3) Low Profile ‘drop-in’ Swivel Pads w/1-1/2” adjustable height
- 4) 4ea Stackable 1-3/8” & 4” ‘drop-in’ Height Adapters
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Tuxedo |
|---|---|
| MPN / Model |
TP9KACX-V001 |
| Condition |
New |
| Free Drop-In Stackable Height Adapters |
Set of 4 each: 1-3/8" & 4" |
| Capacity |
9,000 lbs. |
| Overall Height |
142.9" |
| Width Overall w/Power Unit |
138" |
| Max Lift Height |
72" |
| Width Between Columns |
113.6" |
| Min Pad Height |
4" |
| Drive thru Clearance |
96" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Asymmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Front Arm Reach – min/max |
29" – 41" |
| Rear Arm Reach – min/max |
37" – 57" |
| Max Load Per Arm |
2,250 lbs. |
| Cable Diameter |
3/8" |
| Column Size |
7.25" x 10.87" |
| Column Steel Thickness |
5mm |
| Carriage Steel Thickness |
5mm |
| Arm Steel Thickness |
6mm |

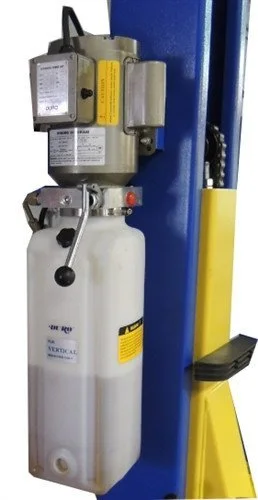

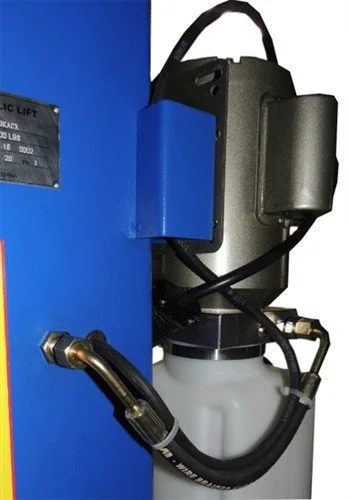

| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,370 lbs. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
