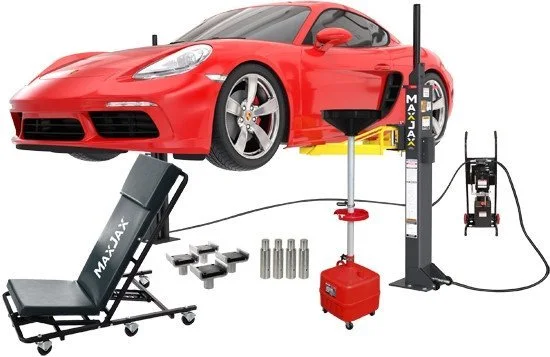

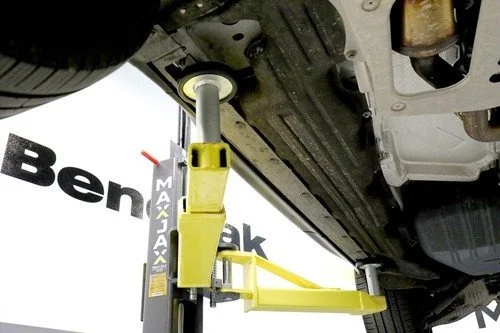

MaxJax® M7K Portable Two Post Garage Lift – Ultimate Package
$5,695.00
MaxJax® M7K Portable Two Post Garage Lift – Ultimate Package is part of our portable vehicle lifts selection from MaxJax.
- Lifting capacity: 7,000 lbs. (2,722 kg)
MaxJax® M7K Portable Two Post Garage Lift – Ultimate Package
MaxJax® M7K Portable Two Post Garage Lift – Ultimate Package is part of our portable vehicle lifts selection from MaxJax.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 7,000-lb lifting capacity with 1,750-lb max load per arm

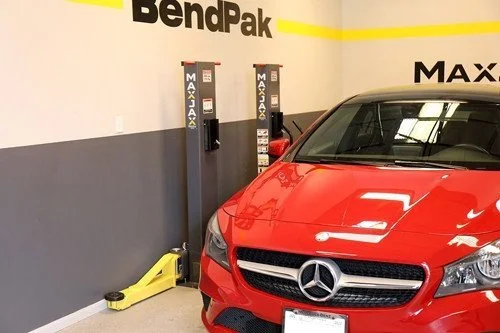

- Portable two-post design with built-in wheels – setup and stow in under 15 minutes
- Direct-Drive HVLP hydraulic technology for smooth, reliable, maintenance-free operation
- 7 locking positions (every 3 inches) with automatic safety locks rated at 3x capacity
- Maximum lift height: 47.25" (pad only) or 50.5" with 3" adapters
- Minimum pad height: 5.5 inches for low-clearance vehicles

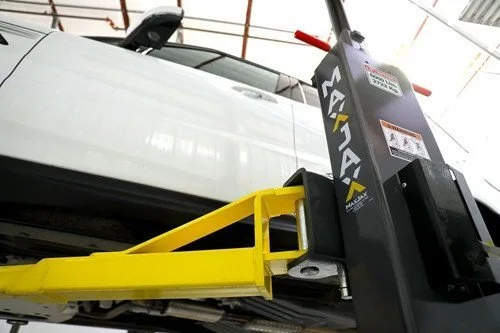

- Automatic arm restraints engage on every lift for added safety
- UHMW maintenance-free slide blocks no lubrication required

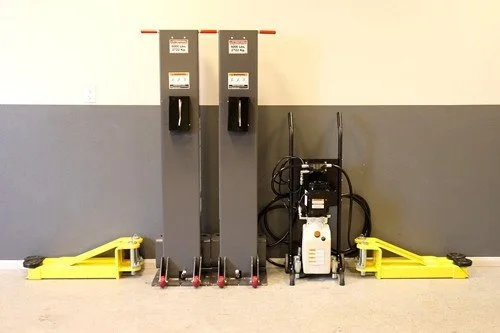

- Single-phase 110-220V motor with mobile power cart and quick-disconnect hoses

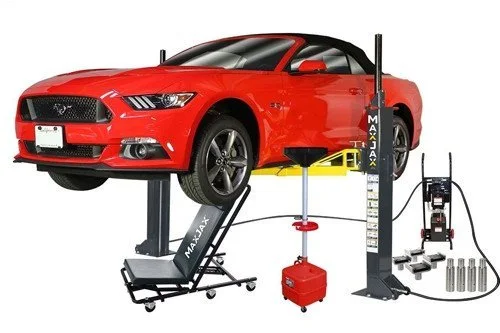

- Ultimate Package accessories included: oil drain, creeper seat, frame cradle pads, tall adapters
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
MaxJax |
|---|---|
| MPN / Model |
5175572 |
| Condition |
New |
| Lifting capacity |
7000 lb |
| Max Load Per Arm |
1,750 lbs. (794 kg) |
| A Overall Height |
89.5" (2,273 mm) |
| B Height of Column |
64" / 1626 mm |
| C Min. Pad Height |
5.5" (139.7 mm) |
| D Max Lift Height (Pad Only) |
47.25" (1200.15 mm) |
| E Max Lift Height w/3" Adapter |
50.5" (1,283 mm) |
| F Arm Reach (Min – Max) |
26" – 40" (660 mm – 1,016 mm) |
| G Typical Width (Outside of Base Plate) |
105" – 135" (2,667 mm – 3,429 mm) |
| H Drive-thru Clearance |
74" – 104" (1,880 mm – 2,642 mm) |
| Locking Positions |
7 (every 3") |
| Time of full Rise |
45 Seconds |
| Motor |
110-220 VAC / 50-60 Hz. / 1 Ph. / 15 Amps |
| Shipping Dimensions (Standard Model) |
68" x 39" x 35" (1,727 mm x 990.6 mm x 889 mm) |
| Individual Column Weight |
300 lbs. (136 kg) |
| Shipping Weight (Standard Model) |
980 lbs. (444 kg) |
| Lift type |
2 Post Lifts ,Portable Vehicle Lifts |
| Phase |
Single phase |
| Voltage |
110-220 V |
