BendPak SP-7XE Full-Rise Frame Engaging Scissor Lift 7,000 lb.
$10,795.00
Full-rise vehicle service with an open-center footprint. The BendPak SP-7XE combines a 7,000 lb capacity with a 70.5-inch maximum rise and surface-mount installation.
Full working height. Open access underneath.

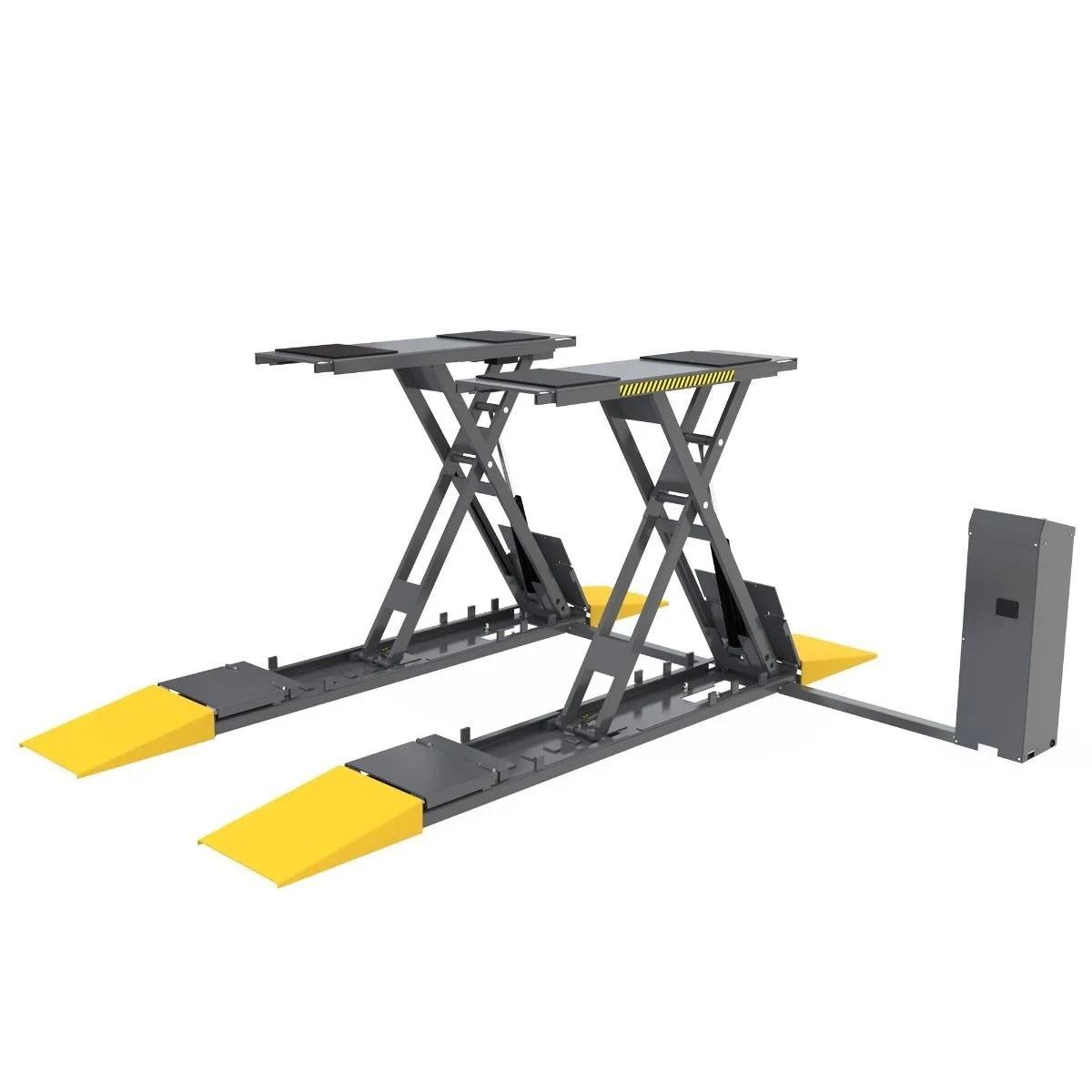

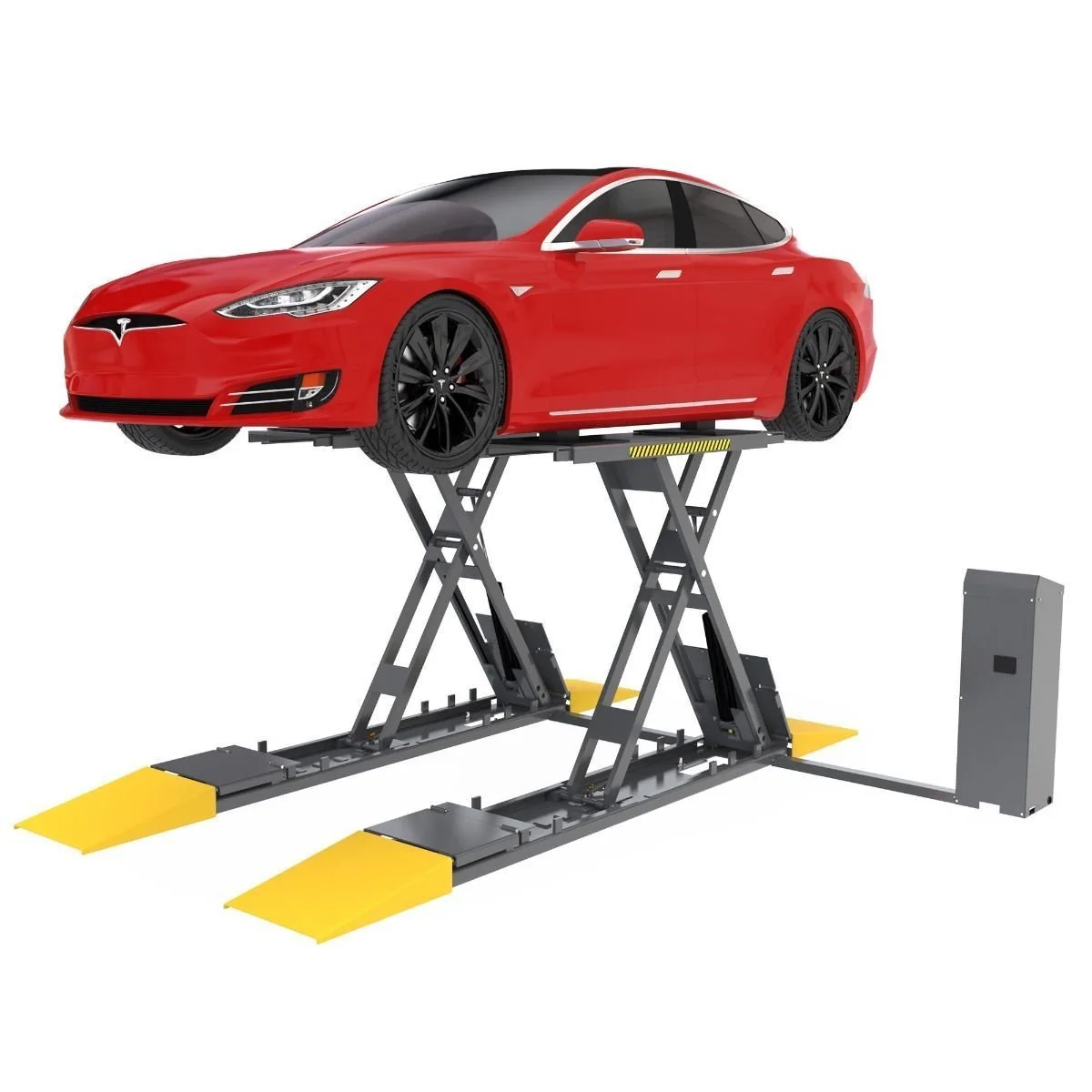

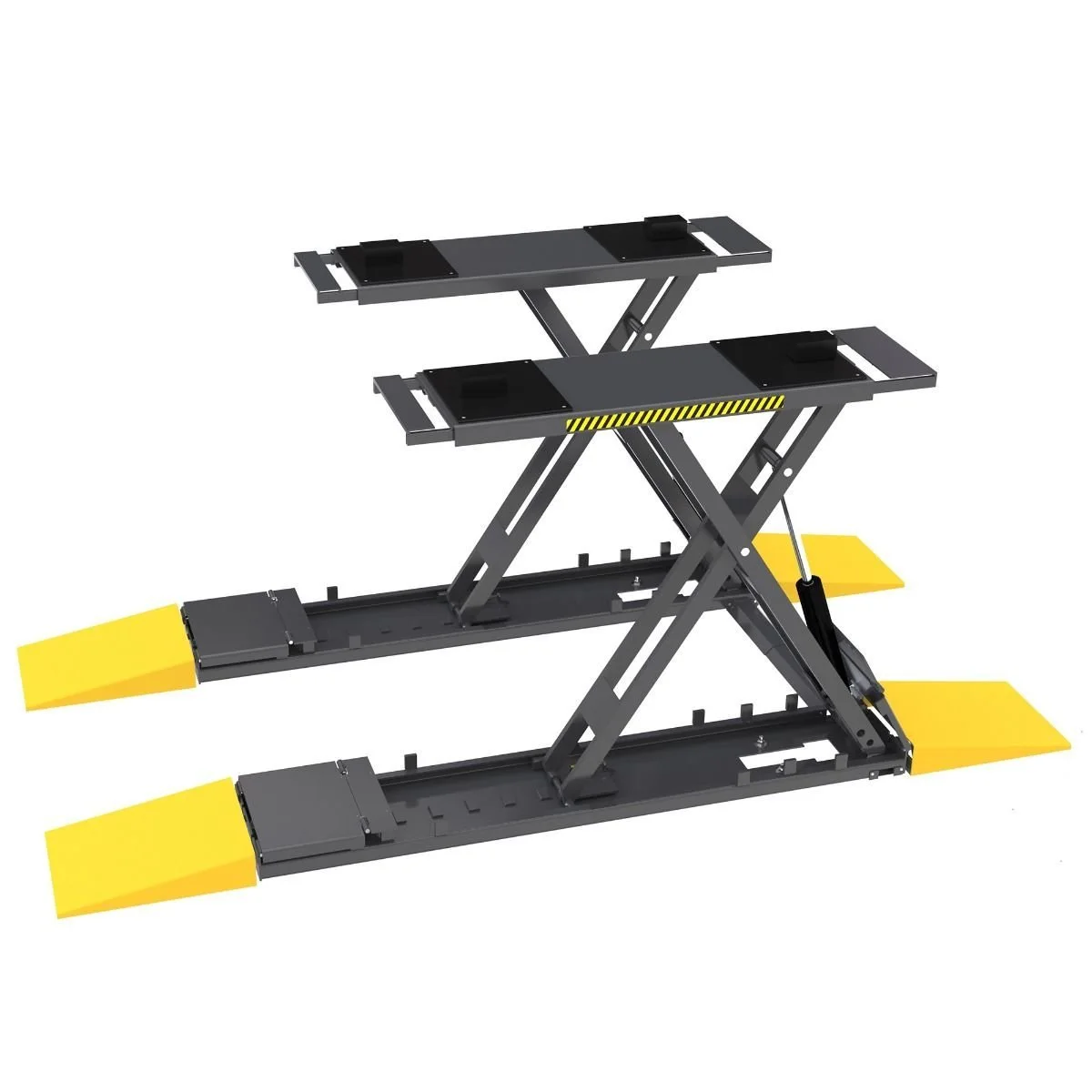

The BendPak SP-7XE is a surface-mounted, frame-engaging scissor lift for automotive service bays. Its open-center layout keeps the area beneath the vehicle accessible, while the 7,000 lb capacity and 70.5-inch maximum lifting height support a wide range of service work.
Designed around the service bay
- Full-rise scissor configuration with no overhead beam.
- Pneumatic safety locks and dual hydraulic cylinders.
- 6.5-inch lowered height for vehicle approach.
- 208–240V, single-phase electrical supply.
Plan the installation
Check the current BendPak installation manual for slab, anchoring, electrical supply, compressed air, vehicle lifting points, clearances and maintenance requirements. Confirm that the specific vehicle and site are suitable before ordering. The SP-7XEF is the separate flush-mount model.
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175424 |
| Condition |
New |
| Lifting Capacity |
7,000 lbs. (3,175 kg) |
| Overall Length |
165" (4,190 mm) |
| Overall Width – Max |
87.5" (2,222 mm) |
| Overall Width – Min |
81.5" (2,072 mm) |
| Single Platform Length |
62.5" (1,590 mm) |
| Single Platform Width |
22" (554 mm) |
| Max Height Raised |
70.5" (1,791 mm) |
| Lowered Lift Height |
6.5" (165 mm) |
| Lifting time |
60 seconds |
| Fully Lowered |
6.5" (165 mm) |
| 1st Lock Position |
24.75" (629 mm) |
| 2nd Lock Position |
37.5" (953 mm) |
| 3rd Lock Position |
46" (1,168 mm) |
| 4th Lock Position |
52.75" (1,340 mm) |
| 5th Lock Position |
58" (1,473 mm) |
| 6th Lock Position |
62.75" (1,594 mm) |
| 7th Lock Position |
66.5" (1,689 mm) |
| 8th Lock Position |
70" (1,778 mm) |
| Full Rise |
70.5" (1,791 mm) |
| Motor |
208-240 VAC / 50-60 Hz / 1Ph |
| Shipping weight |
2502 lb |
| Shipping Dimensions |
106" x 27" x 43" (2,692 mm x 685 mm x 1,092 mm) |
| Lifting capacity |
7000 lb |
| Maximum lifting height |
70.5 in |
| Lowered height |
6.5 in |
| Voltage |
208–240 V |
| Phase |
Single phase |
| Lift type |
Scissor Lifts |
