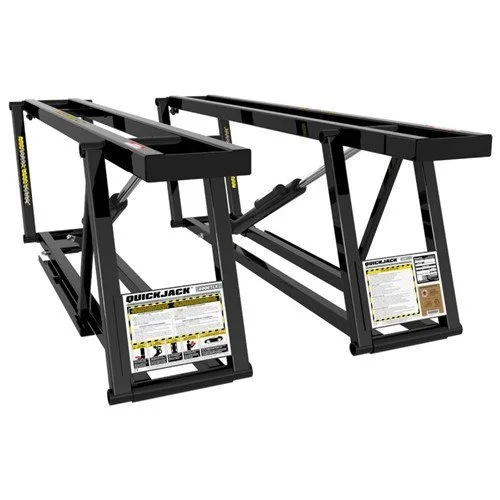

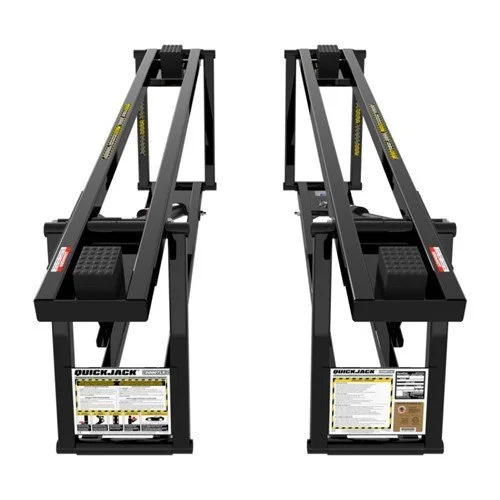

QuickJack™ 8000TLX Extended-Length Portable Lift Bundle, 8,000 lb.
$2,375.00
Extended-length 8,000 lb. portable lift bundle for trucks, SUVs and long-wheelbase vehicles, with 76 in. frames, 43–66 in. lift-point spread and 24.5 in. maximum lift height.
15 in stock
QuickJack™ 8000TLX Extended-Length Portable Lift Bundle, 8,000 lb.

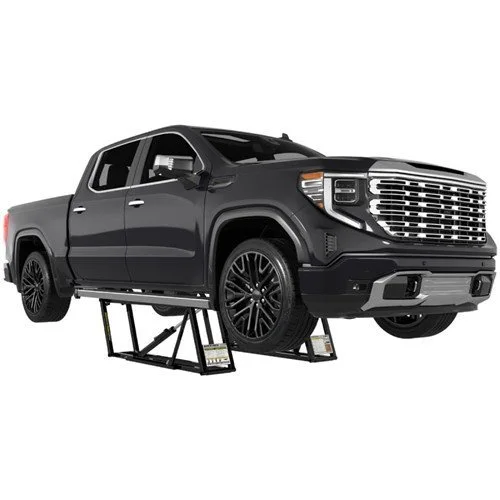

The QuickJack 8000TLX Bundle combines an extended-length portable lift with storage and high-clearance support for trucks, SUVs and long-wheelbase vehicles. The 76 in. frames and 66 in. maximum lift-point spread are intended for vehicles that exceed standard portable-lift reach.
Verified 8000TLX Bundle specifications
- 8,000 lb. lifting capacity
- 3.5 in. lowered height and up to 24.5 in. maximum lift height with the listed blocks
- 43–66 in. lift-point spread
- 12.5 in. frame width and 76 in. frame length

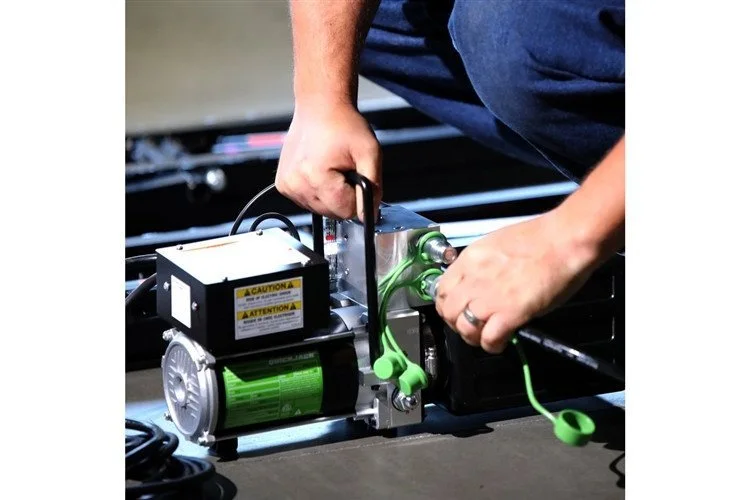

- 98 lb. individual frame weight and 15 lb. power-unit weight
- 30-second time to full rise

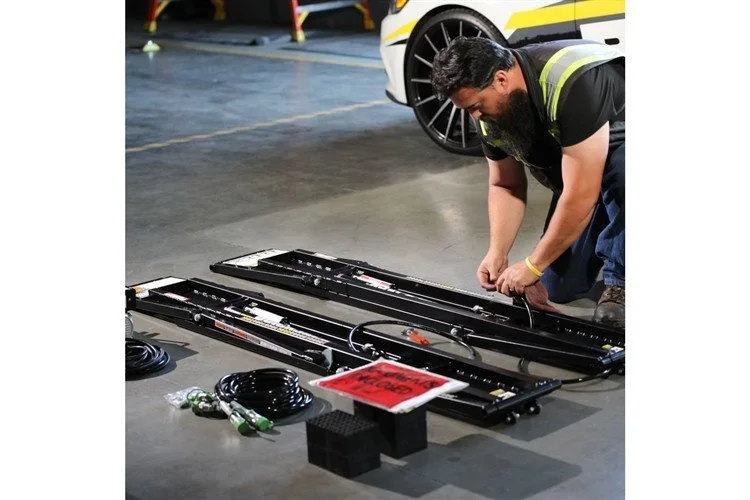

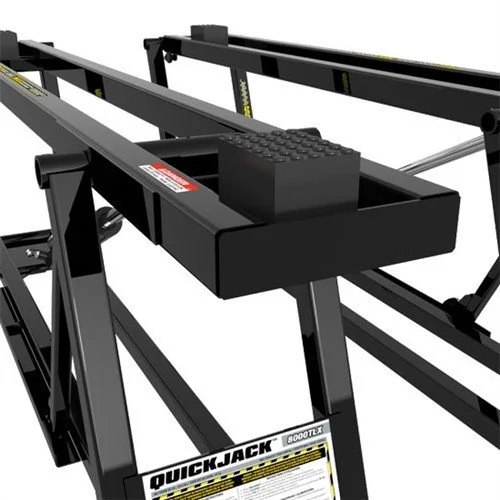

- Factory-preassembled hydraulic system, pressure-compensated flow divider and dual-position automatic safety locks

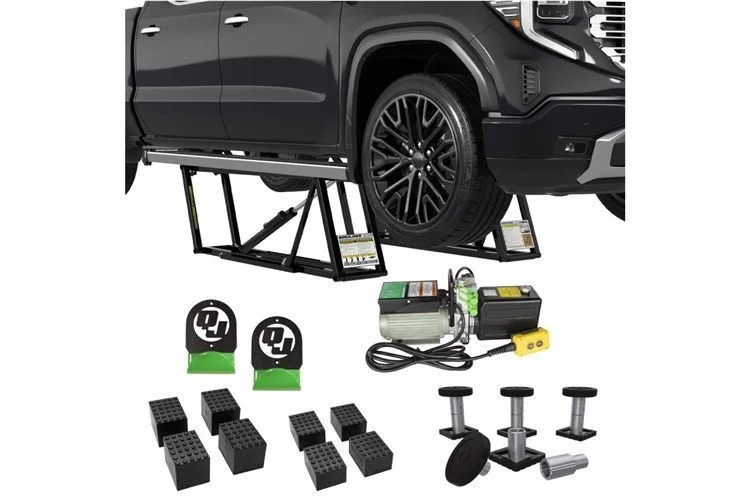

- QuickJack identifies the bundle as including the 8000TLX lift system, wall hanger set and SUV/truck adapter kit; confirm the exact store package before ordering
Measure before ordering
Confirm the vehicle lift-point spread, block and adapter height, vehicle weight, floor condition, ceiling clearance and power-unit configuration before ordering. Use the SUV/truck adapters only as directed by QuickJack, and verify the supplied components against current manufacturer documentation for the exact bundle.
| Brand |
QuickJack |
|---|---|
| MPN / Model |
5176113 |
| Condition |
New |
| 8000TL |
8000TLX |
| 4" (102 mm) |
3.5" (89 mm) |
| 21.5" (546 mm) |
21" (521 mm) |
| 22.5" (572 mm) |
22" (546 mm) |
| 24.5" (622 mm) |
24" (616 mm) |
| 24.25" (610 mm) |
24" (597 mm) |
| 27" (686 mm) |
26.75" (673 mm) |
| 60" (1,524 mm) |
66" (1,676 mm) |
| 37" (940 mm) |
43" (1,092 mm) |
| 70.75" (1,797 mm) |
76" (1,930 mm) |
| 100 lbs. (45 kg) |
103 lbs. (77 kg) |
| 280 lbs. (127 kg) |
250 lbs. (113 kg) |
| Overall Height |
7.2" (183 mm) |
| Pad Height |
1" (25 mm) |
| Pin Height |
2.8" (71 mm) |
| Base Height/td> |
3.4" (76 mm) |
| Shipping Dimensions |
10" x 10" x 6" (254 x 254 x 152 mm) |
| Shipping Weight/td> |
32 lbs (15 kg) |
| Width |
4.75" (121 mm) |
| Height |
6.75" (172 mm) |
| Depth |
2.5" (57 mm) |
| Weight ea. |
1 lbs (0.5 kg) |
| Shipping Weight |
3 lbs (1.4 kg) |
| Lift type |
Portable Vehicle Lifts |
