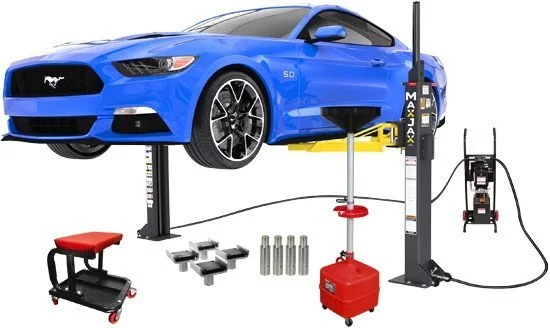

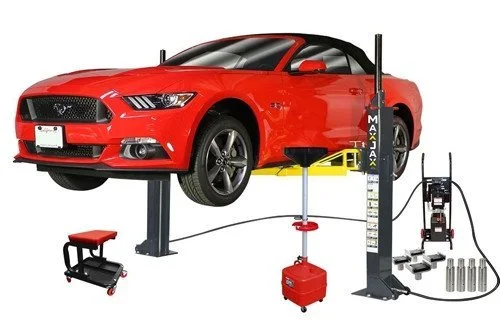

MaxJax® M7K Portable Two Post Garage Lift – Supreme Package
$5,595.00
MaxJax® M7K Portable Two Post Garage Lift – Supreme Package is part of our portable vehicle lifts selection from MaxJax.
- Lifting capacity: 7,000 lbs. (2,722 kg)
11 in stock
MaxJax® M7K Portable Two Post Garage Lift – Supreme Package
MaxJax® M7K Portable Two Post Garage Lift – Supreme Package is part of our portable vehicle lifts selection from MaxJax.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 7,000-lb lifting capacity handles a wide range of vehicles from compact cars to full-size trucks

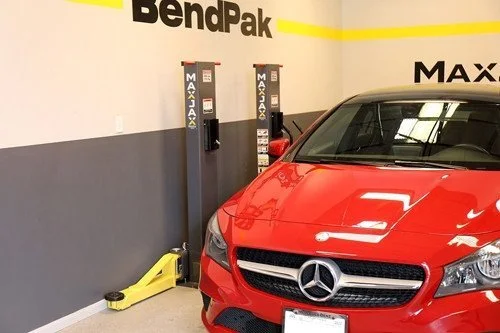

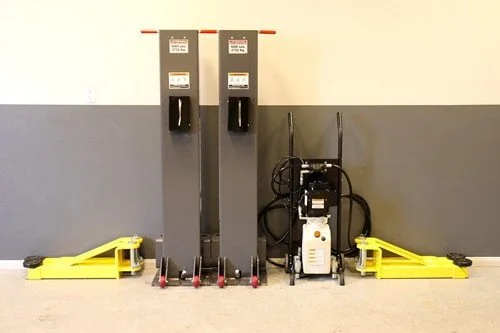

- Portable design with built-in wheels move and store the lift in under 15 minutes
- Unobstructed floor space ideal for ADAS calibration and precision alignment work
- Direct-Drive hydraulic cylinders with integrated velocity-fuse safety valves for ultimate reliability
- Single-piece columns for added strength and reduced fatigue under heavy loads
- RD-9G 9-Gallon Upright Portable Oil Drain Professional-grade fluid management for clean, efficient oil changes. View Details
- RST-1WS Rolling Work Seat with Under-Seat Tray Comfortable, mobile seating with convenient tool storage. View Details
- 5215754 Frame Cradle Pads (Set of 4) Protect delicate frame rails and pinch welds during lifting. View Details
- 5215752 5.5" Tall Height Adapters (Set of 4) Extended lift height for maximum versatility. View Details
- Patented One-of-a-Kind MaxJax® Portable Car Lift Safety Features from the Ground Up
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
MaxJax |
|---|---|
| MPN / Model |
5175569 |
| Condition |
New |
| Lifting capacity |
7000 lb |
| Max Load Per Arm |
1,750 lbs. (794 kg) |
| A Overall Height |
89.5" (2,273 mm) |
| B Height of Column |
64" / 1626 mm |
| C Min. Pad Height |
5.5" (139.7 mm) |
| D Max Lift Height (Pad Only) |
47.25" (1200.15 mm) |
| E Max Lift Height w/3" Adapter |
50.5" (1,283 mm) |
| F Arm Reach (Min – Max) |
26" – 40" (660 mm – 1,016 mm) |
| G Typical Width (Outside of Base Plate) |
105" – 135" (2,667 mm – 3,429 mm) |
| H Drive-thru Clearance |
74" – 104" (1,880 mm – 2,642 mm) |
| Locking Positions |
7 (every 3") |
| Time of full Rise |
45 Seconds |
| Motor |
110-220 VAC / 50-60 Hz. / 1 Ph. / 15 Amps |
| Shipping Dimensions (Standard Model) |
68" x 39" x 35" (1,727 mm x 990.6 mm x 889 mm) |
| Individual Column Weight |
300 lbs. (136 kg) |
| Shipping Weight (Standard Model) |
980 lbs. (444 kg) |
| Lift type |
2 Post Lifts ,Portable Vehicle Lifts |
| Phase |
Single phase |
| Voltage |
110-220 V |
