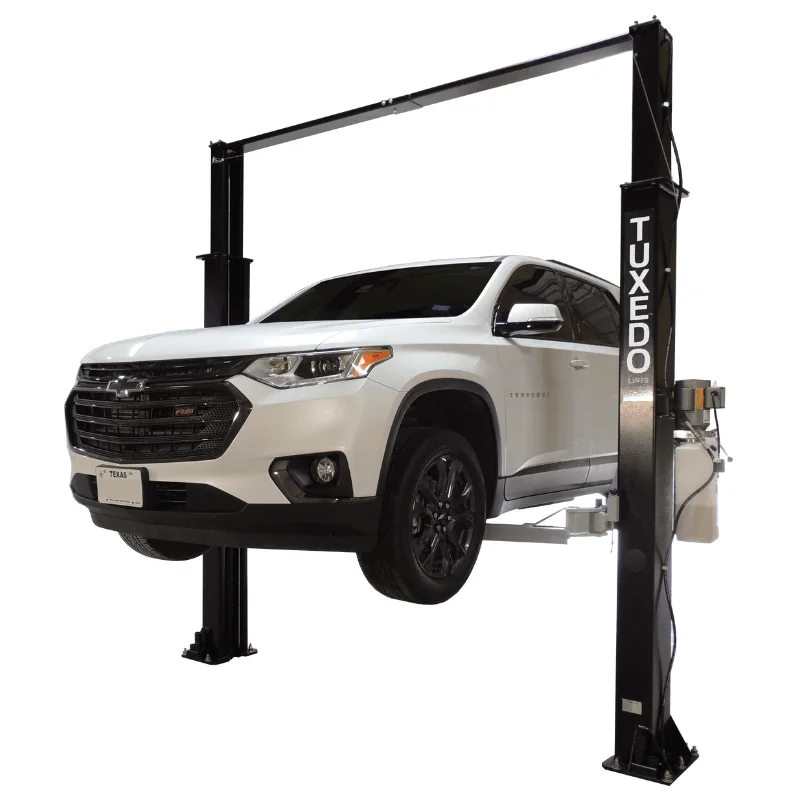

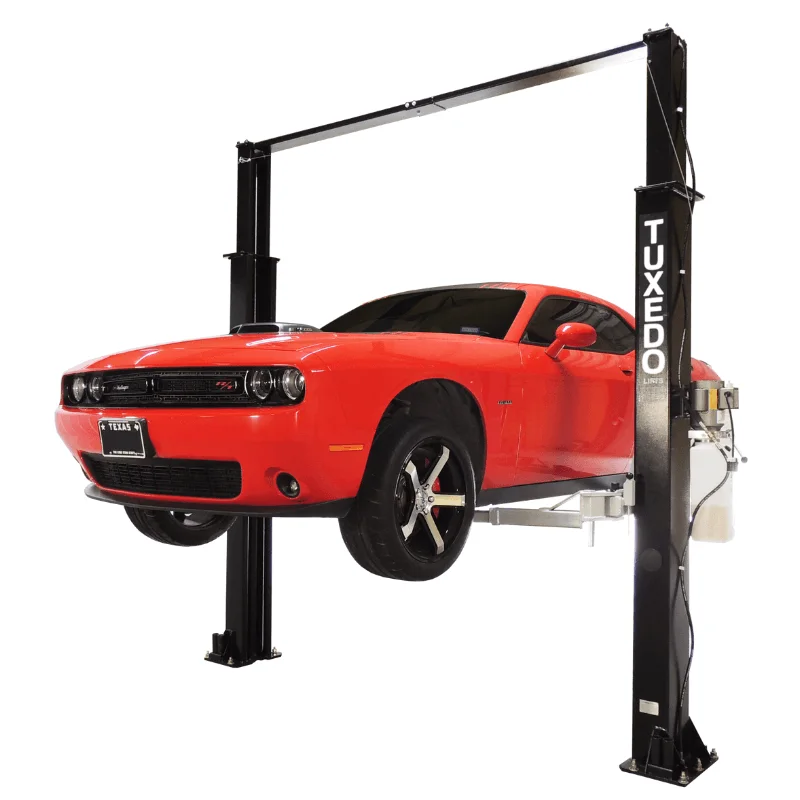

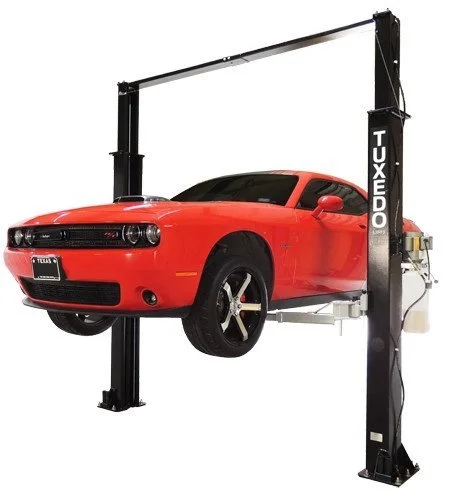

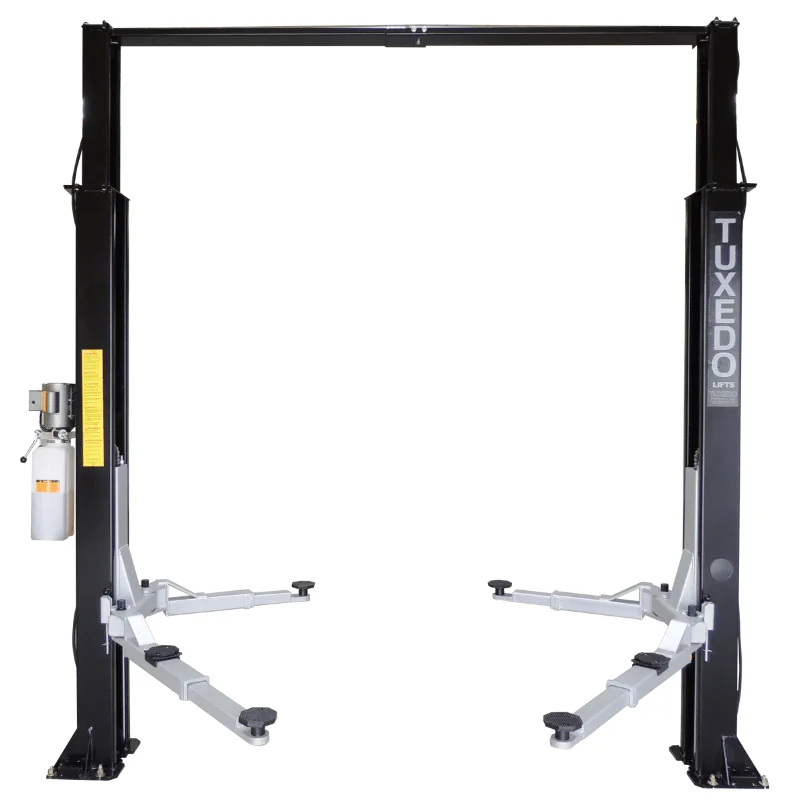

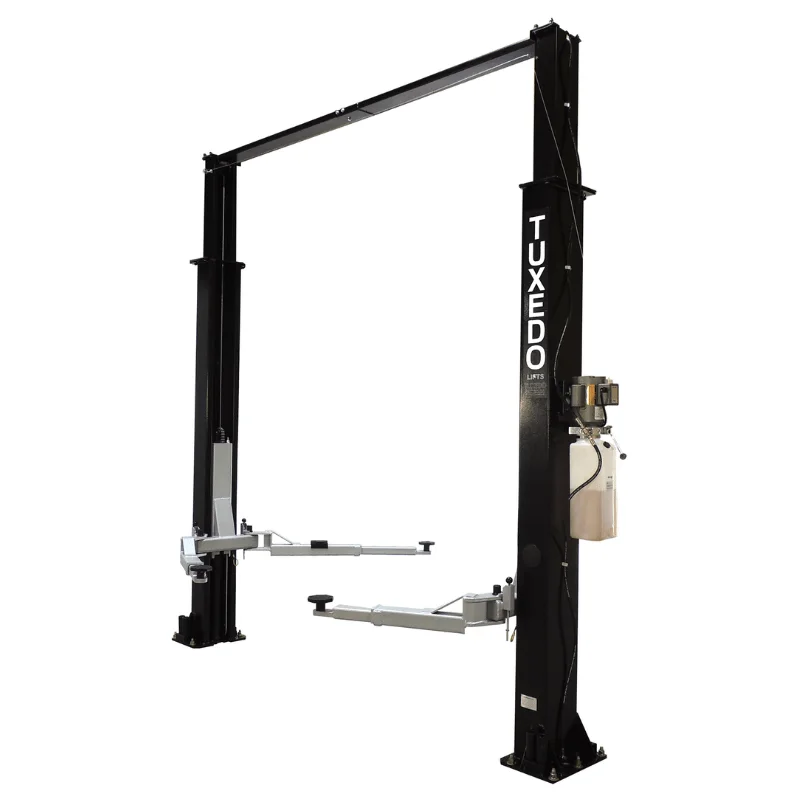

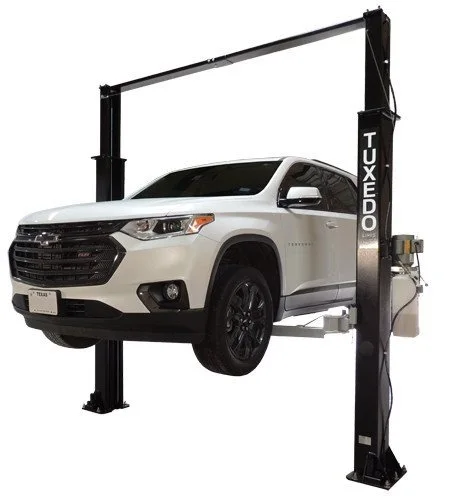

Tuxedo TP9KAC-TUX 9K Asymmetric 2 Post Lift
$2,365.00
Tuxedo TP9KAC-TUX 9K Asymmetric 2 Post Lift is part of our 2 post lifts selection from Tuxedo.
9 in stock
Tuxedo TP9KAC-TUX 9K Asymmetric 2 Post Lift
Tuxedo TP9KAC-TUX 9K Asymmetric 2 Post Lift is part of our 2 post lifts selection from Tuxedo.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb. lifting capacity handles passenger cars, light trucks, and most SUVs with ease
- Clear floor design eliminates tripping hazards and allows easy vehicle positioning from any angle
- Low profile 4" lifting pads accommodate low-clearance vehicles and sports cars
- Dual point lock release and automatic arm restraints provide enhanced safety and control
- Saddle pad adapters (1 pair) for standard lifting applications
- Drop-in stackable height adapters Set of 4 each: 1-5/16" and 5" for versatile lift point adjustment
- 9,000 lb lifting capacity
- Asymmetric Lift Arms
- Low Profile Swing Arm Design
- Low Profile 'Drop In' Lift Pads
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Tuxedo |
|---|---|
| MPN / Model |
TP9KAC-TUX |
| Condition |
New |
| Free Drop-In Stackable Height Adapters |
Set of 4 each: 1-5/16" & 5" |
| Capacity |
9,000 lbs. |
| Overall Height |
142.7" |
| Width Overall w/Power Unit |
141" |
| Max Lift Height |
72" |
| Width Between Columns |
110.4" |
| Min Pad Height |
4" |
| Drive thru Clearance |
93.7" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Asymmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Long Arm Reach – Min/Max |
28.5" – 41.4" |
| Short Arm Reach – Min/Max |
37.1" – 57.2" |
| Ceiling Height Required |
144" |
| Max Load Per Arm |
2,250 lbs. |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,390 lbs. |
| Lift type |
2 Post Lifts |
