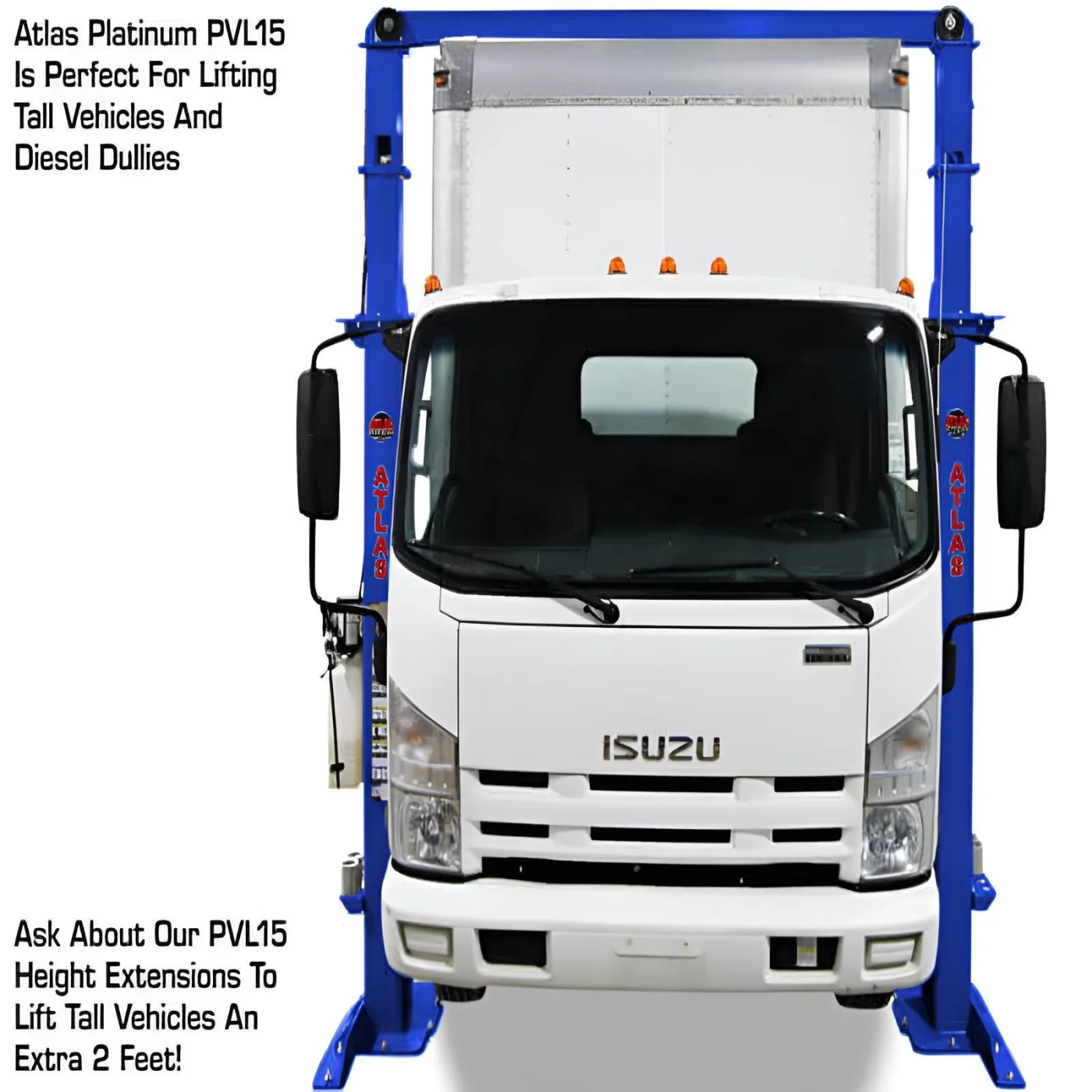

Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs
$12,799.00
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
- Lifting capacity: 15000 lb
7 in stock
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

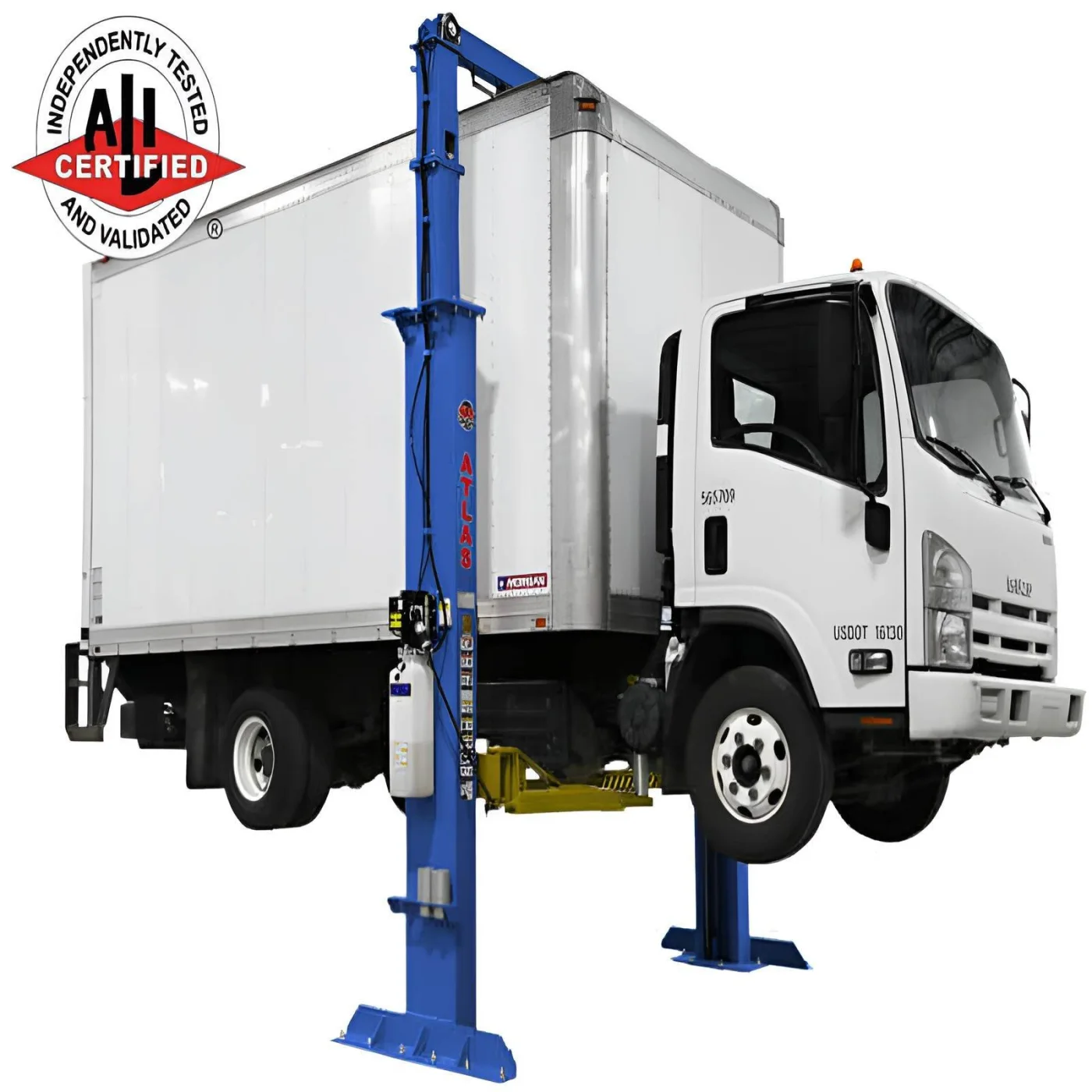

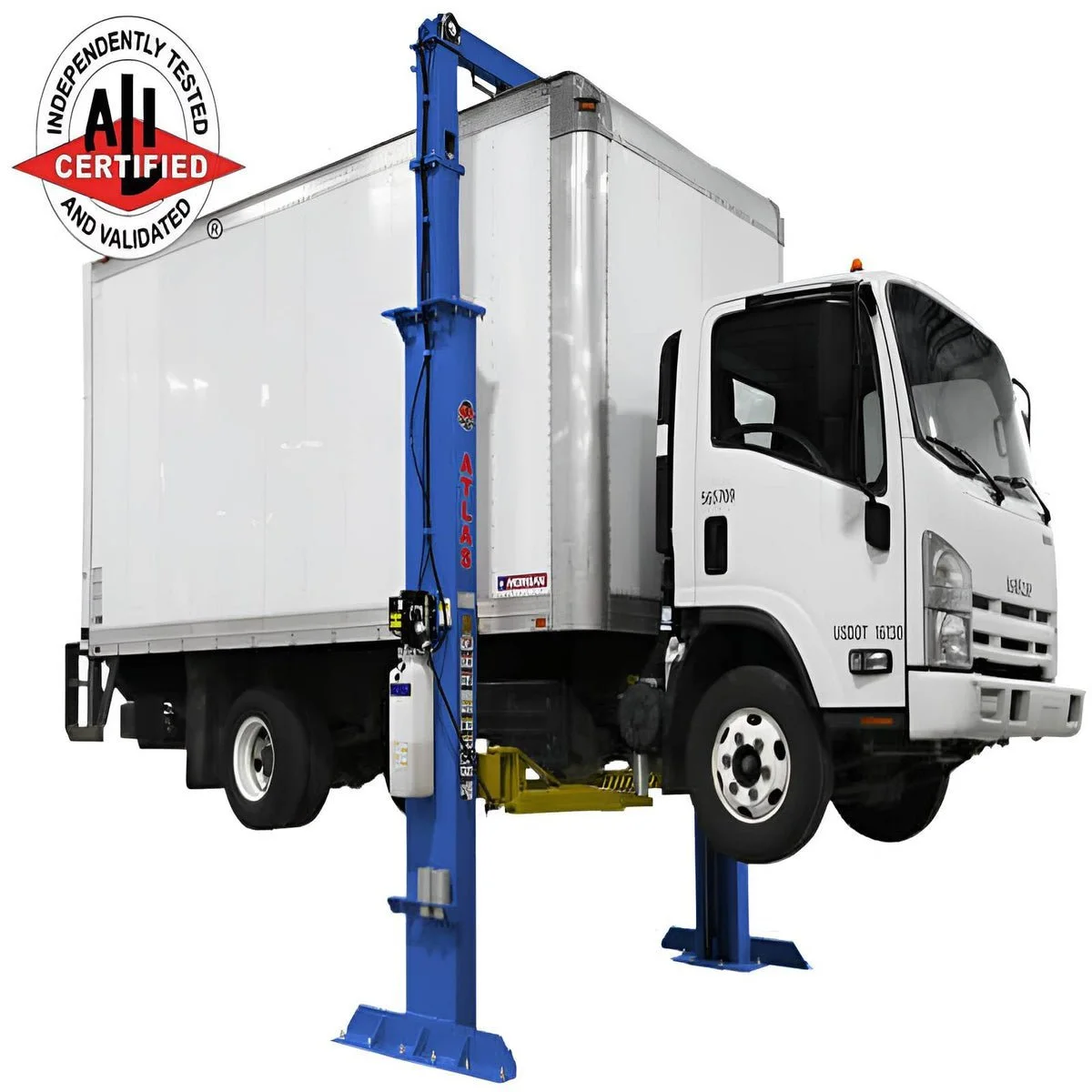

- 15,000 lb capacity handles heavy-duty trucks and commercial vehicles with confidence

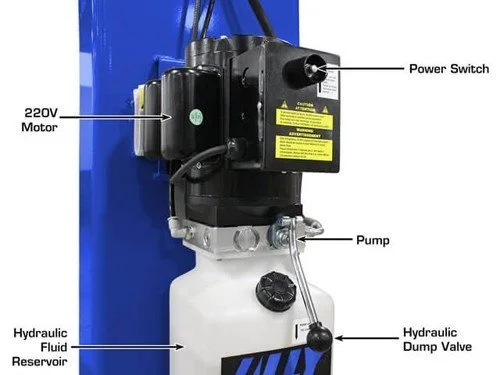

- Premium ALLY AL2300 Power Unit with MET Laboratories certification superior reliability backed by a two-year limited warranty
- Free 8-piece truck adapter set and screw-up frame adapters – complete versatility included
- ALI CERTIFIED and commercial-grade construction – meets the highest industry safety standards
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide

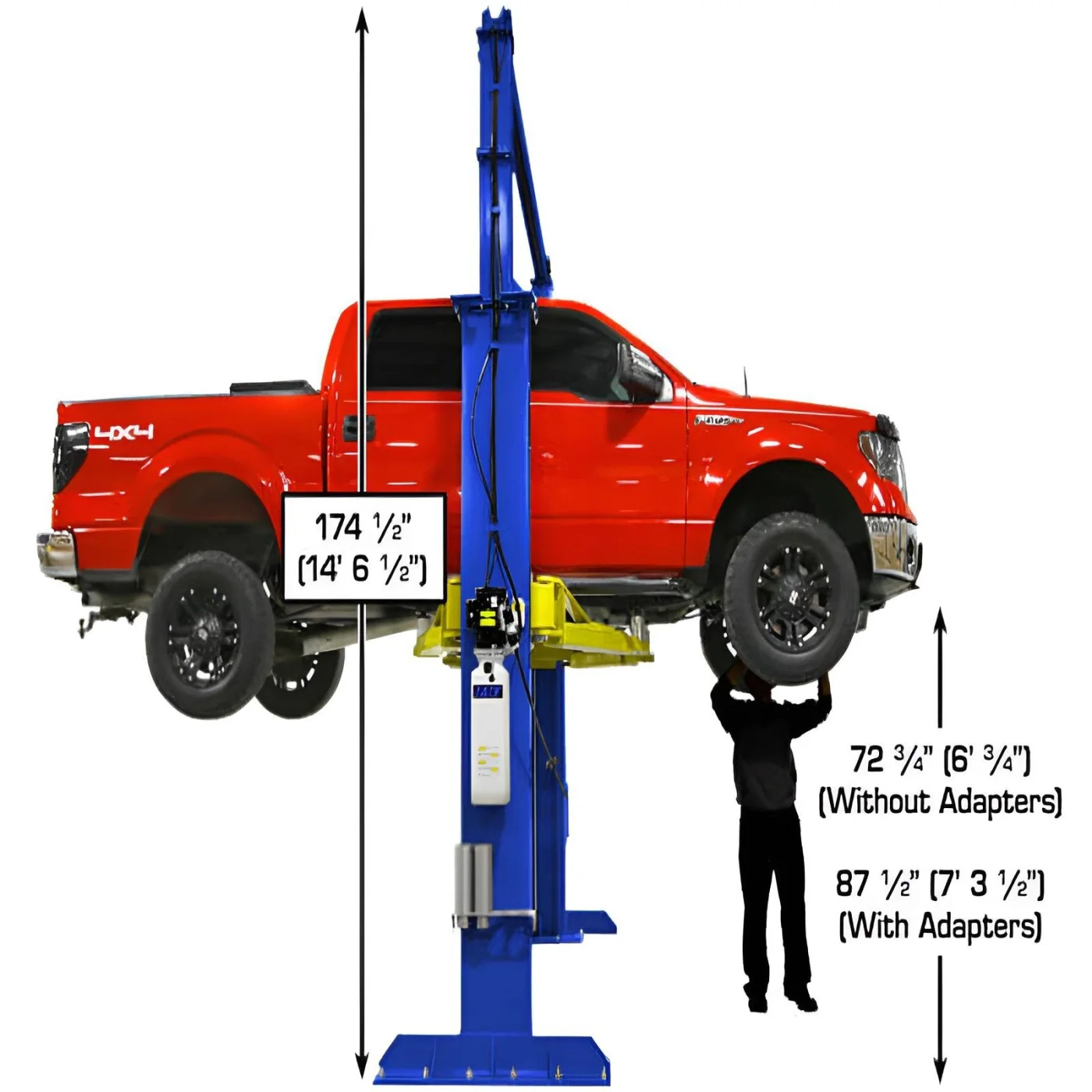

- Overall Height 174 1/2" (14' 6 1/2")

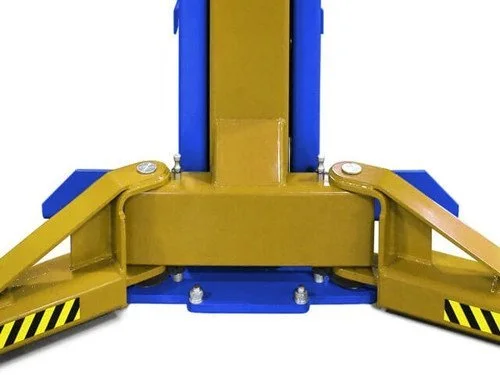

- Padded Carriages
- Symmetric Arms
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL15 |
| Condition |
New |
| Capacity |
15,000 lbs |
| Overall Height |
174 1/2" (14' 6 1/2") |

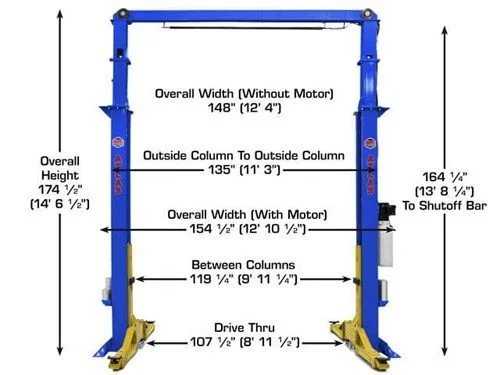

| Overall Floor Width |
148" (12' 4") |
| Outside Column to Outside Column |
135" (11' 3") |
| Max Lift Height w/Truck Adapters |
87 1/2" (7' 3 1/2") |
| Max Lift Height w/o Truck Adapters |
72 3/4" (6' 3/4") |
| Minimum Arm Height |
6" |

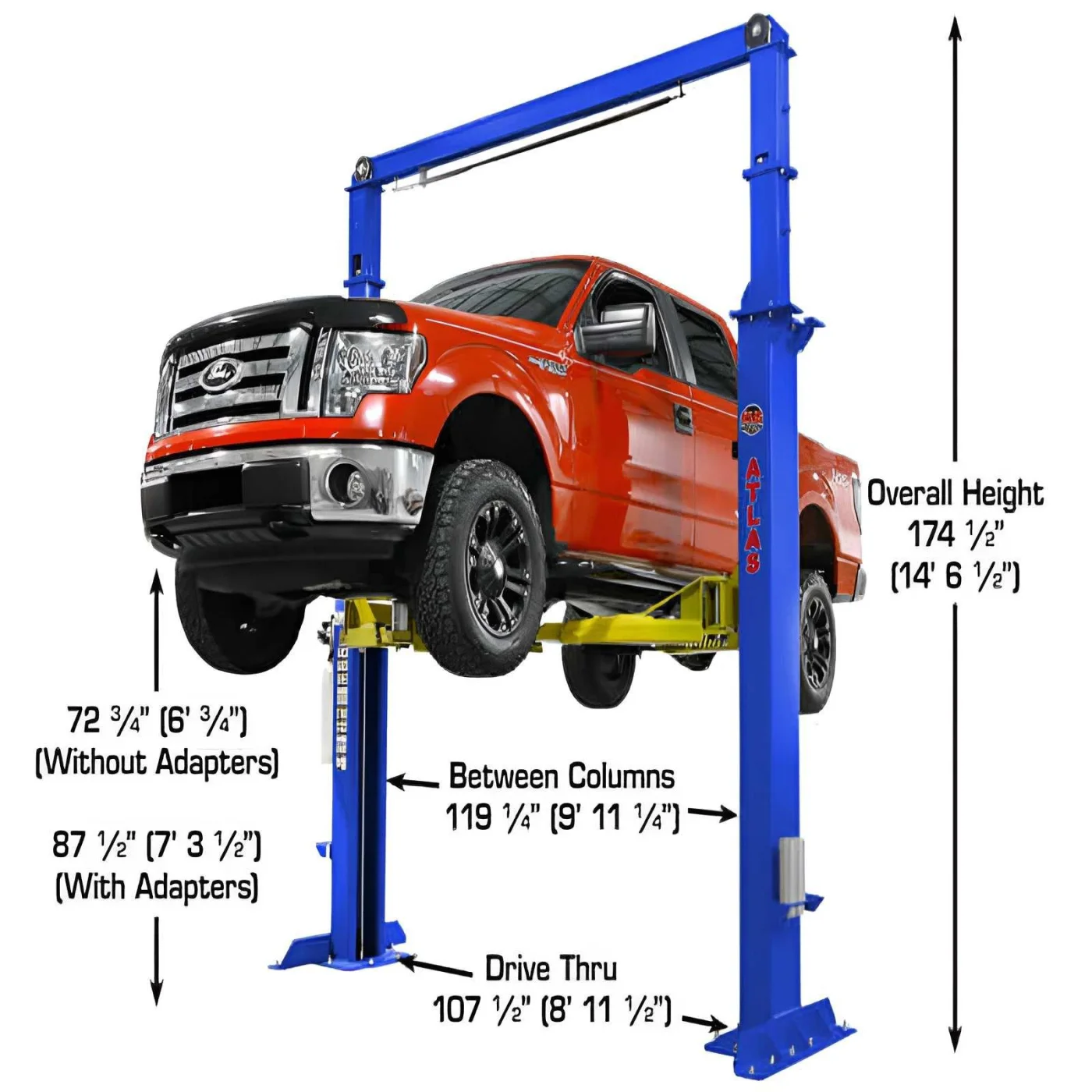

| Inside Columns |
119 1/4" (9' 11 1/4") |
| Drive Thru |
107 1/2" (8' 11 1/2") |

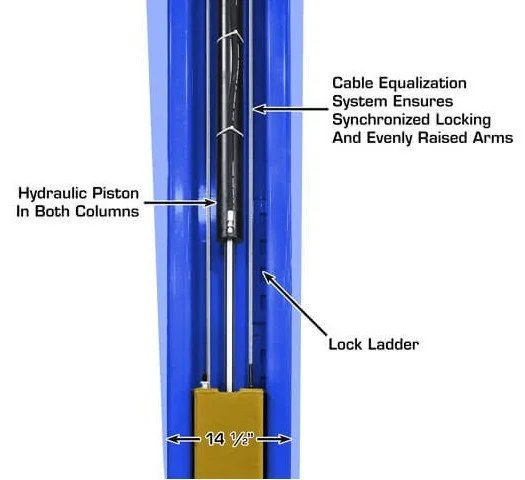

| Column Size |
8" x 14 1/2" |
| Lifting Time |
80S |
| Adapter Heights |
4 ea 5" & 10" |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Weight |
2,600 lbs |
| Lifting capacity |
15,000 lb |
| Lift type |
2 Post Lifts |
