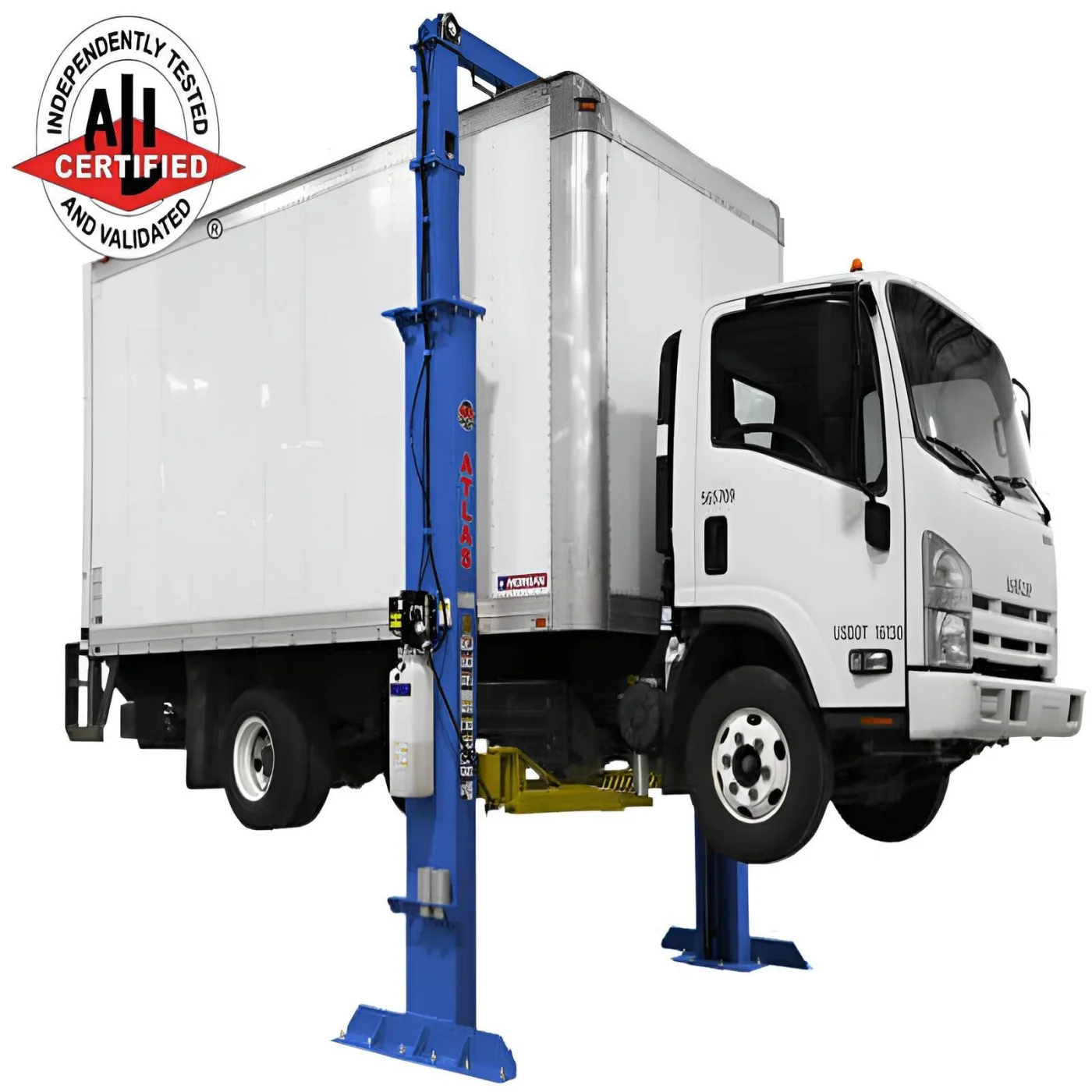

Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit
$13,639.98
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit is part of our 2 post lifts selection from Atlas Platinum.
- Lifting capacity: 15000 lb
15 in stock
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit
Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit is part of our 2 post lifts selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 15,000 lb capacity handles heavy-duty trucks, commercial vehicles, and passenger cars
- Extra-tall & extra-wide design with an overall height of 174 1/2" and overall floor width of 148"

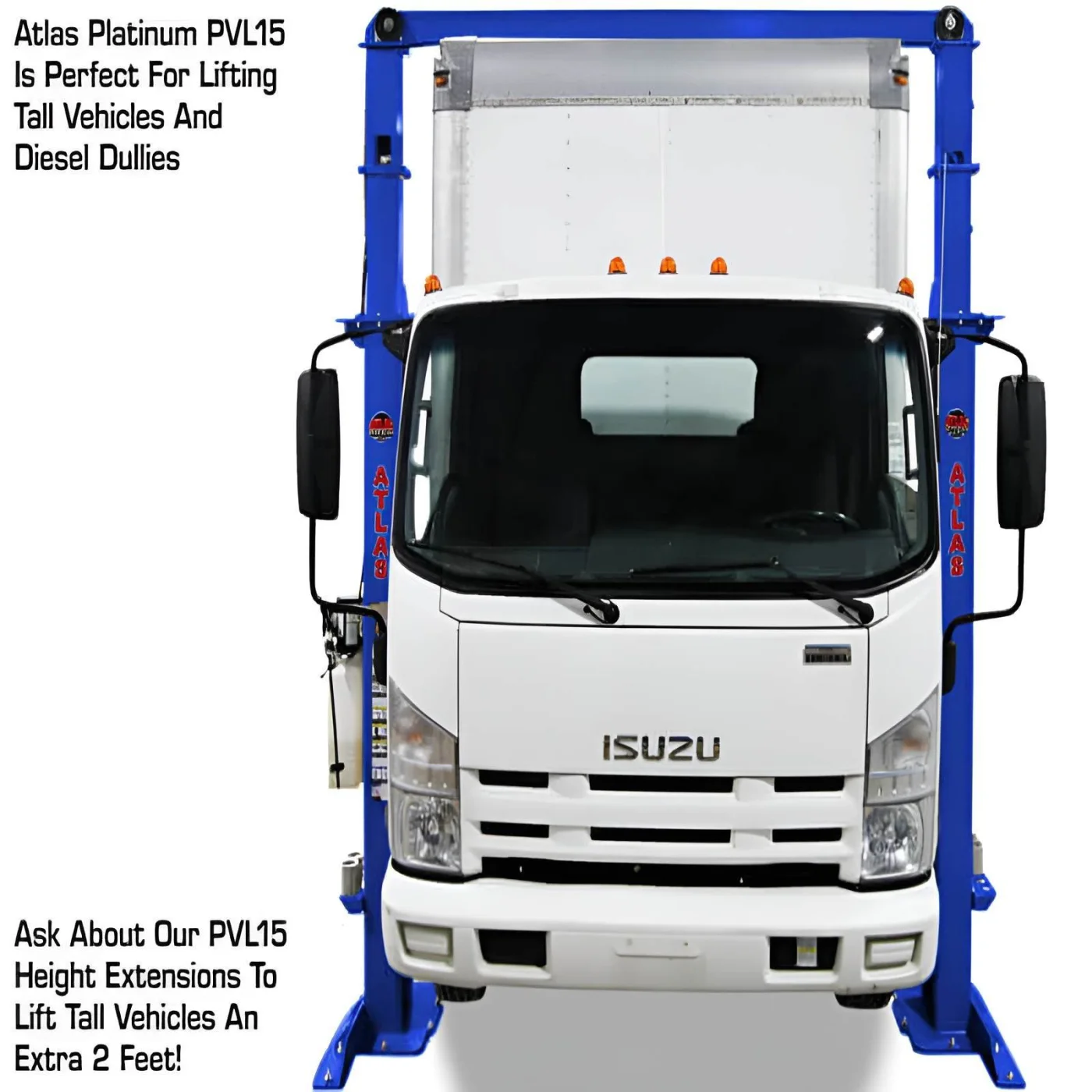

- Height Extension Kit included adds 2 feet of additional height for taller vehicles

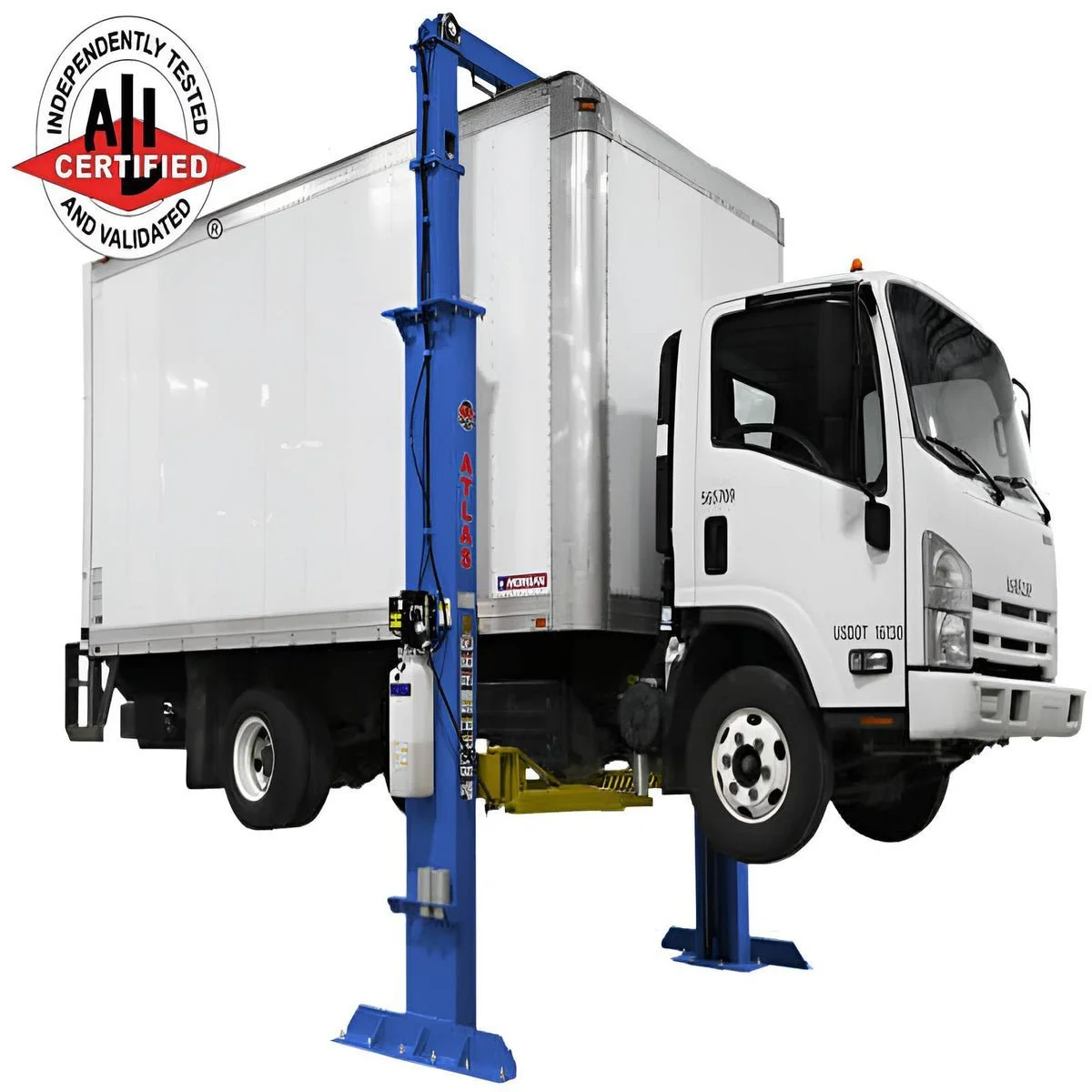

- ALI CERTIFIED for safety and compliance with industry standards

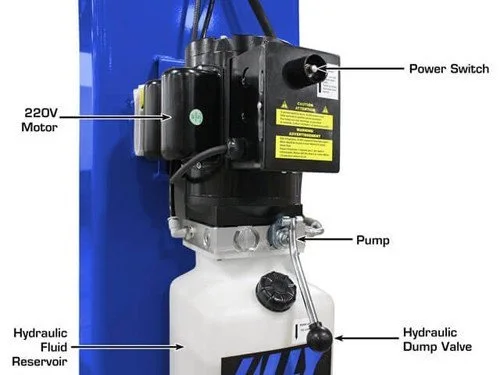

- Premium ALLY AL2300 Power Unit with advanced heat management and constant torque performance
- Includes free 8-piece truck adapter set and 4 screw-up frame adapters
- 220V single-phase power requirement with 30 amp breaker
- 8-piece truck adapter set 4 each of 5" and 10" adapter heights
- 4 screw-up frame adapters for versatile vehicle lifting

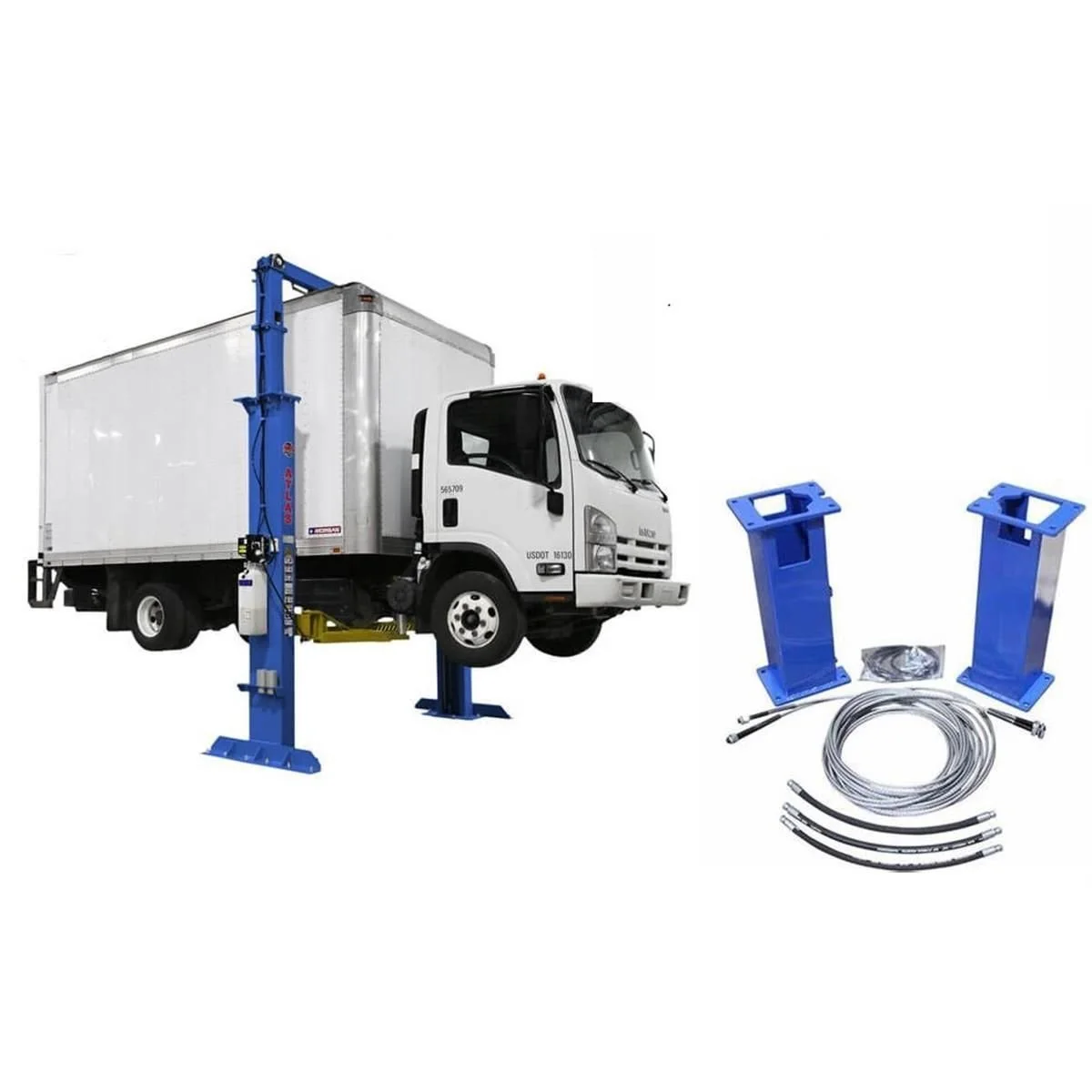

- AP-Z23A-00H1 Height Extension Kit (column extensions, longer hoses, and cables)
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL15-EXT |
| Condition |
New |
| Capacity |
15,000 lbs |

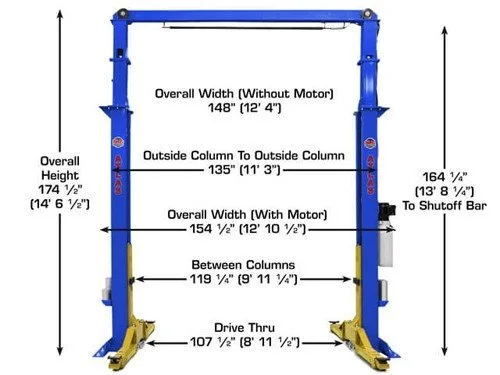

| Overall Height |
174 1/2" (14' 6 1/2") |
| Overall Floor Width |
148" (12' 4") |
| Outside Column to Outside Column |
135" (11' 3") |

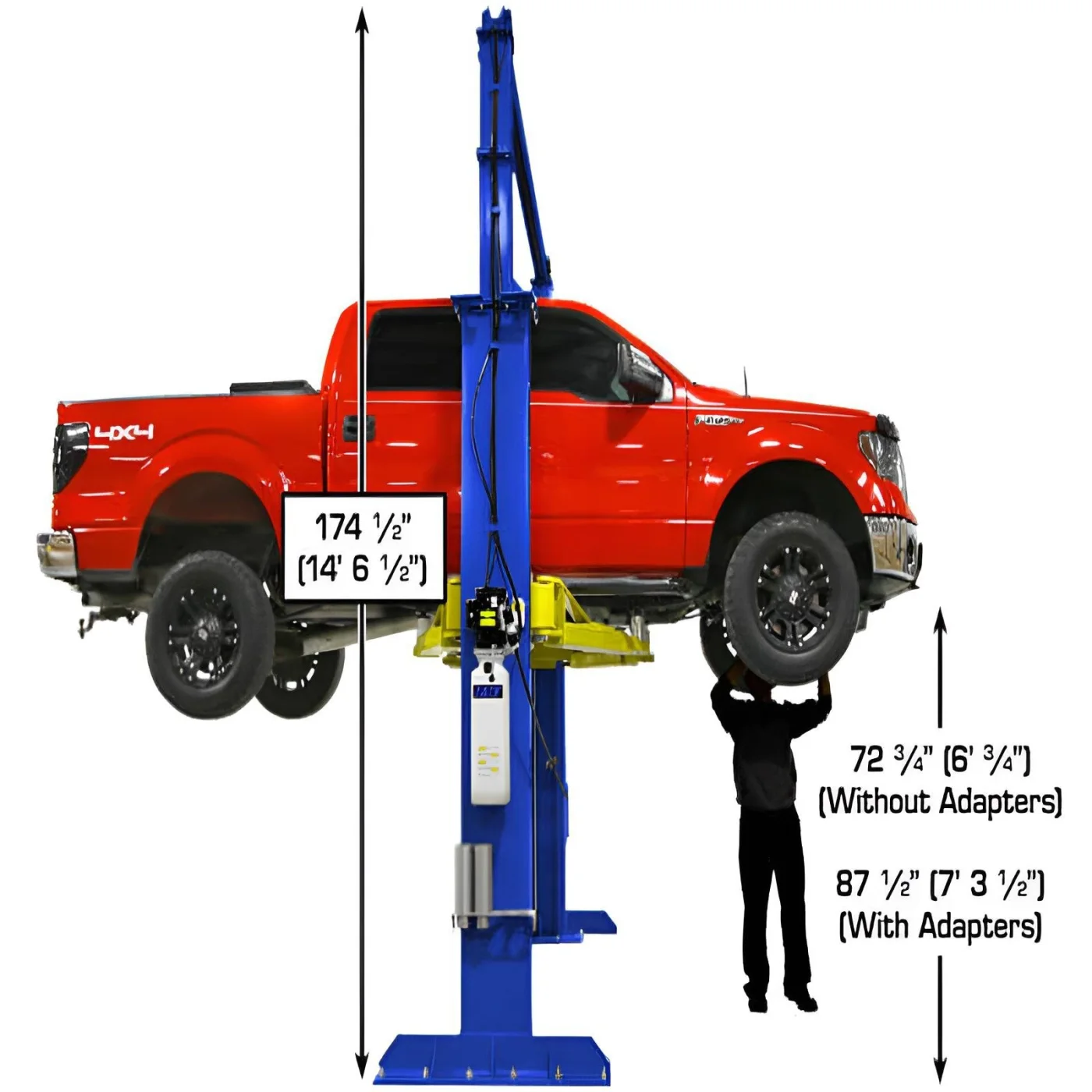

| Max Lift Height w/Truck Adapters |
87 1/2" (7' 3 1/2") |
| Max Lift Height w/o Truck Adapters |
72 3/4" (6' 3/4") |
| Minimum Arm Height |
6" |

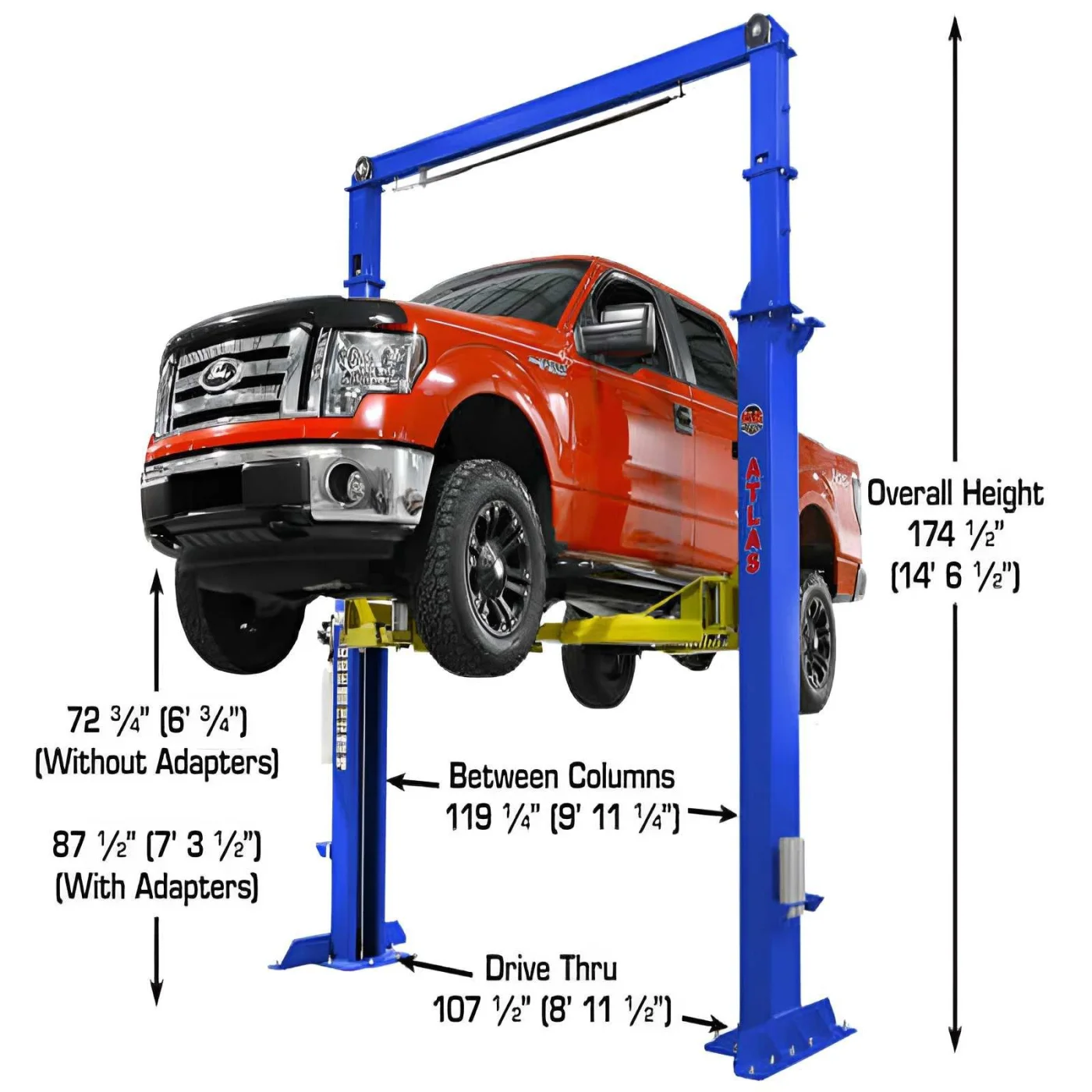

| Inside Columns |
119 1/4" (9' 11 1/4") |
| Drive Thru |
107 1/2" (8' 11 1/2") |
| Column Size |
8" x 14 1/2" |
| Lifting Time |
80S |
| Adapter Heights |
4 ea 5" & 10" |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Weight |
2,600 lbs |
| Lifting capacity |
15,000 lb |
| Lift type |
2 Post Lifts |
