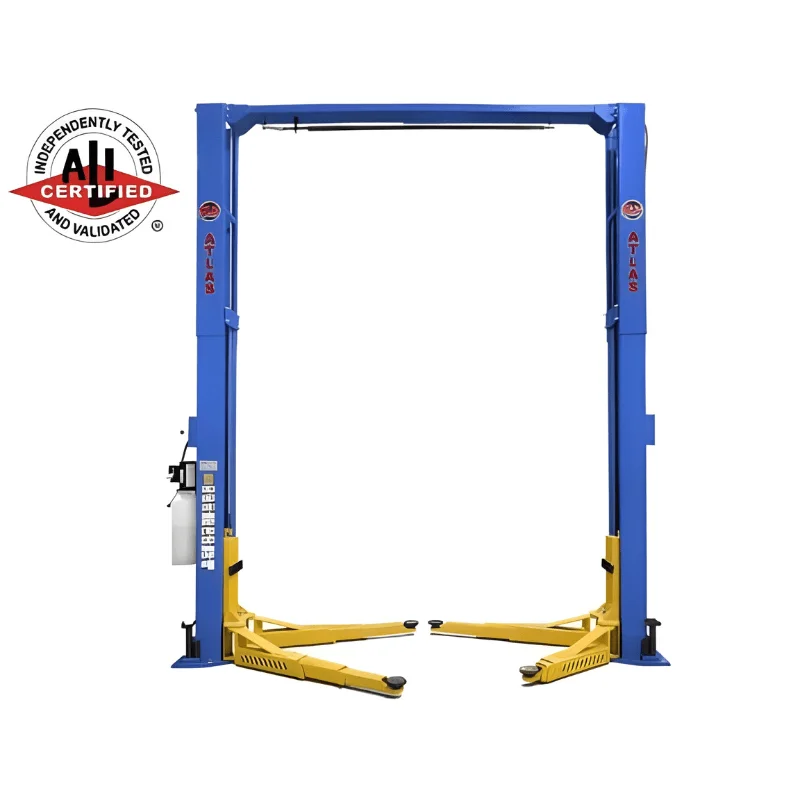

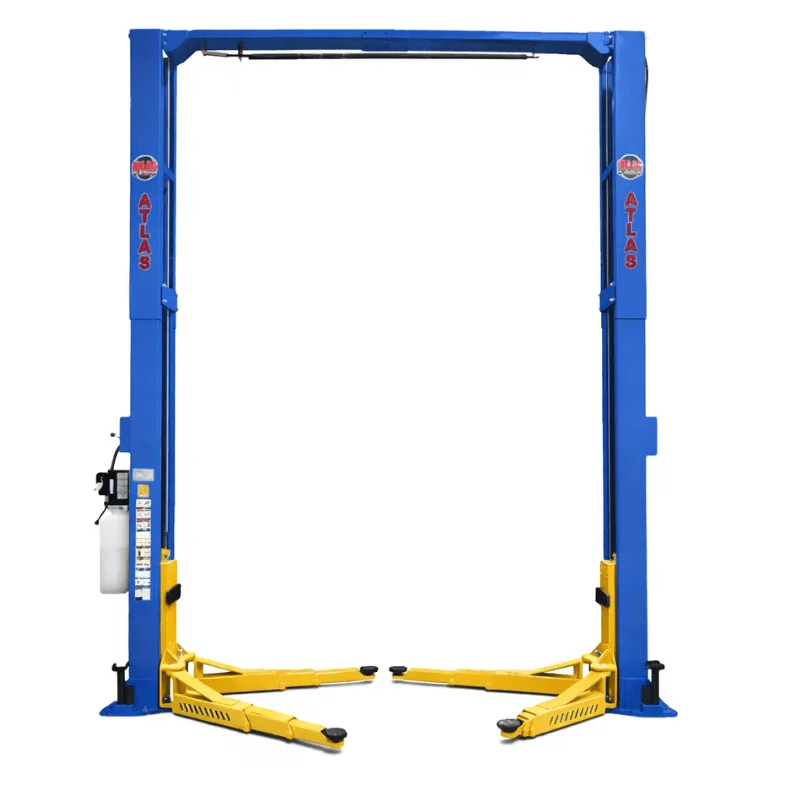

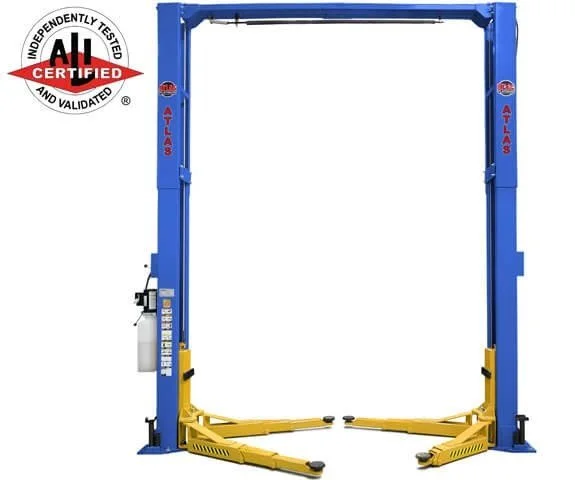

Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs
$7,799.00
Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
- Lifting capacity: 12000 lb
Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs
Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 8-Piece Truck Adapter Set: Allows you to safely lift trucks and larger vehicles with higher ground clearance—no additional purchase required.
- All Mounting Hardware: Everything you need for professional installation is included in the box, so you can get up and running quickly.
- Extra Heavy-Duty Armatures: Built to withstand the rigors of daily commercial use, providing consistent performance over thousands of lift cycles.
- Enhanced Motor Windings: Increased silver metal content in wires and connections dramatically reduces electrical resistance and heat generation.
- Constant Torque Output: Maintains steady lifting power from start to finish, eliminating the slowdowns and stuttering common in lesser power units.
- Fast Lifting Time: The PVL12 reaches full height in just 55 seconds, keeping your workflow moving and maximizing shop productivity.
- MET Certified: Meets rigorous electrical safety standards for use in both the United States and Canada.
- Powder Coat Finish: Durable, professional finish resists chipping, scratching, and rust—keeping your lift looking sharp for years.

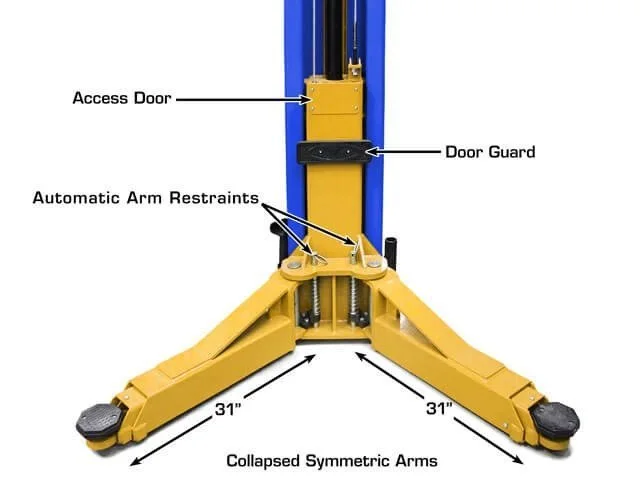

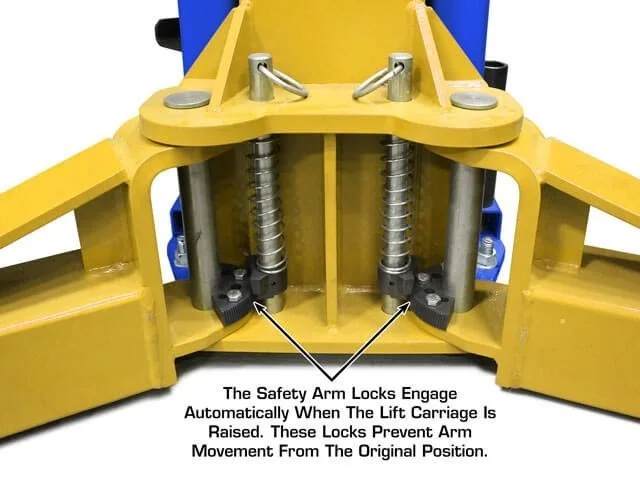

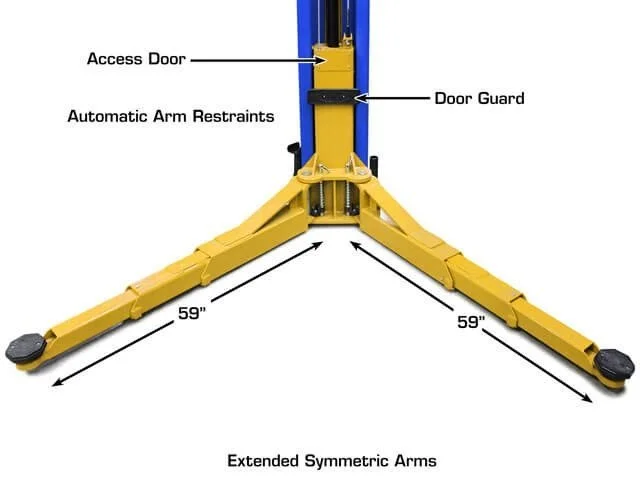

- Automatic Arm Restraints: Secure arms in position during adjustment, preventing accidental slippage and improving technician safety.
- Thick Rubber Door Guards: Mounted on the carriage to protect vehicle doors and body panels during positioning and lifting.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL12 |
| Condition |
New |
| Capacity |
12,000 lbs |

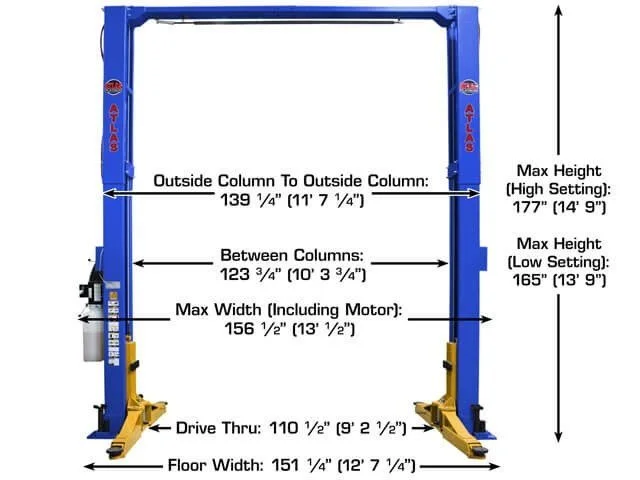

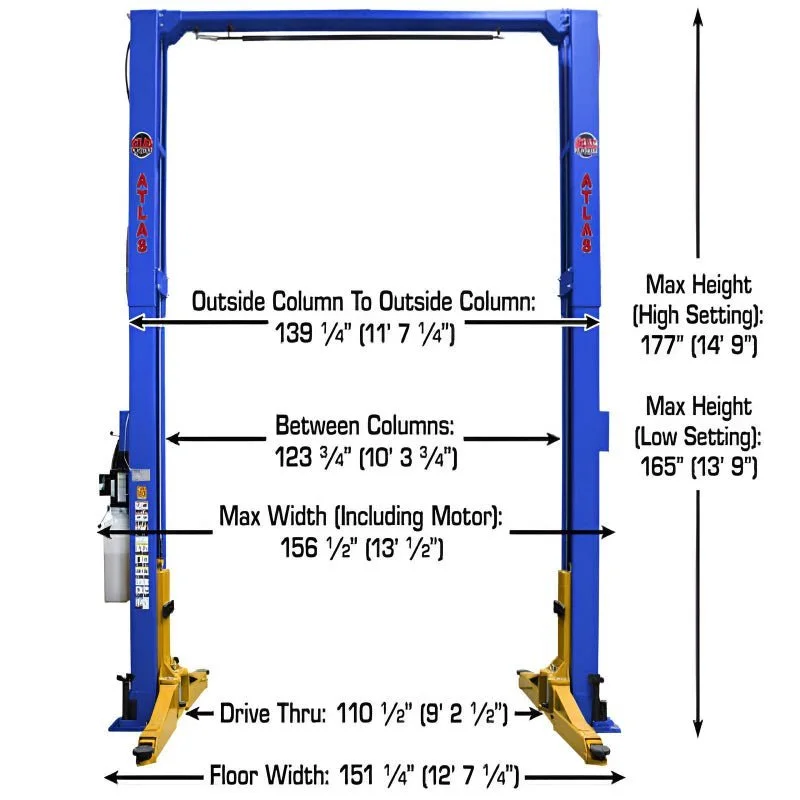

| Overall Height |
Low Setting: 165" (13' 9") / High Setting: 177" (14' 9") |
| Overall Floor Width |
150 3/8" (12' 6 3/8") |
| Outside Column to Outside Column |
139 1/8" (11' 7 1/8") |
| Inside Column |
122 5/8" (10' 2 5/8") |
| Drive Thru |
109 1/2" (9' 1 1/2") |

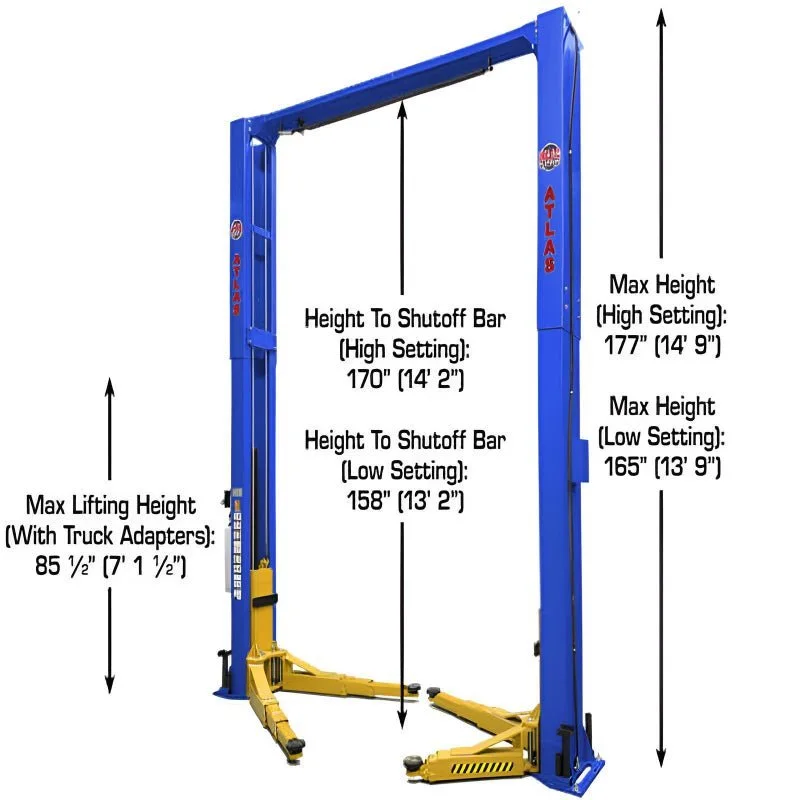

| Max Lift Height w/Truck Adapters |
85 1/2" (7' 1 1/2") |
| Max Lift Height w/o Truck Adapters |
73 5/8" (6' 1 5/8" |
| Min Lowered Height |
4 1/2" |

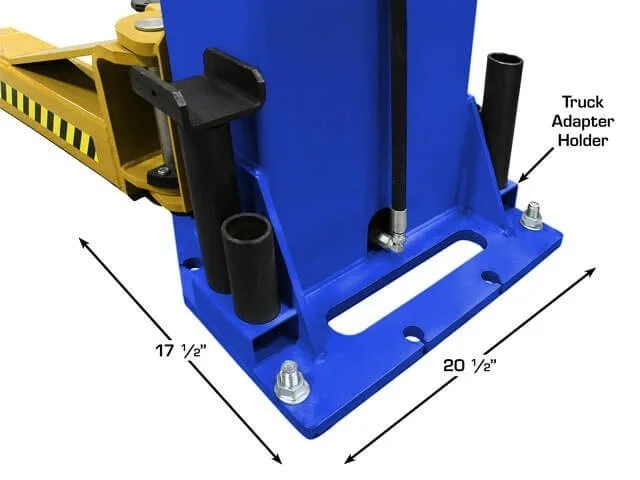

| Column Dimensions |
7 1/2" x 14 1/2" |
| Lifting Time |
55S |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |

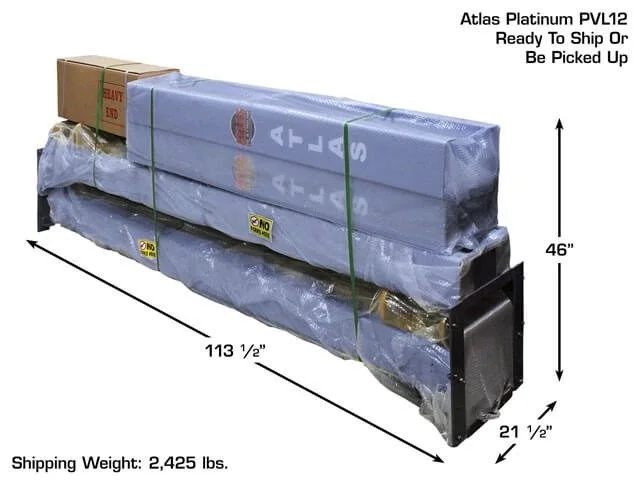

| Weight |
2,425 lbs |
| Lifting capacity |
12000 lb |
| Lift type |
2 Post Lifts |
