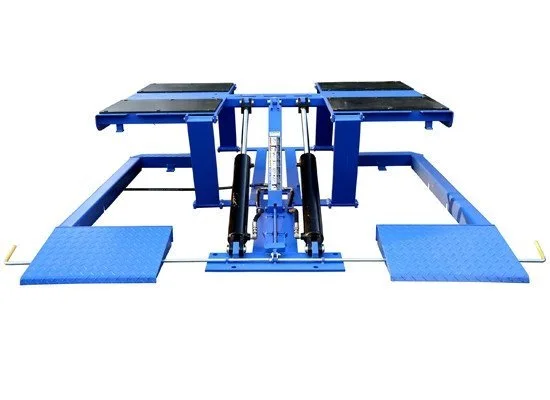

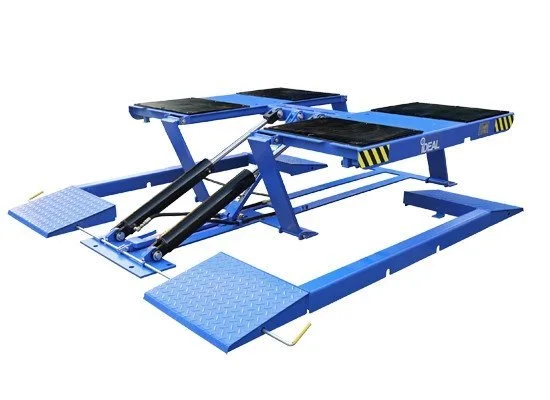

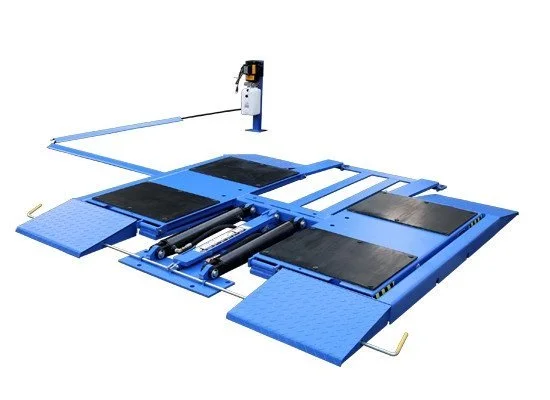

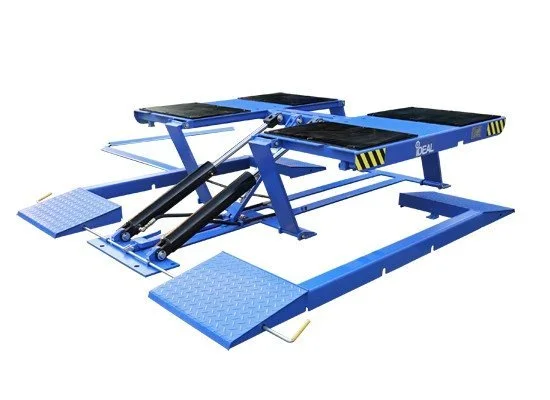

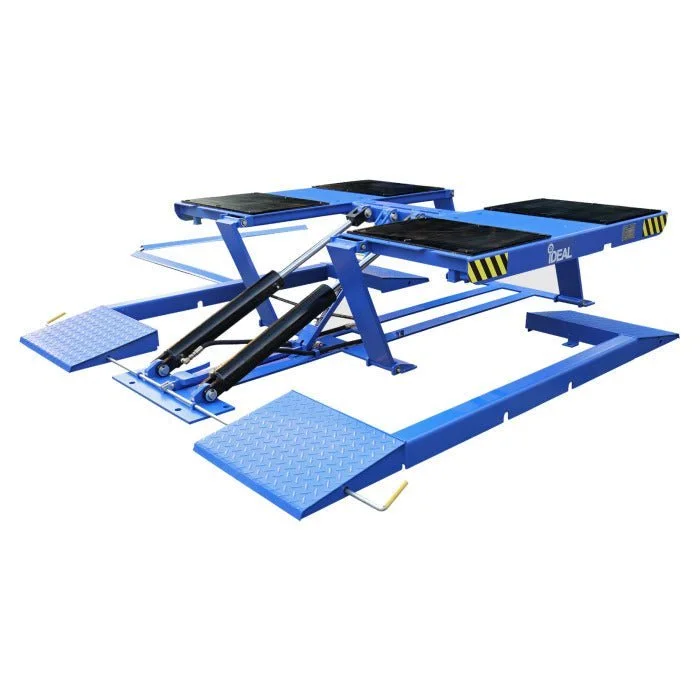

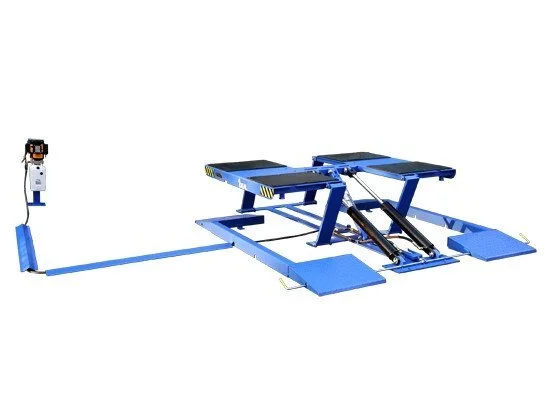

iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift 10,000 lbs.
$4,130.00
iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift 10,000 lbs. is part of our low-rise lifts selection from iDeal Lift.
- Lifting capacity: 10000 lb
14 in stock
iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift 10,000 lbs.
iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift 10,000 lbs. is part of our low-rise lifts selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.

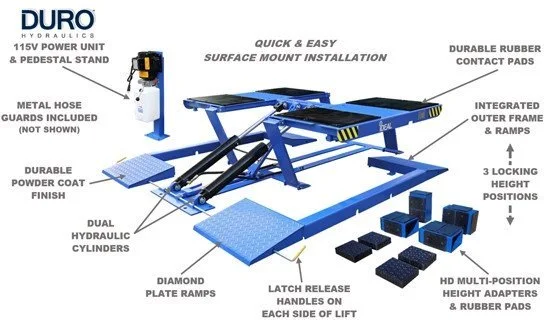

Equipment details
- 10,000 lbs. capacity handles cars, SUVs, vans, and light trucks with confidence
- Surface mount installation no in-ground work required, faster setup and lower installation cost

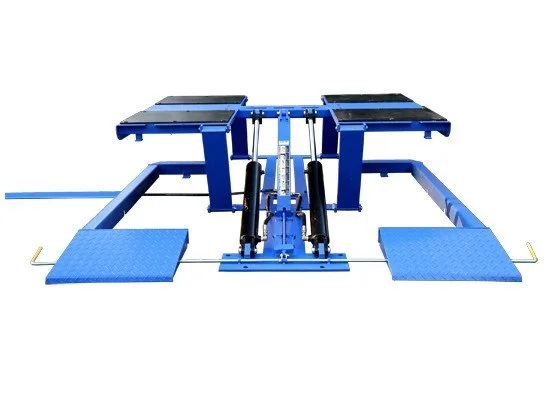

- Integrated outer frame with diamond plate ramps allows drive-on/drive-off clearance for wide vehicles
- Three locking height positions (13.5", 17.25", 21.5") with dual latch release handles on each side

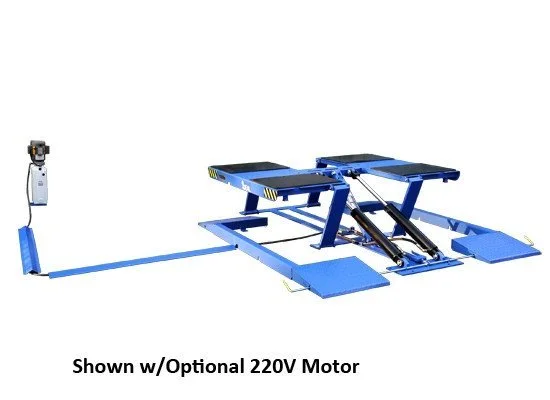

- Optional 220V power unit reduces lift speed to 36 seconds for 40% faster operation

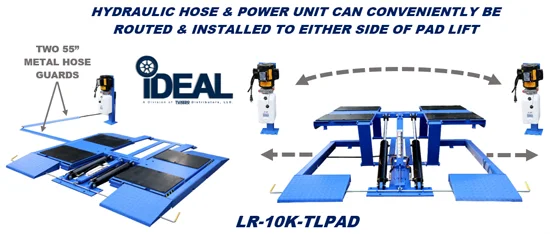

- Power unit pedestal stand keeps the power unit secure and accessible
- Metal hose covers (2ea, 55"L) protect hydraulic lines from damage
- HD multi-position height adapters (4ea) lift uni-body and frame vehicles safely
- 1.5" rubber pads (4ea) provide additional lift point cushioning and grip
- Provides 40% faster speed of rise at just 36 seconds
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
LR-10K-TLPAD-V001 |
| Condition |
New |
| Capacity |
10,000 lbs. |
| Overall Length |
91" |
| Overall Width |
88-5/8" |
| Max Rise Height |
22-1/2" |
| Max Lift Height w/ Tall Adapter |
30-3/4" |
| Min Lift Height |
4-1/4" |
| Platform Pad Length |
51-1/4" |
| Platform Pad Width |
24" |
| Platform Outer Width |
70-3/4" |
| Platform Forward Movement |
15" |
| Platform Locking Heights |
13.5", 17.25", & 21.5" |
| Lift Speed 115V / Optional 220V |
60 / 36 Seconds |
| Power (Corded Drill Not Included) |
115V / 1 Phase / 20 Amp |
| Shipping Weight |
1,262 lbs. |
| Lifting capacity |
10000 lb |
| Lift type |
Low-Rise Lifts |
