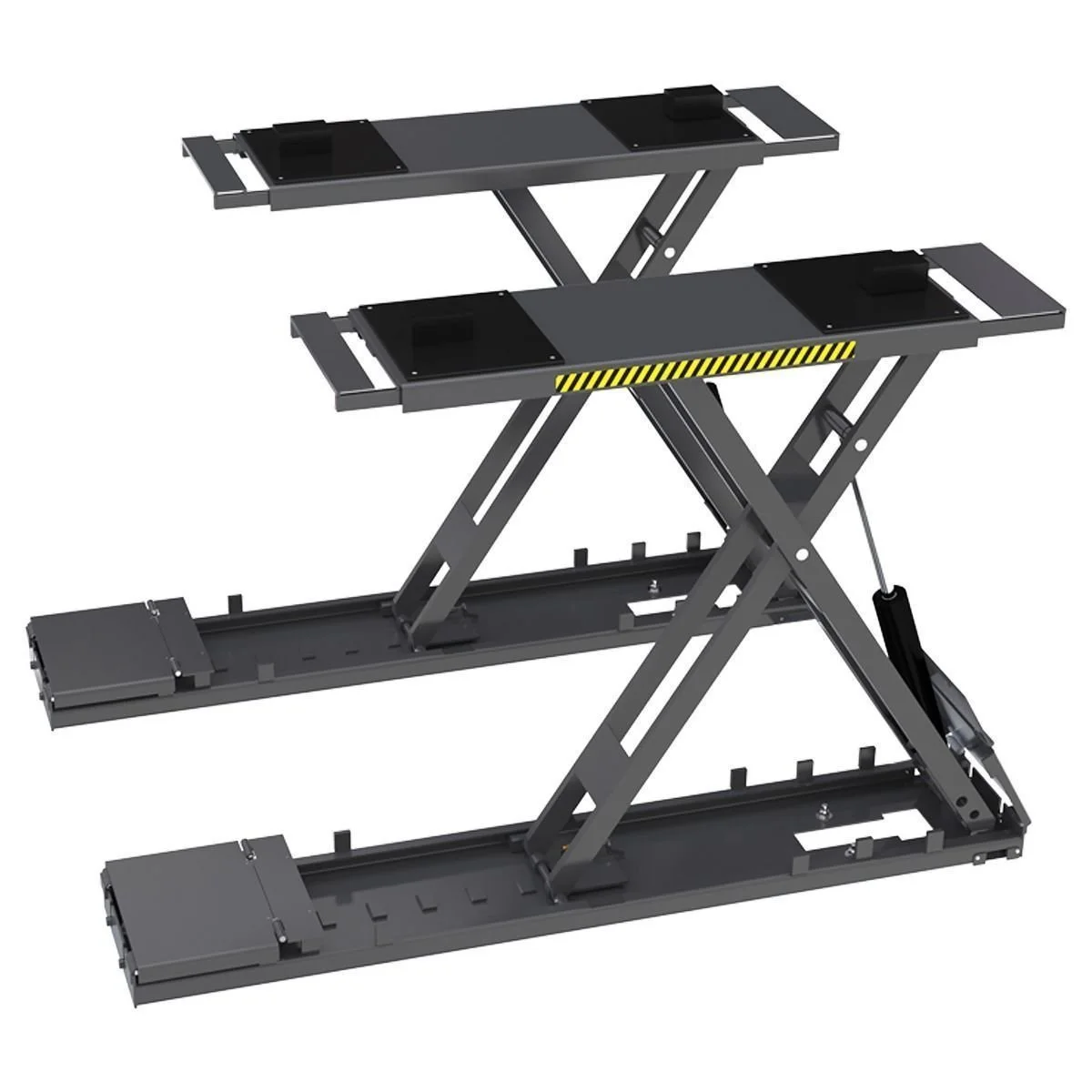

BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb.
$10,295.00
BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb. is part of our scissor lifts selection from BendPak.
- Lifting capacity: 7000 lb
9 in stock
BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb.
BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb. is part of our scissor lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 7,000 lb. lifting capacity handles a wide range of passenger vehicles, light trucks, and SUVs

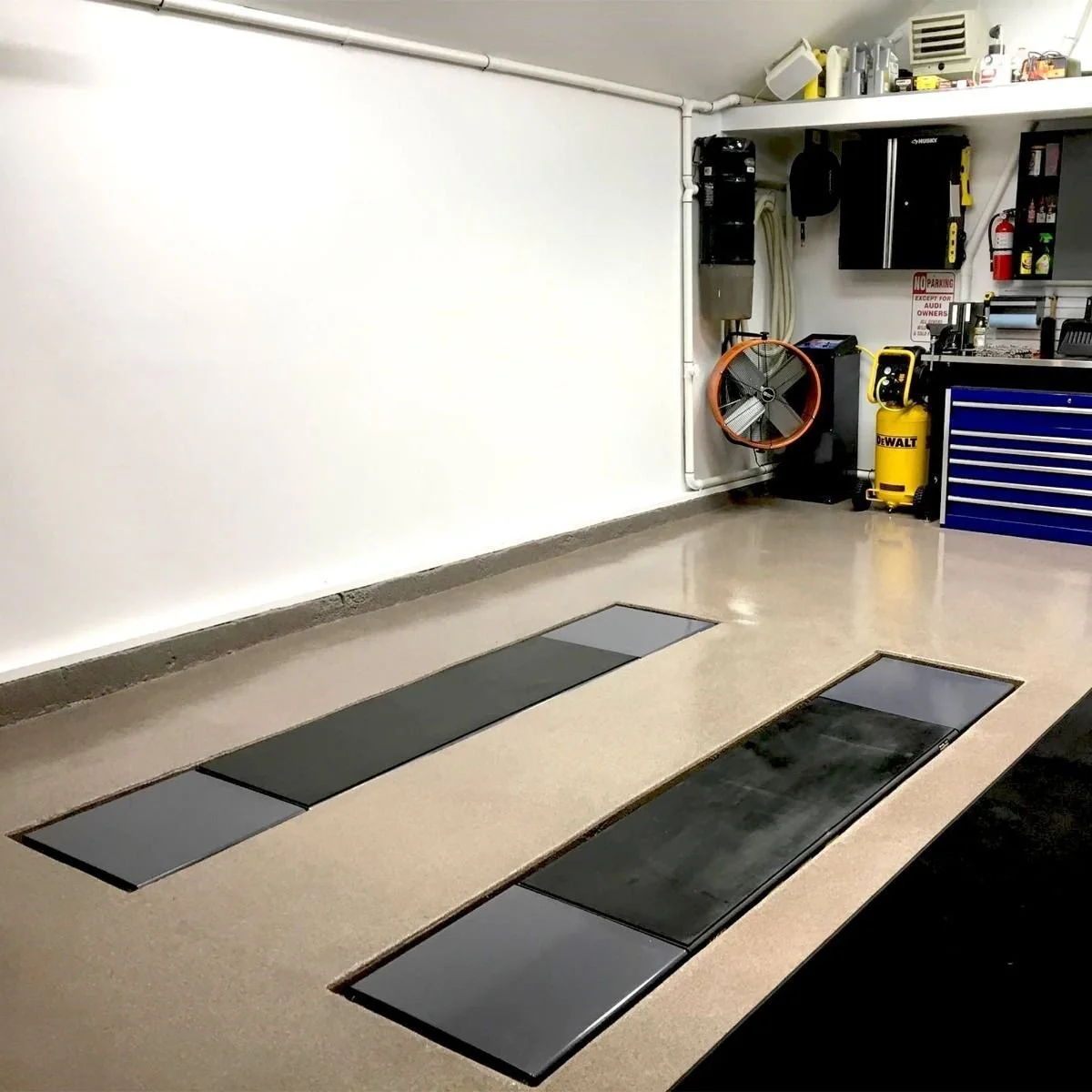

- Flush-mount design installs level with your concrete floor for a virtually invisible profile when lowered
- Full-rise capability maximum height of 70.5 inches provides excellent standing clearance for undercarriage work
- Eight precision locking heights from 24.75" to 70" for maximum service flexibility
- Open-center, no cross member unobstructed access to all critical undercarriage areas
- Dual hydraulic cylinders extra power and built-in safety redundancy for balanced lifting
- Pneumatic safety locks easy remote engagement and disengagement from the operator station
- Quick lifting time raises to full height in approximately 45 seconds
- Flush-mount
- 7,000-lb. lifting capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175425 |
| Condition |
New |
| Lifting Capacity |
7,000 lbs. (3,175 kg) |
| Overall Length |
105.5" (2,692 mm) |
| Overall Width – Max |
87.5" (2,222 mm) |
| Overall Width – Min |
81.5" (2,072 mm) |
| Single Platform Length |
62.5" (1,590 mm) |
| Single Platform Width |
22" (554 mm) |
| Max Height Raised |
70.5" (1,791 mm) |
| Lowered Lift Height |
Flush with Concrete |
| Lifting Time |
45 sec |
| Fully Lowered |
6.5" (165 mm) |
| 1st Lock Position |
24.75" (629 mm) |
| 2nd Lock Position |
37.5" (953 mm) |
| 3rd Lock Position |
46" (1,168 mm) |
| 4th Lock Position |
52.75" (1,340 mm) |
| 5th Lock Position |
58" (1,473 mm) |
| 6th Lock Position |
62.75" (1,594 mm) |
| 7th Lock Position |
66.5" (1,689 mm) |
| 8th Lock Position |
70" (1,778 mm) |
| Full Rise |
70.5" (1,791 mm) |
| Motor |
208-240 VAC / 50-60 Hz / 1Ph |
| Shipping Weight |
2,218-lbs. (1,006 kg) |
| Shipping Dimensions |
105" x 27" x 45" (2,667 mm x 685 mm x 1,143 mm) |
| Lifting capacity |
7000 lb |
| Lift type |
Scissor Lifts |
| Phase |
Single phase |
| Voltage |
208–240 V |
