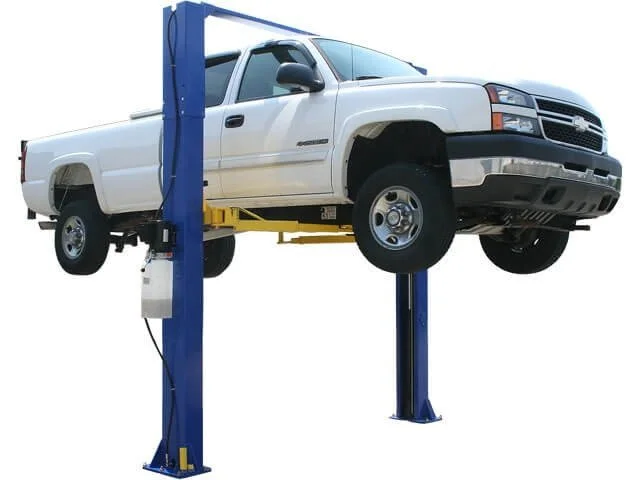

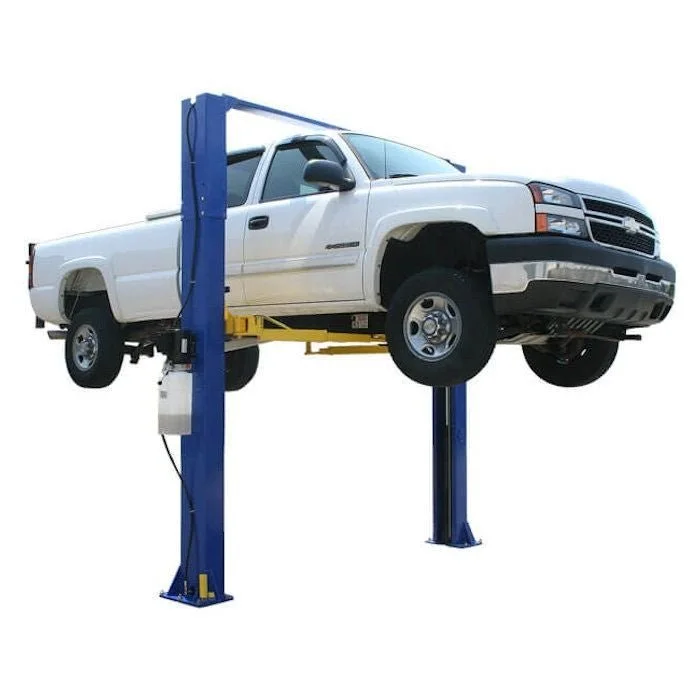

Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs
$2,599.00
Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
13 in stock
Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs
Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 8-Piece Truck Adapter Set for versatile vehicle positioning
- Sliding Arm Adapters for enhanced flexibility
- Complete Mounting Hardware for secure installation
- 9,000 lb lifting capacity handles cars, trucks, and SUVs with ease
- Adjustable height options: 11' 6" or 11' 10" overall height for flexible installation
- Asymmetric & symmetric arm configurations for versatile vehicle positioning and door clearance
- Maximum lift height of 81 inches with adapters (74.5" without) – plenty of working room
- Overhead, open-floor design keeps the workspace clear and accessible
- Dual hydraulic chain-drive cylinders with automatic secondary lock system for enhanced safety
- Includes free truck adapter set and sliding adapters ready to work out of the box
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-9KOHX |
| Condition |
New |
| Important: Cylinder Bleeding Procedure |
After installation, immediately perform the Cylinder Bleeding Procedure to ensure safe, optimal lift performance. |
| Capacity |
9,000 lbs |
| Lifting Time |
N/A |
| Overall Height |
138" (11' 6") or 142" (11' 10") |
| Overall Width w/Power Unit |
141" (11' 9") |
| Overall Width w/o Power Unit |
134 ¼" (11' 2 ¼") |
| Outside Column To Outside Column |
124 7/8" (10' 4 7/8") |
| Maximum Lift Height w/o Adapters |
74 1/2" |
| Maximum Lift Height w/Adapters |
81" |
| Padded Bar Height |
136" (11' 4") or 132" (11') |
| Minimum Arm Height |
4" |
| Drive Thru Arm Configuration |
100" (8' 4") Symmetric / 90 ½" (7' 6 ½") Asymmetric |
| Inside Column |
109 ¾" (9' 1 ¾") |
| Base Of Lift |
4 1/4" x 18" |
| Column Size |
7-1/4" x 11" |
| Column Thickness of Steel |
5mm |

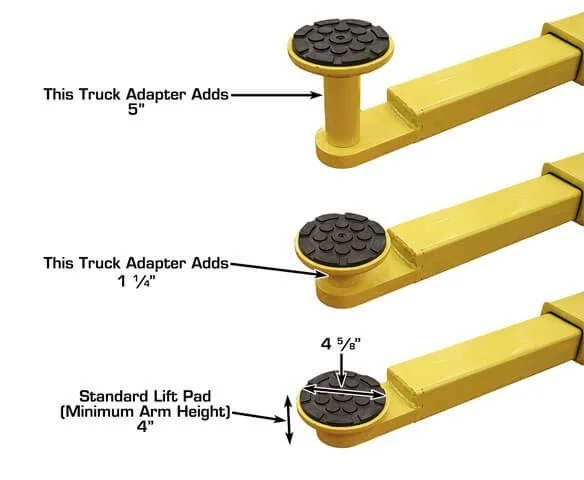

| Adapter Heights/ Peg Size |
4 ea.- 1.5" & 5" / 1.5" (Arm Hole) |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
1,450 LB. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
