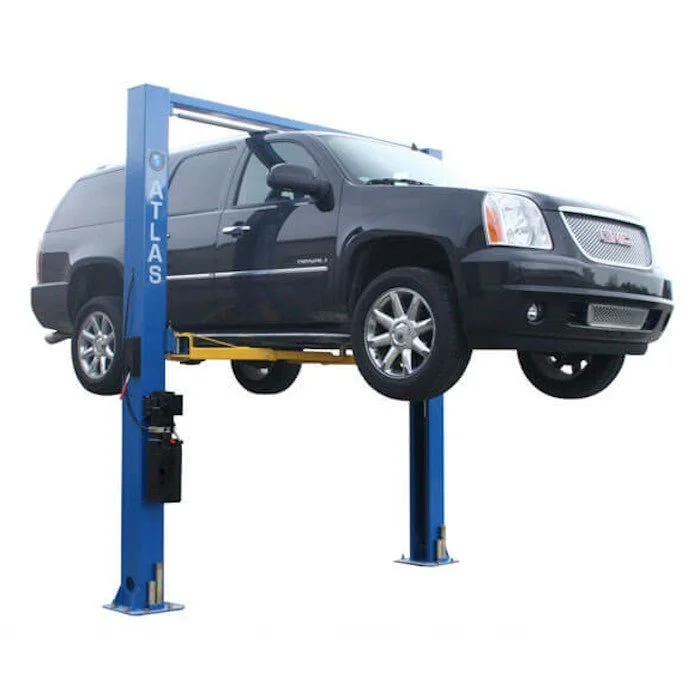

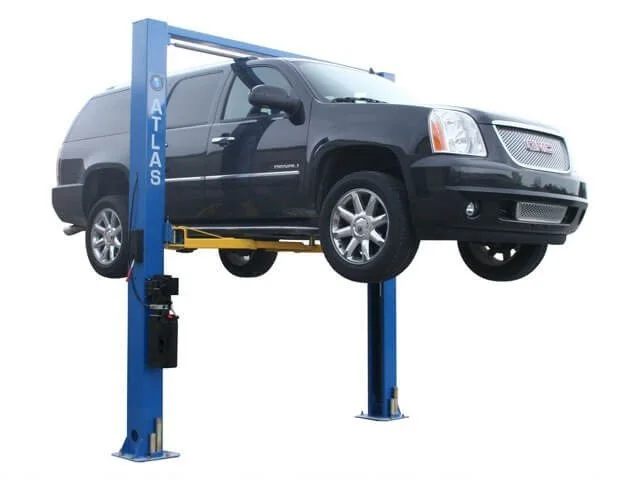

Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs
$3,099.00
Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
5 in stock
Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs
Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb. capacity handles a wide range of vehicles from compact cars to full-size SUVs and light trucks
- Overhead, open-floor design symmetric configuration maximizes workspace and drive-thru clearance of 100 ½"
- Single-piece column construction eliminates welds and weak points for maximum strength and reliability

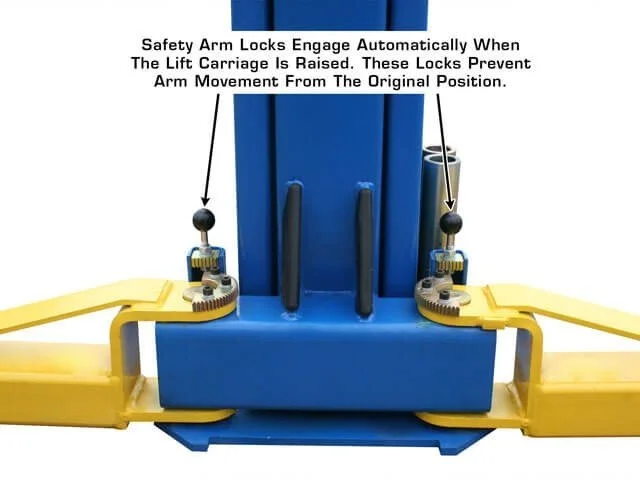

- 3-stage front arms and 2-stage rear arms offers flexible positioning with a minimum arm height of just 4 inches
- Free 12-piece truck adapter set included – ready to lift trucks and larger vehicles right out of the box

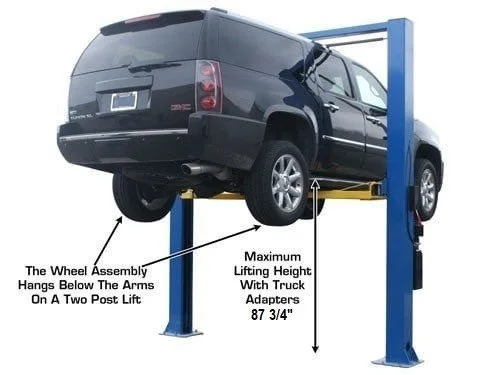

- Maximum lift height of 87 ¾" with adapters – provides ample clearance for working underneath vehicles
- Complete Atlas® 9OHSC-SS two post lift assembly
- Mounting hardware for installation
- 12-piece truck adapter set (4 each of 2", 3", and 6" adapters)
- Comprehensive installation manual
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-9OHSC-SS |
| Condition |
New |
| Capacity |
9,000 lbs |

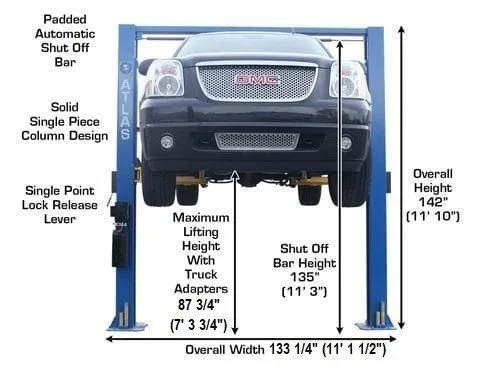

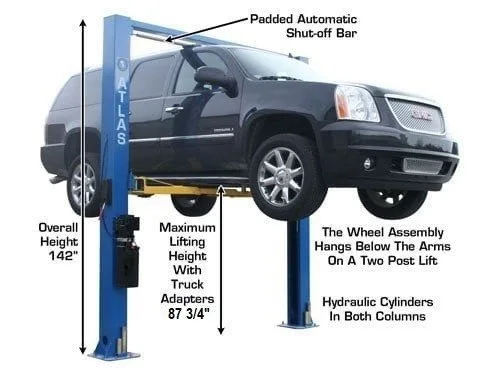

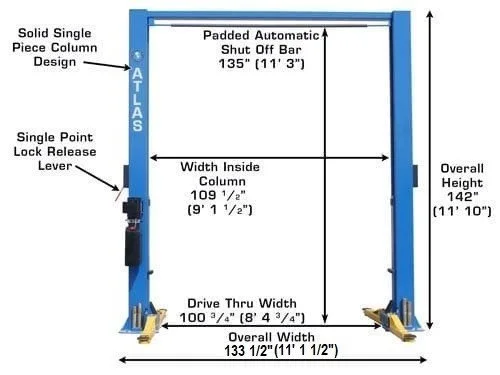

| Overall Height |
142" (11' 10") |
| Overall Floor Width |
133 ½" (11' 1 ½" ) |

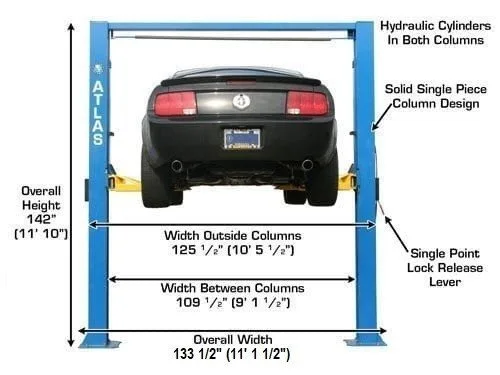

| Outside Column To Outside Column |
125 ½" (10' 5 ½") |

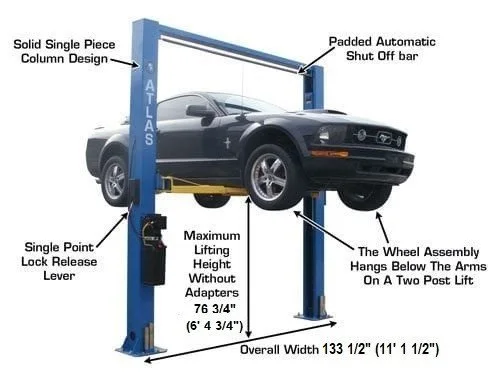

| Maximum Lift Height w/o Adapters |
76 3/4" |

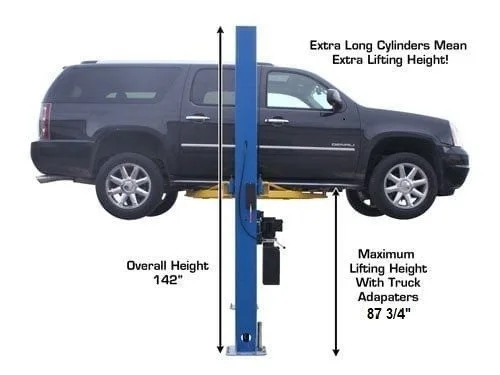

| Maximum Lift Height w/Adapters |
87 3/4" |
| Minimum Arm Height |
4" |
| Inside Column |
109 ½" (9' 1 ½") |
| Drive Thru |
100 1/2” (8’ 4 1/2”) |

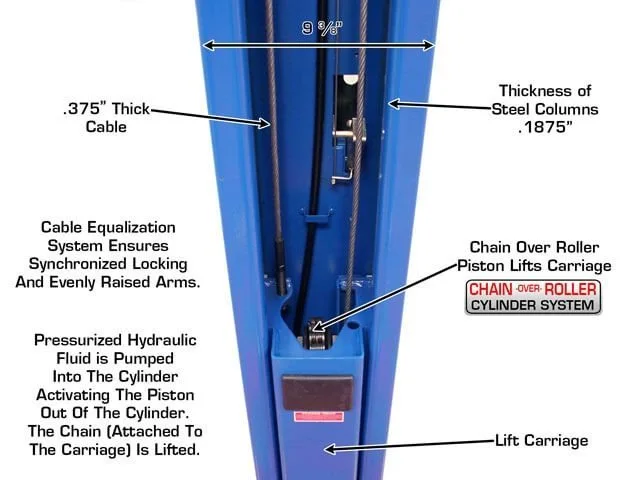

| Column Size |
8" x 9 3/8" |
| Column Thickness of Steel |
5mm |
| Base of Lift |
16 ¾" x 17 ¾" |
| Adapter Heights |
4 Each – 2", 3", 6" |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT Included) |
| Arm Hole/Adapter Peg Size |
1.5" |
| Shipping Weight |
1,430 lbs. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
