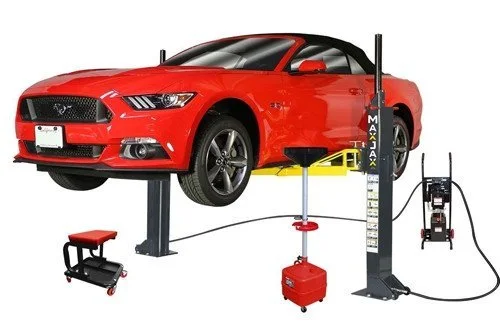

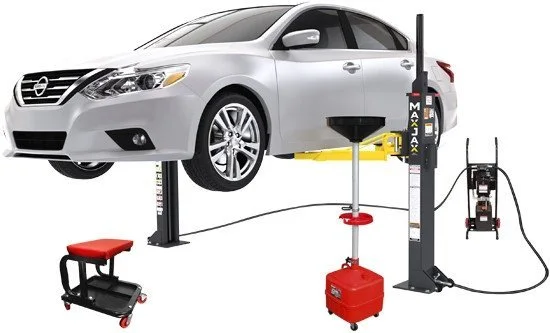

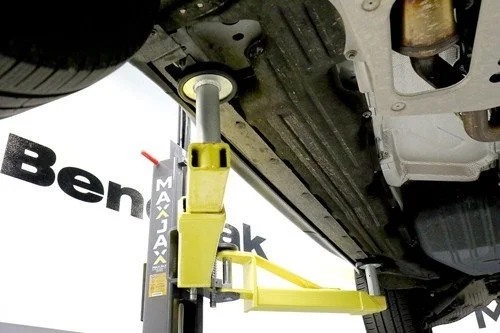

MaxJax® M7K Portable Two Post Garage Lift – Deluxe Package
$5,295.00
MaxJax® M7K Portable Two Post Garage Lift – Deluxe Package is part of our portable vehicle lifts selection from MaxJax.
- Lifting capacity: 7,000 lbs. (2,722 kg)
8 in stock
MaxJax® M7K Portable Two Post Garage Lift – Deluxe Package
MaxJax® M7K Portable Two Post Garage Lift – Deluxe Package is part of our portable vehicle lifts selection from MaxJax.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 7,000 lbs. Lifting Capacity handles everything from compact cars to full-size trucks and SUVs

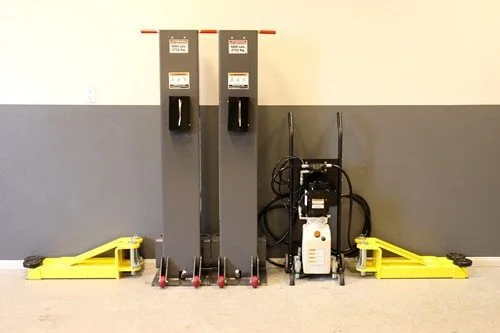

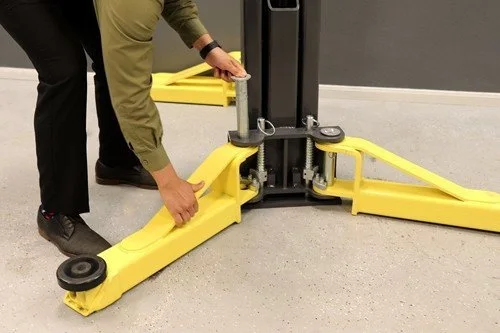

- True Portability built-in wheels and quick-connect hydraulics let you set up or stow away in under 15 minutes

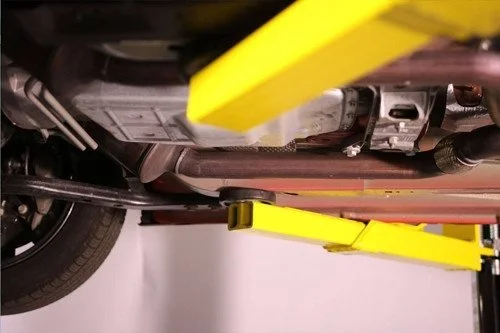

- Superior Under-Car Clearance maximum work space and unobstructed access to critical components
- HVLP Direct-Drive Technology low-pressure hydraulic cylinders eliminate chains and screw mechanisms for smoother, more reliable operation

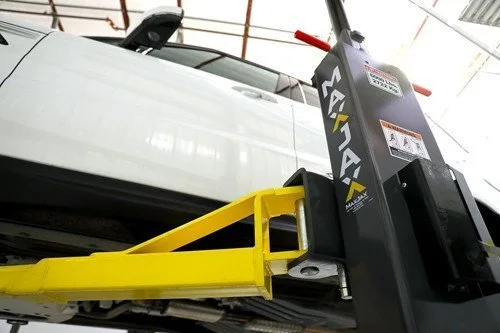

- Patented Safety Features rugged safety lock bars rated for three times capacity, automatic arm restraints, integrated velocity-fuse safety valves
- Patented One-of-a-Kind MaxJax® Portable Car Lift Safety Features from the Ground Up
- 7,000-lbs Lifting Capacity
- Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
- Hydraulic cylinders feature integrated velocity-fuse safety valves.
- A robust, gear-type flow divider precisely distributes hydraulic pressure providing consistent, equalized lifting.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
MaxJax |
|---|---|
| MPN / Model |
5175566 |
| Condition |
New |
| Lifting capacity |
7000 lb |
| Max Load Per Arm |
1,750 lbs. (794 kg) |
| A Overall Height |
89.5" (2,273 mm) |
| B Height of Column |
64" / 1626 mm |
| C Min. Pad Height |
5.5" (139.7 mm) |
| D Max Lift Height (Pad Only) |
47.25" (1200.15 mm) |
| E Max Lift Height w/3" Adapter |
50.5" (1,283 mm) |
| F Arm Reach (Min – Max) |
26" – 40" (660 mm – 1,016 mm) |
| G Typical Width (Outside of Base Plate) |
105" – 135" (2,667 mm – 3,429 mm) |
| H Drive-thru Clearance |
74" – 104" (1,880 mm – 2,642 mm) |
| Locking Positions |
7 (every 3") |
| Time of full Rise |
45 Seconds |
| Motor |
110-220 VAC / 50-60 Hz. / 1 Ph. / 15 Amps |
| Shipping Dimensions (Standard Model) |
68" x 39" x 35" (1,727 mm x 990.6 mm x 889 mm) |
| Individual Column Weight |
300 lbs. (136 kg) |
| Shipping Weight (Standard Model) |
980 lbs. (444 kg) |
| Lift type |
2 Post Lifts ,Portable Vehicle Lifts |
| Phase |
Single phase |
| Voltage |
110-220 V |
