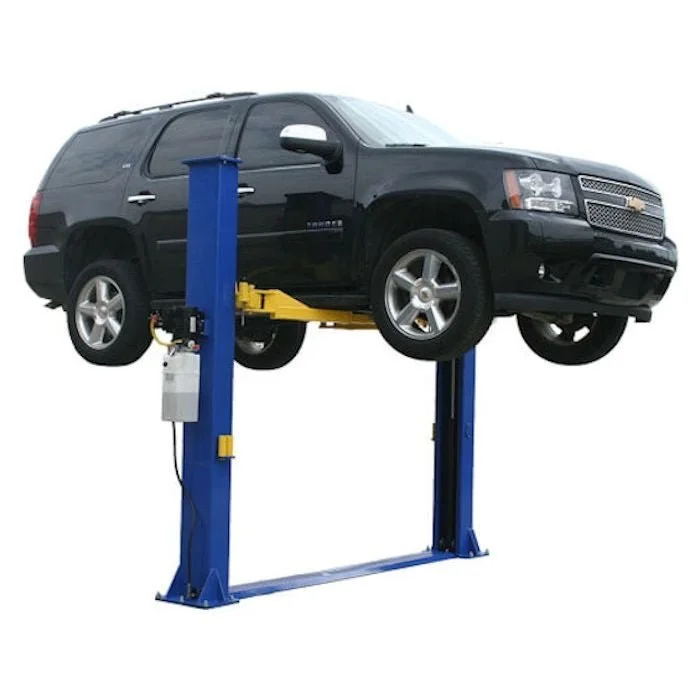

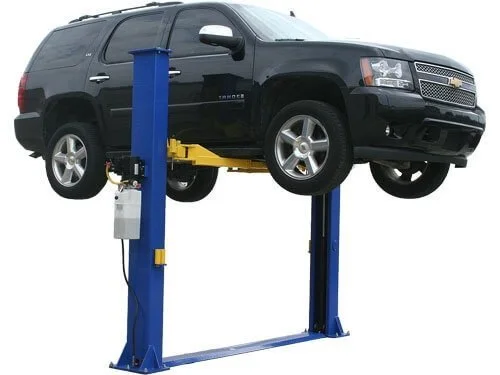

Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs
$2,499.00
Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
11 in stock
Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs
Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Full 9,000 lb Capacity: Handles light trucks, SUVs, and passenger vehicles with confidence and stability
- Secondary Lock System (SLS): Spring-loaded automatic safety engagement protects against chain failure peace of mind on every lift
- Complete Truck Adapter Set Included: 8-piece adapter set ships free with every lift—ready for versatile vehicle service
- Base-Plate Stability: Robust 14 ¼" x 18 ¼" base with included mounting hardware ensures secure, long-term installation
- 9,000 lb. Capacity
- Symmetric Arms
- Base Plate Design

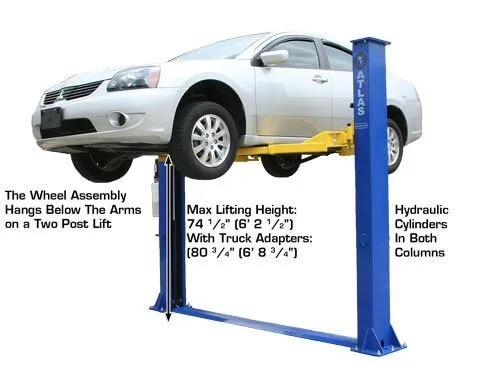

- Dual Hydraulic Chain-Drive Cylinders

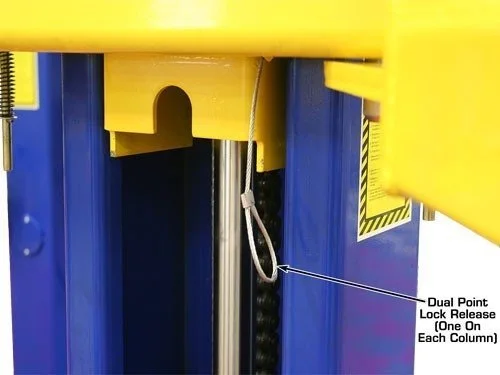

- Secondary Lock System (SLS)
- Free Truck Adapter Set
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-9KBPX |
| Condition |
New |
| Important: |
(Do this immediately after installation) |
| Capacity |
9,000 lbs |
| Lifting Time |
N/A |

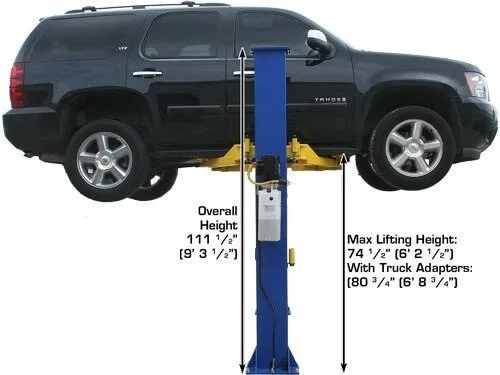

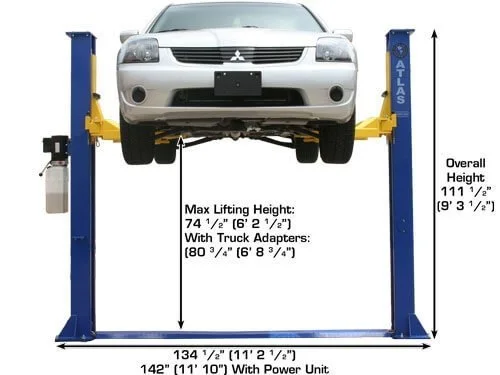

| Overall Height |
111 ½" (9' 3 ½") |

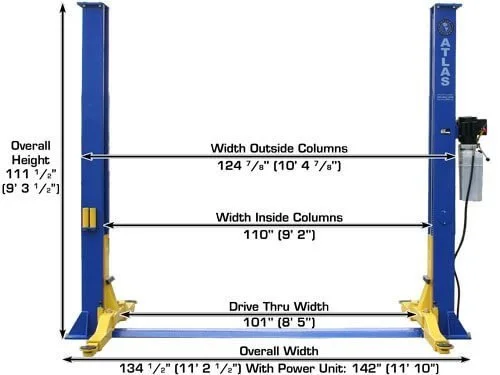

| Overall Width w/Power Unit |
142" (11' 10") |
| Overall Width w/o Power Unit |
134 ½" (11' 2 ½") |
| Outside Column To Outside Column |
124 7/8" (10' 4 7/8") |

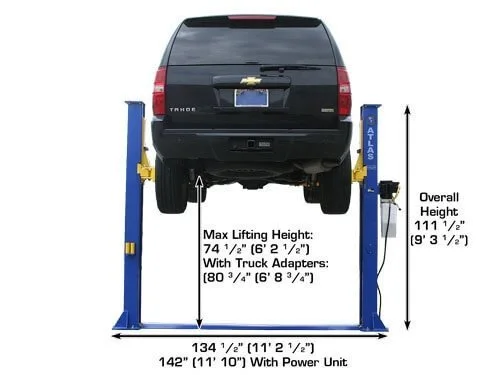

| Max Lift Height w/Adapter |
81" |
| Max Lift Height w/o Adapters |
74 ½" (6' 2 ½") |
| Minimum Arm Height |
4" |

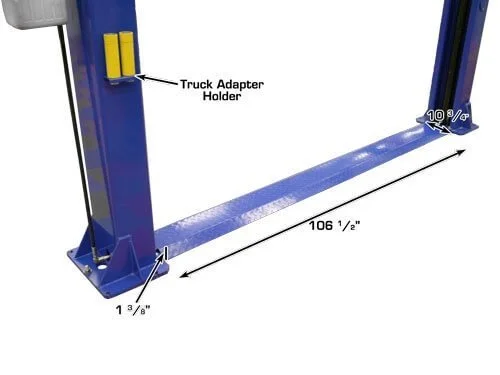

| Base Plate Width |
10 ¾" |
| Inside Column |
110" (9' 2") |
| Drive Thru |
101" (8' 5") |
| Column Size |
7 ¼" x 11 1/8" |
| Column Thickness of Steel |
5mm |
| Base of Lift |
14 1/4" x 18 1/4" |

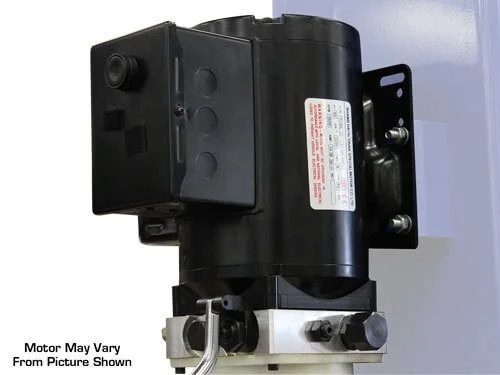

| Motor/Electrical Requirement |
3Hp 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Weight |
1,400 LB. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
