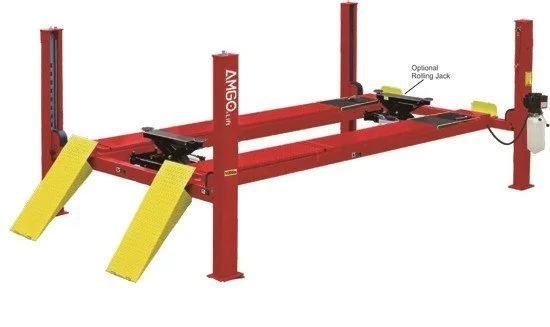

AMGO® Hydraulics PRO-14 4 Post Lift 14,000 lbs
$7,180.00
AMGO® Hydraulics PRO-14 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 14000 lb
13 in stock
AMGO® Hydraulics PRO-14 4 Post Lift 14,000 lbs
AMGO® Hydraulics PRO-14 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

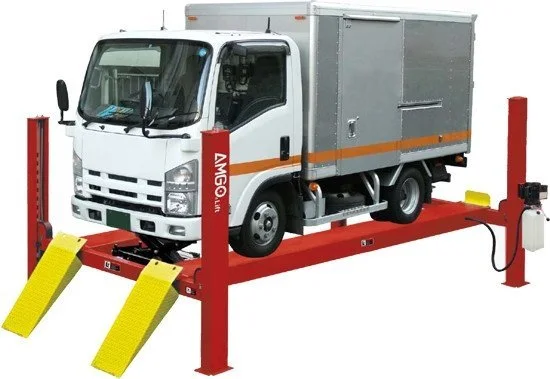

- 14,000 lbs Lifting Capacity: Handle everything from passenger cars to heavy-duty trucks with confidence and ease.

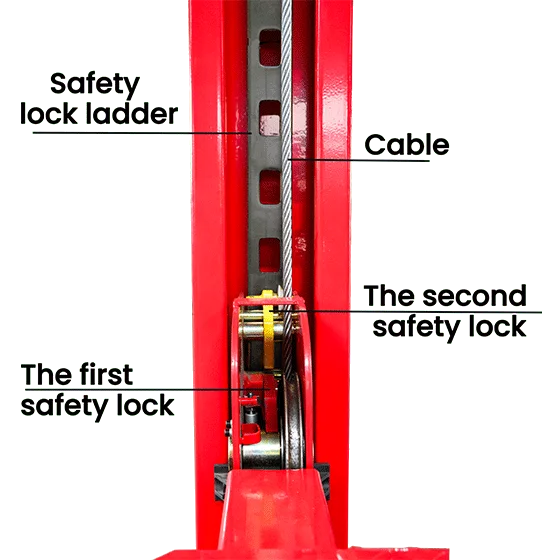

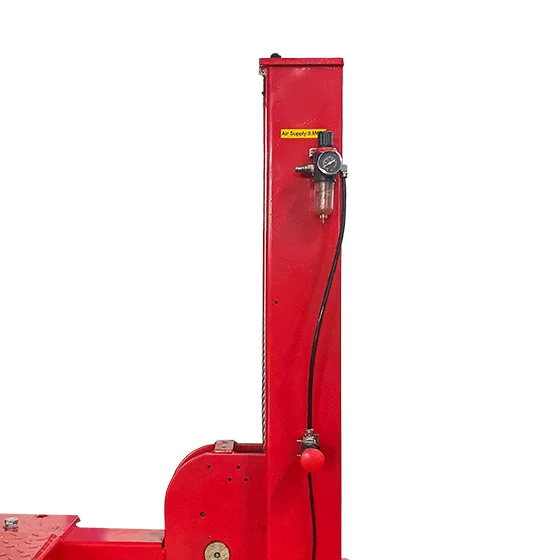

- Air-Released Safety Lock System: Convenient, reliable operation with mechanical self-lock and cable-breaking protection for maximum safety.
- Skid-Proof Diamond Plate Platforms: Enhanced traction and durability for secure vehicle positioning.
- Compact Minimum Height: Just 7 7/8 inches minimum height allows low-clearance vehicles to drive on easily.
- 75 9/16" Lifting Height with 66 3/4" max underneath clearance for ample working room
- 102 1/16" Drive-Thru Clearance for easy vehicle access and removal
- Runway Width: 46" between runways; 86" outside edge
- Low 7 7/8" Minimum Height accommodates low-clearance sports cars and sedans
- Available in PRO-14 (257 1/2" with ramp) and PRO-14E (286" with ramp) for extended vehicle compatibility
- 14,000 lbs capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-14 |
| Condition |
New |
| Style |
Non-Alignment |
| Lifting Capacity |
14,000 lbs |
| A Overall Length w/Ramp |
258 9/16" |
| A Overall Length w/o Ramp |
N/A |
| B Outside Edge of Crossbeams |
210 5/16" |
| C Overall Width |
130 7/8" |
| D Width Between Columns |
116" |
| E Max Lifting Height |
75 9/16" |
| E Max. Lock Height (to Top of Runway) |
72 7/16" |
| F Overall Height |
86 3/16" |
| G Minimum Height |
7 7/8" |
| H Max. Underneath Height |
68 7/8" |
| I Drive-Thru Clearance |
102 1/16" |
| J Width Between Runways |
46" |
| K Outside Edge of Runways |
86" |
| Lifting Time |
81 S |

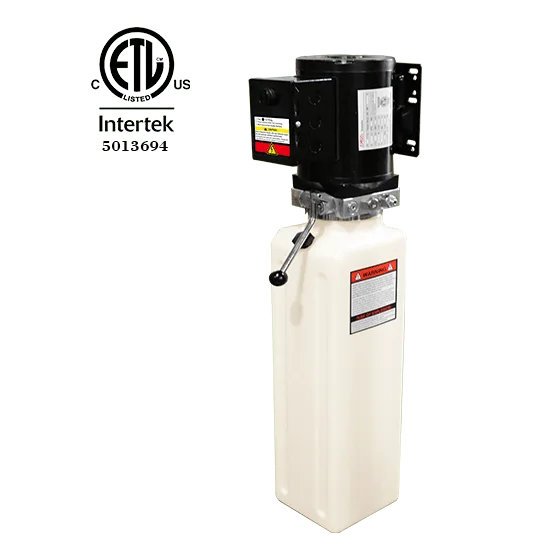

| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
3,111 lbs |
| Lifting capacity |
14,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
