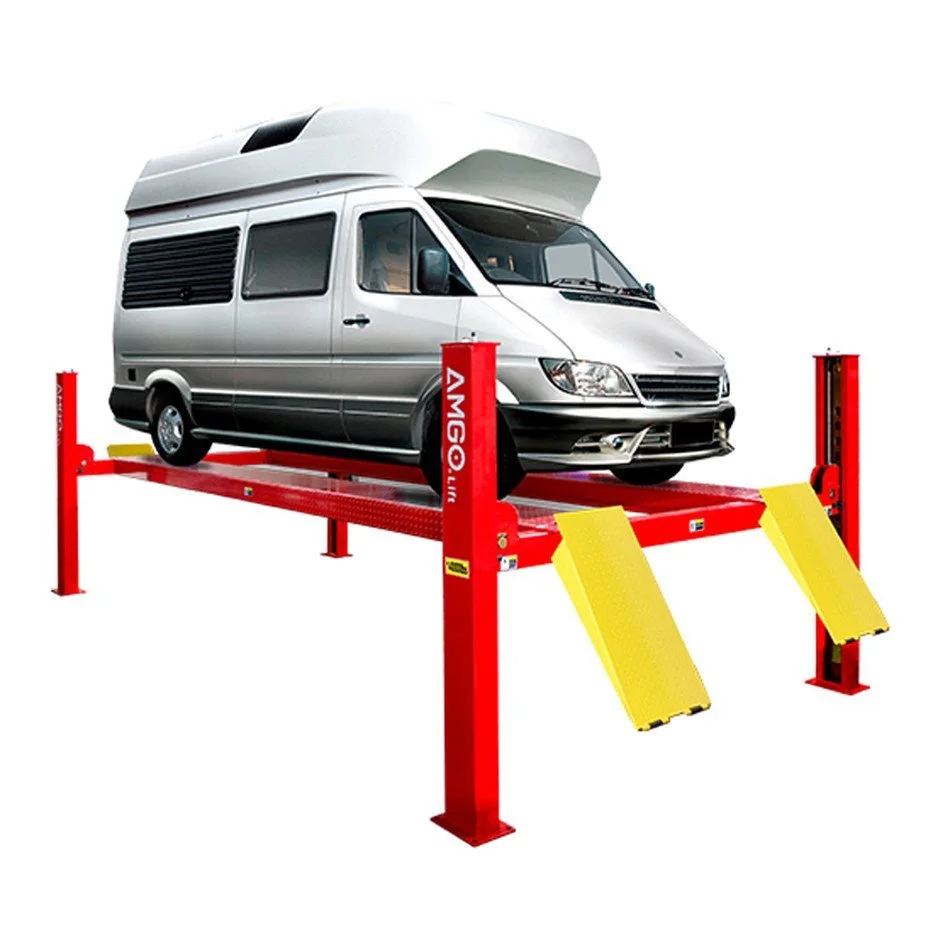

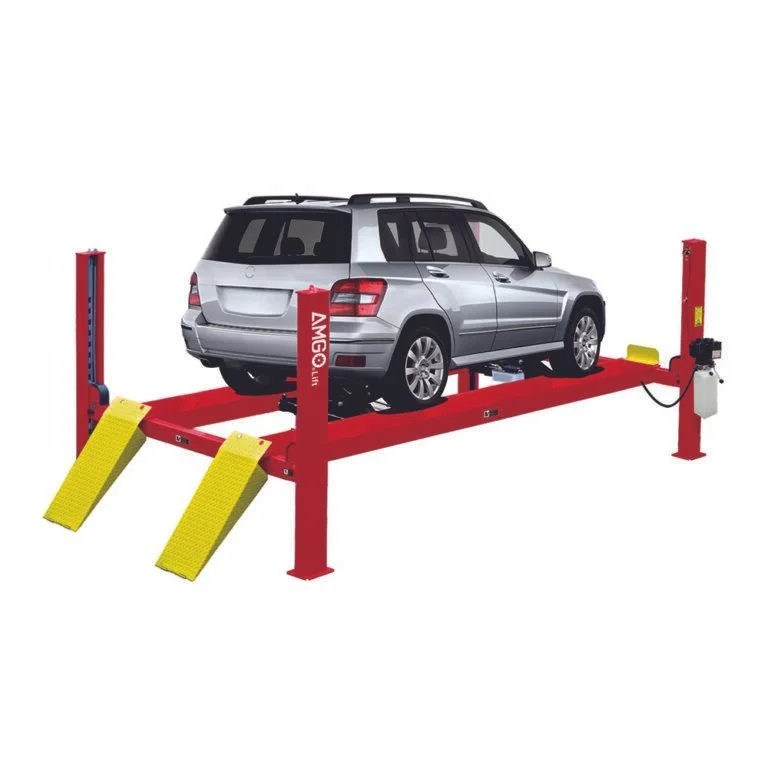

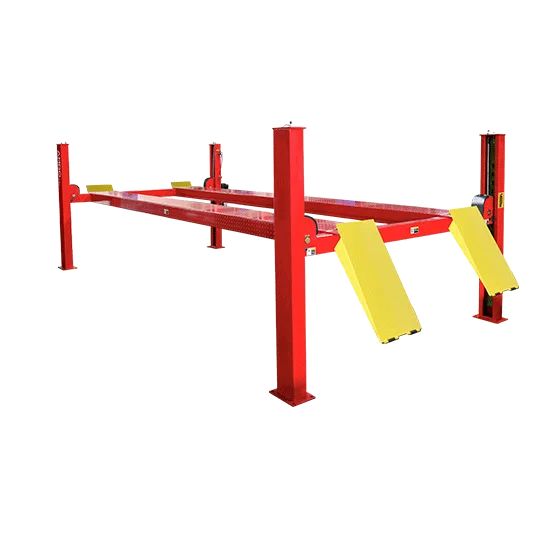

AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs
$7,780.00
AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 14000 lb
15 in stock
AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs
AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

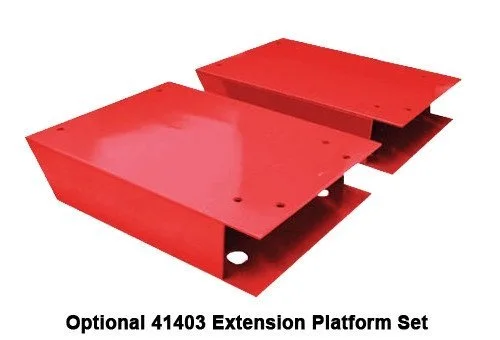

- 41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – adds even more length for specialized applications

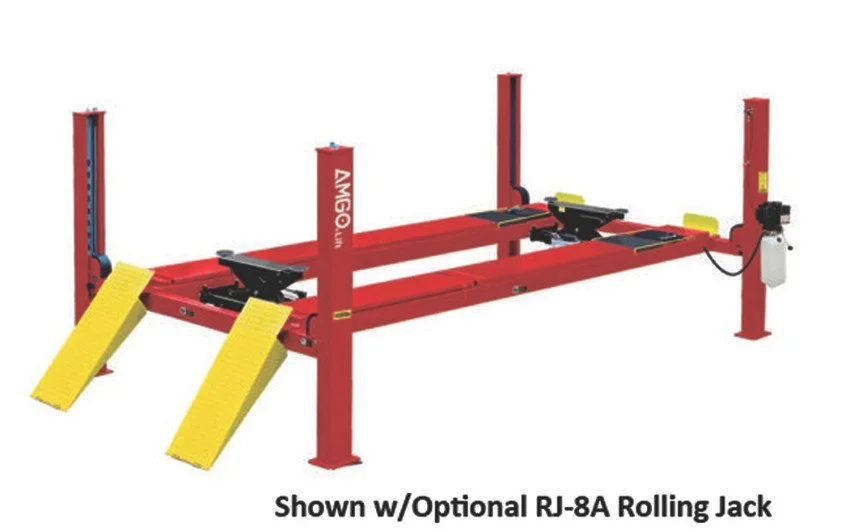

- RJ-8A Pneumatic Rolling Jacks 8,000 lbs capacity jacks for wheel service and suspension work
- 40102 Airline Kit for 4 Post Lifts less than 18K – convenient compressed air access at the lift
- 14,000 lbs capacity

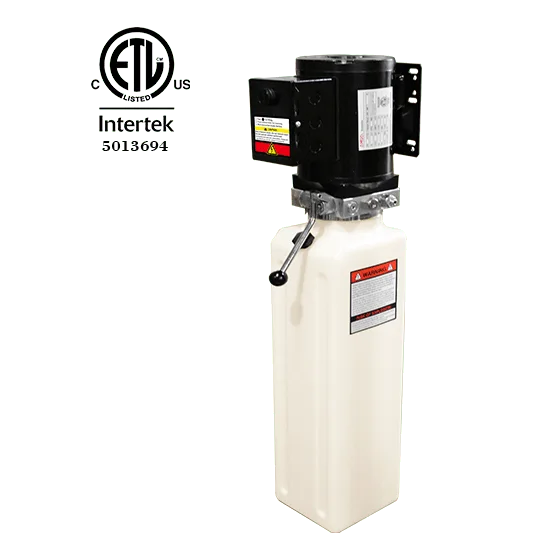

- AMGO ETL certified power unit comes as standard

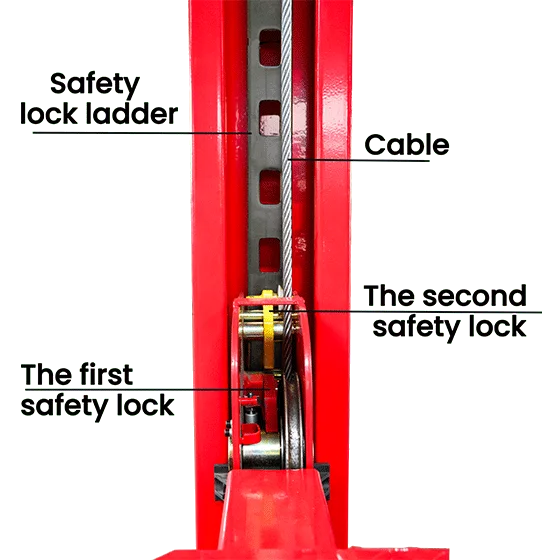

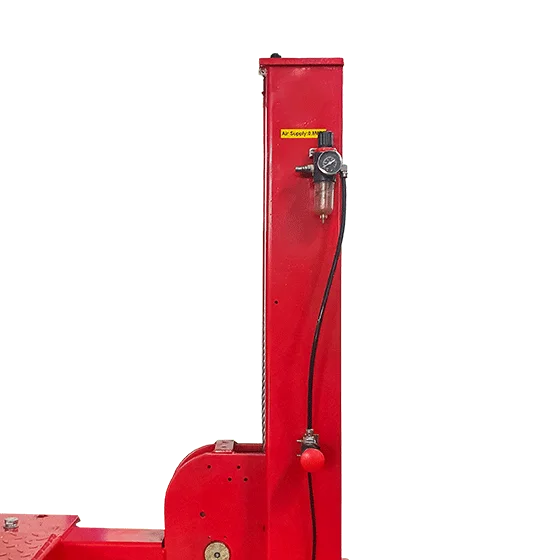

- Mechanical self-locking safety device with air-driven lock release
- Primary multiple safety locks and cable-slack protection system come standard

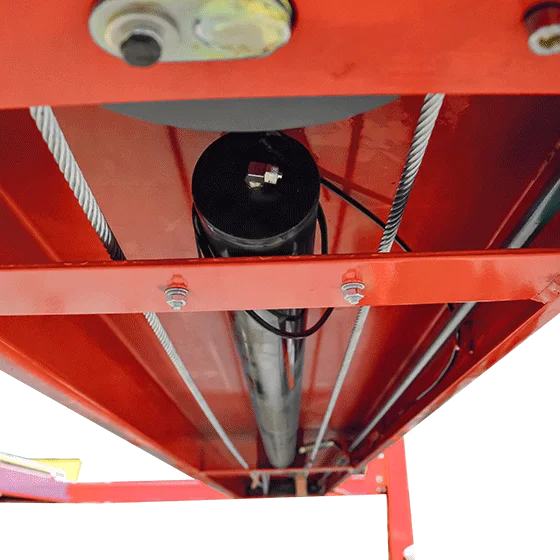

- Cable-driven, utilizing aircraft standard high quality cables
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve

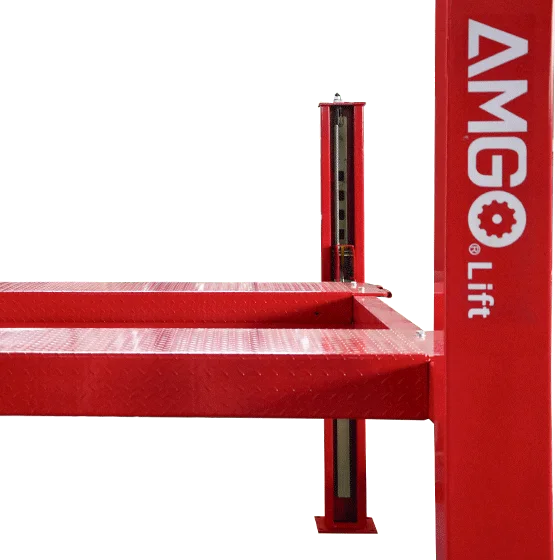

- Non-skid diamond platforms
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-14E |
| Condition |
New |
| Style |
Non-Alignment |
| Lifting Capacity |
14,000 lbs |
| A Overall Length w/Ramp |
287 1/16" |
| A Overall Length w/o Ramp |
N/A |
| B Outside Edge of Crossbeams |
238 13/16" |
| C Overall Width |
130 7/8" |
| D Width Between Columns |
116" |
| E Max Lifting Height |
75 9/16" |
| E Max. Lock Height (to Top of Runway) |
72 7/16" |
| F Overall Height |
86 3/16" |
| G Minimum Height |
7 7/8" |
| H Max. Underneath Height |
68 7/8" |
| H Max. Lock Underneath Height |
65 3/4" |
| I Drive-Thru Clearance |
102 1/16" |
| J Width Between Runways |
46" |
| K Outside Edge of Runways |
86" |
| Lifting Time |
81 S |
| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
3,267 lbs |
| Lifting capacity |
14,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
