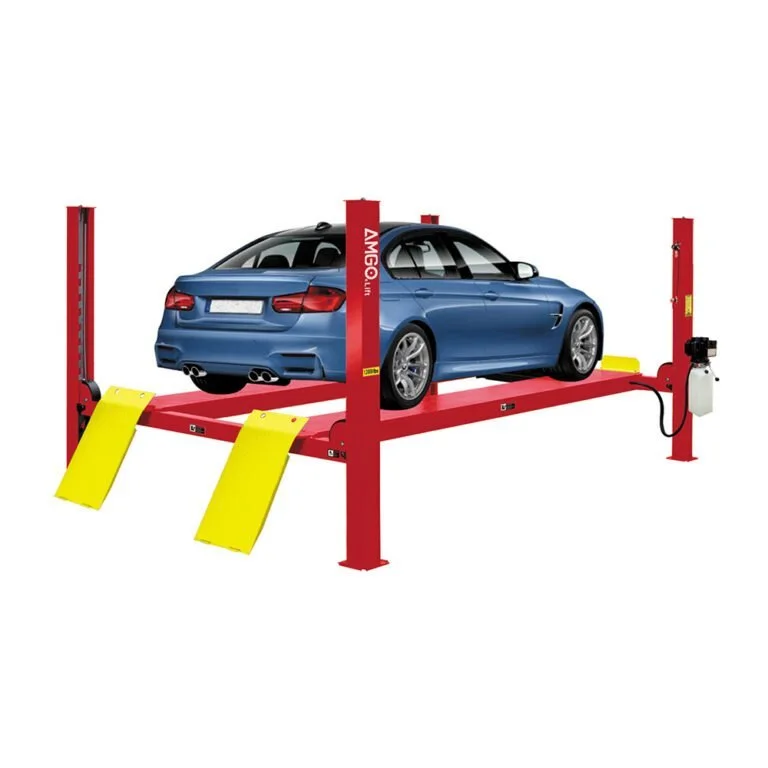

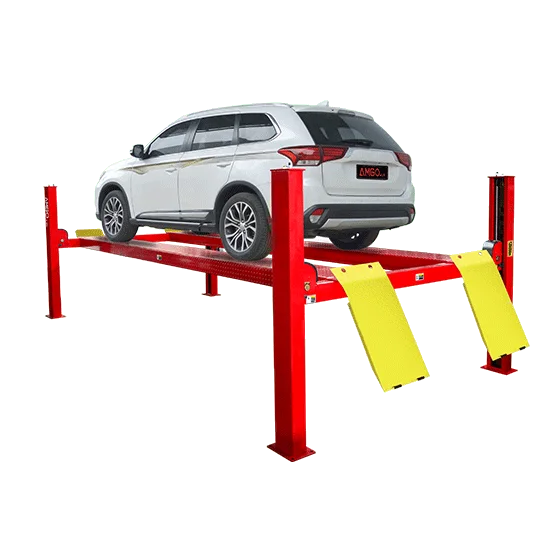

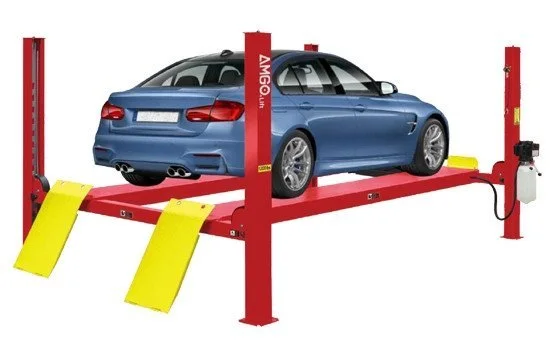

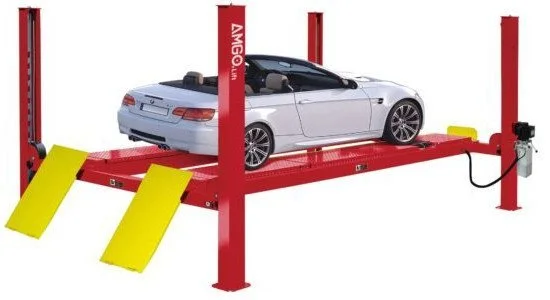

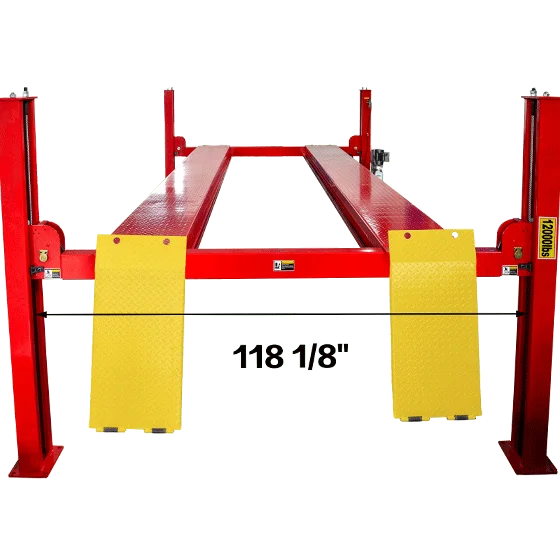

AMGO® Hydraulics PRO-12SX 4 Post Lift 12,000 lbs
$4,200.00
AMGO® Hydraulics PRO-12SX 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 12000 lb
AMGO® Hydraulics PRO-12SX 4 Post Lift 12,000 lbs
AMGO® Hydraulics PRO-12SX 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lbs lifting capacity handles a wide range of cars, trucks, and SUVs with confidence

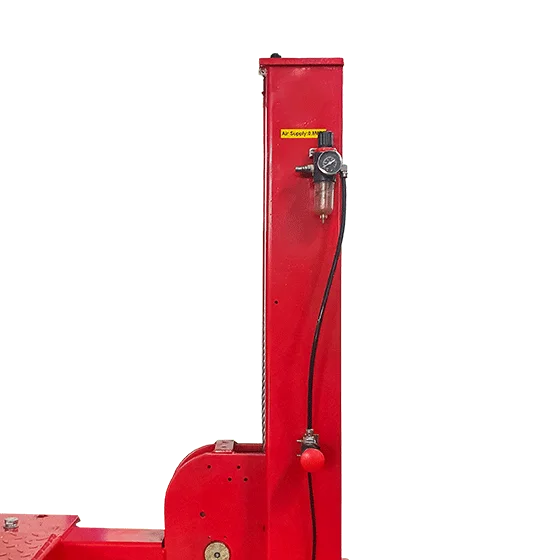

- Air-released safety locks convenient, reliable operation with secure locking at any height
- Fast 45-second lifting time maximize productivity and minimize wait time between jobs

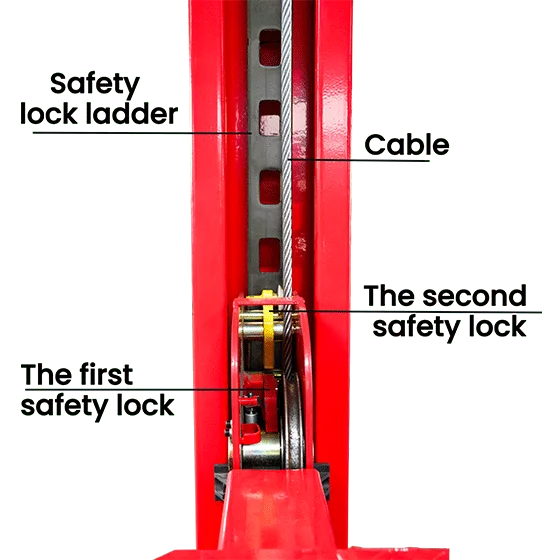

- Dual safety systems mechanical self-lock and cable-breaking protection for maximum operator safety
- Generous 104 3/16" drive-thru clearance easy access for walk-around inspections and service tasks

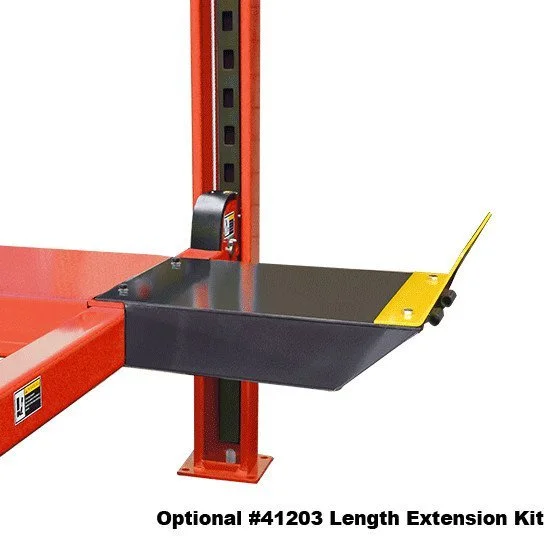

- 41903 Extension Platform Set extends the usable platform area (2 pieces)
- RJ-6A Pneumatic Rolling Jacks 6,000 lbs capacity for tire changes and suspension work
- 40102A Airline Kit convenient air delivery for lifts under 18K capacity
- 40103 LED Light Kit illuminate the work area for improved visibility and safety
- 12,000 lbs capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-12SX |
| Condition |
New |
| Style |
Alignment |
| Lifting Capacity |
12,000 lbs |
| A Overall Length w/Ramp |
239 13/16" |
| A Overall Length w/o Ramp |
N/A |
| B Runway Length |
189 13/16" |
| C Overall Width |
126 5/16" |
| D Width Between Columns |
112 1/4" |
| E Max Lifting Height |
76 3/8" |
| E Max. Lock Height (to Top of Runway) |
73 1/4" |
| F Overall Height |
86" |
| G Minimum Height |
8 11/16" |
| H Max. Underneath Height |
68 7/8" |
| H Max. Lock Underneath Height |
65 3/4" |
| I Drive-Thru Clearance |
98 3/8" |

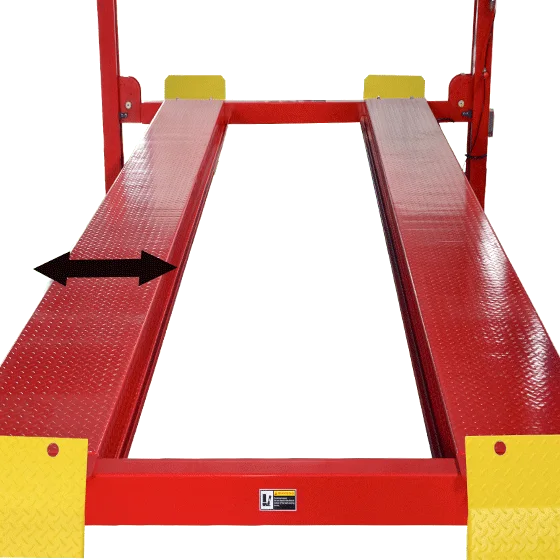

| J Width Between Runways |
43 5/16" / Min. 38" / Max. 50 7/8" |
| K Outside Edge of Runways |
83 5/16" / Min. 78" / Max. 90 7/8" |
| L Min. Four Wheel Align |
81 3/4" |
| M Max. Four Wheel Align |
166 5/16" |
| N Max. Two Wheel Align |
167 5/8" |
| Lifting Time |
63 S |

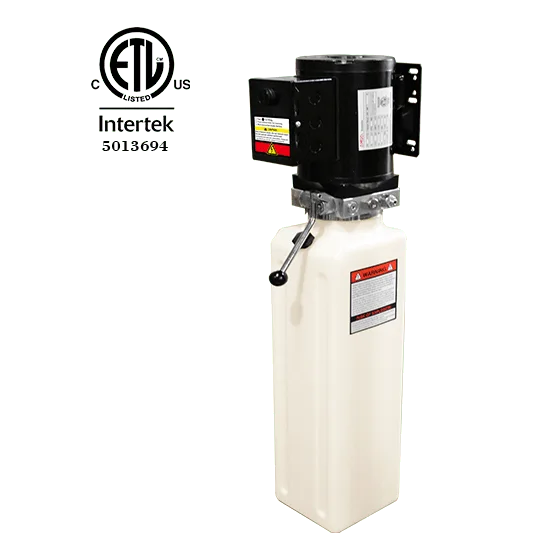

| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
2,936 lbs |
| Lifting capacity |
12000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
