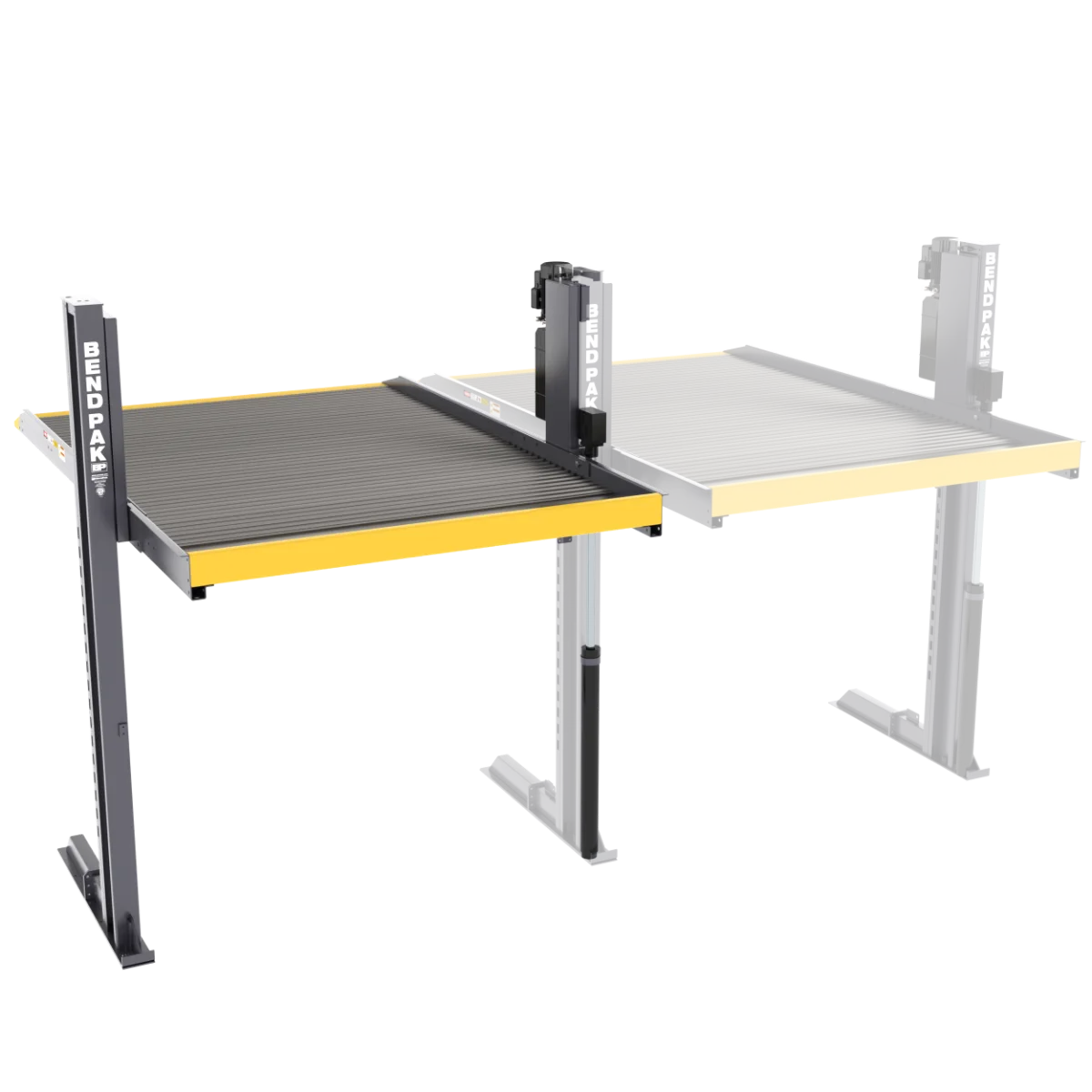

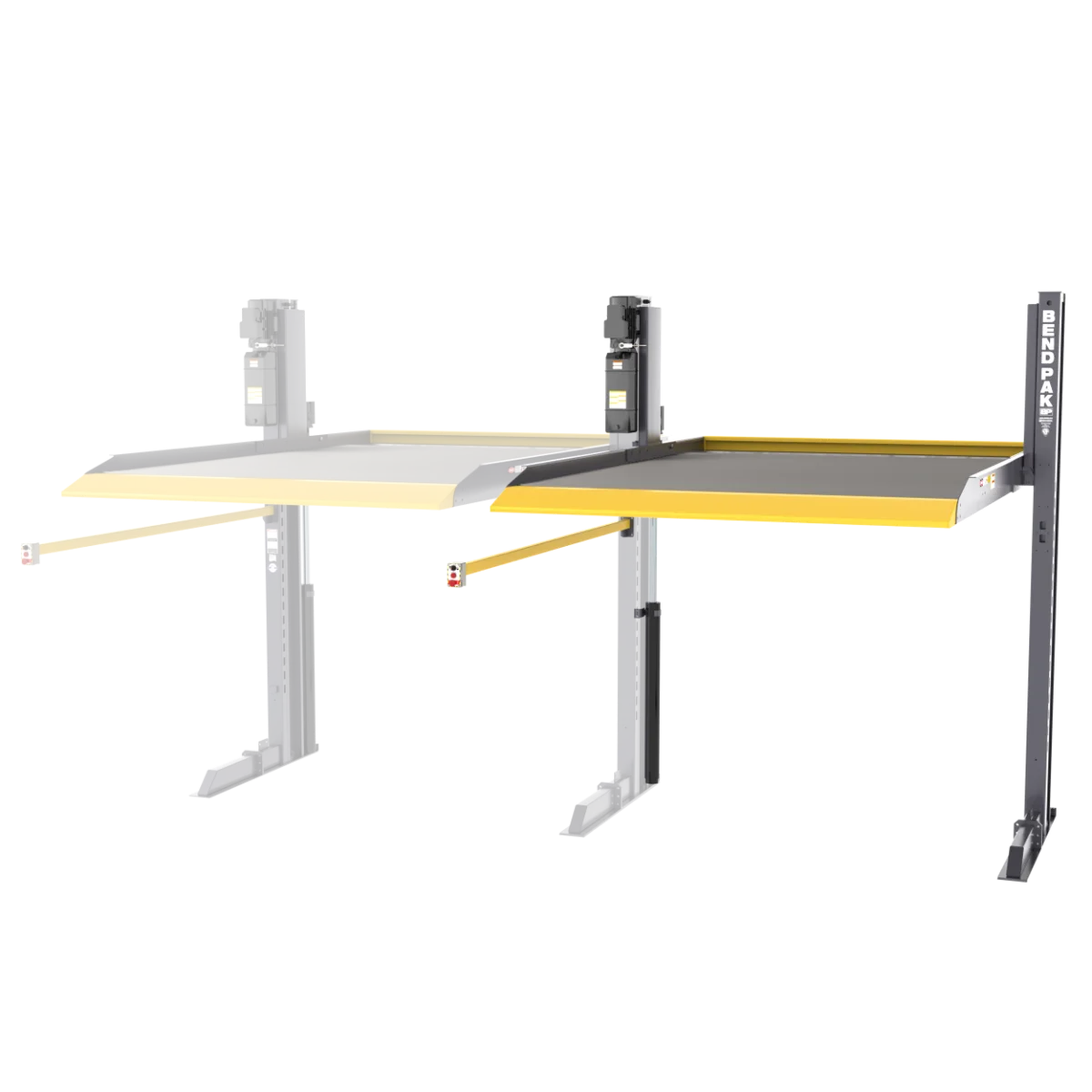

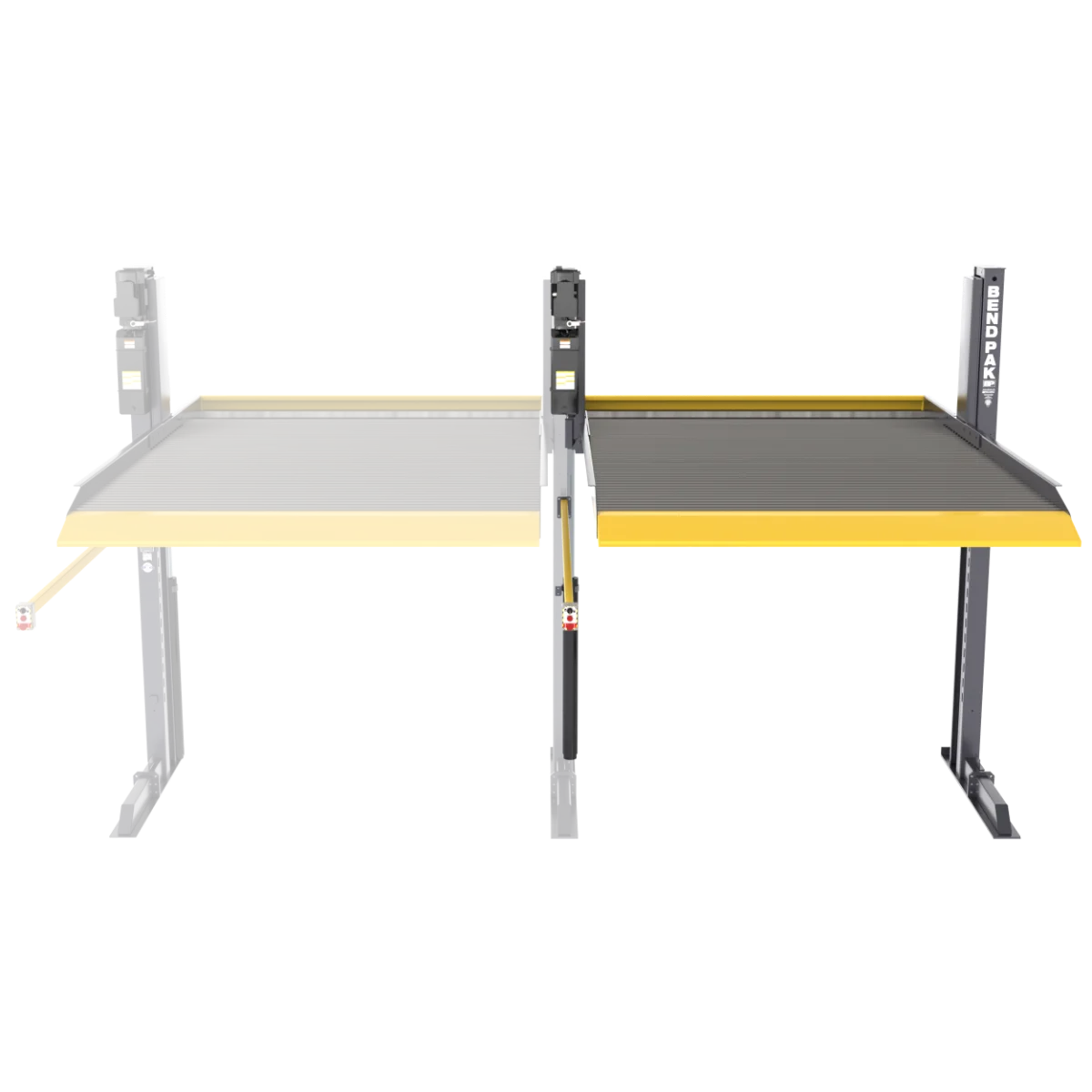

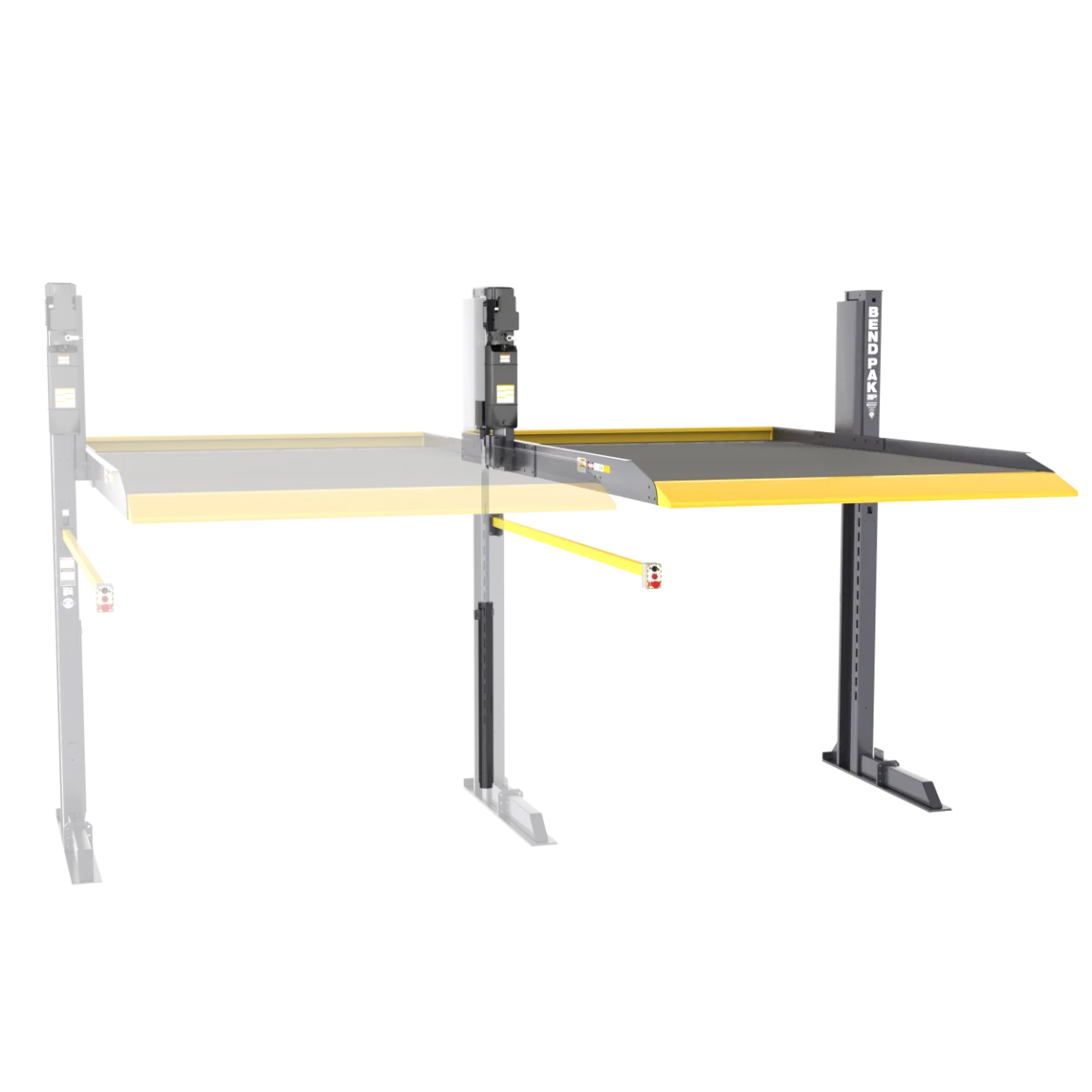

BendPak PL6000DCX-ADD-ON Shared Column Add-On Platform & Column Set 6,000 lbs
$10,295.00
BendPak PL6000DCX-ADD-ON Shared Column Add-On Platform & Column Set 6,000 lbs is part of our vehicle lift accessories selection from BendPak.
- Lifting capacity: 6000 lb
15 in stock
BendPak PL6000DCX-ADD-ON Shared Column Add-On Platform & Column Set 6,000 lbs
BendPak PL6000DCX-ADD-ON Shared Column Add-On Platform & Column Set 6,000 lbs is part of our vehicle lift accessories selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Galvanized and corrugated anti-slip platform for secure vehicle traction and corrosion resistance
- Commercial-grade design and construction for demanding, high-use environments
- Overhead power unit provides smooth, quiet hydraulic operation without taking up valuable floor space
- Dual direct-drive hydraulic cylinders for balanced, reliable lifting performance
- Automatic safety lock combined with anti-fall device holds platform securely at any height
- Maintenance-free composite carriage bearings reduce service requirements and downtime
- Electric key switch for security and safety, preventing unauthorized operation
- Automatic shut-off when operator releases key switch for fail-safe operation
- Photocell sensor prohibits lift from being lowered if a vehicle is parked below
- Hydraulic overloading protection prevents damage from exceeding capacity limits
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175643 |
| Condition |
New |
| Lifting Capacity |
6,000 lbs. (2,722 kg) |
| A Total Width (Outside Edge to Outside Edge) |
112" (2,847 mm) |
| B Lift Platform Length |
157" (3,990 mm) |
| C Post Height* |
100.25” (2,547 mm) |
| D Post, Center to Center Width |
105.5" (2,682 mm) |
| E Post Support Length |
60.25" (1,532 mm) |
| F Lifting Height |
82.5" (2,100 mm) |
| G Control Column Height |
71" (1,805 mm) |
| H Lift Platform (Usable Width) |
94.5" (2,400 mm) |
| I Side Clearance Min. |
2" (50.75 mm) |
| J Platform to Support |
36.25" (918.25 mm) |
| K Length Overall |
163.5" (4,152.5 mm) |
| Lifting / Lowering Time |
<50 45 sec |
| Motor |
208-240V, 50/60HZ, 1-Ph., 4 HP, 22 Amps |
| Operating Temperature and Humidity |
+41° to +104°F / +5° to +40°C 50% RH |
| Lifting capacity |
6000 lb |
| Lift type |
Vehicle Lift Accessories |
| Voltage |
208–240 V |
