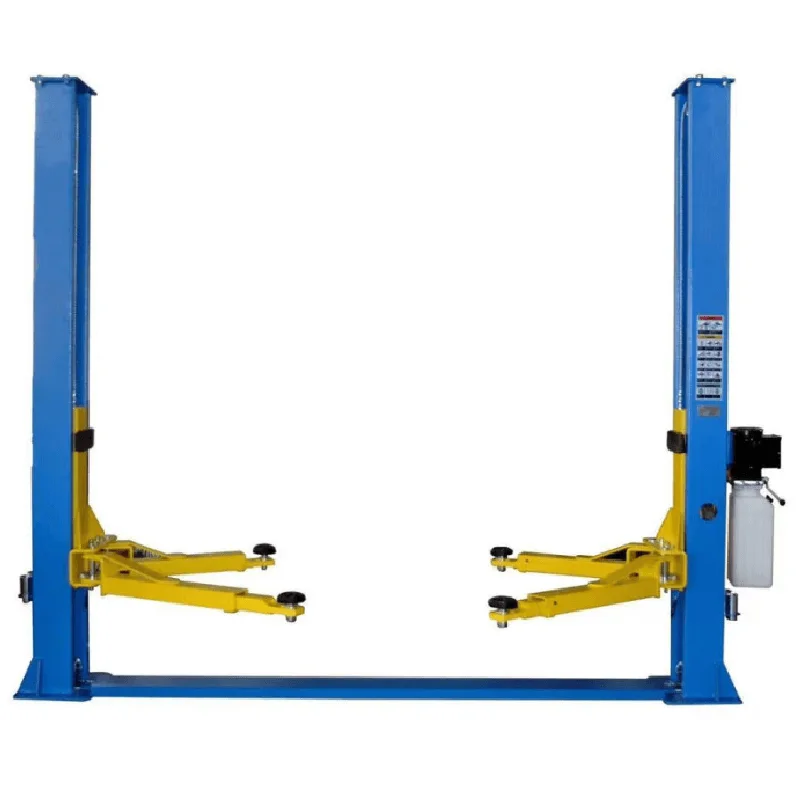

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue
$2,397.00
Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue is part of our 2 post lifts selection from Katool.
- Lifting capacity: 10000 lb
11 in stock
Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue
Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue is part of our 2 post lifts selection from Katool.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lbs lifting capacity handle a wide range of vehicles with confidence
- CE Certified safety exceeds industry standards with 115% dynamic and 150% static load testing
- 70.8" max lift height and 3.9" minimum height exceptional clearance range for all vehicle types
- Dual hydraulic chain-drive cylinders smooth, balanced lifting with top-level reliability

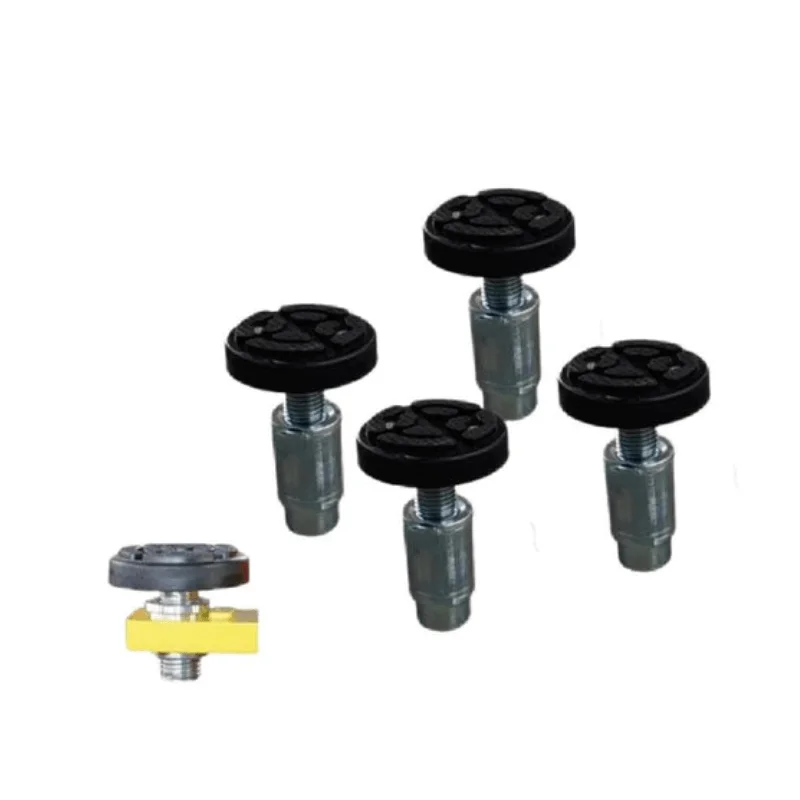

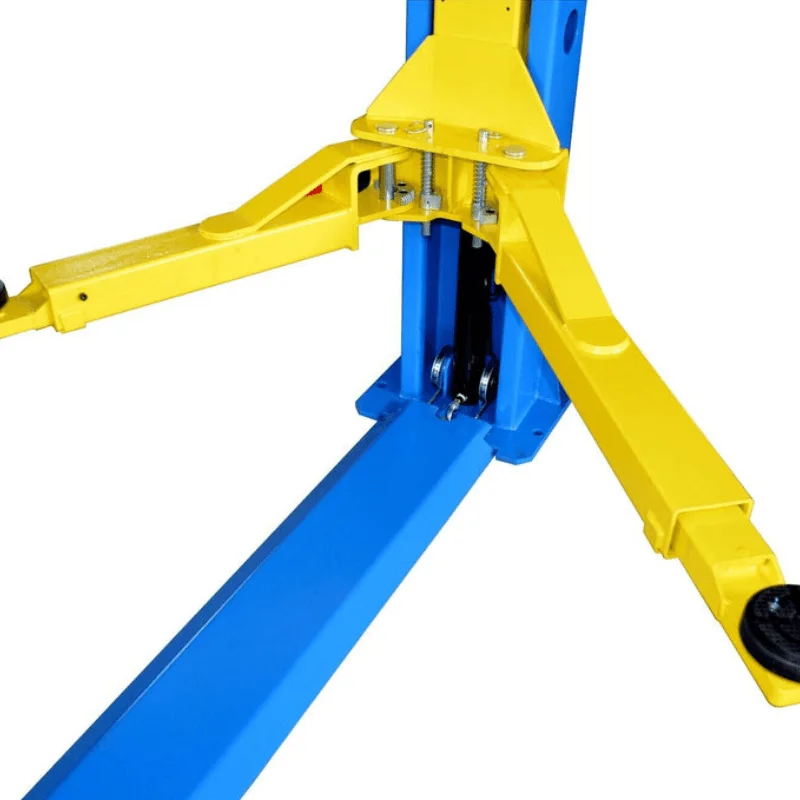

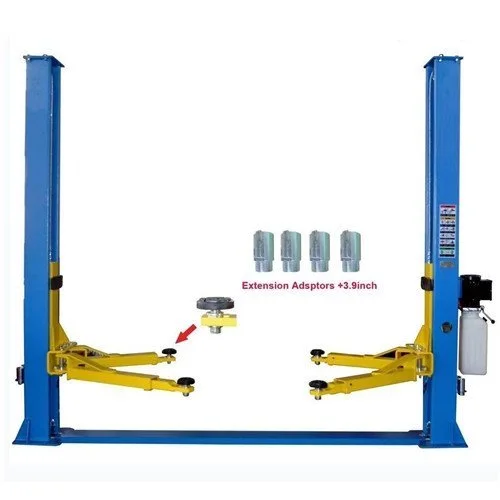

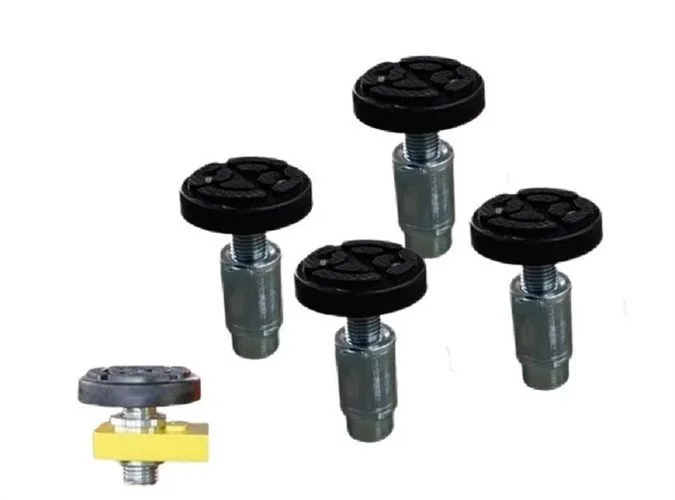

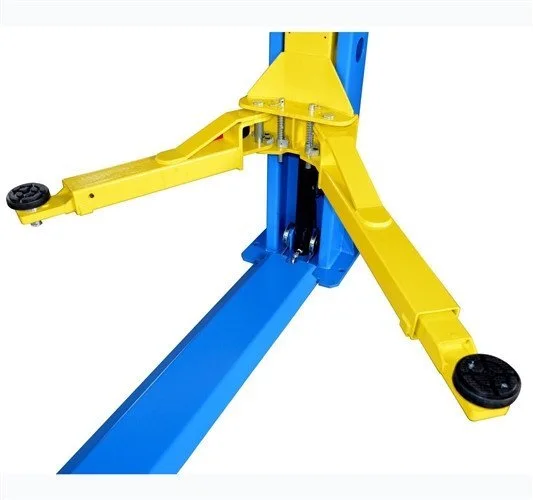

- Symmetric 2-stage arms with included extension adaptors – versatile positioning for any vehicle

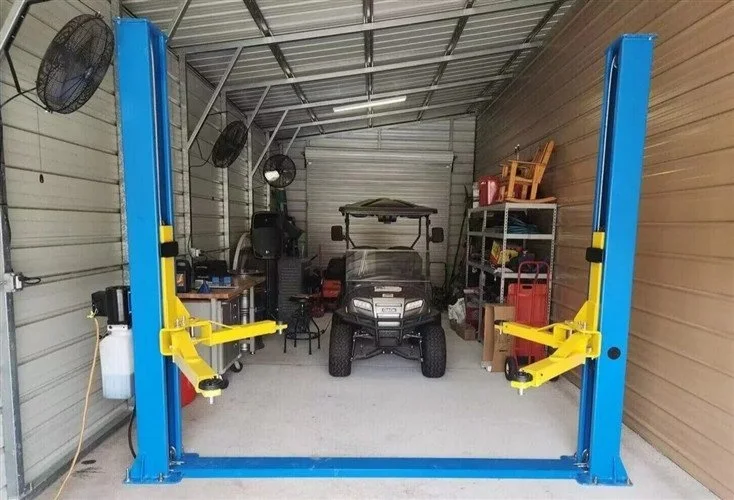

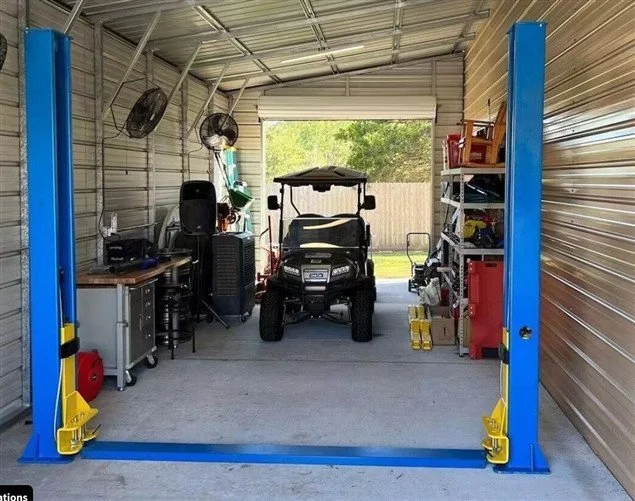

- Base plate design stable installation and excellent weight distribution
- 10,000lbs lifting capacity
- Blue Color
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Katool |
|---|---|
| MPN / Model |
KT-H105-V001 |
| Condition |
New |
| Lifting Capacity |
10,000 lbs. |

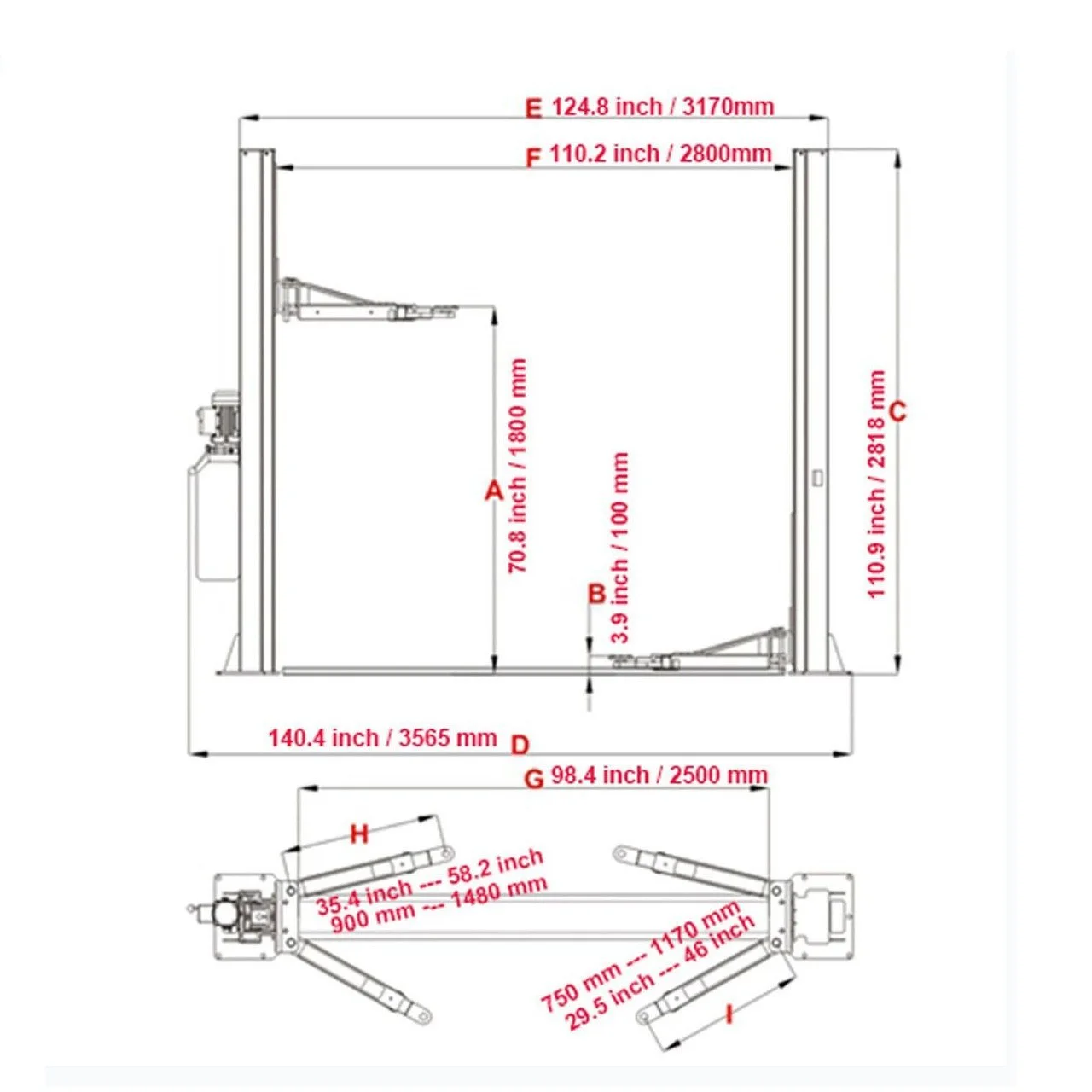

| Max. Lifting Height |
70.8" / 1800mm |
| Min. Height |
3.9" / 100mm |
| Height Overall |
110.9" / 2818mm |
| Width Overall |
142.4" / 3665mm |
| Outside Column |
124.8" / 3565mm |
| Inside Column |
110.2" / 2800mm |
| Drive-Thru Clearance |
98.4" / 2500mm |
| Front Arm Reach (Max) |
46" / 1170mm (2 stage) |
| Front Arm Reach (Min) |
29.5" / 750mm (2 stage) |
| Rear Arm Reach (Max) |
58.2" / 900mm (2 stage) |
| Rear Arm Reach (Min) |
35.4" / 1480mm (2 stage) |
| Motor |
220VAC / 60HZ / 1PH / 2.2KW |
| Net Weight |
1,256 lbs / 570KG |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
