Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms
$2,298.00
Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms is part of our 2 post lifts selection from Katool.
- Lifting capacity: 11000 lb
13 in stock
Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms
Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms is part of our 2 post lifts selection from Katool.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 11,000 lb. lifting capacity handles light trucks, SUVs, and passenger vehicles with ease

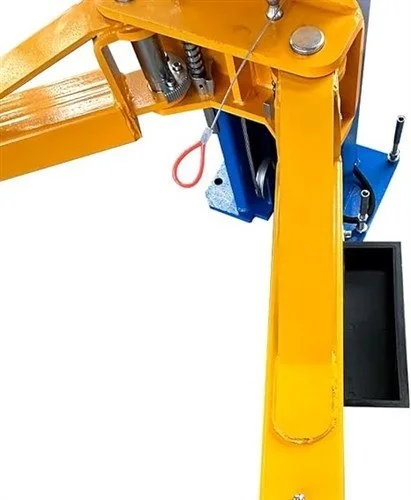

- Low-profile arms (3.9" minimum height) accommodate low-clearance sports cars and modern sedans
- Symmetric floor-plate design provides balanced, stable lifting for safer vehicle service
- Dual hydraulic chain-drive cylinders ensure smooth, reliable performance under heavy use
- CE certified for international safety and quality standards, plus manual safety release from both sides
- 11,000 lb. Capacity
- Lifts a wide range of vehicles: light-duty trucks, mid-sized SUVs, and passenger cars
- Low-profile swing arms: Accommodate low-clearance vehicles, enhancing versatility
- Symmetric installation: Provides balanced lifting for safer, more stable operation
- Drop-in adapters: Allow flexibility to fit various vehicle sizes and lifting points
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Katool |
|---|---|
| MPN / Model |
KT-H115Z-V001 |
| Condition |
New |
| Lifting Capacity |
11,000 lbs. |
| Max. Lifting Height |
70.8" / 1800mm |
| Height Overall |
110.9" / 2818mm |
| Min Height |
3.9" / 100mm |
| Overall Width |
140.4" / 3565mm |
| Outside Column |
124.8" / 3170mm |
| Inside Column |
110.2" / 27800mm |
| Drive-Thru Clearance |
98.4" / 2500mm |
| Max Front Arm Reach |
46"/1170mm (2 stages) |
| Min Front Arm Reach |
29.5"/750mm (2 stages) |
| Max Rear Arm Reach |
58.2"/1480mm (2 stages) |
| Min Rear Arm Reach |
35.4"/900mm (2 stages) |
| Lifting Time |
45 – 60s |
| Motor |
4.0 HP / 220VAC / 60HZ / 1PH / 2.2Kw |
| Net Weight |
1257 lbs / 570KG |
| Lifting capacity |
11,000 lb |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
