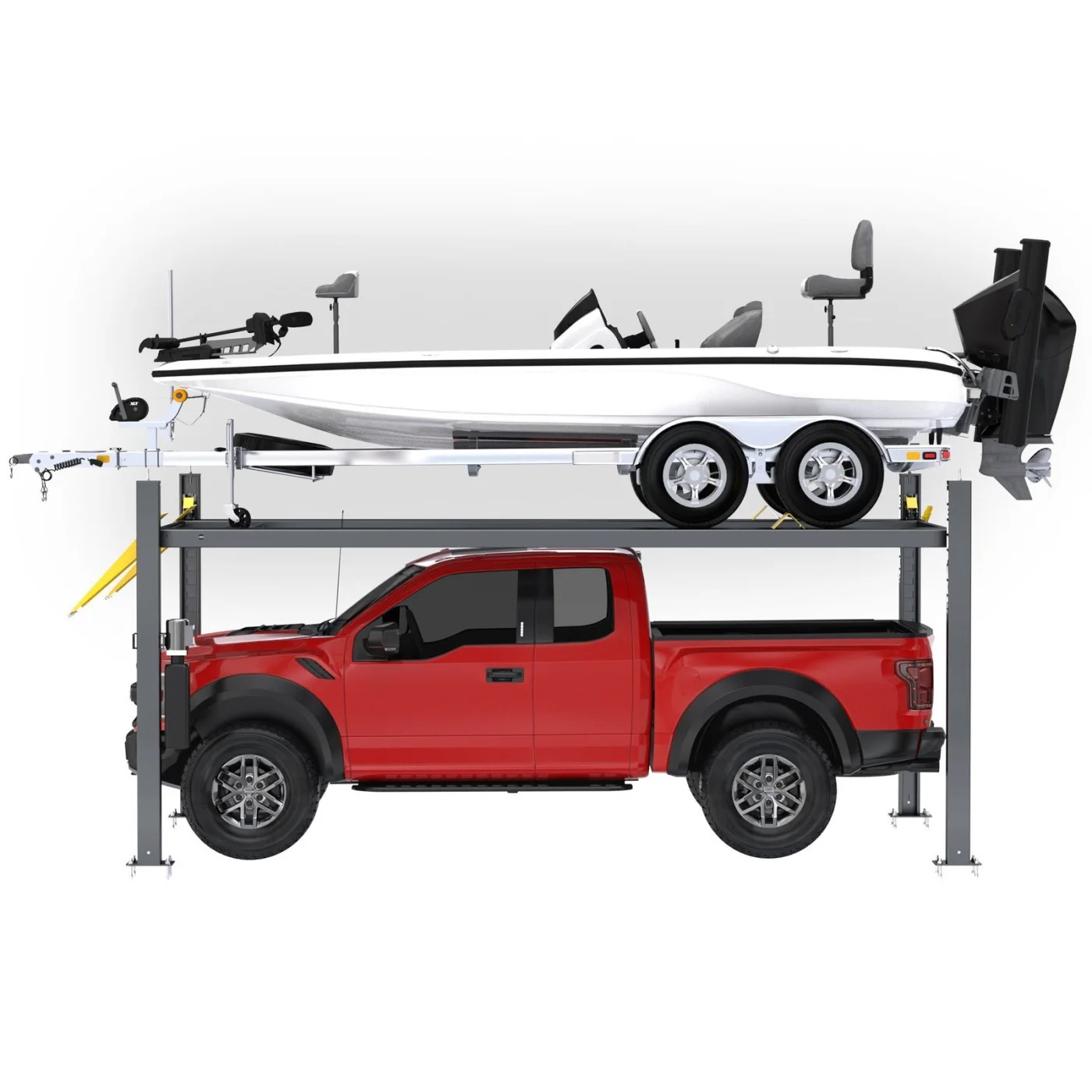

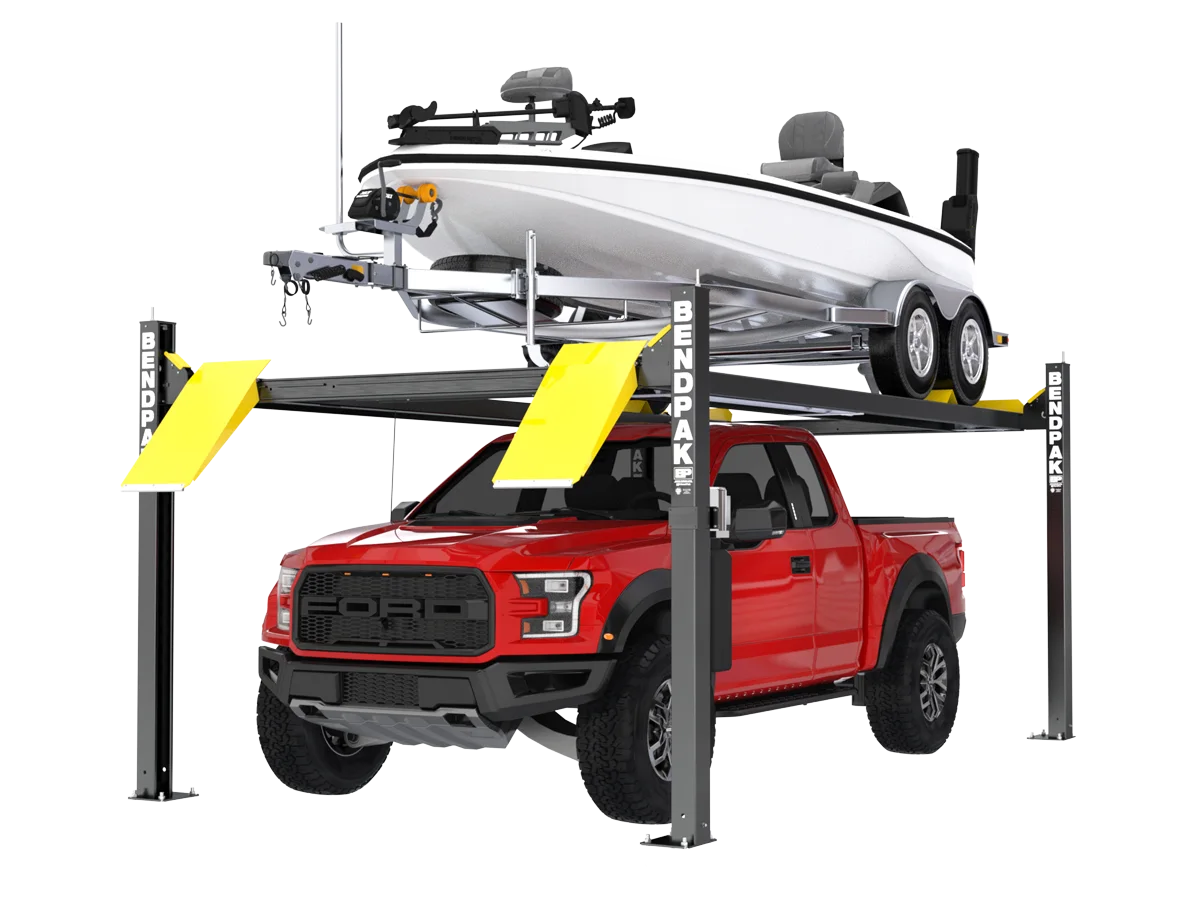

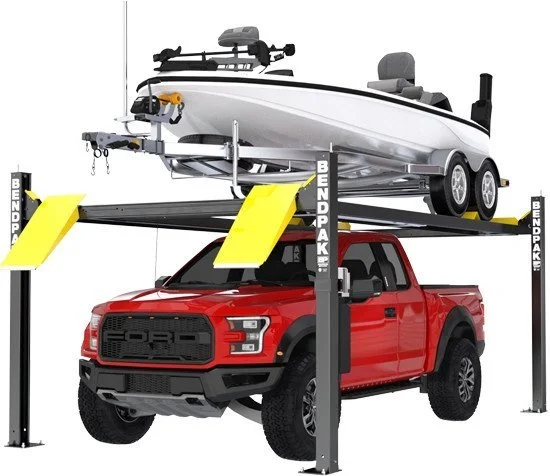

BendPak HD-75BXT Vehicle & Boat Storage Lift w/Ex-Length
$9,995.00
BendPak HD-75BXT Vehicle & Boat Storage Lift w/Ex-Length is part of our parking lifts selection from BendPak.
13 in stock
BendPak HD-75BXT Vehicle & Boat Storage Lift w/Ex-Length
BendPak HD-75BXT Vehicle & Boat Storage Lift w/Ex-Length is part of our parking lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 7,500 lb. lifting capacity handles boats, trailers, and large vehicles with ease

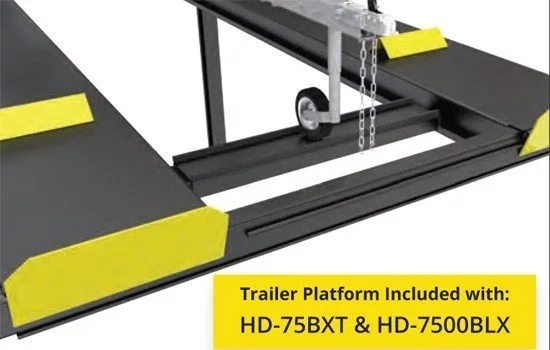

- Extended 212.5" runways accommodate longer wheelbases and boat trailers
- 30 multi-level locking positions with 4-inch spacing for flexible storage heights
- Push-button pneumatic safety release for fast, convenient operation
- Internal anti-sway slider blocks ensure stable, balanced lifting every time
- 7,500 lb. lifting capacity
- Two different lifting heights to choose from
- Internal anti-sway slider blocks in each column
- No more docking fees
- Heavy-duty aircraft cable
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175251 |
| Condition |
New |
| Lifting Capacity: (*) |
7,500 lbs. / 3,175 kg |
| Max capacity / Rear Axle: |
3,750 lbs. / 1,701 kg |
| A Min. Runway Height |
5" (125 mm) |
| D Overall Width |
132.5" (3,358 mm) (with fasteners 133.75" / 3,398 mm) |
| H Width Between Columns |
122" / 3,103 mm |
| I Drive-Thru Clearance |
108.5" / 2,756 mm |
| J Runway Width |
19" / 483 mm |
| N Outside Edge of Runways |
87.5" narrow or 107.5" wide (2,223 or 2,731 mm) |
| Drive-Thru Clearance |
108.5 " / 2,756 mm |
| Lock Spacing |
Every 4" (102 mm) |
| Motor |
208-230 VAC, 60 Hz, 1 Ph |
| Air Supply |
3 to 25 cfm @ 50 to 150 psi |
| Lift type |
Parking Lifts |
| Phase |
Single phase |
| Voltage |
208-230 V |
