Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lifts
$2,850.00
Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lifts is part of our 2 post lifts selection from Auto Lift.
- Lifting capacity: 9000 lb
11 in stock
Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lifts
Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lifts is part of our 2 post lifts selection from Auto Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Reduced Overall Width: Front-side power unit mounting reduces the total footprint to just 138 inches overall width, maximizing your shop floor space
- Internal Hose Routing: Integrated hose guards and internal routing protect hydraulic lines from damage and create a cleaner, safer workspace

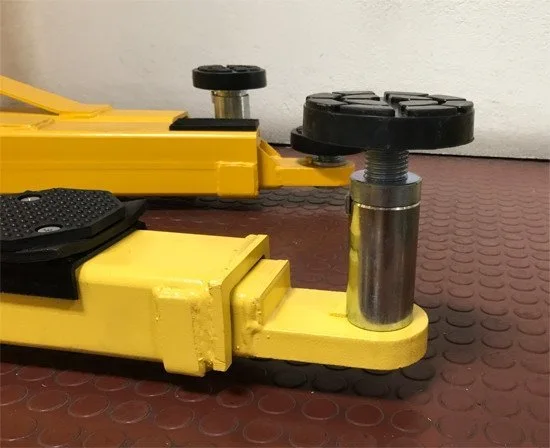

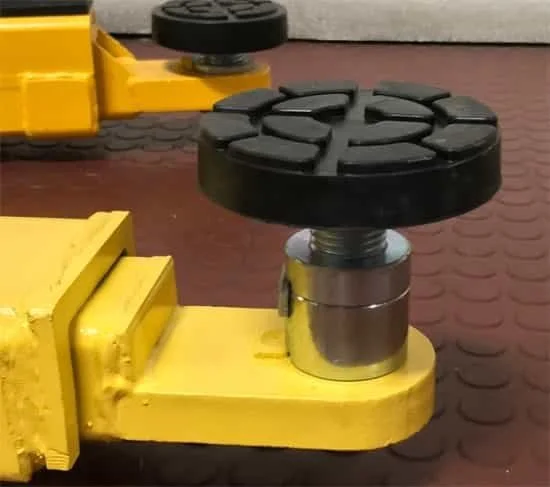

- Low Profile Drop-In Swivel Pads: Adjustable 1-1/2" height range with a minimum pad height of just 4 inches accommodates low-clearance vehicles

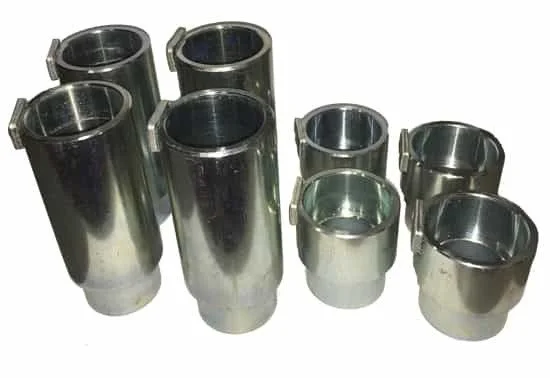

- Free Stackable Height Adapters: Includes 4 each of 1-3/8" and 4" drop-in height adapters for lifting trucks and taller vehicles
- Durable Finish: Professional powder coat finish resists chips, scratches, and shop chemicals for years of reliable service
- 9,000 lb lifting capacity
- High Quality Construction
- Chain Drive
- Dual Point Lock Release
- Saddle Pad Adapters included (1 pair
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Auto Lift |
|---|---|
| MPN / Model |
AL2-9K-SCX-V001 |
| Condition |
New |
| Free Drop-In Stackable Height Adapters |
Set of 4 each: 1-3/8" & 4" |
| Capacity |
9,000 lbs. |
| Overall Height |
142.9" |
| Width Overall w/Power Unit |
138" |
| Max Lift Height |
72" |
| Width Between Columns |
113.6" |
| Min Pad Height |
4" |
| Drive thru Clearance |
104" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Front Arm Reach – min/max |
31" – 45" |
| Rear Arm Reach – min/max |
31" – 45" |
| Max Load Per Arm |
2,250 lbs. |
| Cable Diameter |
3/8" |
| Column Size |
7.25" x 10.87" |
| Column Steel Thickness |
5mm |
| Carriage Steel Thickness |
5mm |
| Arm Steel Thickness |
6mm |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,370 lbs. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
