Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift
$2,495.00
Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift is part of our 2 post lifts selection from Auto Lift.
- Lifting capacity: 9000 lb
13 in stock
Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift
Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift is part of our 2 post lifts selection from Auto Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb. lifting capacity with 2,250 lbs. max load per arm
- 72-inch maximum lift height with only 4-inch minimum pad height for low-clearance vehicles
- Chain drive system with 3/8" cable diameter for smooth, reliable operation
- Dual point lock release for enhanced safety and control
- Powder coat finish for long-lasting durability and professional appearance
- 9,000 lb lifting capacity
- High Quality Construction
- Chain Drive
- Dual Point Lock Release
- Saddle Pad Adapters included (1 pair
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Auto Lift |
|---|---|
| MPN / Model |
AL2-9K-FX-V001 |
| Condition |
New |

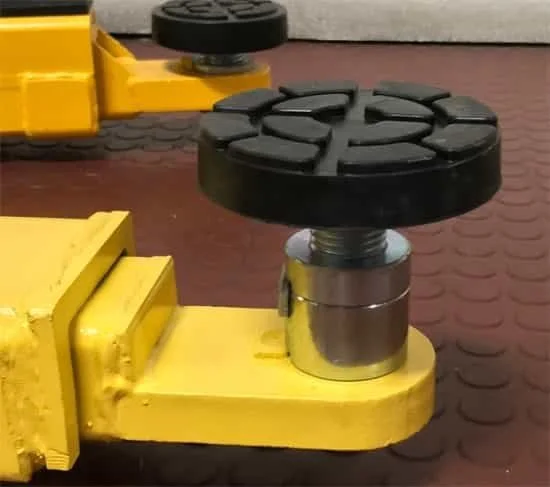

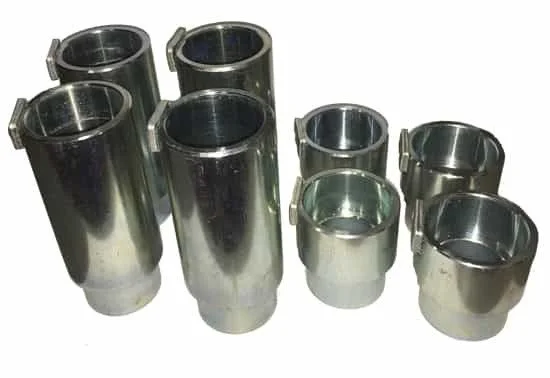

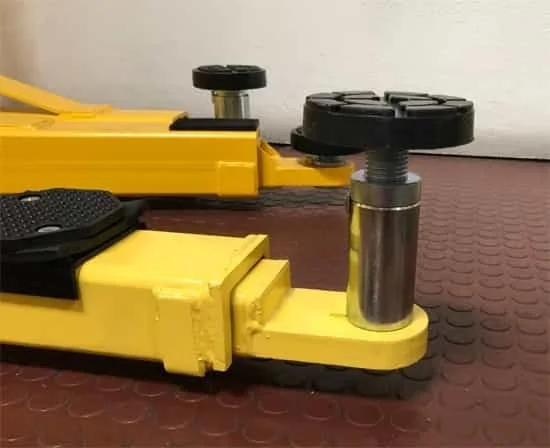

| Free Drop-In Stackable Height Adapters |
Set of 4 each: 1-3/8" & 4" |
| Capacity |
9,000 lbs. |
| Overall Height |
111.9" |
| Width Overall w/Power Unit |
134.6" |
| Max Lift Height |
72" |
| Width Between Columns |
110.4" |
| Min Pad Height |
4" |
| Drive thru Clearance |
101" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Floor Plate |
| Front Arm Reach – min/max |
31" – 45" |
| Rear Arm Reach – min/max |
31" – 45" |
| Max Load Per Arm |
2,250 lbs. |
| Cable Diameter |
3/8" |
| Column Size |
7.25" x 10.87" |
| Column Steel Thickness |
5mm |
| Carriage Steel Thickness |
5mm |
| Arm Steel Thickness |
6mm |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,265 lbs. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
