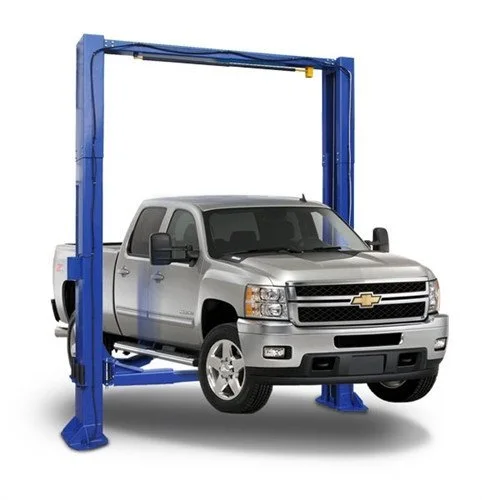

Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift
$5,569.00
Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift is part of our 2 post lifts selection from Auto Lift.
7 in stock
Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift
Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift is part of our 2 post lifts selection from Auto Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lb. capacity handles a wide range of vehicles from sedans to light trucks with confidence
- Clear floor design no floor plates or cables to trip over, maximizing shop floor accessibility and safety
- Direct drive system with long-lasting cylinders and 50-second lifting speed for efficient operation
- Extra-long 48" carriage reduces slider wear and extends component life
- Single point pneumatic safety lock release and padded overhead cut-off bar for enhanced operator safety
- Free stackable truck adapters included – set of 4 each in 2.5" and 5" heights for added versatility
- 12,000 lb lifting capacity
- Symmetric design
- Direct drive
- Long lasting, direct drive cylinders
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Auto Lift |
|---|---|
| MPN / Model |
AL2-12K-CD |
| Condition |
New |
| Capacity |
12,000 lbs. |
| Overall Height |
165" |
| Width Overall |
151-1/8" |
| Max Lift Height |
72" |
| With Tallest Adapter |
77" |
| Width Between Columns |
122" |
| Low Pad Height |
5.5" |
| Drive thru Clearance |
109" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Short Arm Reach – min/max |
37-5/8" – 56-3/4" |
| Long Arm Reach – min/max |
Same |
| Cable Diameter |
3/8" |
| Column Size |
8-3/4" x 12-3/4" |
| Column Steel Thickness |
7mm |
| Carriage Steel Thickness |
7mm |
| Arm Steel Thickness |
9.5mm |
| Ship Weight |
2,295 lbs. |
| Power |
220V – 20 AMP – 1 PH |
| Lift type |
2 Post Lifts |
