Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift
$3,815.00
Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift is part of our 2 post lifts selection from Auto Lift.
11 in stock
Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift
Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift is part of our 2 post lifts selection from Auto Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Direct Drive Power: Reliable, low-maintenance drive system lifts vehicles to full height in just 50 seconds with smooth, consistent operation

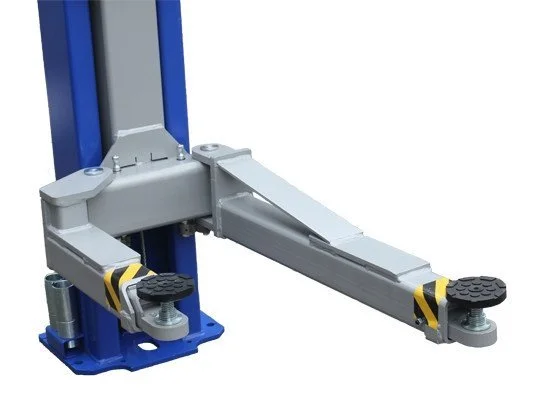

- Extended Arm Reach: 3-stage telescoping front arms extend from 23" to 45", providing exceptional reach for precise lift point positioning
- 11,000 lb lifting capacity
- Asymmetric/Symmetric Arm Configuration
- Direct Drive
- 3 Stage Front Arms
- Symmetric Columns
- Single Point Lock Release
- Low Profile Arms
- Rubber Doors Guards
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Auto Lift |
|---|---|
| MPN / Model |
AL2-11KC-DX-V001 |
| Condition |
New |
| Stackable Truck Adapters — Set of 4 each: 2" & 4" |
Expand your lifting capabilities for trucks, SUVs, and high-clearance vehicles at no additional cost. |
| Capacity |
11,000 lbs. |
| Overall Height |
144" |
| Width Overall w/Power Unit |
145-1/2" |
| Max Lift Height |
71" |
| Min Pad Height |
4" |
| Width Between Columns |
116" |
| Drive thru Clearance |
104" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Both |
| Front Arm Reach – min/max |
23" – 45" |
| Rear Arm Reach – min/max |
41" – 45" |
| Clear Floor / Floor Plate |
Clear Floor |
| Column Thickness |
gauge # 7 or 3/16" (4.76 mm) |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,705 lbs. |
| Lift type |
2 Post Lifts |
