Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs
$6,499.00
Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 15000 lb
Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs
Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 15,000 lb capacity handles heavy-duty trucks, commercial vehicles, and passenger cars

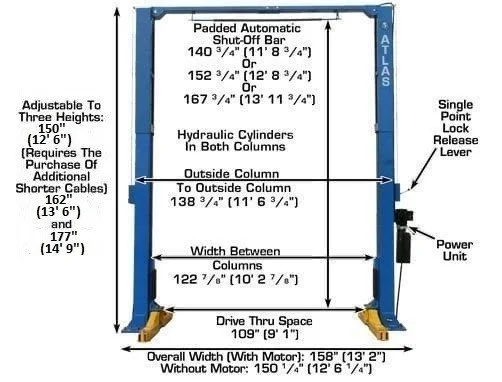

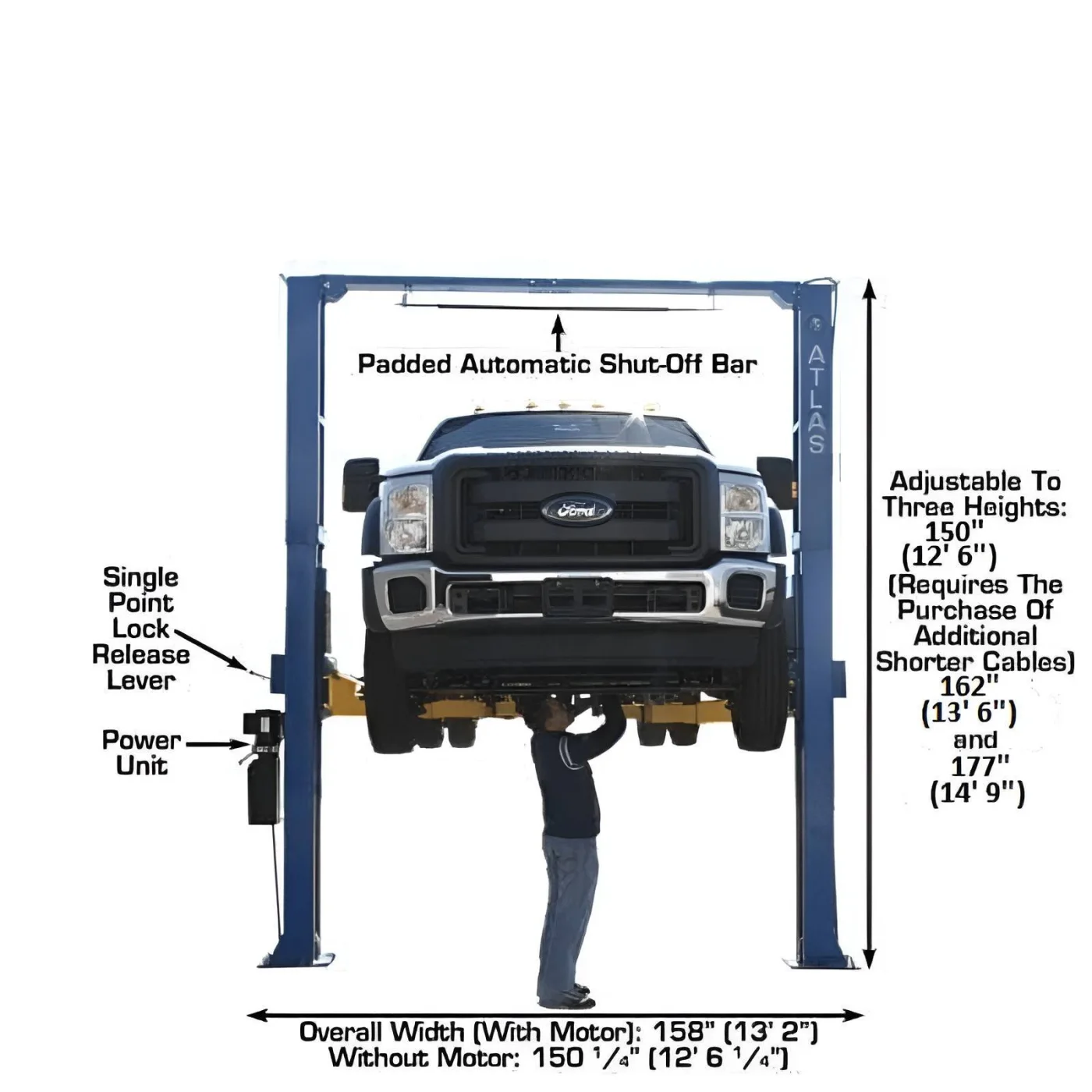

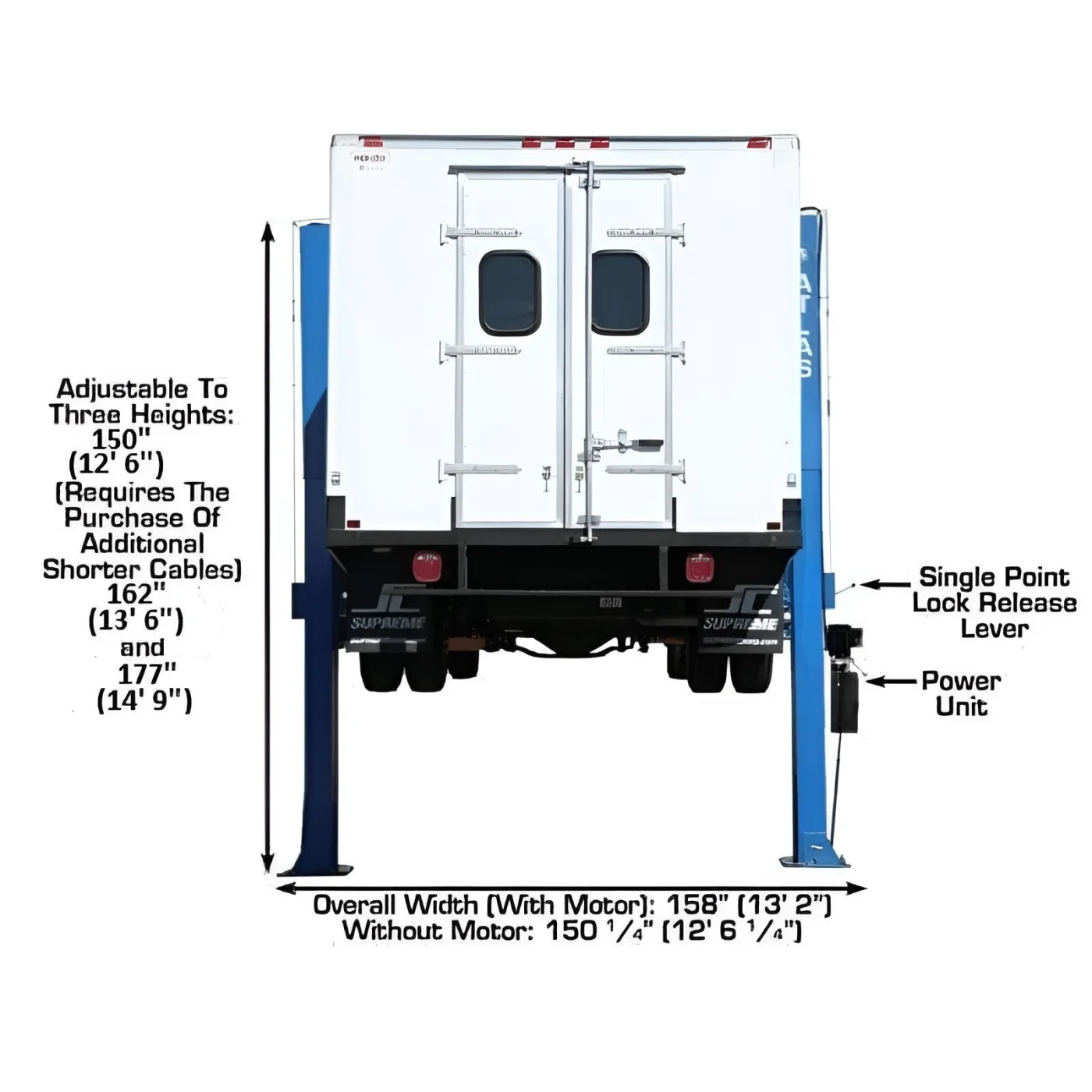

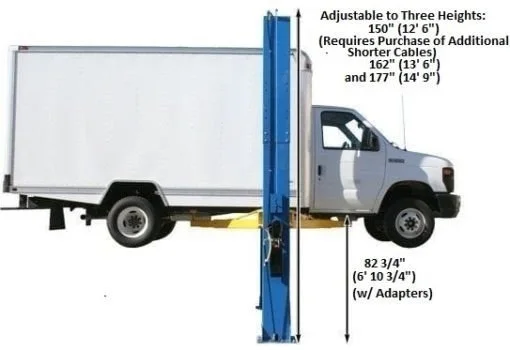

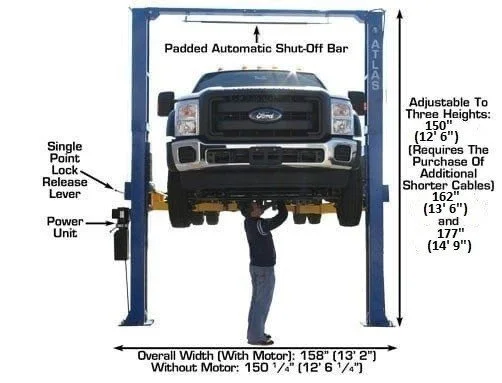

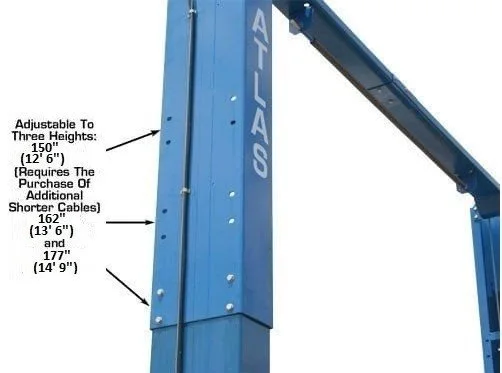

- Adjustable height: 165", 177", or 150" (with optional cables) – adapts to your shop's ceiling clearance
- Extra wide: 122 7/8" inside columns, 109" drive-thru accommodates the widest vehicles and longest wheelbases
- Symmetric arms with free 12-piece truck adapter set versatile lifting for cars, trucks, and vans
- Commercial-grade construction with direct-drive cylinders, automatic arm restraints, and single point lock release built for professional daily use
- 12-piece truck adapter set (four each of 1.25", 2.5", and 5" heights)
- All necessary mounting hardware
- Automatic arm restraints
- Single point lock release
- Direct-drive cylinders
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PV15PX-V001 |
| Condition |
New |
| Capacity |
15,000 lbs |
| Lifting Time |
N/A |
| Overall Height |
165" (13’ 9") or 177" (14’ 9") |
| Special Low Height |
150" (12’ 6")* (Requires Purchase of Extra Cables) |

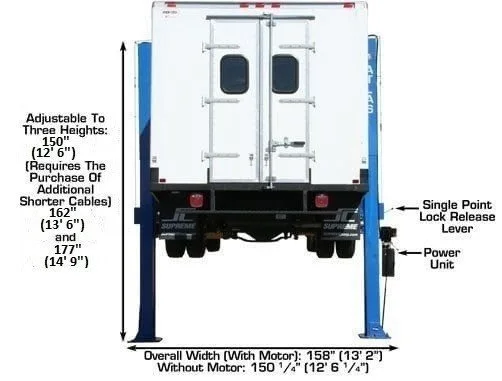

| Overall Floor Width |
150 3/4" (12’ 6 3/4") |
| Outside Column to Outside Column |
138 3/4" (11’ 6 3/4") |

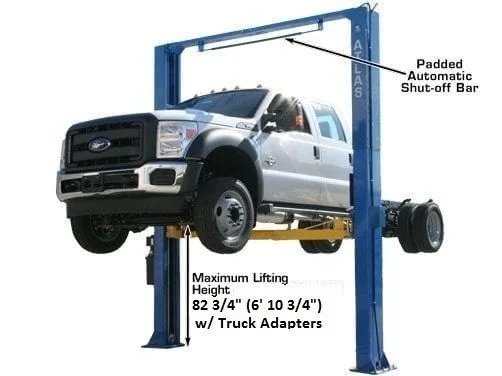

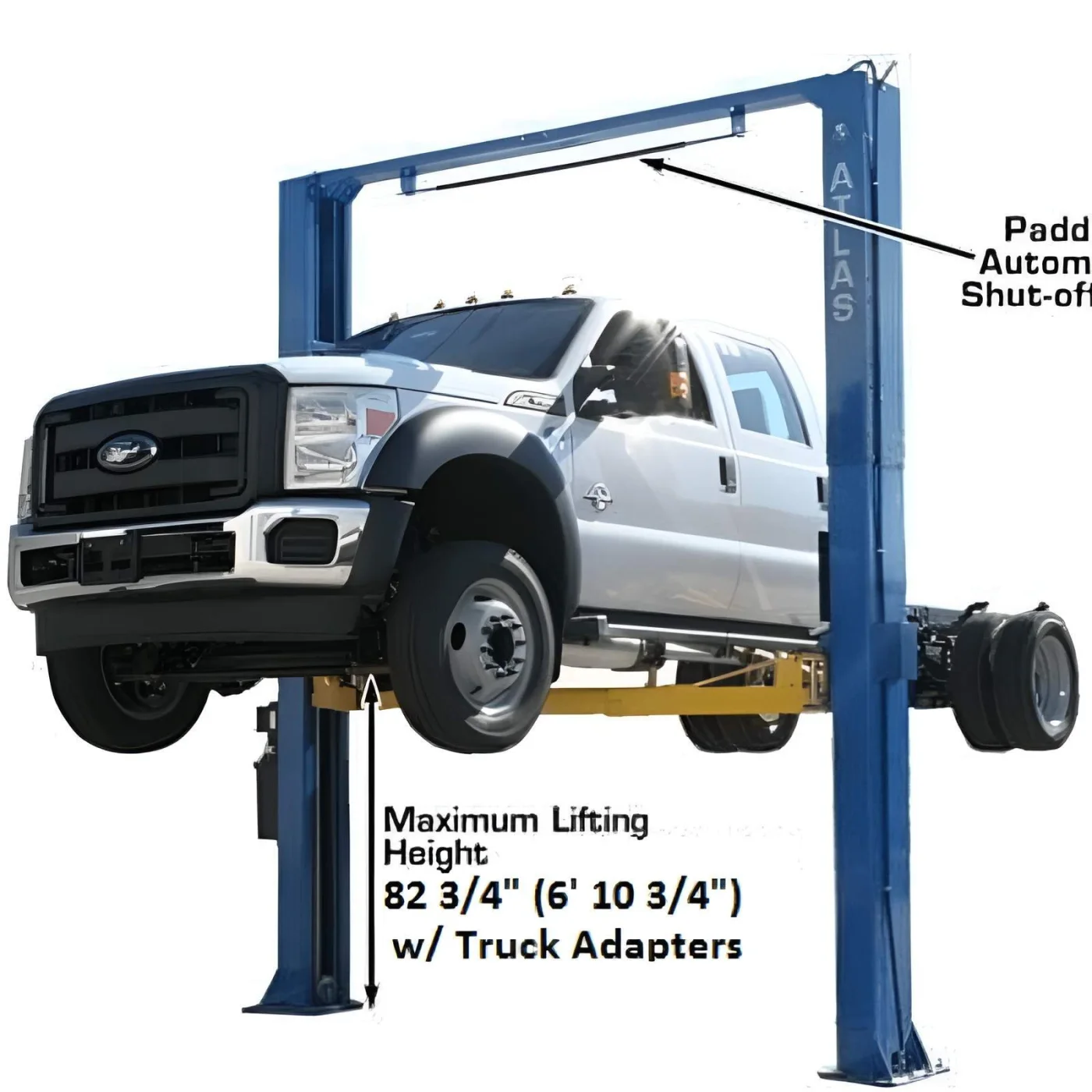

| Maximum Lift Height w/Adapters |
81" |
| Maximum Lift Height w/o Adapters |
72 1/2" |
| Minimum Arm Height |
7 1/4" |
| Inside Column |
122 7/8" (10’ 2 7/8") |
| Drive Thru |
109" (9’ 1") |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
| Base Of Lift |
17 1/2" x 20 1/2" |
| Adapter Heights |
4 Each 1.25", 2.5", 5" |
| Arm Hole/Adapter Peg Size |
1.5" |
| Motor/Electrical Requirement |
220V (1) phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Shipping Weight |
2,490 lbs |
| Lifting capacity |
15,000 lb |
| Lift type |
2 Post Lifts |
