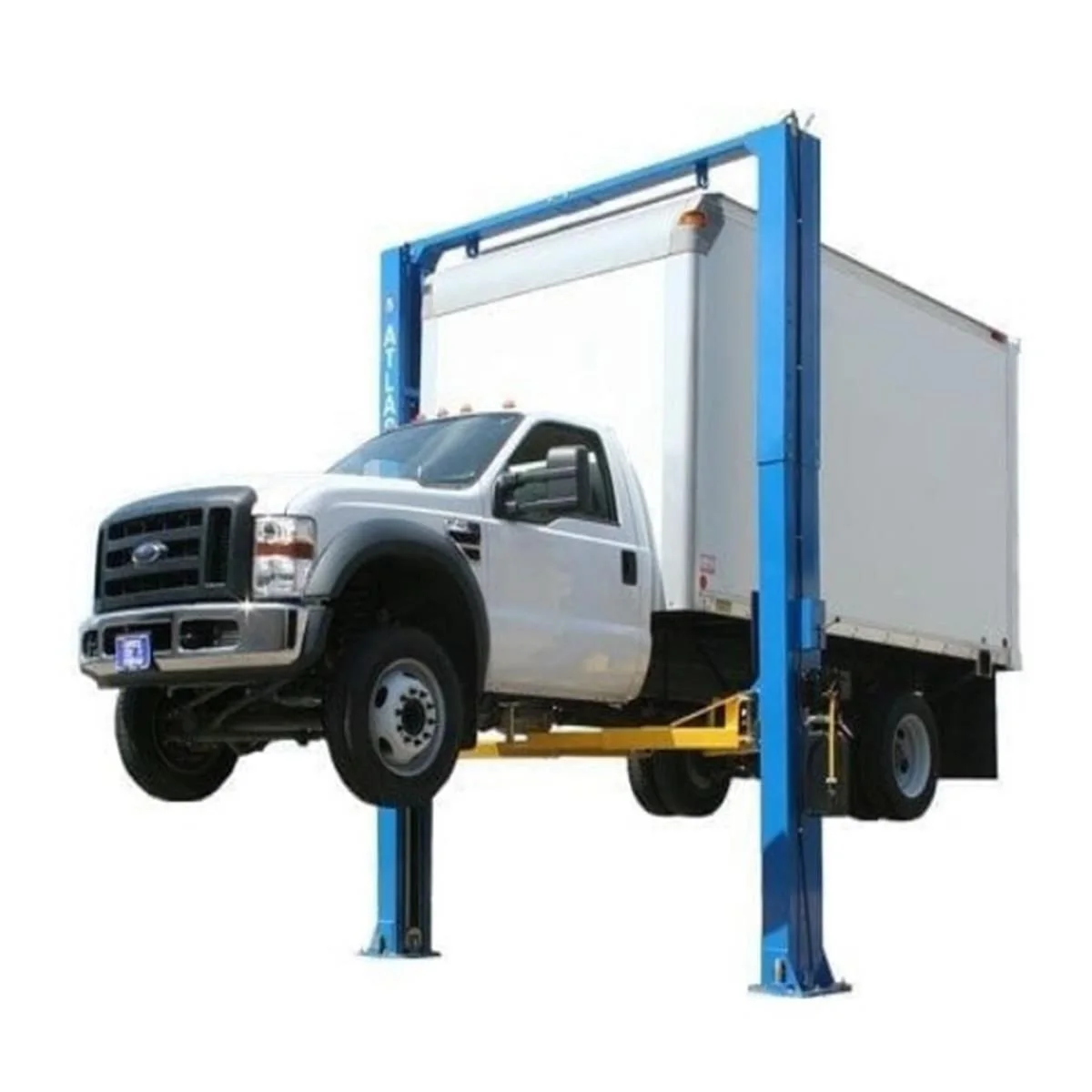

Atlas® PV12PX-3 Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs w/3-Stage Arms
$5,249.00
Atlas® PV12PX-3 Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs w/3-Stage Arms is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 12000 lb
Atlas® PV12PX-3 Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs w/3-Stage Arms
Atlas® PV12PX-3 Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs w/3-Stage Arms is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

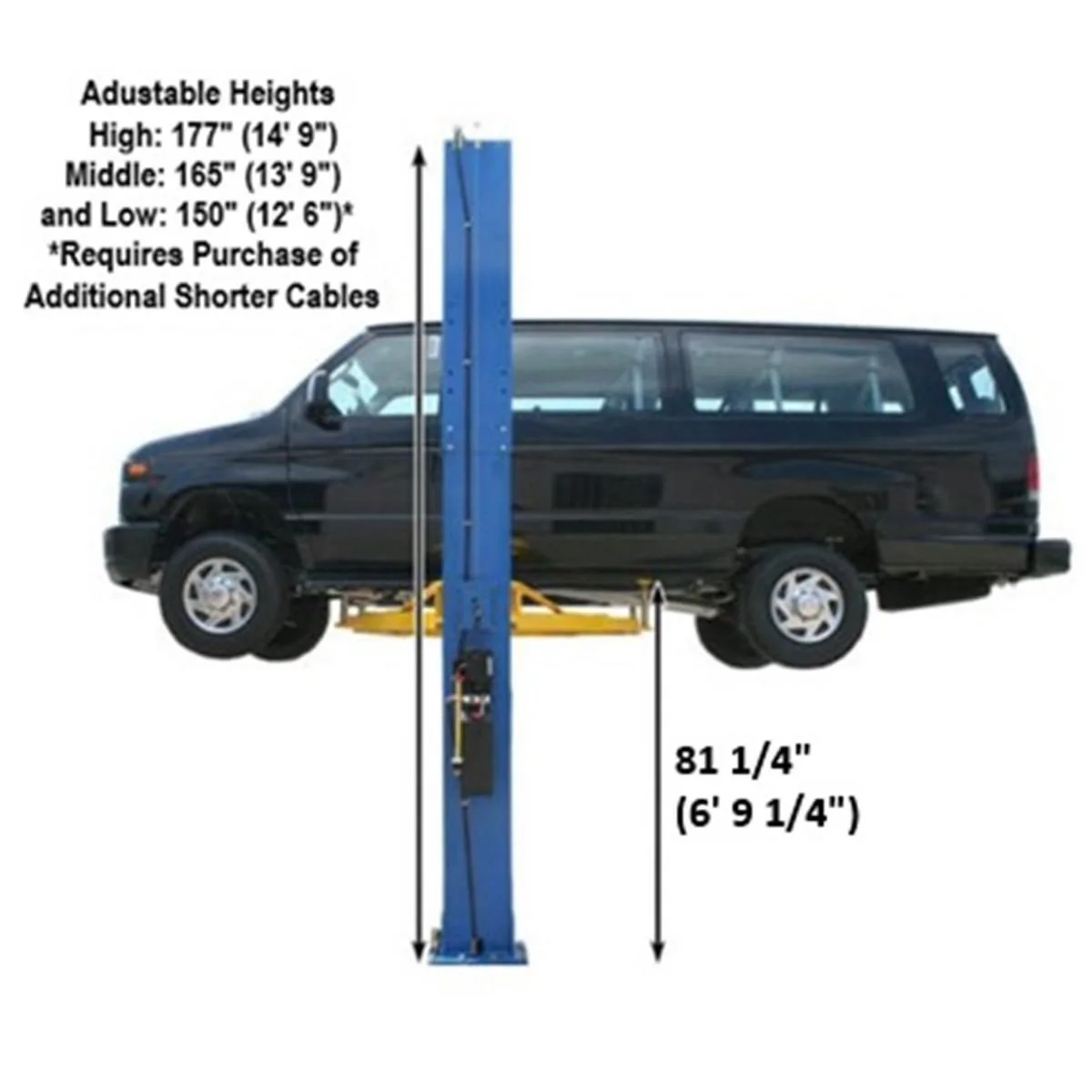

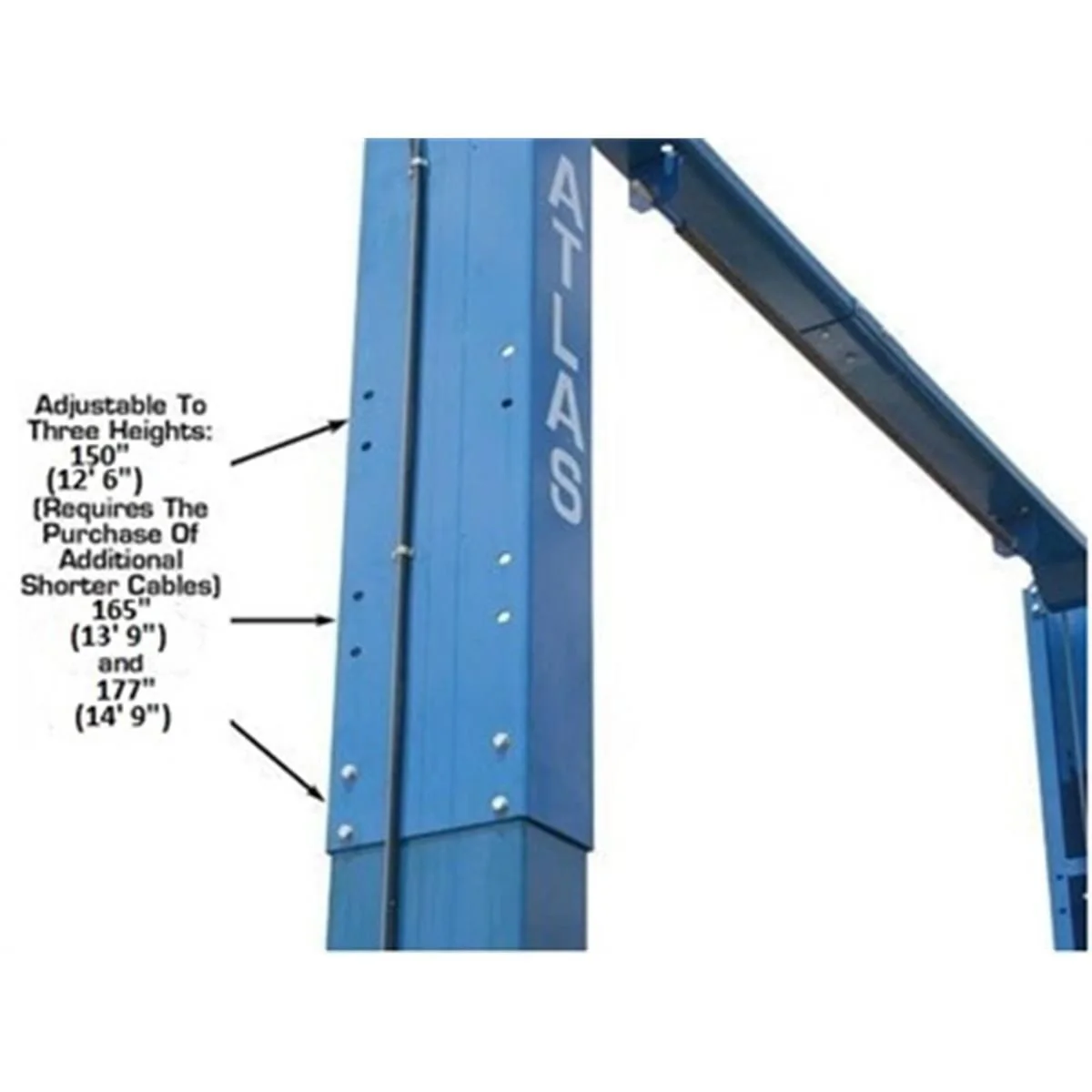

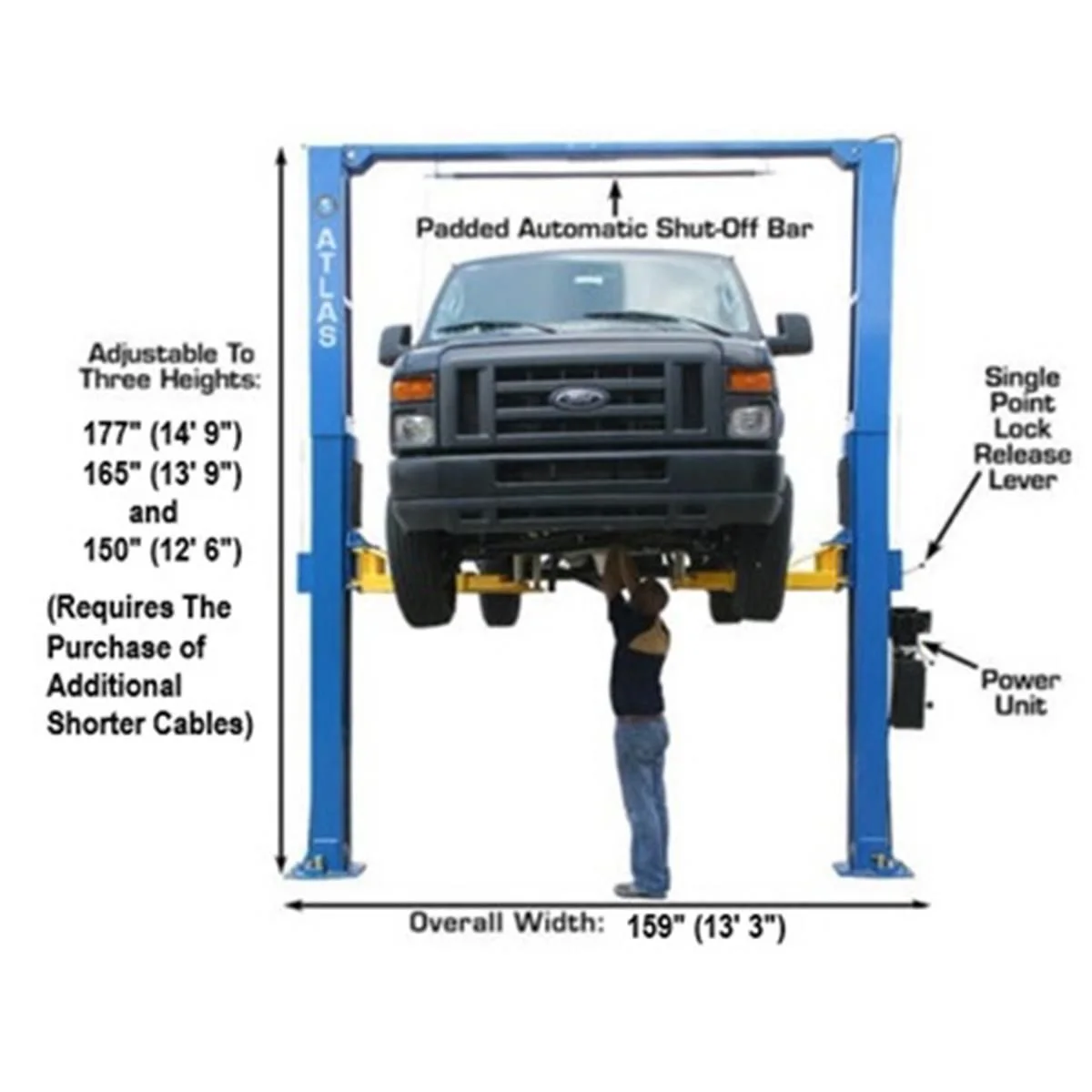

- Low Setting: 150 inches (12' 6") overall height (requires purchase of additional shorter cables, sold separately)
- Middle Setting: 165 inches (13' 9") overall height – standard configuration
- High Setting: 177 inches (14' 9") overall height – maximum clearance for tall vehicles
- Automatic Arm Restraints Enhanced safety during vehicle positioning

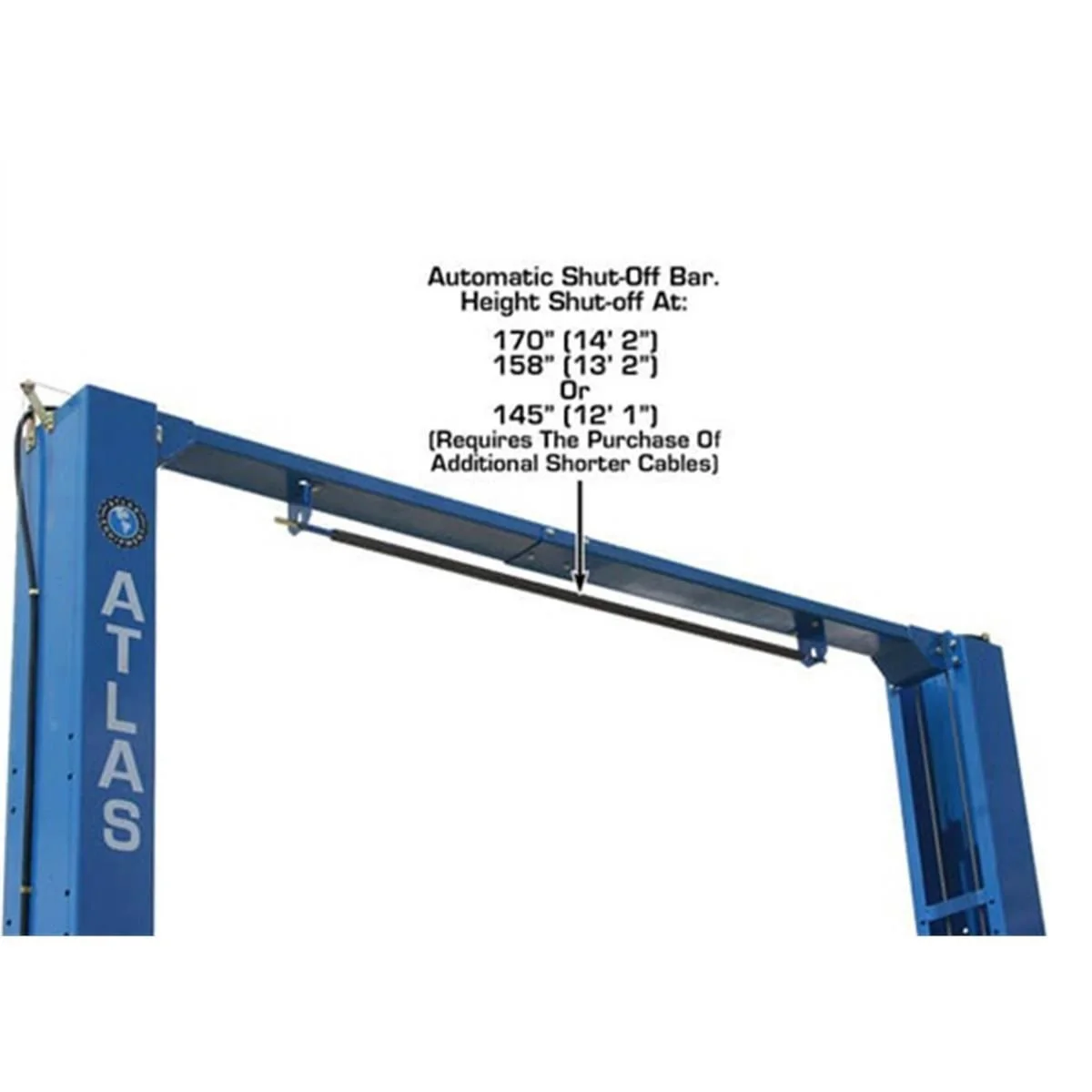

- "Padded" Shut-Off Bar Prevents damage and provides a cushioned stop
- Door Guards on Carriages Protects vehicle doors during lifting operations

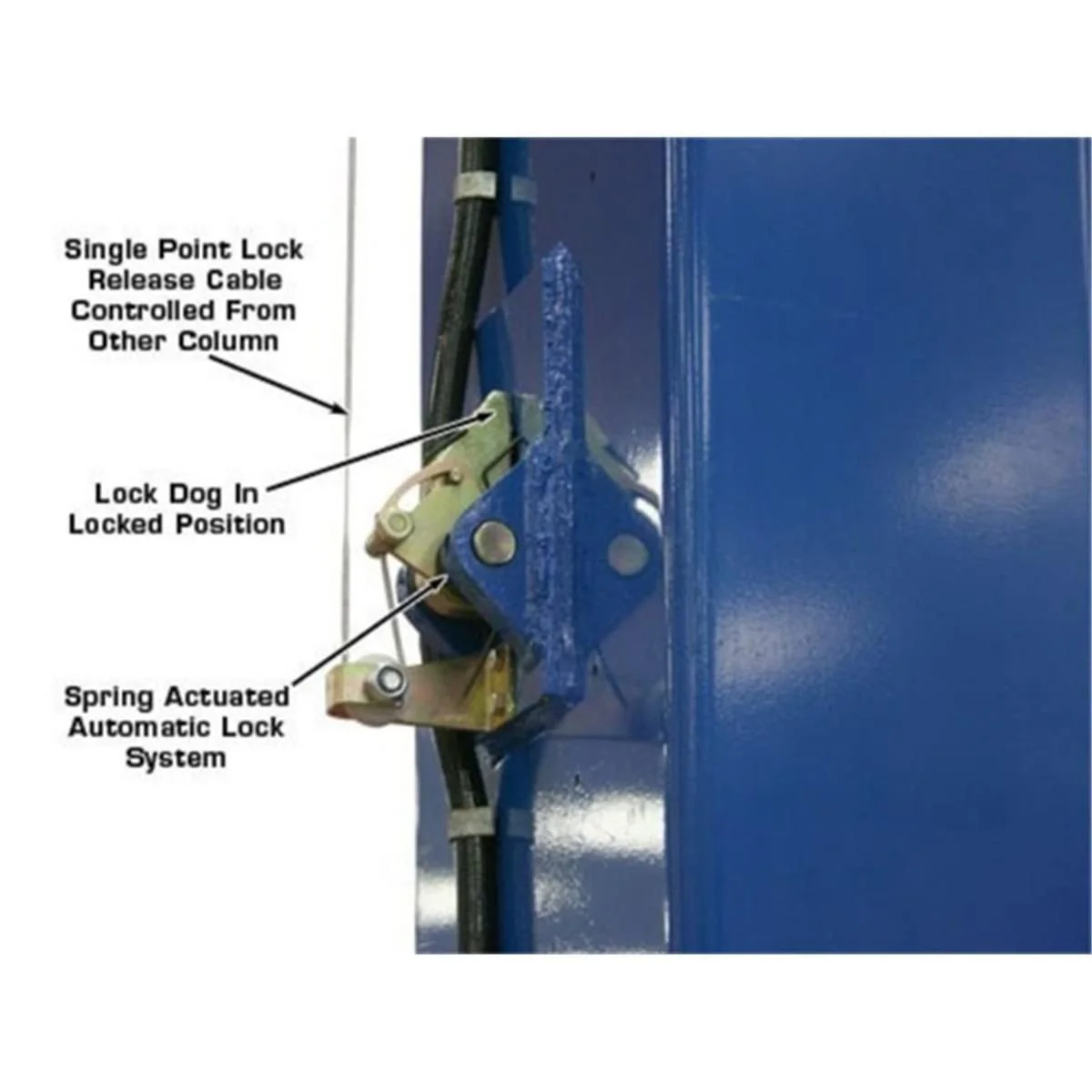

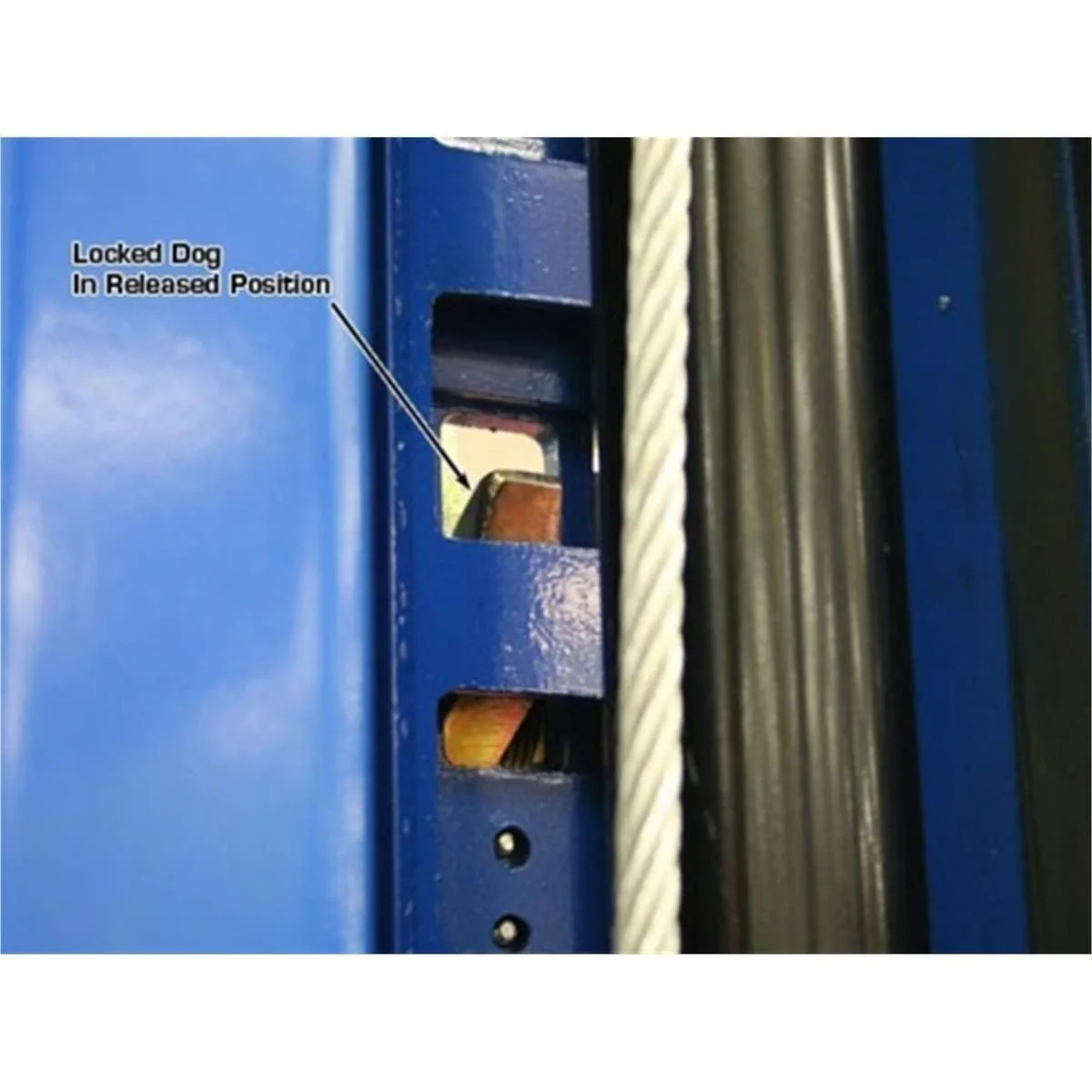

- Single Point Lock Release Convenient one-handed safety lock disengagement

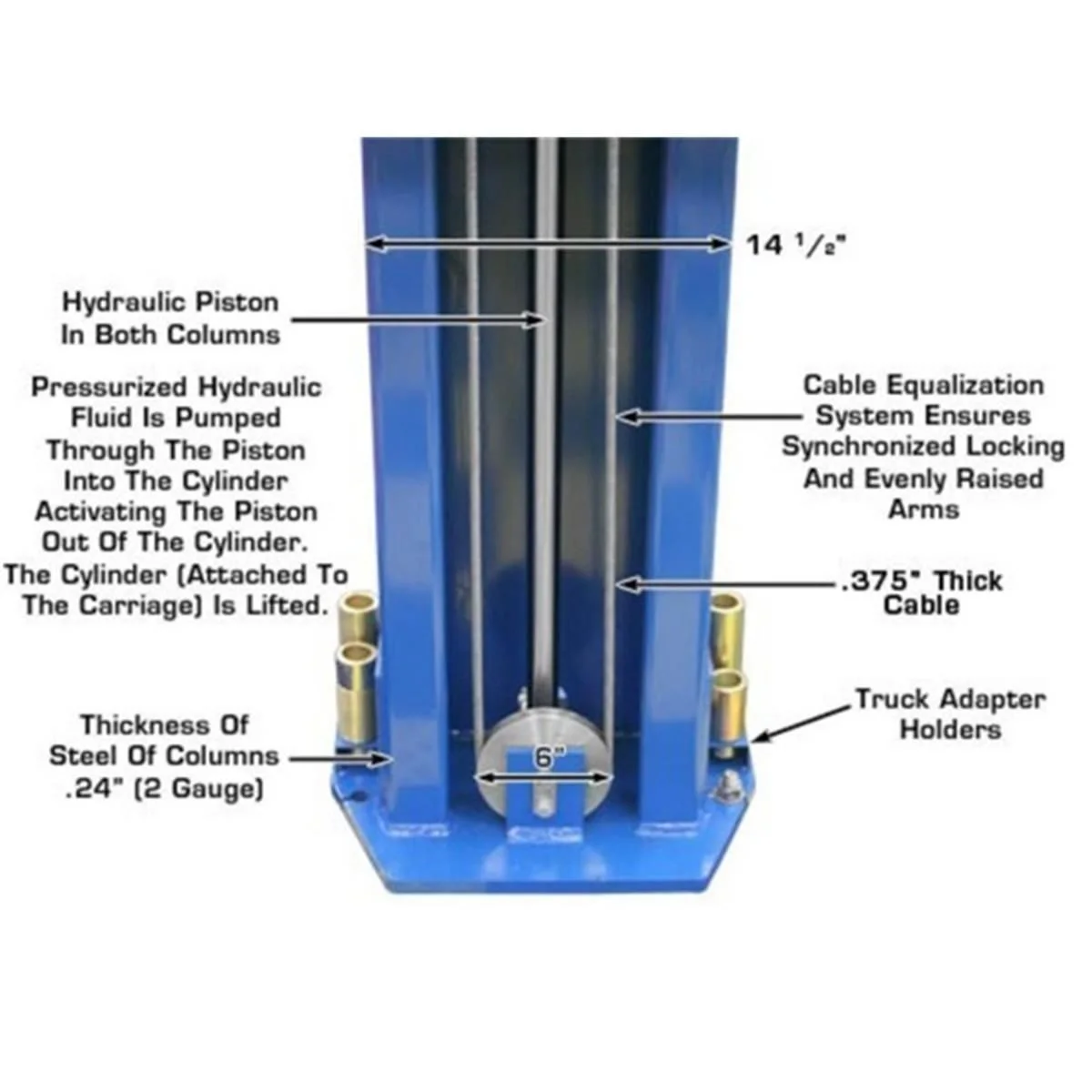

- Dual Direct-Drive Cylinders Reliable, synchronized lifting power
- Durable Powder Coat Finish Long-lasting corrosion resistance and professional appearance

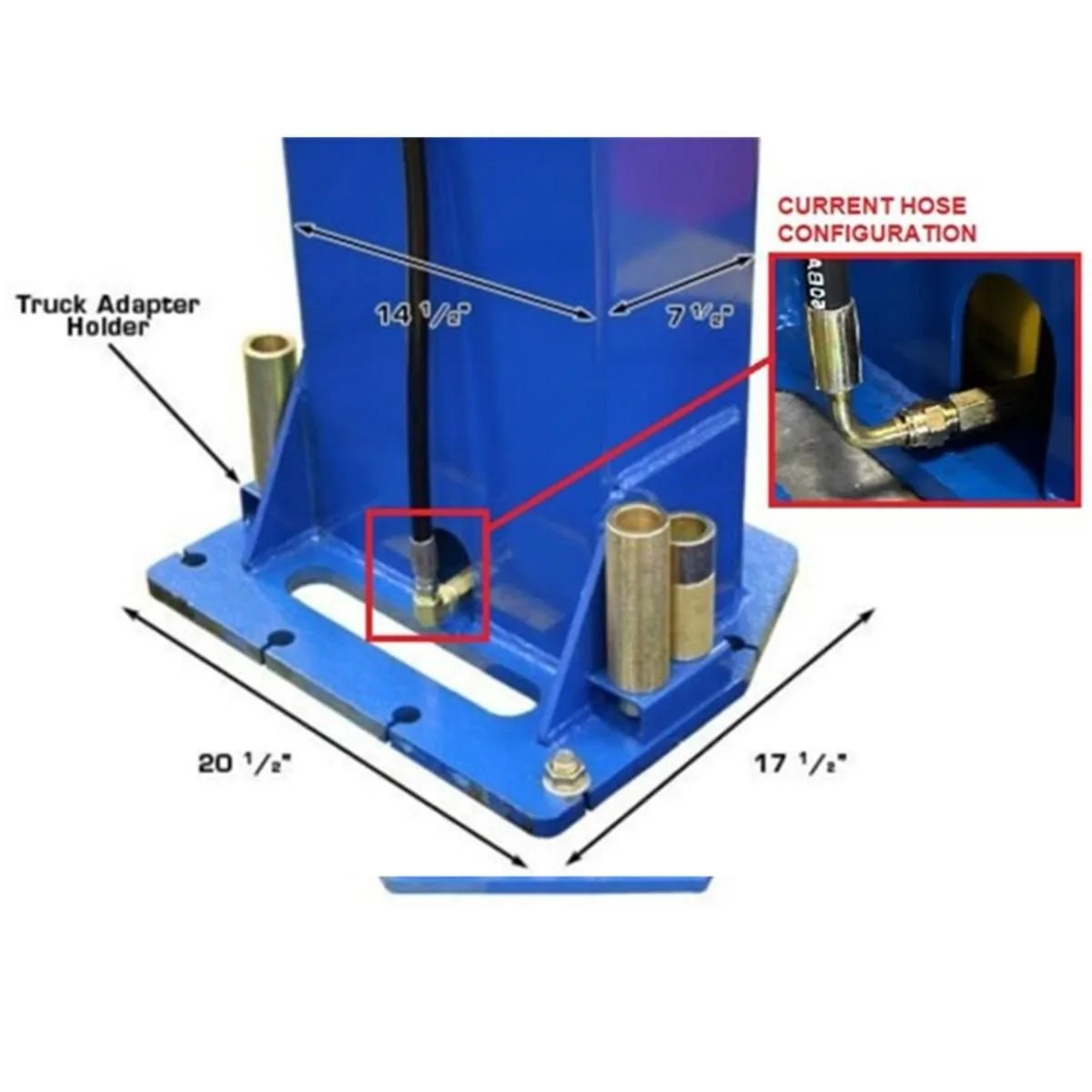

- Free 12-Piece Truck Adapter Set Included Adds versatility for trucks, vans, and SUVs
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PV12PX-3-V001 |
| Condition |
New |
| Capacity |
12,000 lbs |
| Lifting Time |
N/A |
| Overall Width w/o Motor |
150 3/4" |
| Overall Width w/ Motor |
159" |
| Outside Column To Outside Column |
138 1/2" |
| Maximum Lift Height w/o Adapters |
72 1/4" |
| Maximum Lift Height w/Adapters |
79 1/4" |
| Minimum Arm Height (Assuming Level Floor) |
4 1/2" |
| Arm Collapsed |
37 1/2" |
| Arm Fully Extended |
57" |
| Width Between Columns |
123 1/4" |
| Drive Thru |
109 1/2" |
| Round Lift Pad |
5 1/2" Across / 1 1/4" Shank |
| Adapter Sizes (4 ea.) |
1 1/4" / 2 1/2" / 5" |
| Motor/Electrical Requirement |
220V (1) phase / 30 amp breaker recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Shipping Weight |
2,160 lbs. |
| Lifting capacity |
12000 lb |
| Lift type |
2 Post Lifts |
