Atlas® ML-6045BC ALI Battery Powered Mobile Column Lift System 99,000 lbs
$42,899.00
Atlas® ML-6045BC ALI Battery Powered Mobile Column Lift System 99,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
- Lifting capacity: 99000 lb
Atlas® ML-6045BC ALI Battery Powered Mobile Column Lift System 99,000 lbs
Atlas® ML-6045BC ALI Battery Powered Mobile Column Lift System 99,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

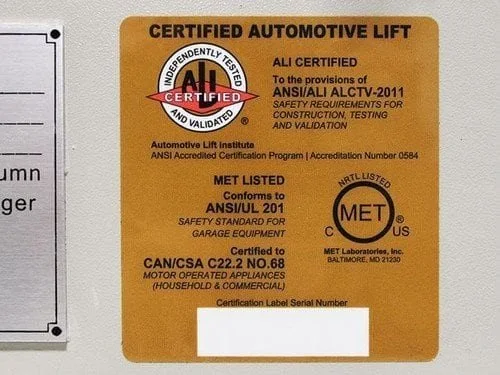

- ALI CERTIFIED
- 99,000 lb. Total Capacity – 16,500 lbs per Column

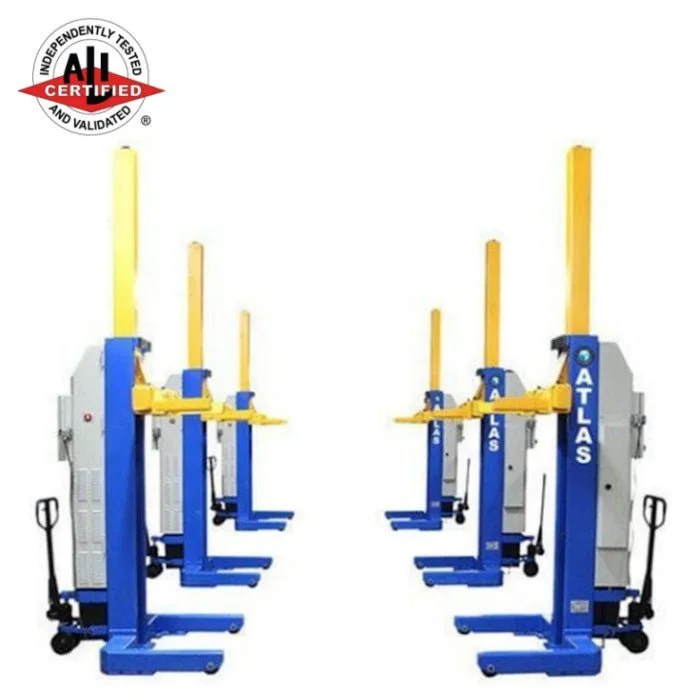

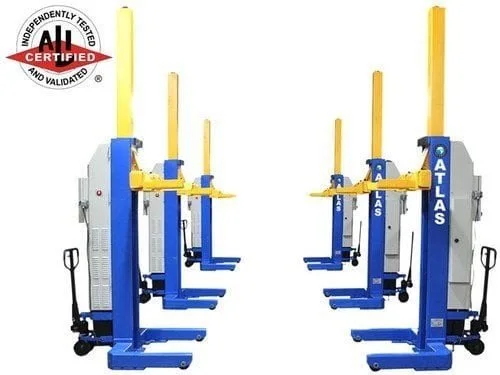

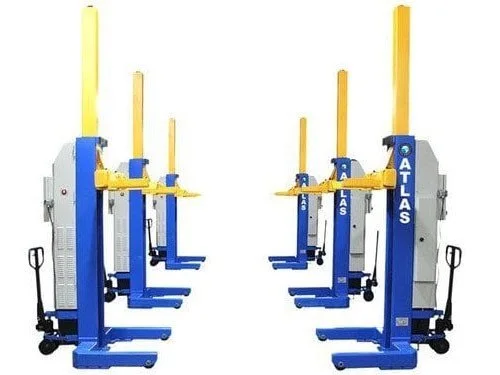

- 6 Mobile Columns
- Simultaneous operation of all columns

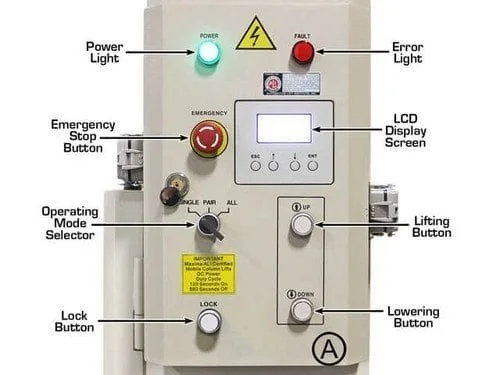

- LCD screen shows exact lifting height of each column
- Electronic system ensuring synchronization of all columns
- Double-safety guaranteed by both hydraulic flow control and mechanical locks

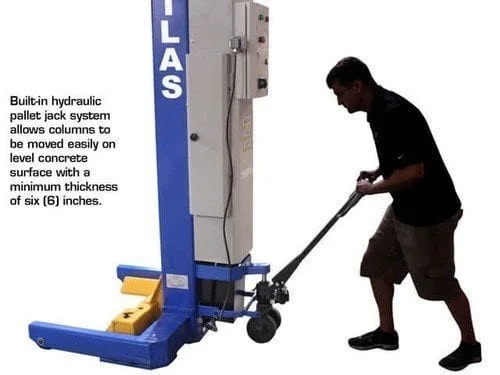

- Portable columns make your work easy and comfortable

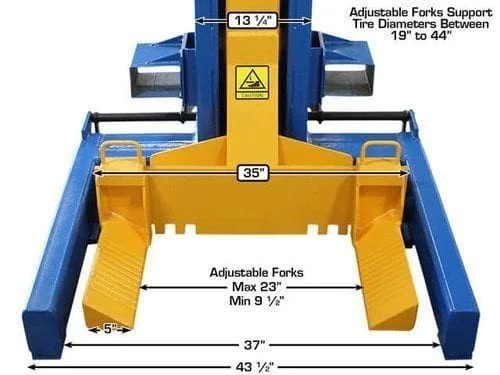

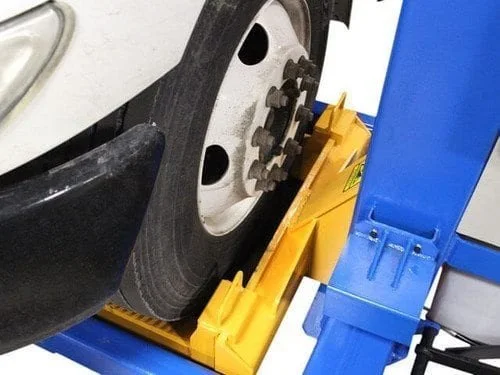

- Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
- Emergency stop button on every column
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ML-6045BC |
| Condition |
New |
| Capacity |
16,500 lbs per Column – 99,000 lbs Total |
| Max Lifting Height |
67" (5' 7") |
| Overall Height |
145" (12' 1") |
| Resting Height |
88 1/2" (7' 4 1/2") |
| Max Tire Diameter |
44" |
| Min Tired Diameter |
19" |

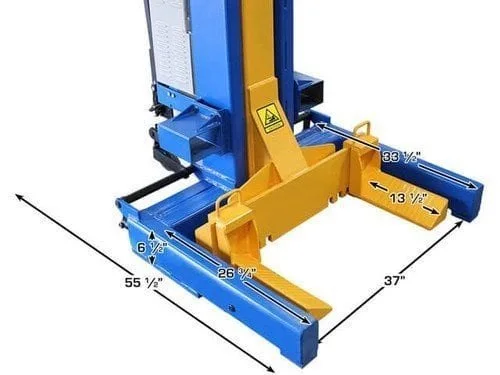

| Width |
43 1/2" (3' 7 1/2") |
| Length |
55 1/2" (4' 7 1/2" |
| Column Width |
13 1/4" |
| Motor |

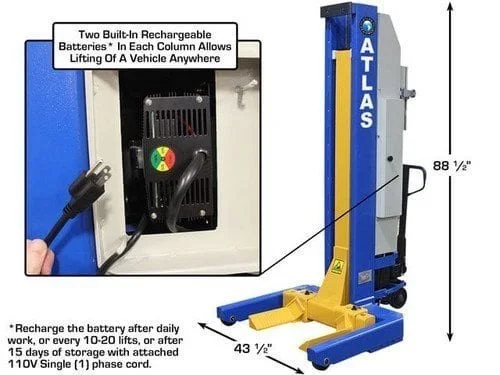

2.2 Kw 24V DC motor with two batteries per column |
| Shipping Weight (For Six Columns) |
9,600 lbs |
| Shipping Weight Per Column |
1,600 lbs. each |
| Lifting capacity |
99,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
