Atlas® ML-4034BC ALI Battery Powered Mobile Column Lift System 74,000 lbs
$29,599.00
Atlas® ML-4034BC ALI Battery Powered Mobile Column Lift System 74,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
- Lifting capacity: 74000 lb
Atlas® ML-4034BC ALI Battery Powered Mobile Column Lift System 74,000 lbs
Atlas® ML-4034BC ALI Battery Powered Mobile Column Lift System 74,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- ALI CERTIFIED for safety and compliance—meets all industry lifting standards
- Emergency stop button on every column for immediate safety response
- Four 32-foot column connecting cables included for flexible positioning around large vehicles
- 2 Year Limited Warranty backed by Atlas Automotive Equipment quality and support
- ALI CERTIFIED
- 74,000 lb. Total Capacity – 18,500 lbs per Column

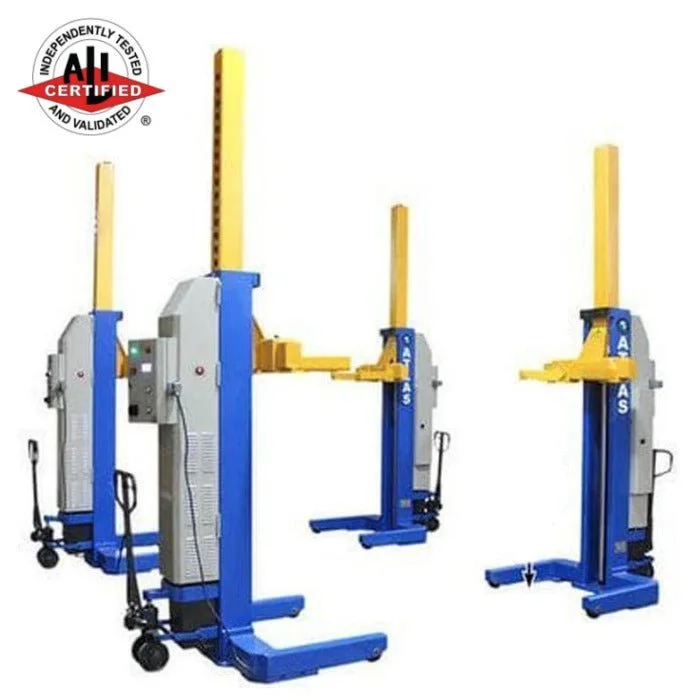

- 4 Mobile Columns
- Simultaneous operation of all columns
- LCD screen shows exact lifting height of each column
- Electronic system ensuring synchronization of all columns
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ML-4034BC-KIT |
| Condition |
New |
| Capacity |
18,500 lbs per Column – 74,000 lbs Total |

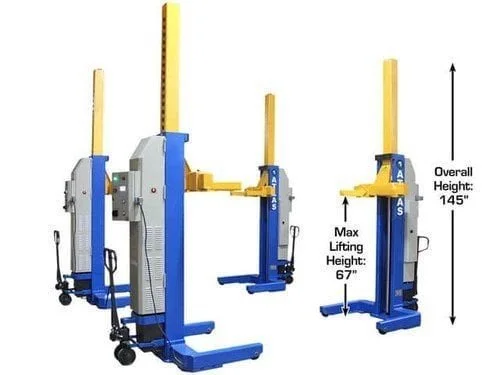

| Max Lifting Height |
67" (5' 7") |
| Overall Height |
145" (12' 1") |

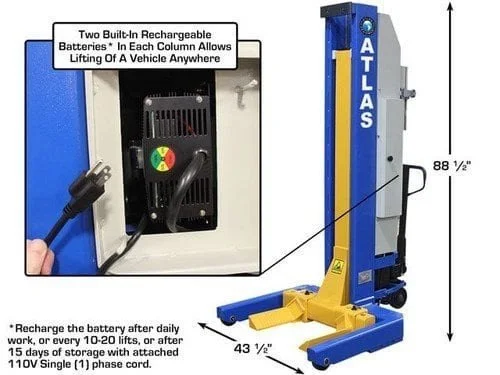

| Resting Height |
88 1/2" (7' 4 1/2") |

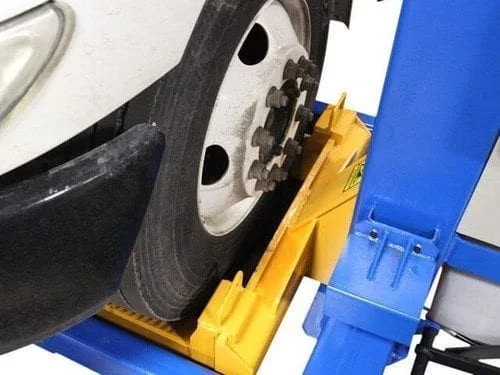

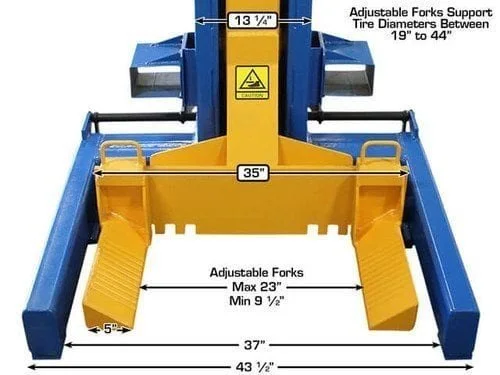

| Max Tire Diameter |
44" |
| Min Tired Diameter |
19" |
| Width |
43 1/2" (3' 7 1/2") |

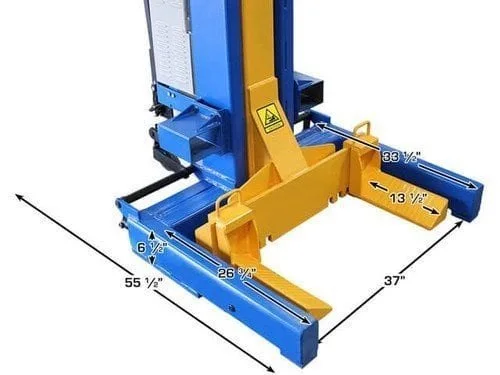

| Length |
55 1/2" (4' 7 1/2" |
| Column Width |
13 1/4" |
| Motor |
2.2 Kw 24V DC motor with two batteries per column |
| Shipping Weight (For Four Columns) |
6,800 lbs |
| Shipping Weight Per Column |
1,700 lbs. each |
| Lifting capacity |
74,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
