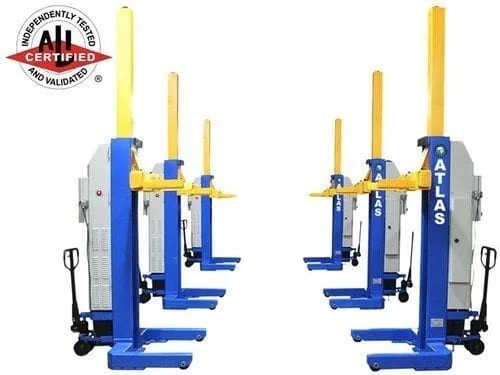

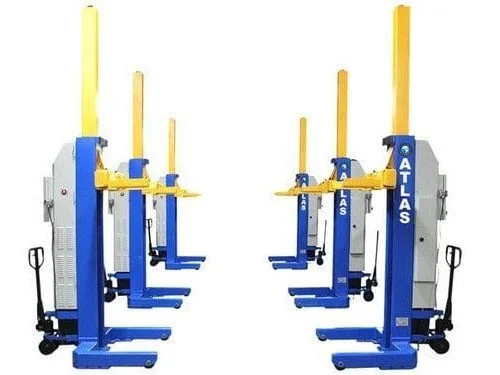

Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs
$44,799.00
Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
- Lifting capacity: 111000 lb
Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs
Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

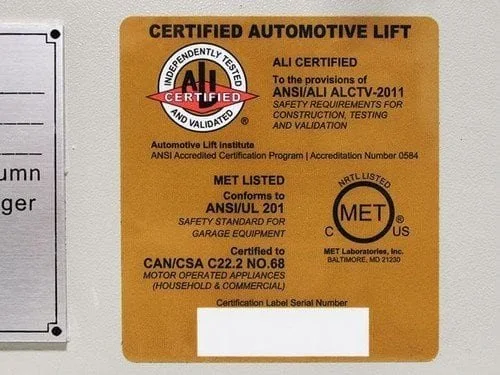

- ALI CERTIFIED for safety and compliance—trusted industry standard
- 111,000 lb. total capacity (18,500 lbs per column) handles the heaviest buses, RVs, and trucks

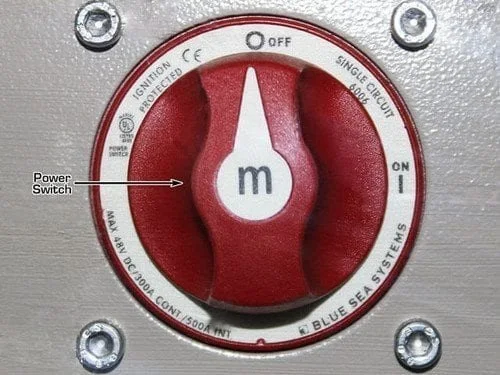

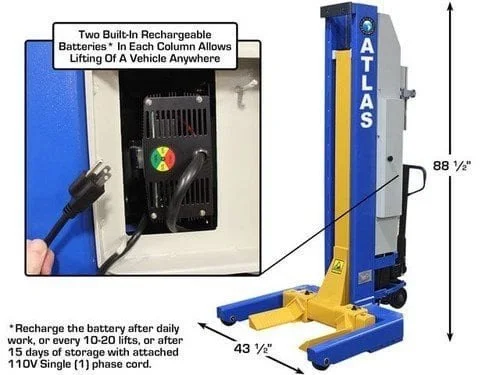

- Battery powered freedom: 24V DC motors with dual batteries per column—no wall outlet needed

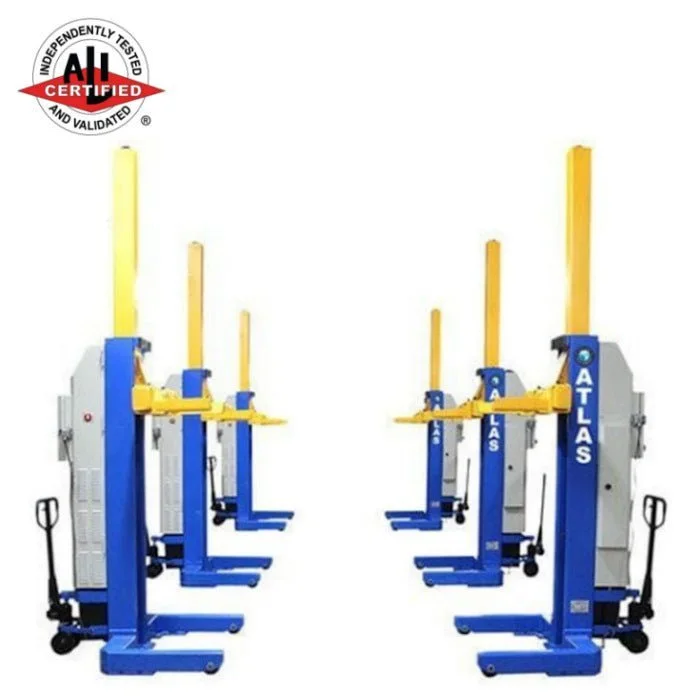

- Complete six-column system with simultaneous operation and electronic synchronization

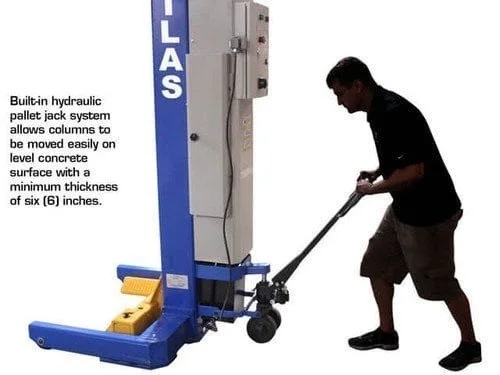

- Maximum portability: Hydraulic pallet jack system on each column for easy movement and storage

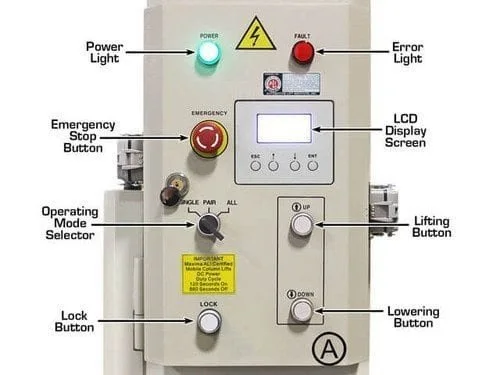

- LCD screens on every column display exact lifting height for precision control

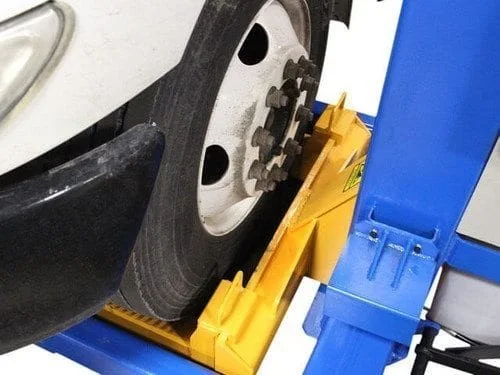

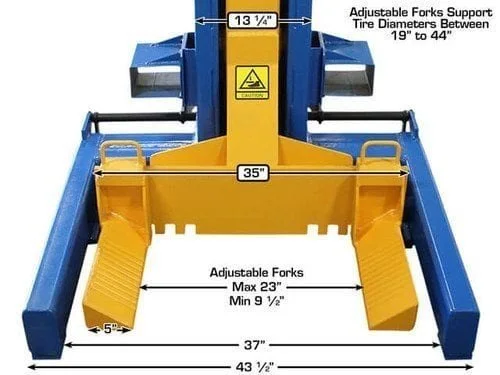

- Adjustable forks accommodate tire diameters from 19" to 44"—versatile for any vehicle
- Double-safety design: Hydraulic flow control and mechanical locks for added security
- 2-year limited warranty and six 32' column connecting cables included
- ALI CERTIFIED
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ML-6051BC |
| Condition |
New |
| Capacity |
18,500 lbs per Column – 111,000 lbs Total |
| Max Lifting Height |
67" (5' 7") |
| Overall Height |
145" (12' 1") |
| Resting Height |
88 1/2" (7' 4 1/2") |
| Max Tire Diameter |
44" |
| Min Tired Diameter |
19" |
| Width |
43 1/2" (3' 7 1/2") |
| Length |
55 1/2" (4' 7 1/2" |
| Column Width |
13 1/4" |
| Motor |
2.2 Kw 24V DC motor with two batteries per column |
| Shipping Weight (For Six Columns) |
10,2000 lbs |
| Shipping Weight Per Column |
1,700 lbs. each |
| Lifting capacity |
111,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
