Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs
$3,099.00
Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 8000 lb
Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs
Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

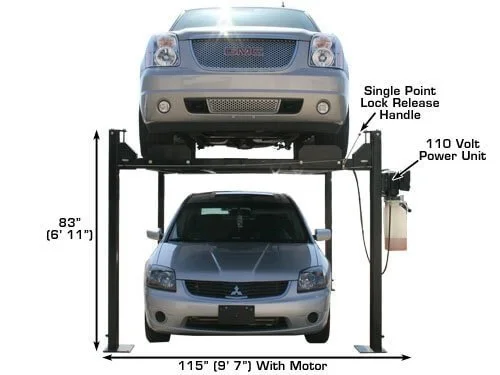

- Double Lock Safety System with single point lock release and lock ladder design provides maximum security and convenience
- Atlas® Powder Coat Finish ensures long-lasting durability and corrosion resistance in demanding garage environments
- 110V motor with 30 amp breaker requirement no special electrical service needed for most home installations
- Complete accessory package included: steel approach ramps, steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks
- Generous dimensions: 165 3/4" runway length, 21 1/2" runway width with rails, and 153 1/2" maximum wheelbase capacity
- 1 Jack Tray for positioning floor jacks and jack stands
- 4 Plastic Drip Trays to catch fluids during maintenance
- 2 Rubber Wheel Chocks for added vehicle security
- Steel Approach Ramps for smooth, controlled vehicle loading
- 1 Caster Kit with Polyurethane Wheels for portability
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PRO8000 |
| Condition |
New |
| Capacity |
8,000 lbs |

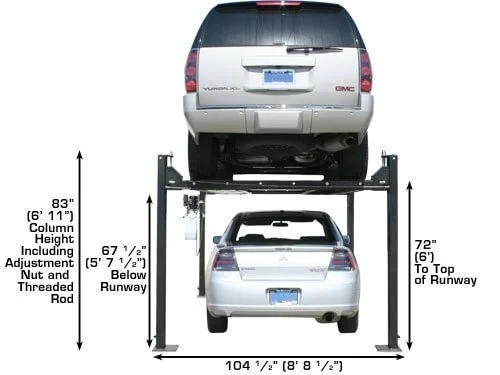

| Lifting Height To Top Of Runway |
72" (6') |
| Clearance Under Runways |
67" (5' 7") |

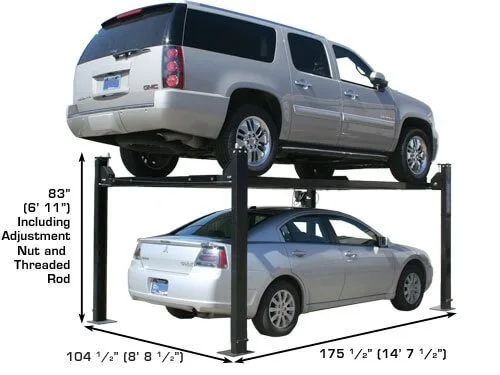

| Height of Columns |
83" (6' 11") |

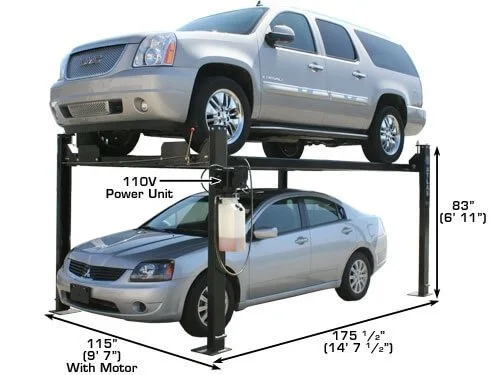

| Overall Width w/ Motor |
115" (9' 7") |

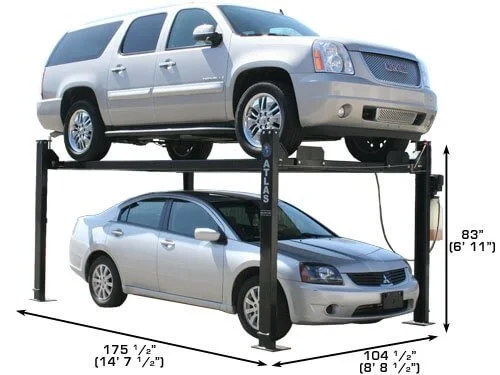

| Overall Width w/o Motor |
104 1/2" (8' 8 1/2") |

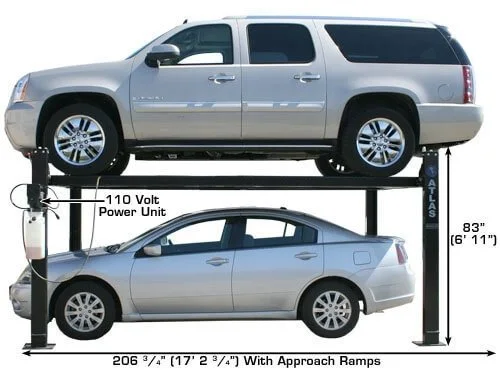

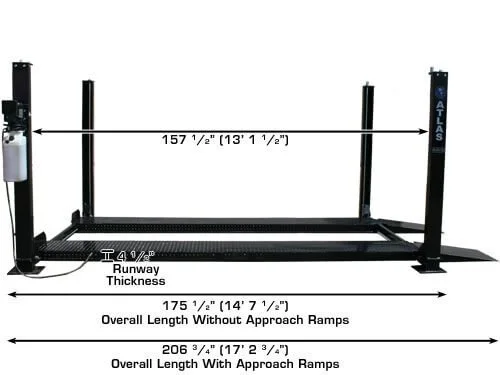

| Overall Length w/Approach Ramps |
206 3/4" (17' 2 3/4") |
| Overall Length w/o Approach Ramps |
N/A |
| Approach Ramps |
37" (3' 1") |
| Runway Width |
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length |
165 3/4" (13' 9 3/4") |
| Runway Thickness |
4 ½" |
| Width Between Runways |
37" (3' 1") |
| Width Between Runway Rails |
31 1/2" (2' 7 1/2") |
| Outside Runway to Outside Runway |
74 5/8" (6' 2 5/8") |
| Clearance Between Columns |
94 1/2" (7' 10 1/2") |
| Length Between Columns |
157 1/2" (13' 1 1/2") |
| Maximum Wheel Base |
153 1/2" (12' 9 1/2") |
| Drive Thru (Outside of tire to outside of tire) |
80 1/2" (6' 8 1/2") |
| Motor |
110V / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT Included) |
| Weight |
1,800 lbs |
| Lifting capacity |
8000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
