Atlas® Garage Pro 9000 Service/Parking 4 Post Lift 9,000 lbs
$4,499.00
Atlas® Garage Pro 9000 Service/Parking 4 Post Lift 9,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
Atlas® Garage Pro 9000 Service/Parking 4 Post Lift 9,000 lbs
Atlas® Garage Pro 9000 Service/Parking 4 Post Lift 9,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Exceptional Vehicle Capacity: 9,000 lb. capacity with a 187-inch maximum wheelbase accommodates full-size trucks, SUVs, and extended vehicles.

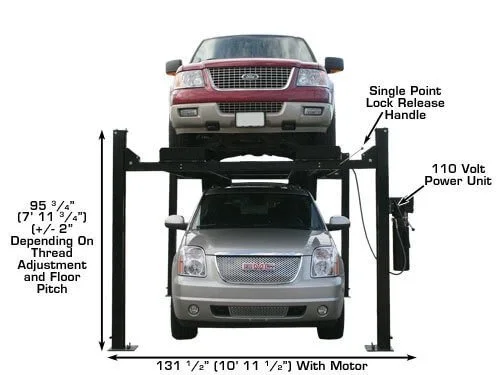

- Enhanced Safety: Double lock safety system, lock ladder design, and single point lock release ensure secure, user-friendly operation.
- 1 Jack Tray for convenient tool and jack placement
- 4 Plastic Drip Trays to catch fluids and protect your floor
- 2 Rubber Wheel Chocks for added vehicle security
- Steel Approach Ramps (31 inches long) for smooth vehicle loading
- 4 Wheel Stops to position vehicles precisely on the runways
- 1 Caster Kit with Polyurethane Wheels for floor-safe portability
- 9,000 lb. Capacity
- Atlas® Powder Coat Finish
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PRO9000 |
| Condition |
New |
| Capacity |
9,000 lbs |

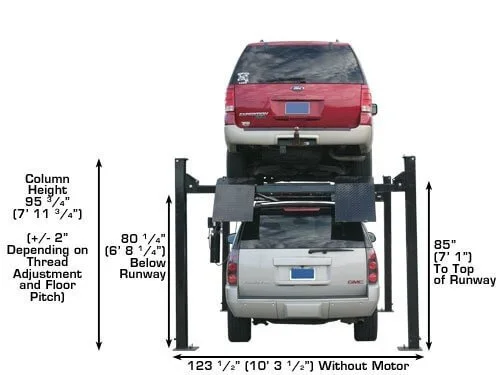

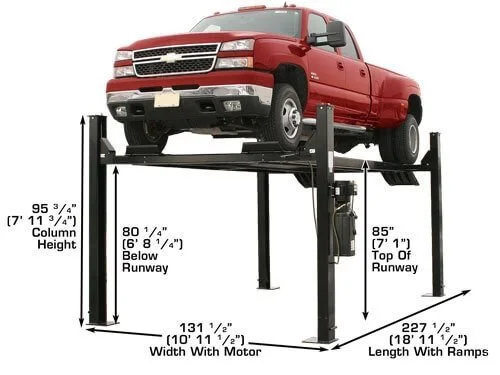

| Lifting Height To Top Of Runway |
85" (7' 1") |

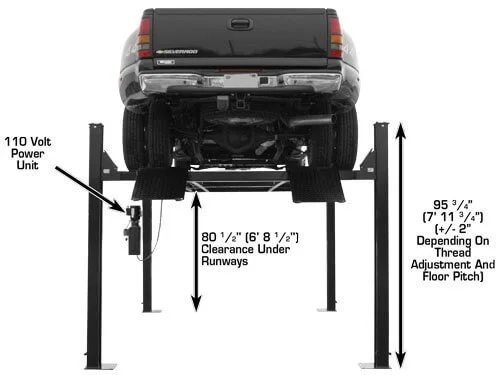

| Clearance Under Runways |
80 1/4" (6' 8 1/4") |

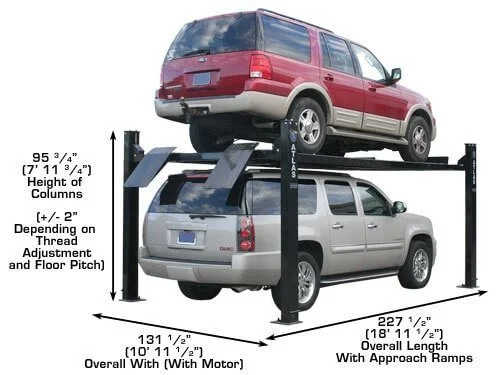

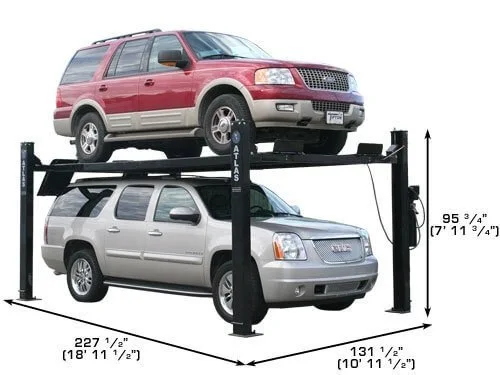

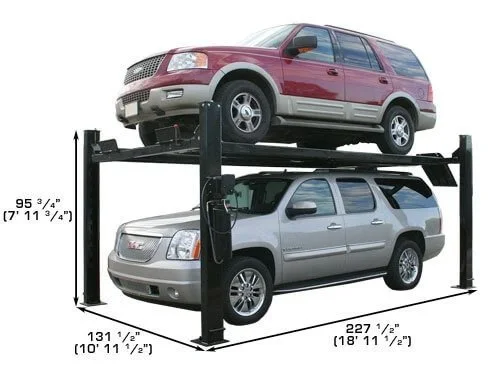

| Height of Columns |
95 3/4" (7' 11 3/4") |
| Overall Width w/ Motor |
131 1/2" (10' 11 1/2") |
| Overall Width w/o Motor |
123 1/2" (10' 3 1/2") |

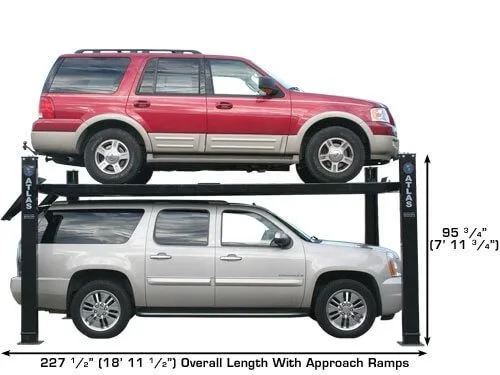

| Overall Length w/Approach Ramps |
227 1/2" (18' 11 1/2") |
| Overall Length w/o Approach Ramps |
204" (17') |
| Approach Ramps Length |
31" (2' 7") |
| Runway Width |
21 1/4" (w/ Rails) or 20" (Driving Surface) |
| Runway Length |
199 1/2" (16' 7 1/2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
39 1/4" (3' 3 1/4") |
| Width Between Runway Rails |
35 1/2" (2' 11 1/2") |
| Outside Runway to Outside Runway |
79" (6' 7") |
| Clearance Between Columns |
110 1/2" (9' 2 1/2") |

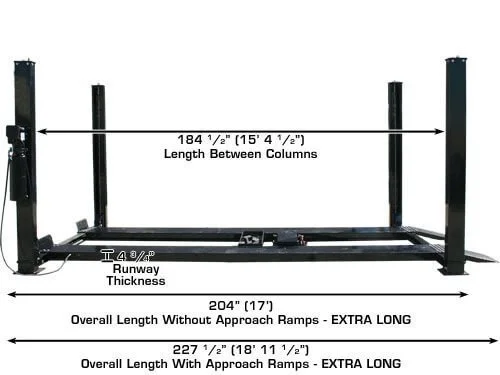

| Length Between Columns |
184 1/2" (15' 4 1/2") |
| Maximum Wheel Base |
187" (15' 7") |
| Drive Thru (Outside of tire to Outside of tire) |
97 1/4" (8' 1 1/4") |
| Motor |
110V / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT Included) |
| Weight |
2,300 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
