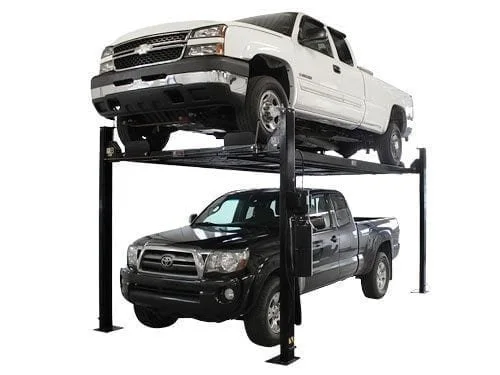

Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs
$3,499.00
Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 8000 lb
6 in stock
Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs
Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Diamond Plated Runways Superior traction and durability, engineered to last

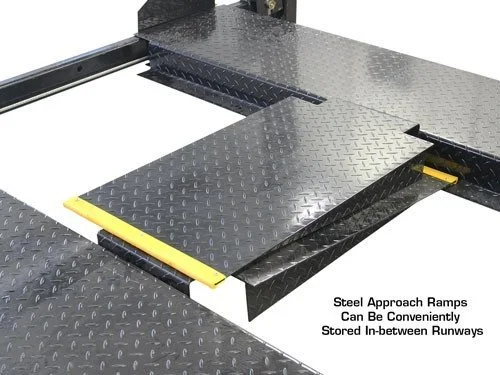

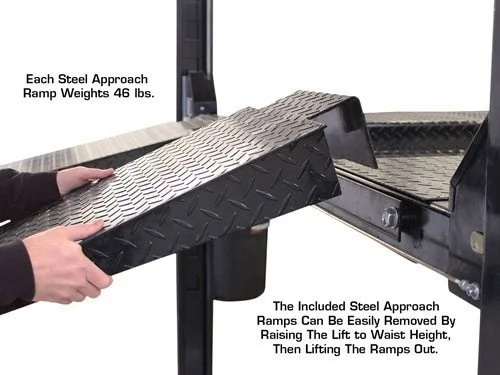

- Steel Approach Ramps Smooth, safe vehicle loading included
- Steel Jack Tray Convenient storage for floor jacks and tools
- Four Plastic Drip Trays Catch fluids and keep your workspace clean

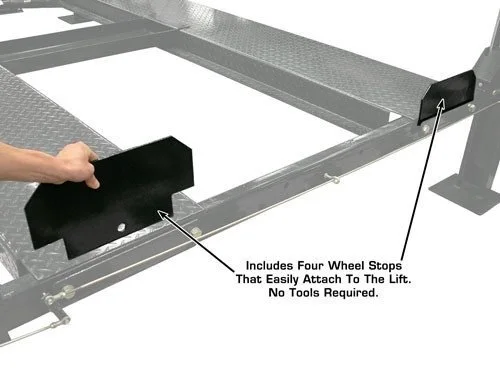

- Four Wheel Stops Secure vehicle positioning on the runways
- Two Rubber Wheel Chocks Added safety during loading and service
- Caster Kit with Polyurethane Wheels Tool-free portability when you need it
- 8,000 lb. Capacity
- Atlas® Powder Coat Finish
- Diamond Plated Runways
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PRO8000EXT-L |
| Condition |
New |
| Capacity |
8,000 lbs |
| Lifting Height |
84" (7') |
| Max Clearance Under Runways |
78 1/2" (6' 6 1/2") |
| Height of Columns |
98 1/2" (8' 2 1/2") |
| Overall Width w/ Motor |
116 ½" (9' 8 ½") |
| Overall Width w/o Motor |
108" (9') |
| Overall Length w/Approach Ramps |
222" (18' 6") |
| Overall Length w/o Approach Ramps |
N/A |

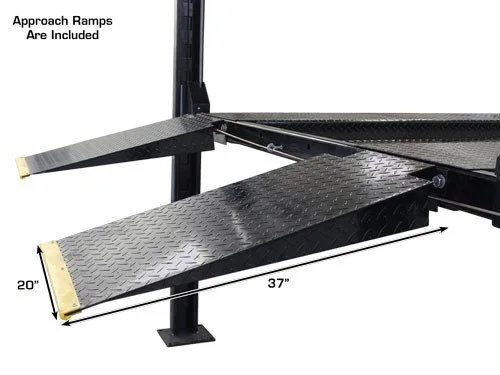

| Approach Ramps |
37" (3' 1") |
| Runway Width |
22" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length |
185" (15' 5") |

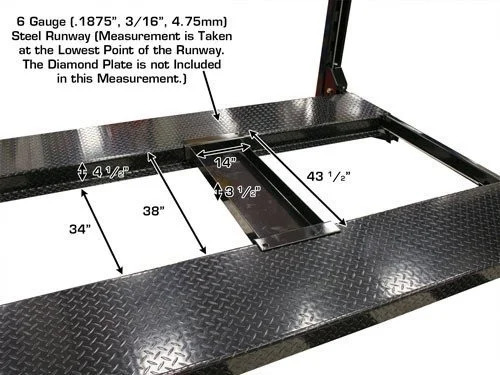

| Runway Thickness |
4 ½" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
34" (2' 10") |

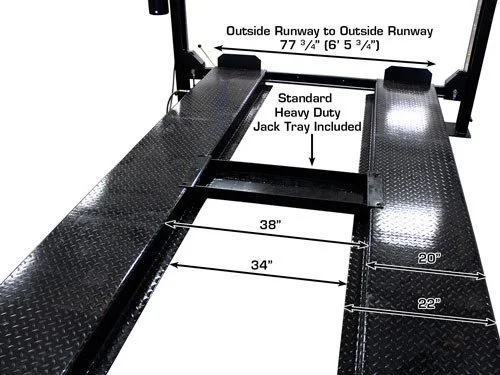

| Outside Runway to Outside Runway |
77 3/4" (6' 5 3/4") |
| Clearance Between Columns |
98" (8' 2") |
| Length Between Columns |
176 1/2" (14' 8 1/2") |
| Maximum Wheel Base |
173" (14' 5") |
| Motor |
110V / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Weight |
1,900 lbs |
| Lifting capacity |
8000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
