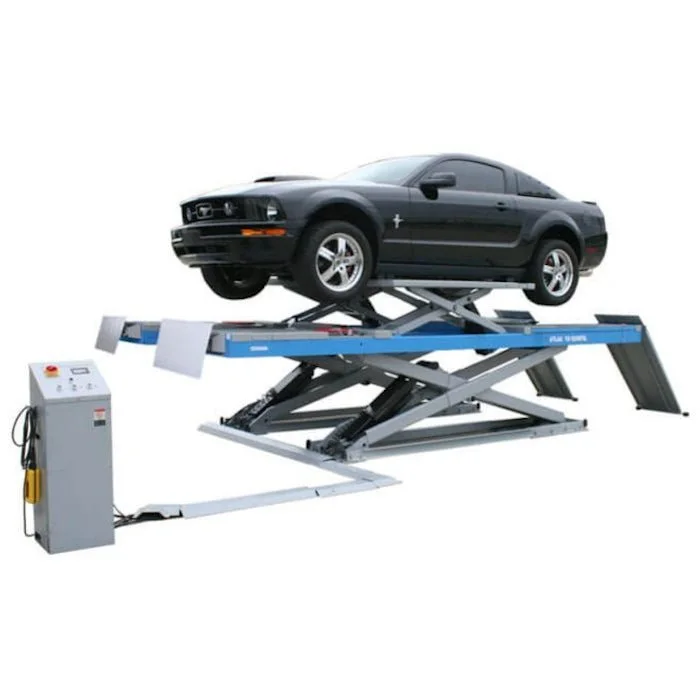

Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System
$14,999.00
Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System is part of our alignment lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 12000 lb
6 in stock
Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System
Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System is part of our alignment lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lb. capacity handles everything from compact cars to one-ton trucks

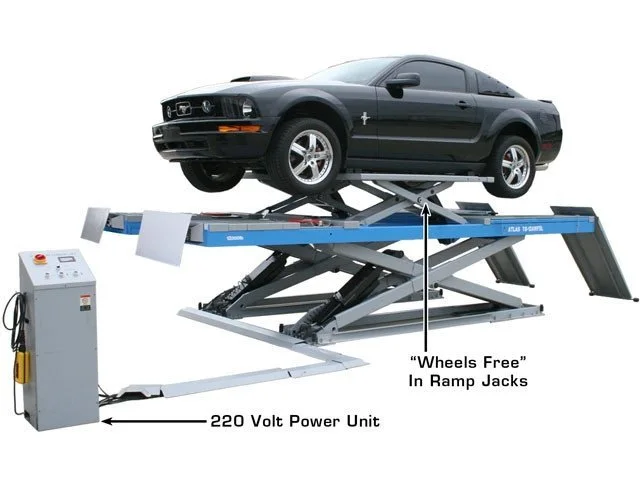

- Wheels-Free System with 17" lift height and telescoping platforms for quick undercarriage access

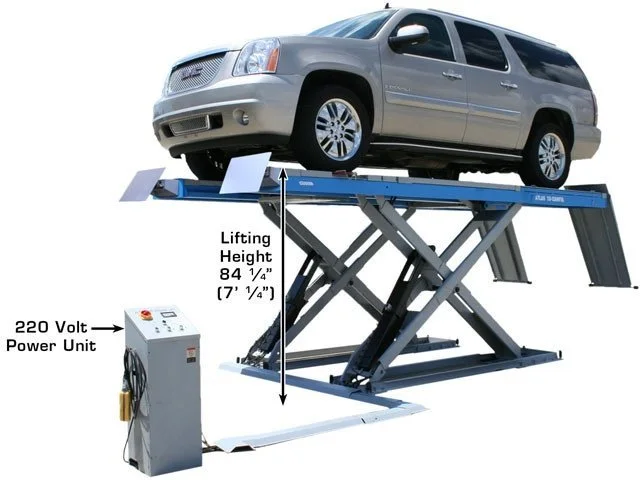

- 84 1/4" lifting height with 19 locking positions for maximum flexibility
- Extra-long 53" approach ramps and low 11 1/2" profile for lowered vehicles
- Heavy-duty construction with full frame for superior stability and precision leveling

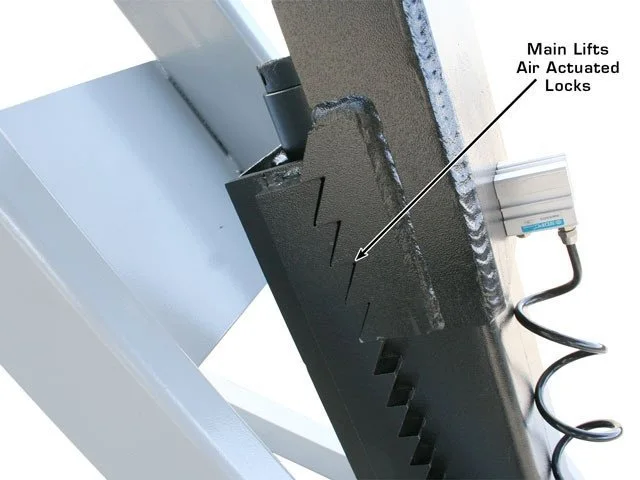

- Mechanical safety lock with air-operated engagement and emergency manual lowering pump
- Surface or flush mount installation flexibility to suit your shop layout

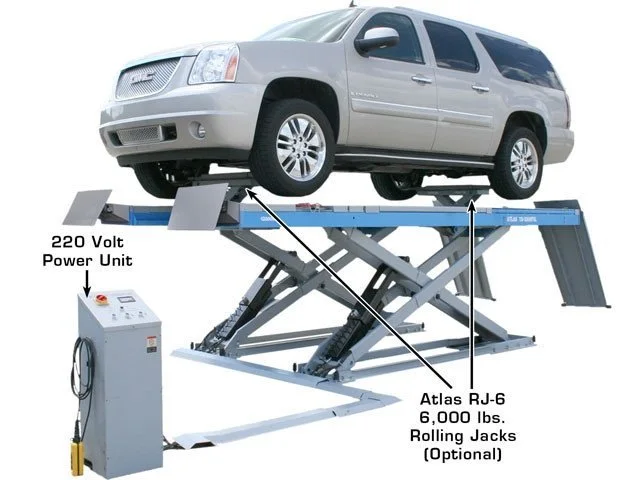

- Ready for optional RJ-6 rolling jack integration with welded runway rails
- Overload valve for added safety

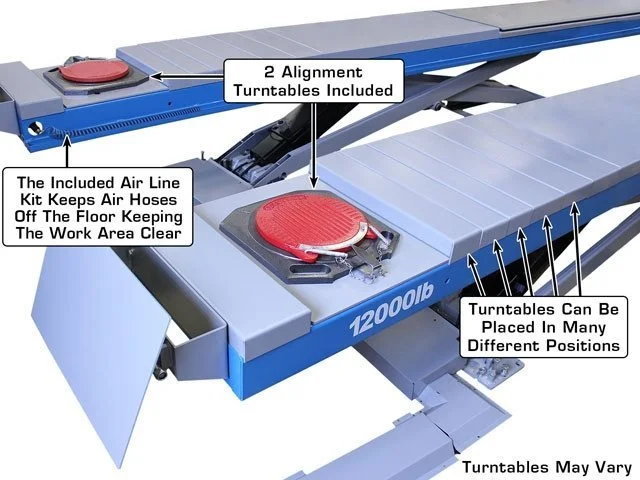

- Air line kit for pneumatic functions
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-12AWFSL-N |
| Condition |
New |
| Capacity |
12,000 lbs |
| Lifting Height (Surface Mount) |
84 1/4" (7' 1/4") |
| "Wheels Free" in ramp jack system Height |
17" (1' 5") |
| Lowered Height |
11 1/2" |

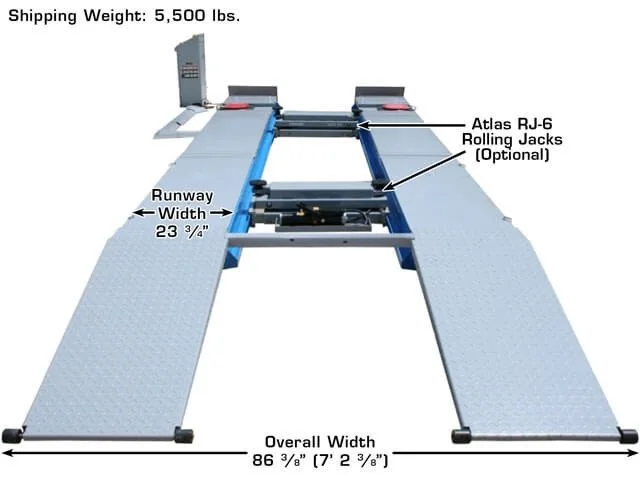

| Overall Width |
86 3/8" (7' 2 3/8") |

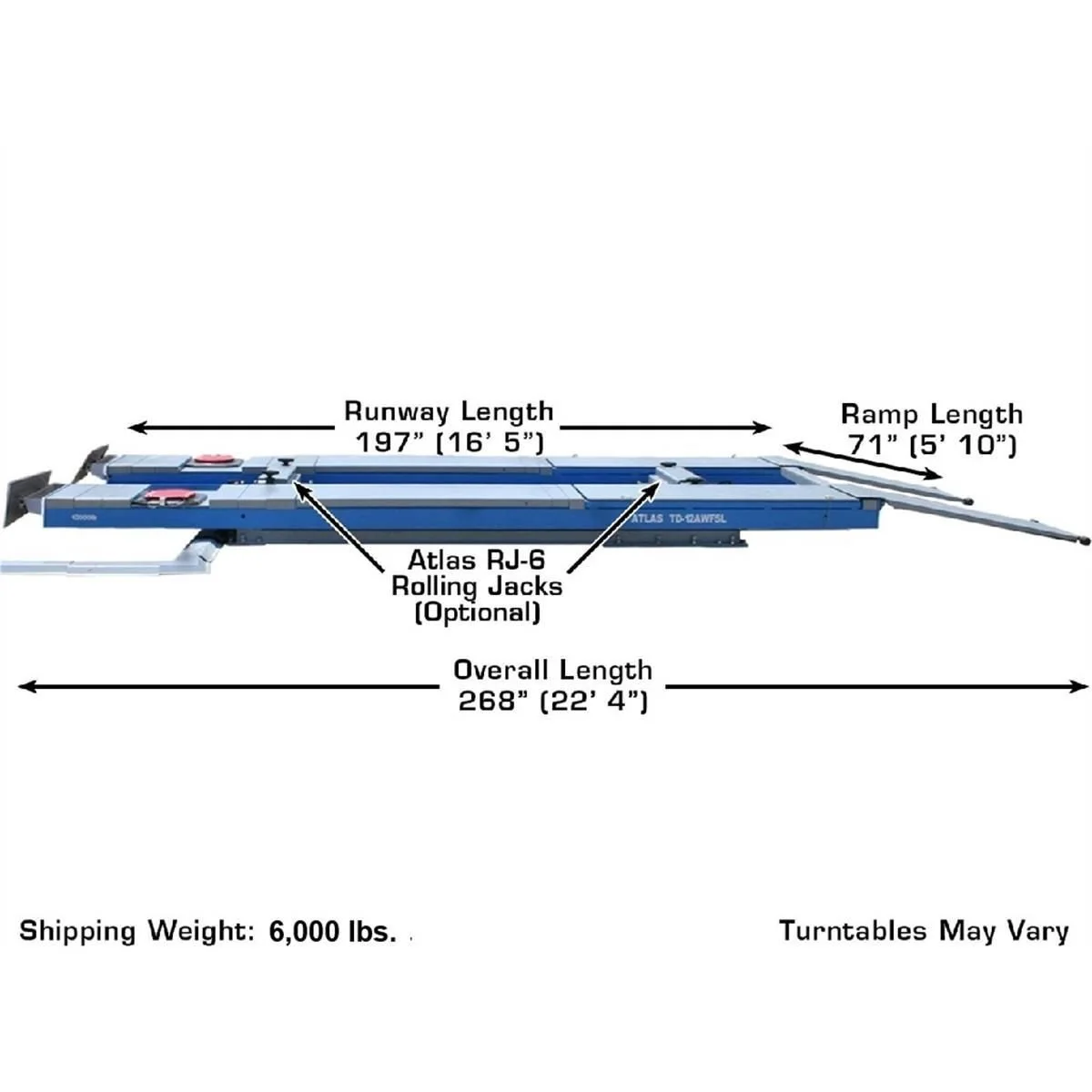

| Overall Length w/Approach Ramps |
268" (22' 4") |
| Overall Length w/o Approach Ramps |
197" (16' 5") |
| Approach Ramp Length |
72" (6') |
| 4-Wheel Alignment Wheelbase |
168" Max / 90" Min |
| 2-Wheel Alignment Wheelbase |
172" Max / 86" Min |
| Runway Width Including Rail |
23 3/4" (1' 11 3/4") |
| Width Between Runways |
39 1/4" |
| Width Between Runway Rails |
34 3/8" |
| Air Requirements |
9-120 PSI |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight |
6,000 lbs |
| Lifting capacity |
12000 lb |
| Lift type |
Alignment Lifts |
