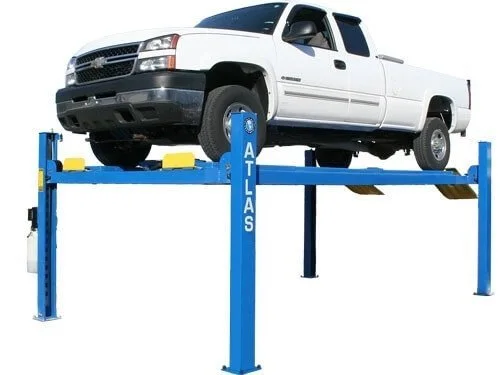

Atlas® 412A Commercial Grade 4 Post Alignment Lift 12,000 lbs
$8,699.00
Atlas® 412A Commercial Grade 4 Post Alignment Lift 12,000 lbs is part of our alignment lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 12000 lb
15 in stock
Atlas® 412A Commercial Grade 4 Post Alignment Lift 12,000 lbs
Atlas® 412A Commercial Grade 4 Post Alignment Lift 12,000 lbs is part of our alignment lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lb. capacity handles a wide range of vehicles from passenger cars to light trucks

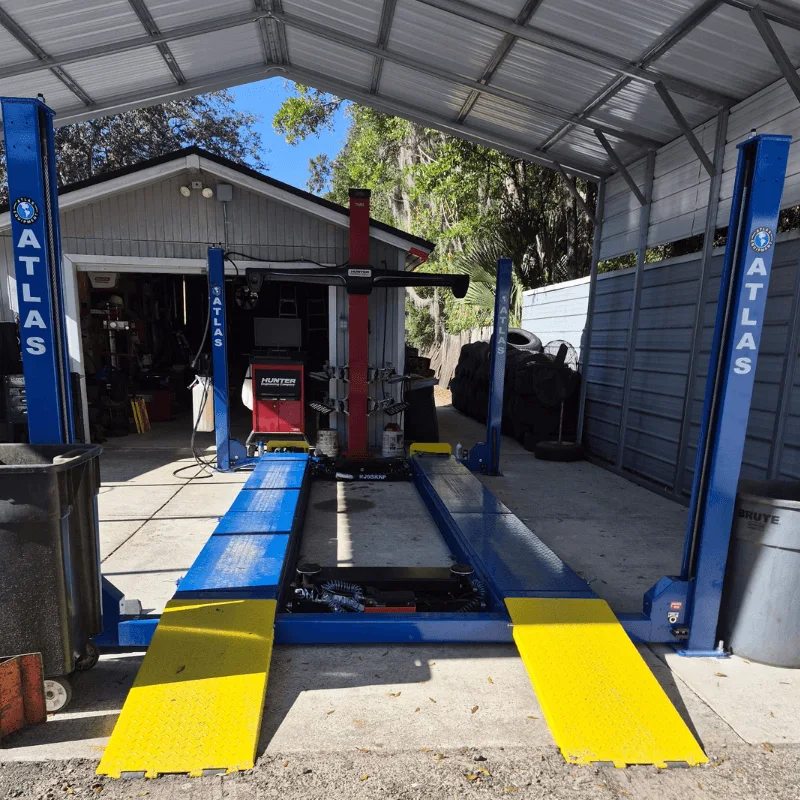

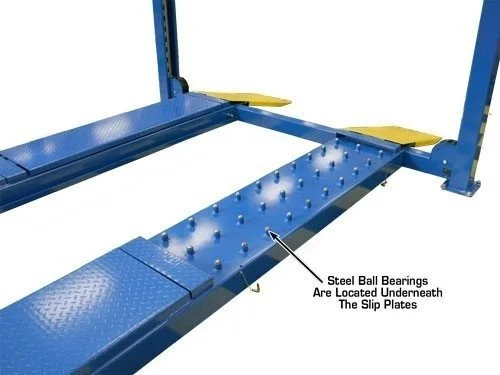

- Includes alignment slip plates and turntables turntable color may vary; adjustable positioning for versatile wheelbase accommodation
- High-strength cable lifting system with under-runway hydraulic cylinder superior to old-style chain lifts; cleaner design prevents door dings
- Lock ladder column design and diamond plate runway surface secure, stable, and durable construction
- Automatic shut-off switch and air-operated single point lock release safe and efficient operation
- Alignment slip plates and turntables
- Mounting hardware
- 12,000 lb. Capacity
- Alignment Slip Plates and Turntables
- Turntable Color May Vary
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-412AT |
| Condition |
New |
| Important: Cylinder Bleeding Procedure Required |
Atlas 4 Post Cylinder Bleeding Procedure,. This must be done immediately after installation to ensure proper operation. |
| Capacity |
12,000 lbs |
| Lifting Height |
76 1/4" (6' 4 1/4") |
| Height of Columns |
82" (6' 10") |
| Overall Width w/ Motor |
135" (11' 3") |
| Overall Width w/o Motor |
126" (10' 6") |

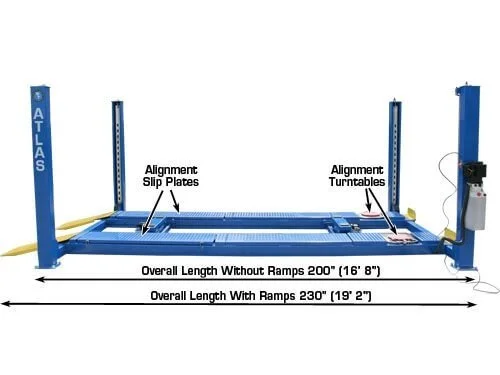

| Overall Length w/Approach Ramps |
230" (19' 2") |
| Overall Length w/o Approach Ramps |
200" (16' 8") |

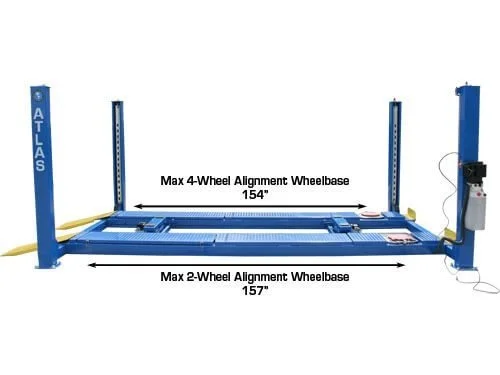

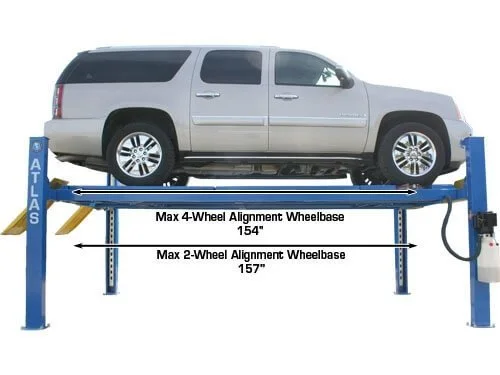

| 4-Wheel Alignment Wheelbase |
154" Max / 82" Min |
| 2-Wheel Alignment Wheelbase |
157" Max / n/a Min |
| Length Between Columns |
184 1/4" (15' 4 1/4") |
| Runway Length |
186 1/2" (15' 6 1/2") |
| Runway Width |
22" (1' 10") |
| Runway Thickness |
7 3/4" |

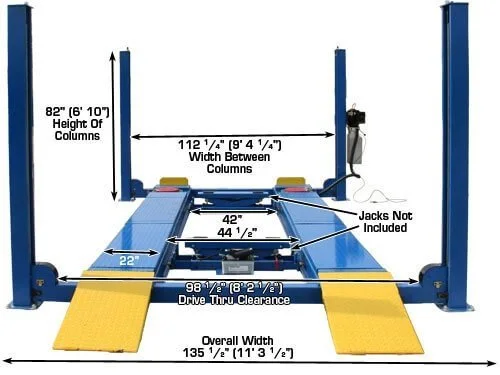

| Width Between Runways |
44 1/2" (3' 8 1/2") |
| Width Between Runway Rails |
42" (3' 6") |
| Outside Runway to Outside Runway |
84 3/4" (7' 3/4") |

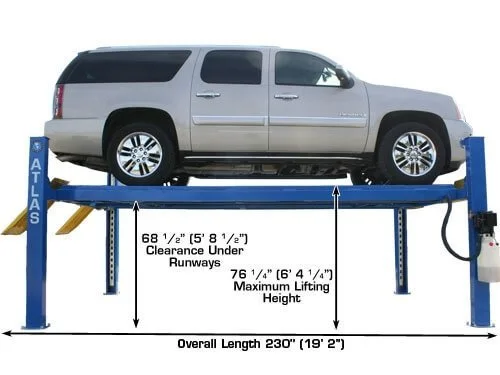

| Clearance Under Runways |
68 1/2" (5' 8 1/2") |
| Size of Column |
7" x 5" |
| Base of Column |
10 1/8" x 9" |

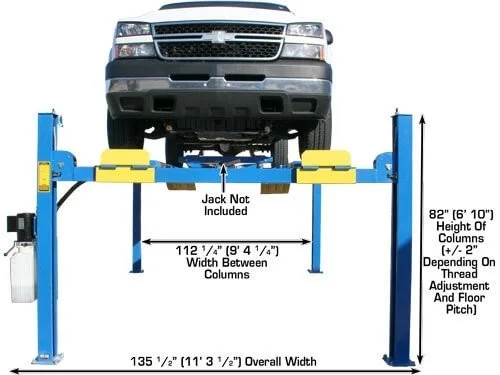

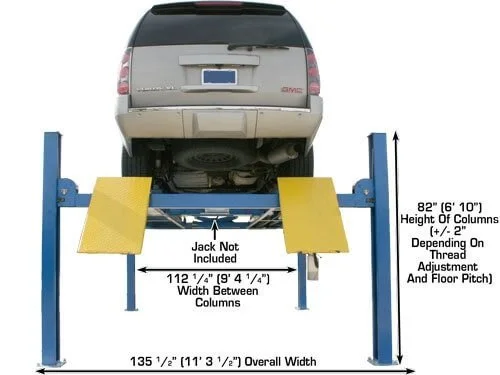

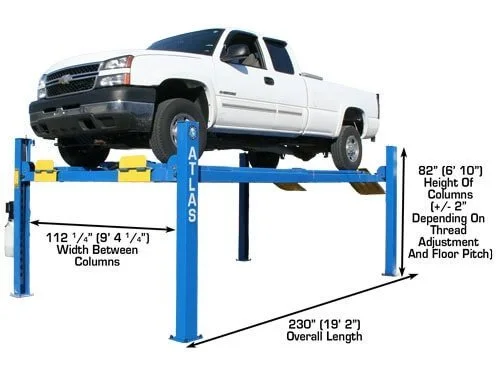

| Clearance Between Columns |
112 1/4" (9' 4 1/4") |
| Maximum Wheel Base |
175" (14' 7") |
| Drive Thru |
98 1/2" (8' 2 1/2") |
| Cable Diameter |
1/2" |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Weight |
2,700 LB. |
| Lifting capacity |
12000 lb |
| Lift type |
Alignment Lifts |
