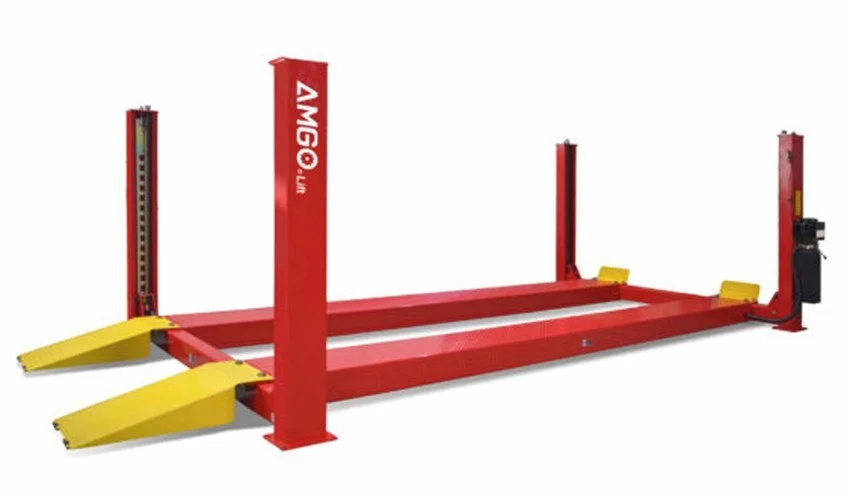

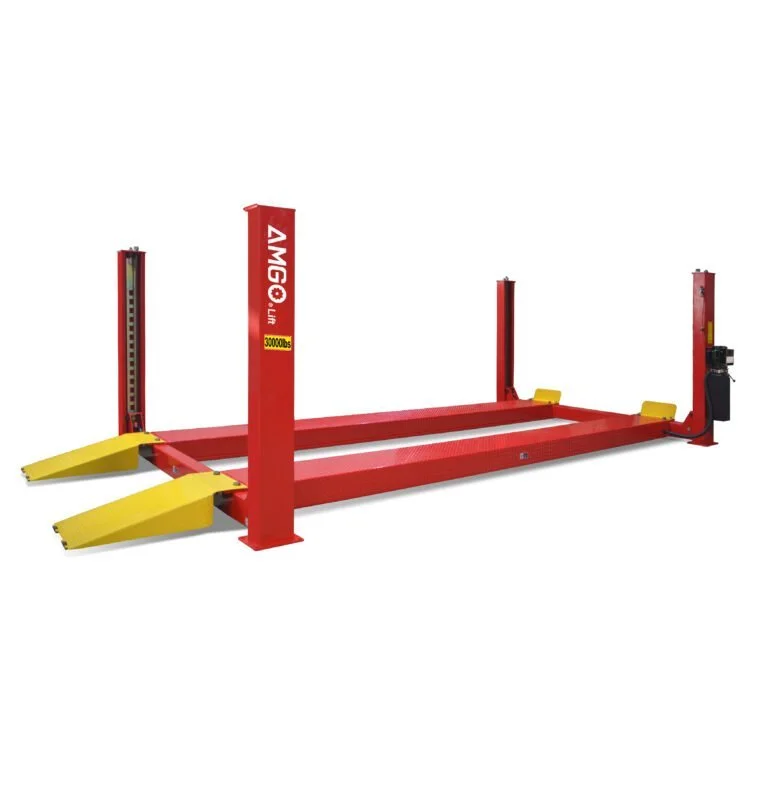

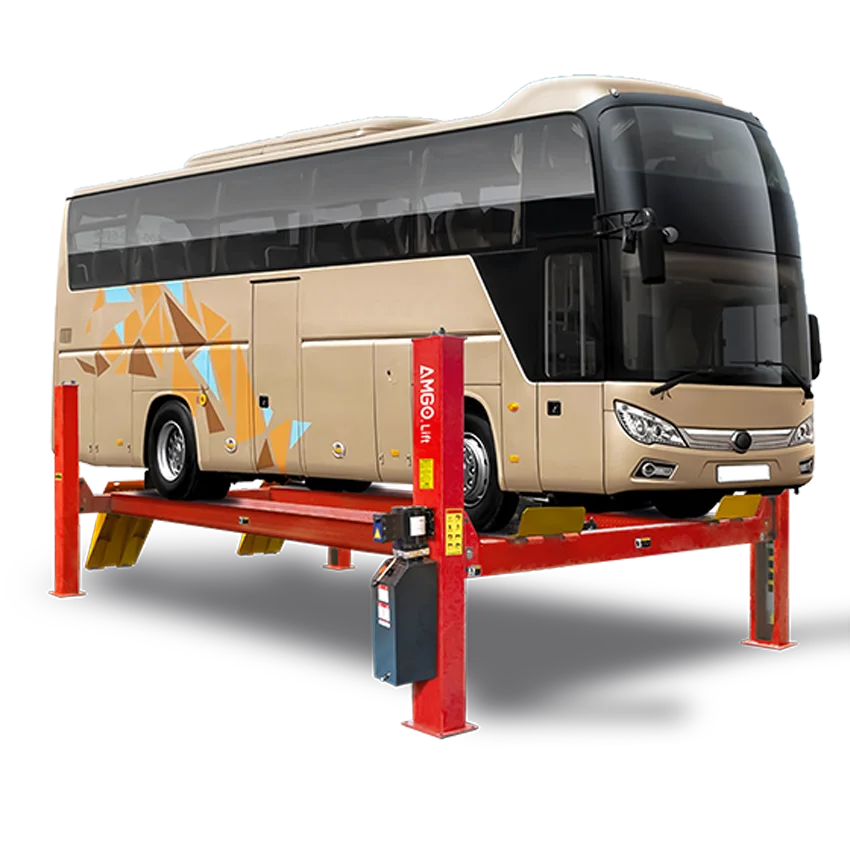

AMGO® Hydraulics PRO-40E Ex-Length Heavy-Duty 4 Post Truck Lift 40,000 lbs
$25,410.00
AMGO® Hydraulics PRO-40E Ex-Length Heavy-Duty 4 Post Truck Lift 40,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 40000 lb
12 in stock
AMGO® Hydraulics PRO-40E Ex-Length Heavy-Duty 4 Post Truck Lift 40,000 lbs
AMGO® Hydraulics PRO-40E Ex-Length Heavy-Duty 4 Post Truck Lift 40,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 40,000 lbs lifting capacity handles the heaviest trucks and commercial vehicles with confidence

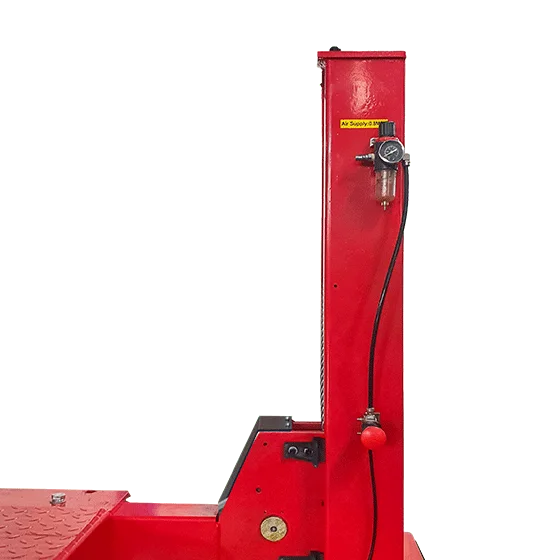

- Air-released safety lock for convenient operation and reliability — fast, intuitive control for technicians

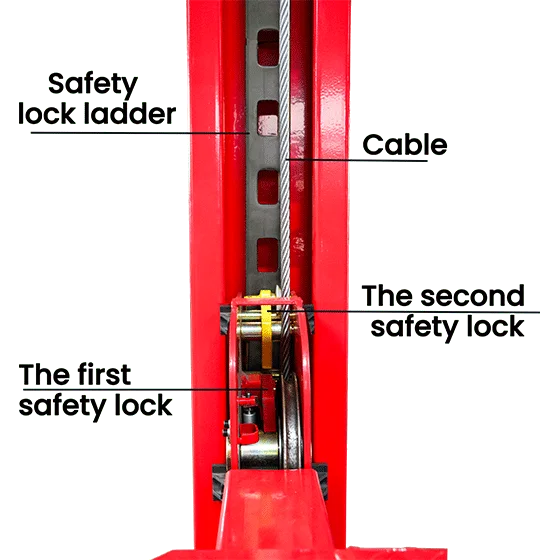

- Mechanical self-lock and cable-breaking protection double redundancy ensures maximum safety

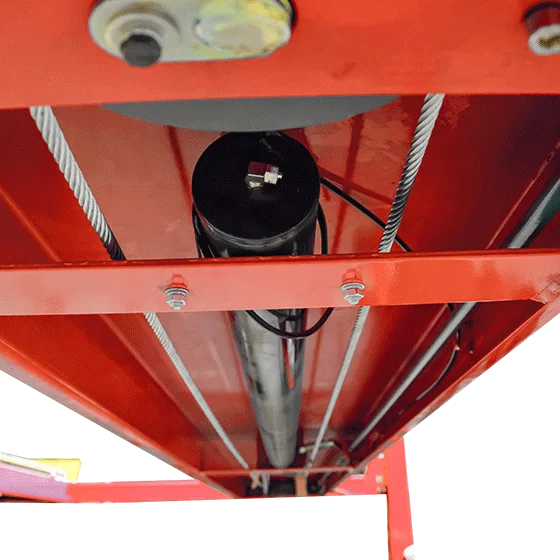

- 3/4" aircraft quality cable premium-grade lifting cables built for durability and long service life

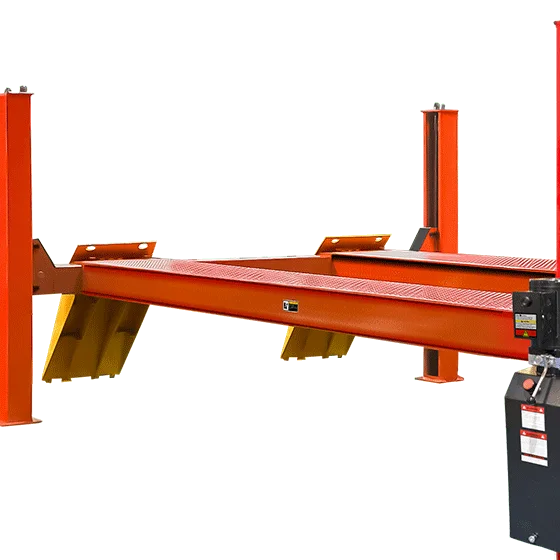

- Skid-proof diamond platform textured runway surface provides superior traction in all conditions
- High-quality hydraulic cylinders designed and manufactured to exacting standards with strict quality control
- Flow restrictor technology ensures stable, smooth operational speed throughout the entire lift cycle

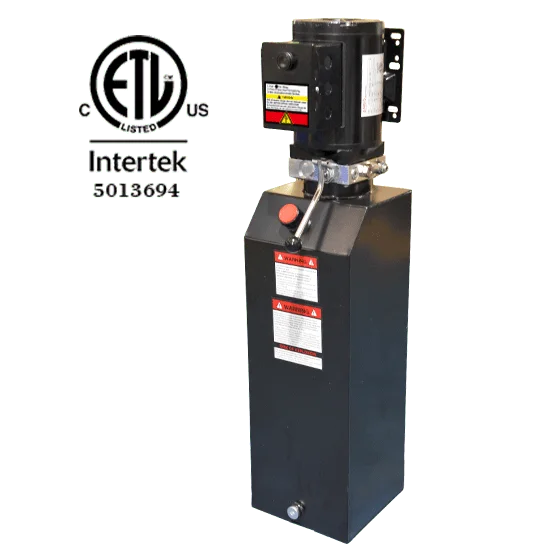

- 2.0HP motor, 220V/60Hz single phase powerful, efficient lifting with 183-second lifting time
- 366 1/8" length with ramps accommodates longer trucks and commercial vehicles
- 40,000 lbs capacity handles the heaviest service demands
Check the configuration

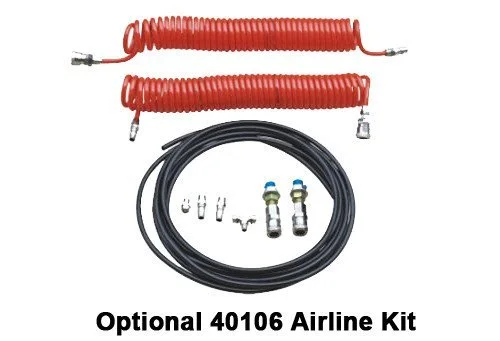

Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-40E |
| Condition |
New |
| PRO-40 |
PRO-40E |
| Lifting Capacity |
40,000lbs |
| A Overall Length w/o Ramp |
N/A |
| C Overall Width |
151 1/2" |
| D Width Between Columns |
133 15/16" |
| E Max Lifting Height |
75 3/8" |
| E Max. Lock Height (to Top of Runway) |
72 3/16" |
| F Overall Height |
92" |
| G Minimum Height |
10 3/8" |
| H Max. Underneath Height |
66 5/16" |
| H Max. Lock Underneath Runway |
63 3/16" |
| I Drive-Thru Clearance |
119 13/16" |
| J Width Between Runways |
46" Narrow / 54 1/16" Wide |
| K Outside Edge of Runways |
101 7/8" Narrow / 110" Wide |
| Lifting Time |
183 S |
| Motor |
2.0HP, 220V/60Hz Single Phase |
| Lifting capacity |
40,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
