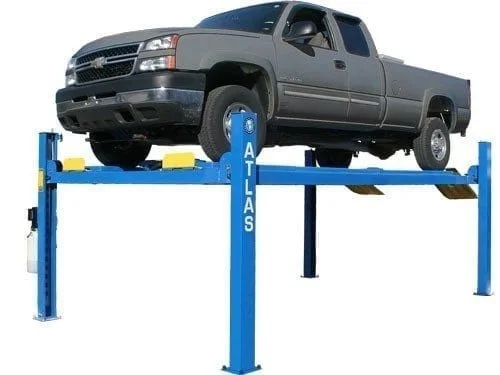

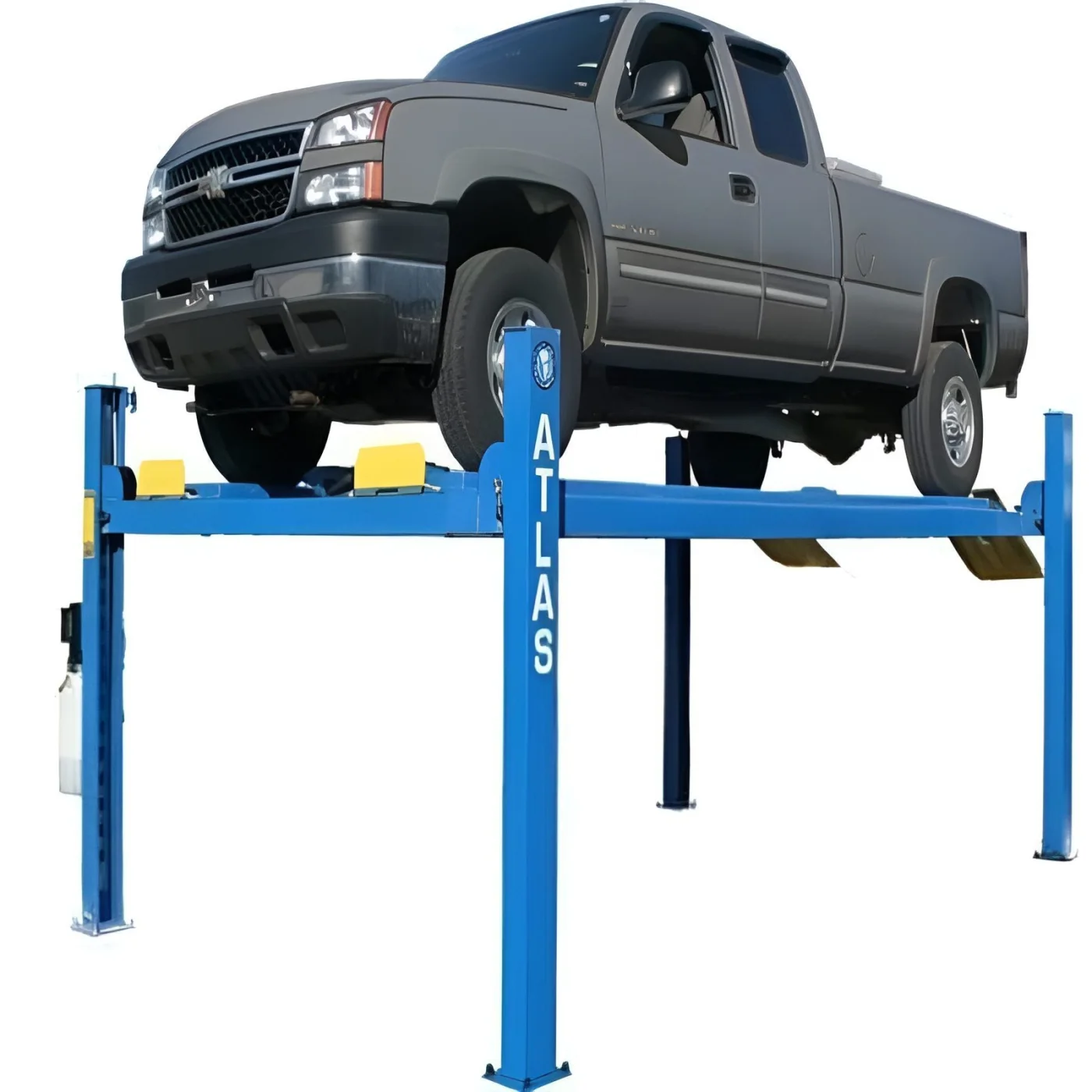

Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs
$6,399.00
Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
- Lifting capacity: 12000 lb
7 in stock
Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs
Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lb Capacity: Heavy-duty commercial-grade construction handles trucks, SUVs, vans, and more with ease.

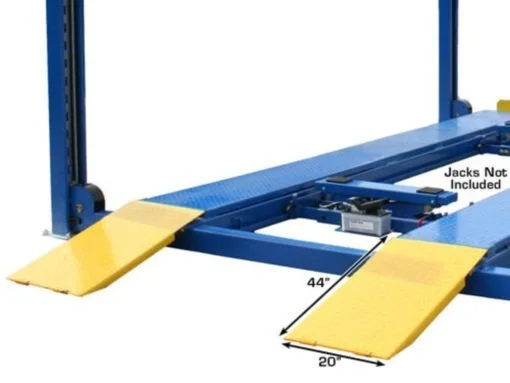

- Diamond Plated Runways: Durable, slip-resistant surface with steel approach ramps included for safe vehicle loading.
- Powder Coat Finish: Professional appearance with long-lasting corrosion resistance for years of service in busy shop environments.
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways

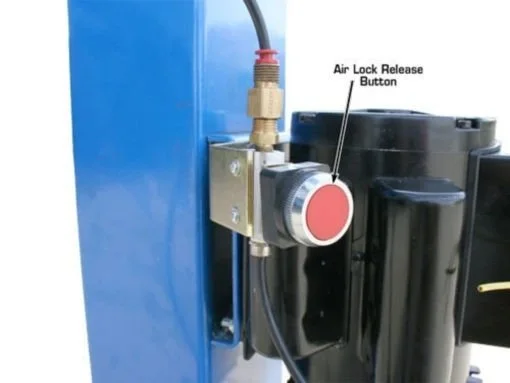

- Air Operated Single Point Lock Release (External Air Supply Required)

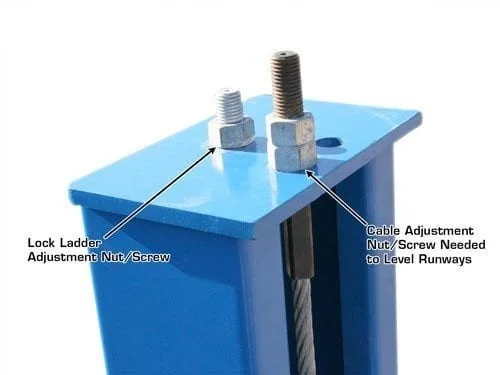

- Lock Ladder Design

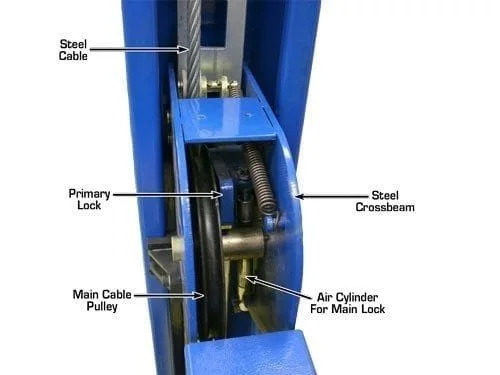

- Double Lock Safety System
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-412 |
| Condition |
New |
| Capacity |
12,000 lbs |
| Lifting Height |
77 3/4" (6' 5 3/4") |

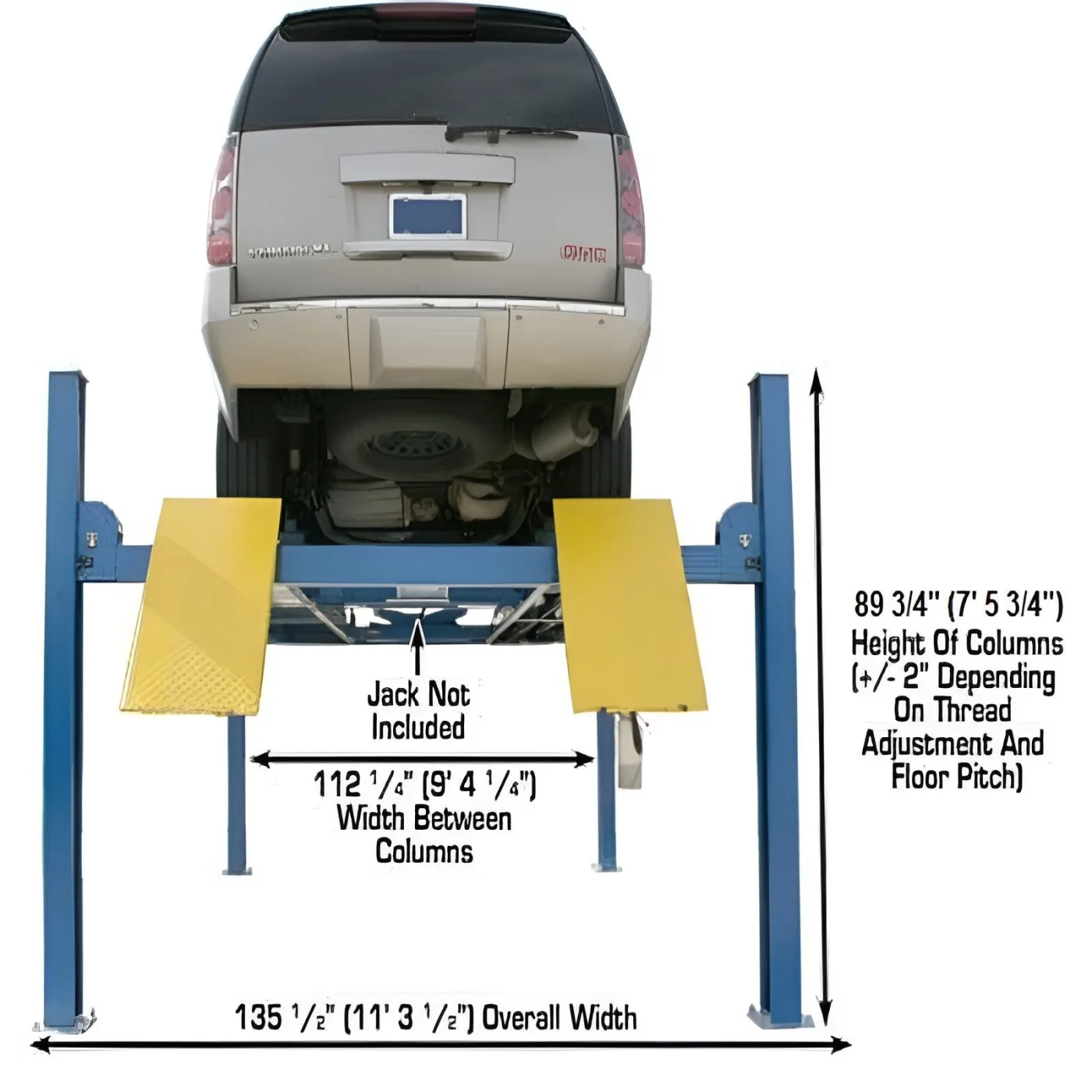

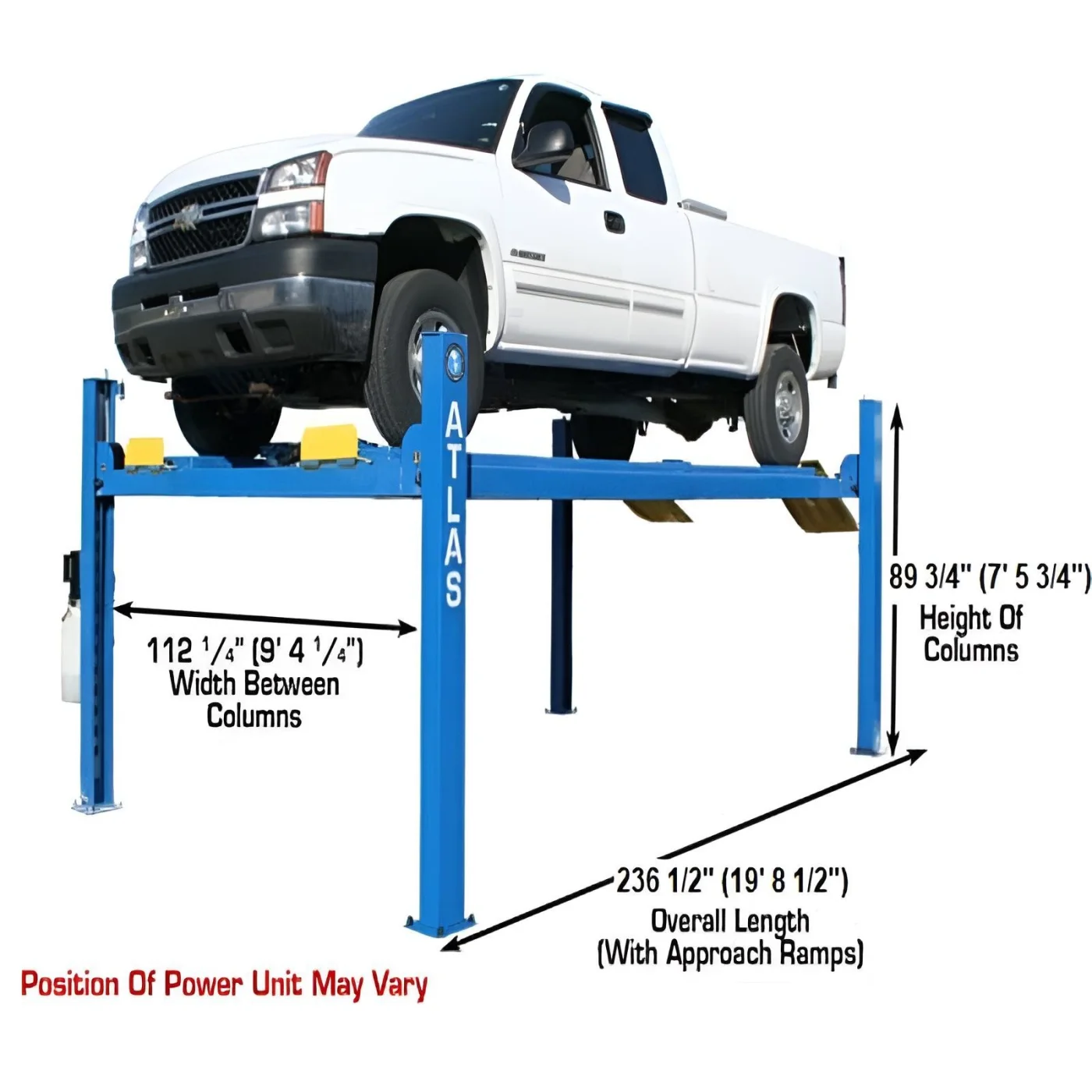

| Height of Columns |
89 3/4" (7' 5 3/4") |
| Overall Width w/ Motor |
135 1/4" (11' 3 1/4") |
| Overall Width w/o Motor |
126 1/4" (10' 6 1/4") |
| Overall Length w/Approach Ramps |
236 1/2" (19' 8 1/2") |
| Length Between Columns |
183 1/4" (15' 3 1/4") |
| Runway Length |
194 1/2" (16' 2 1/2") |
| Runway Width |
20" |
| Runway Thickness |
7 1/2" |
| Width Between Runways |
43 1/4" (w/ Rail 39 3/4") |
| Outside Runway to Outside Runway |
83 1/4" (6' 11 1/4") |

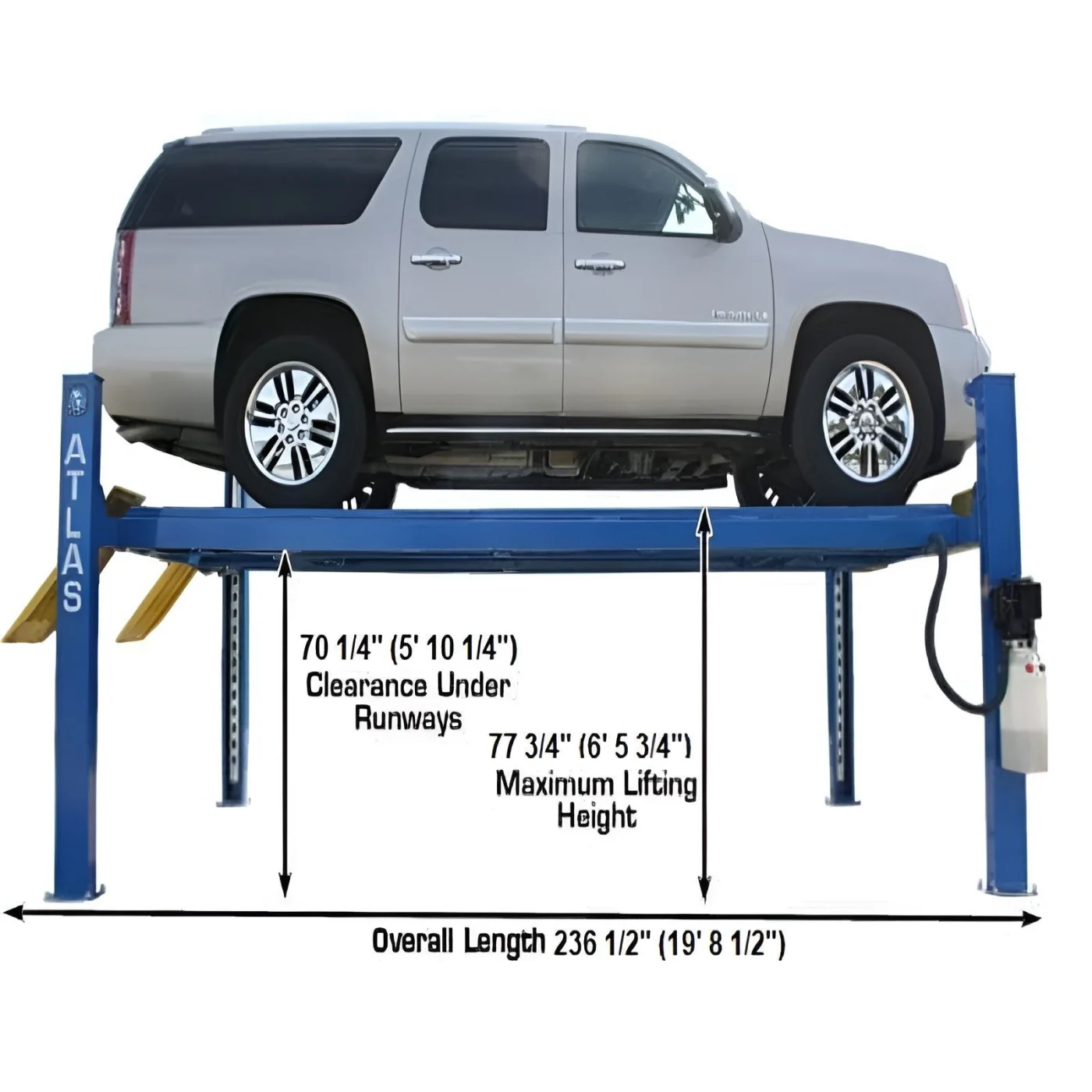

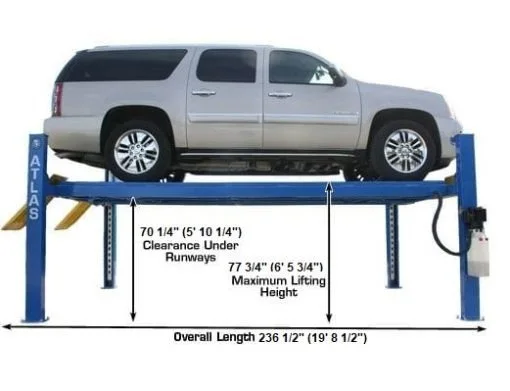

| Clearance Under Runways |
70 1/4" (5' 10 1/4") |
| Clearance Between Columns |
112 5/8" (9' 4 5/8") |
| Maximum Wheel Base |
185" (15' 5") |
| Drive Thru |
98" (8' 2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor |
220V / 1 phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Weight |
2,800 LB. |
| Lifting capacity |
12000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
