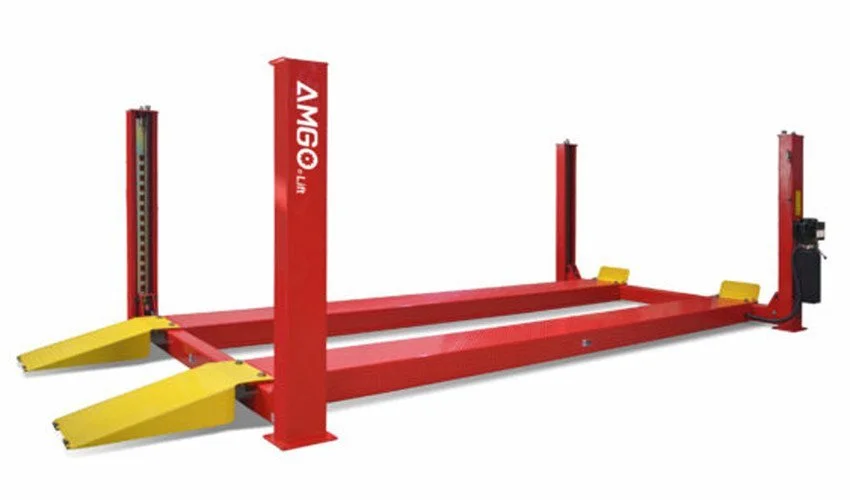

AMGO® Hydraulics PRO-40 Heavy-Duty 4 Post Truck Lift 40,000 lbs
$23,235.00
AMGO® Hydraulics PRO-40 Heavy-Duty 4 Post Truck Lift 40,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 40000 lb
AMGO® Hydraulics PRO-40 Heavy-Duty 4 Post Truck Lift 40,000 lbs
AMGO® Hydraulics PRO-40 Heavy-Duty 4 Post Truck Lift 40,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

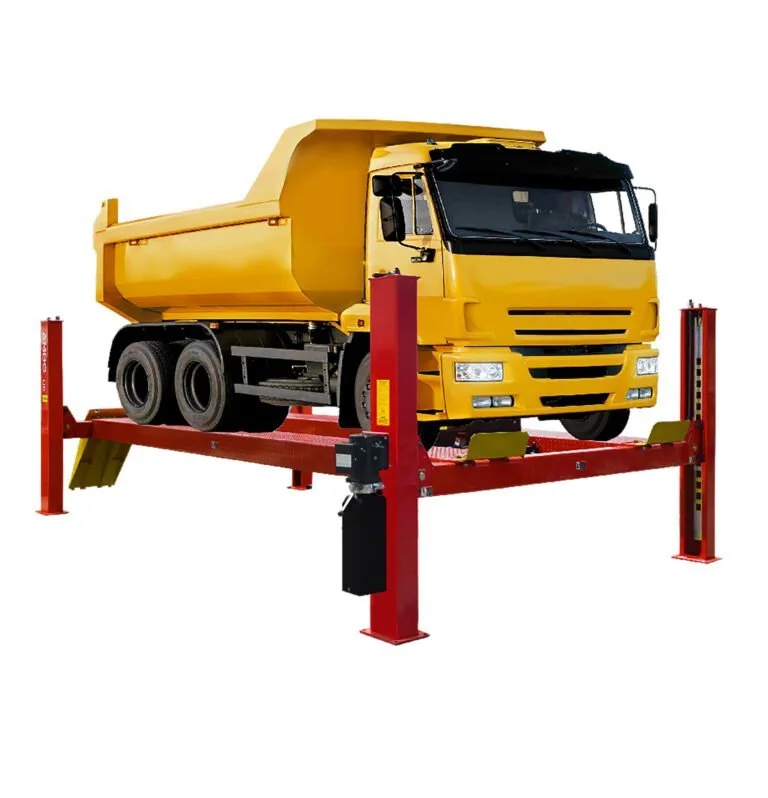

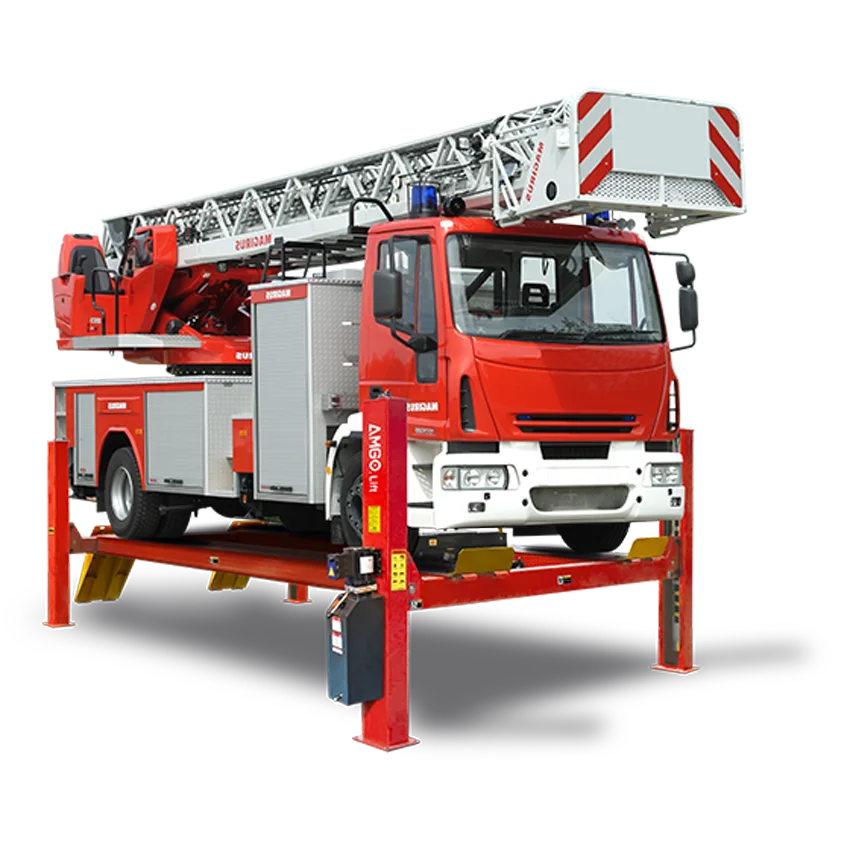

- Massive 40,000 lbs capacity AMGO's most powerful four-post lift, engineered for heavy trucks, RVs, and commercial vehicles

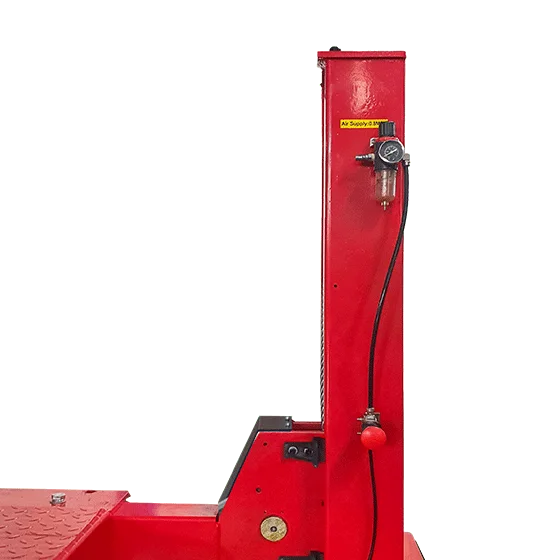

- Air-released safety lock system Convenient, reliable operation with mechanical self-lock and cable-breaking protection for maximum safety
- Over 6 feet of under-vehicle clearance 66 5/16" max underneath height provides exceptional working space for technicians
- RJ-20A Pneumatic 20,000 lbs Rolling Jacks Add wheel service capability and additional lifting flexibility

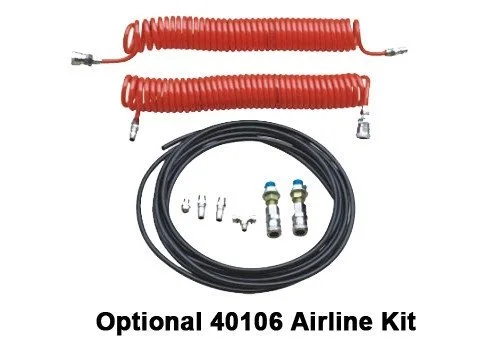

- 40106 Airline Kit for Heavy-Duty 4 Post Lifts Convenient air supply for pneumatic tools and accessories
- 40,000 lbs capacity

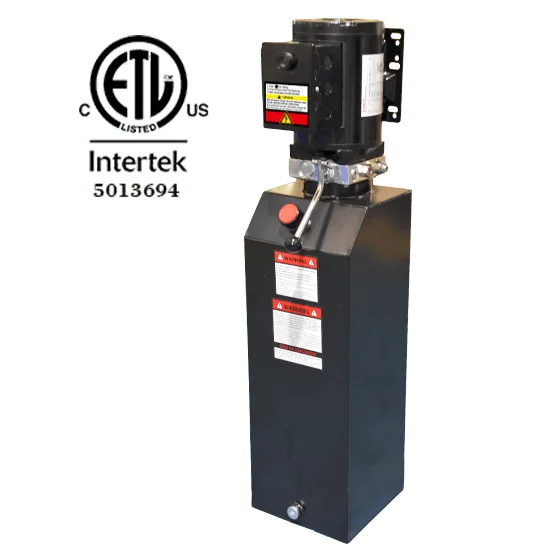

- AMGO ETL certified power unit comes as standard

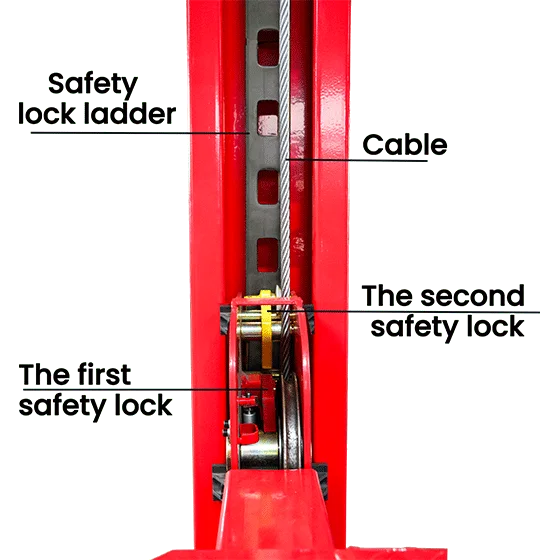

- Mechanical self-locking safety device with air-driven lock release
- Primary multiple safety locks and cable-slack protection system come standard

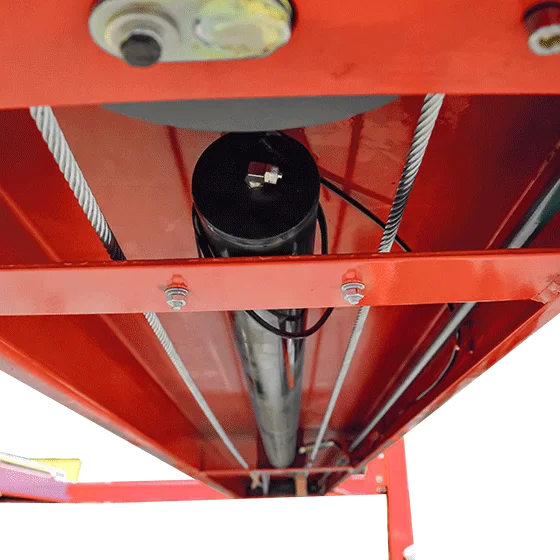

- Cable-driven, utilizing aircraft standard high quality cables
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-40 |
| Condition |
New |
| PRO-40 |
PRO-40E |
| Lifting Capacity |
40,000lbs |
| A Overall Length w/o Ramp |
N/A |
| C Overall Width |
151 1/2" |
| D Width Between Columns |
133 15/16" |
| E Max Lifting Height |
75 3/8" |
| E Max. Lock Height (to Top of Runway) |
72 3/16" |
| F Overall Height |
92" |
| G Minimum Height |
10 3/8" |
| H Max. Underneath Height |
66 5/16" |
| H Max. Lock Underneath Runway |
63 3/16" |
| I Drive-Thru Clearance |
119 13/16" |
| J Width Between Runways |
46" Narrow / 54 1/16" Wide |
| K Outside Edge of Runways |
101 7/8" Narrow / 110" Wide |
| Lifting Time |
183 S |
| Motor |
2.0HP, 220V/60Hz Single Phase |
| Lifting capacity |
40,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
Free shipping across the USA

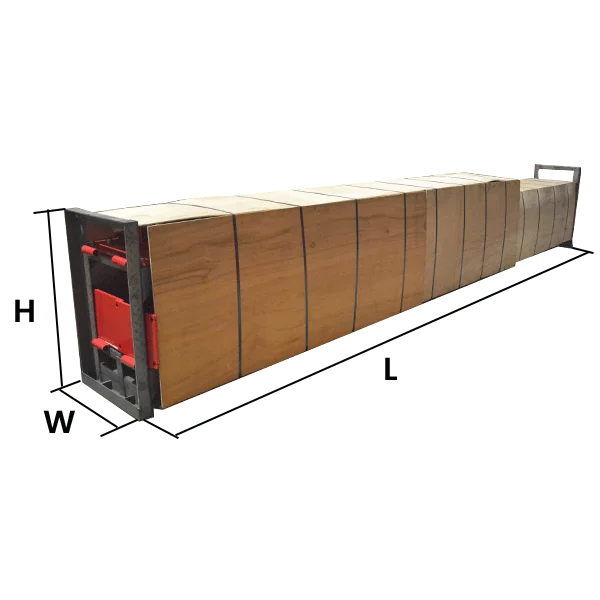

Heavy equipment shipping generally takes 10 to 21 days after order placement. Small items may travel by parcel carrier; larger machines and trailers require freight coordination.
