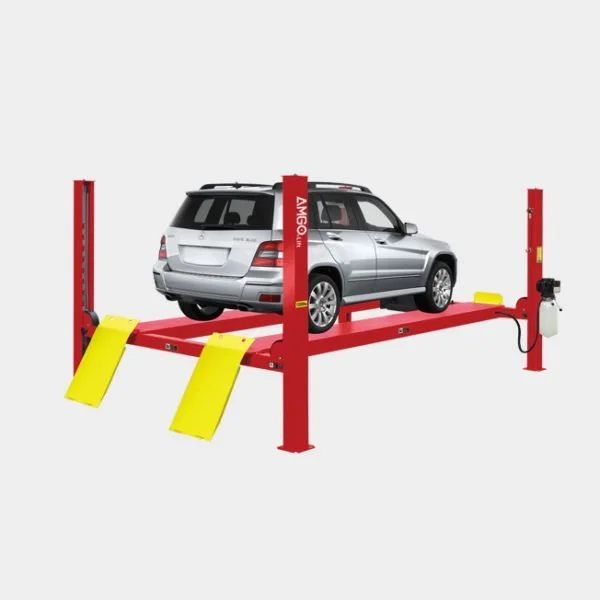

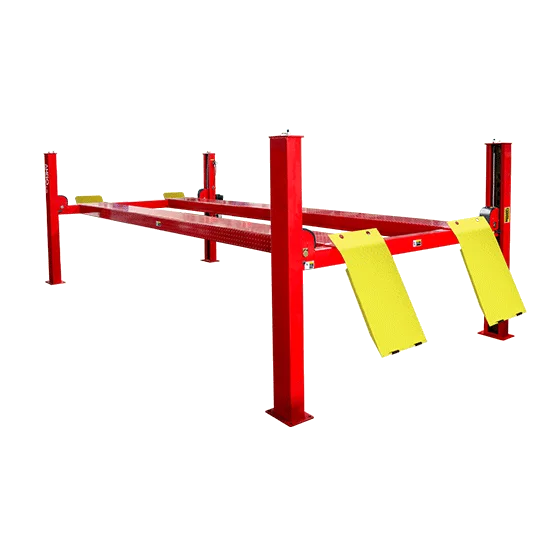

AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs
$5,090.00
AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 12000 lb
14 in stock
AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs
AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 12,000 lbs lifting capacity handles a wide variety of vehicles including trucks and SUVs

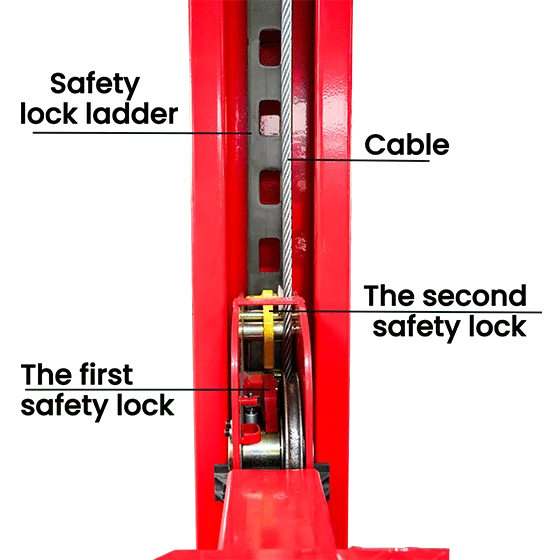

- Air-released safety lock for convenient, reliable operation with every lift
- Max 74 7/16" lifting height provides ample undercarriage clearance for thorough service work
- Quick 63-second lifting time keeps your workflow moving efficiently

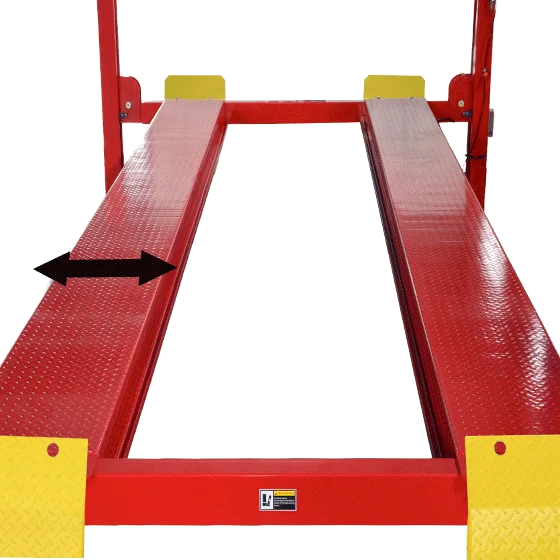

- Adjustable runway spacing from Min. 38" to Max. 50 7/8" accommodates various wheelbases

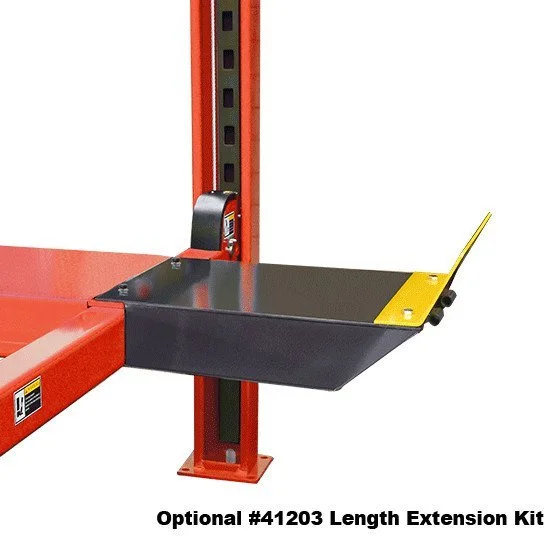

- 41203 Extension Platform Set for PRO-12 & PRO-12A (2Pcs) – increases usable platform area
- RJ-6A Pneumatic 6,000lbs Rolling Jacks enables tire removal and axle service while vehicle is on the lift

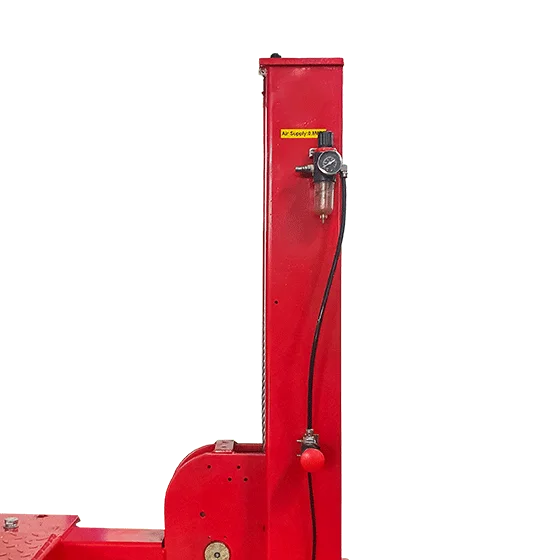

- 40102 Airline Kit for 4 Post Lifts less than 18K – convenient compressed air access at lift level
- 40103 LED Light Kit for 4 Post Lifts – illuminates undercarriage for detailed inspection and service
- 12,000 lbs capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-12 |
| Condition |
New |
| Style |
Non-Alignment |
| Lifting Capacity |
12,000 lbs |
| A Overall Length w/Ramp |
239 13/16" |
| A Overall Length w/o Ramp |
N/A |
| B Outside Edge of Crossbeams |
197 3/4" |
| C Overall Width |
126 5/16" |
| D Width Between Columns |
112 1/4" |
| E Max Lifting Height |
74 7/16" |
| E Max. Lock Height (to Top of Runway) |
71 1/4" |
| F Overall Height |
86" |
| G Minimum Height |
6 11/16" |
| H Max. Underneath Height |
68 7/8" |
| H Max. Lock Underneath Height |
65 3/4" |
| I Drive-Thru Clearance |
98 3/8" |
| J Width Between Runways |
43 5/16" / Min. 38" / Max. 50 7/8" |
| K Outside Edge of Runways |
83 5/16" / Min. 78" / Max. 90 7/8" |
| Lifting Time |
63 S |

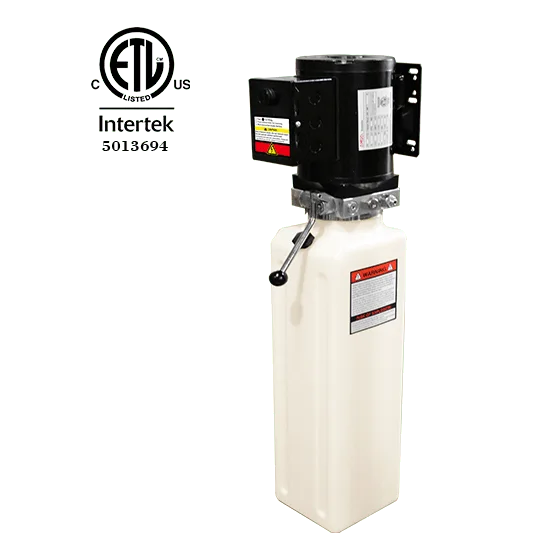

| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
2,361 lbs |
| Lifting capacity |
12000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
