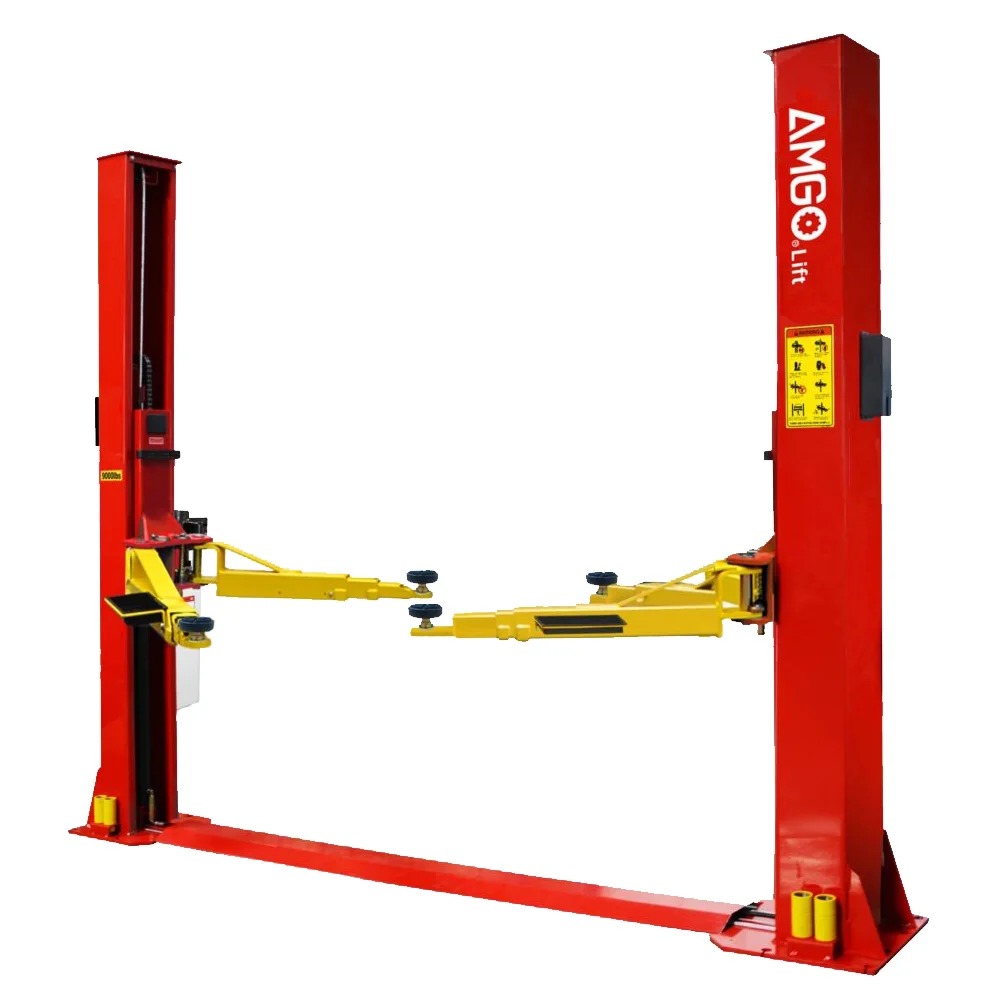

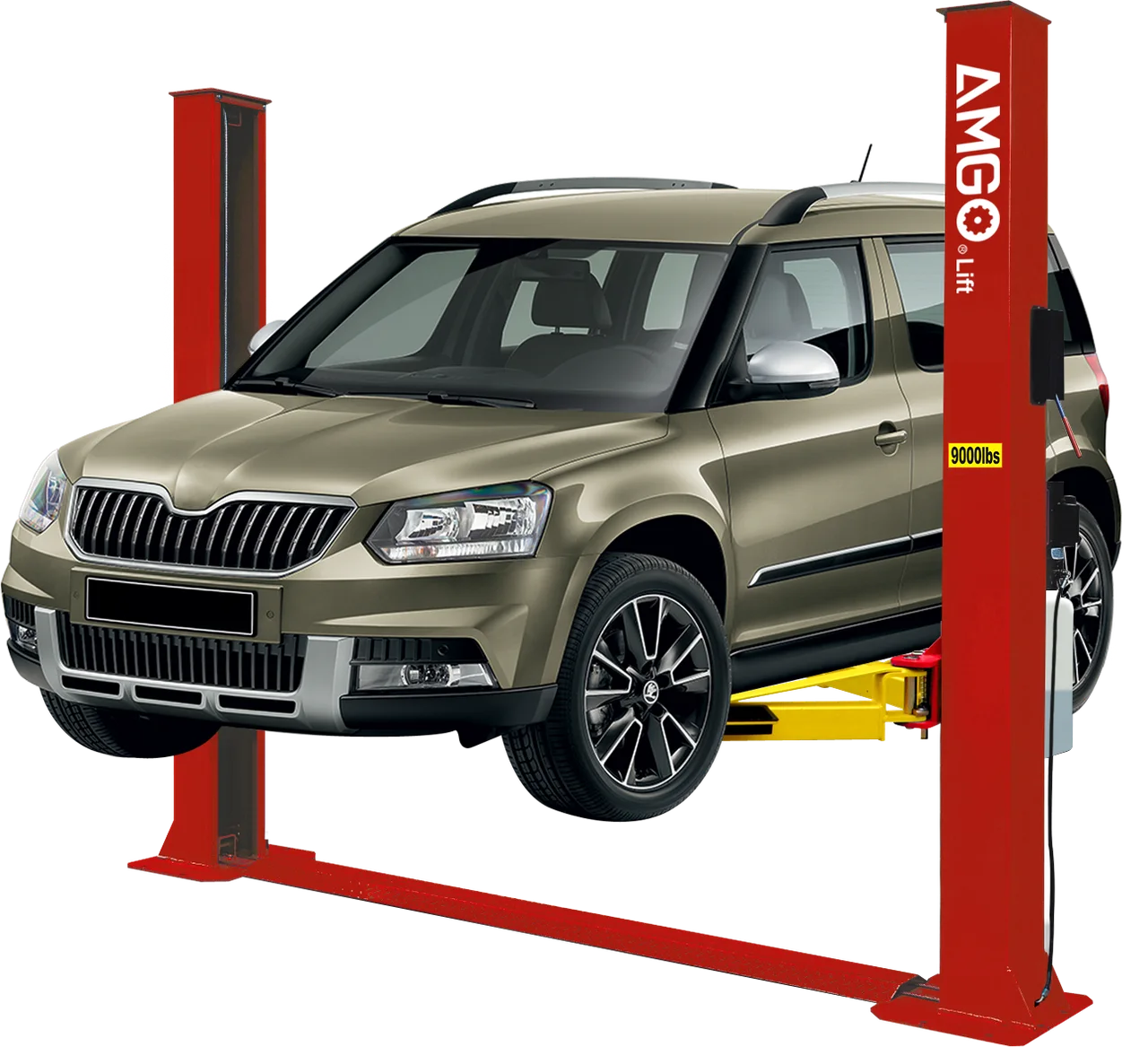

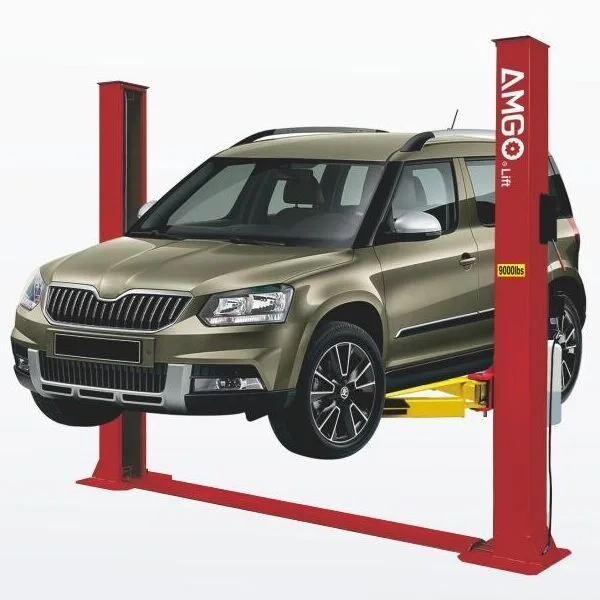

AMGO® Hydraulics BP-9X Floor Base-Plate Symmetrical 2 Post Lift 9,000 lbs
$2,920.00
AMGO® Hydraulics BP-9X Floor Base-Plate Symmetrical 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 9000 lb
11 in stock
AMGO® Hydraulics BP-9X Floor Base-Plate Symmetrical 2 Post Lift 9,000 lbs
AMGO® Hydraulics BP-9X Floor Base-Plate Symmetrical 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Low Ceiling Solution: Installs in garages with ceilings as low as 9 feet—ideal for facilities where overhead space is limited

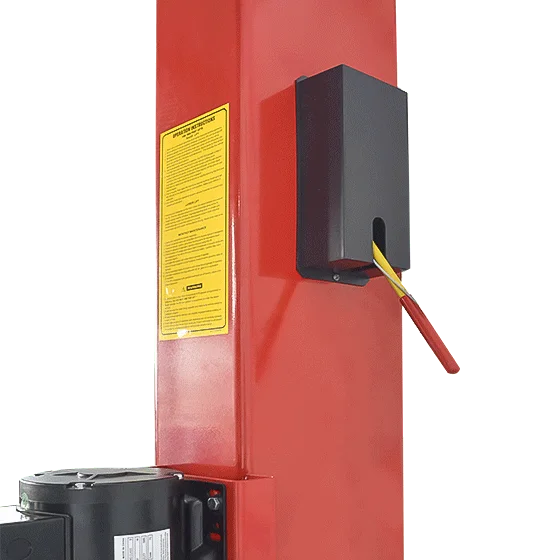

- Single-Point Safety Release: Unlock both column safety locks simultaneously from one convenient location, streamlining operation

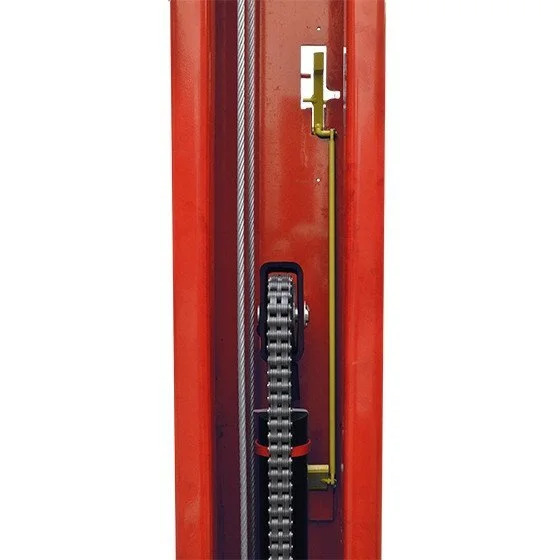

- Dual Locking System: Enhanced safety with redundant locking for added confidence during vehicle service

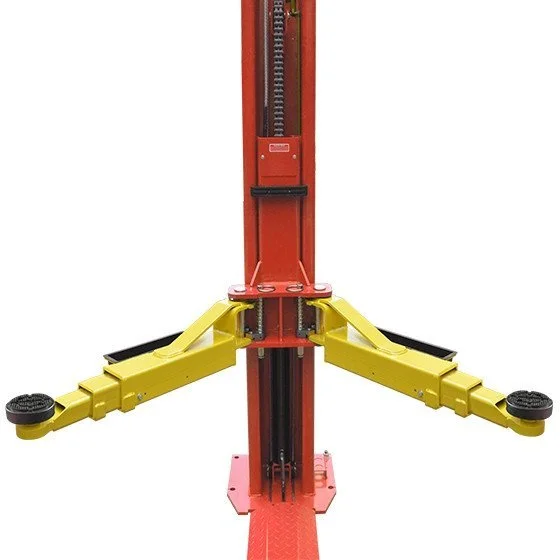

- Four Three-Stage Arms: Adjustable arms accommodate a wide range of vehicle sizes, wheelbase configurations, and lift point positions

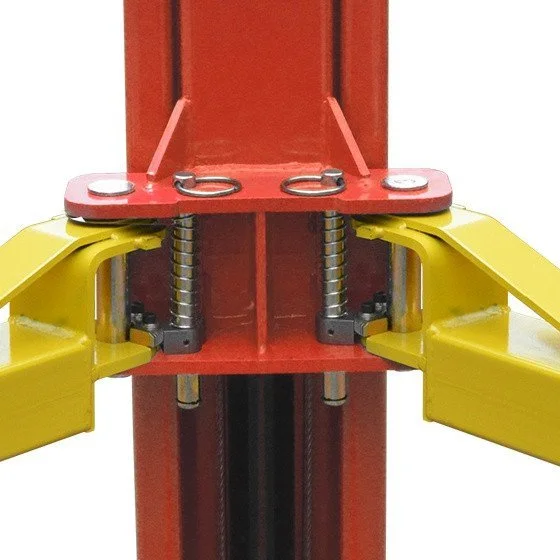

- Automatic Arm Restraints: Arms lock securely in place, preventing unwanted movement and ensuring precise vehicle positioning

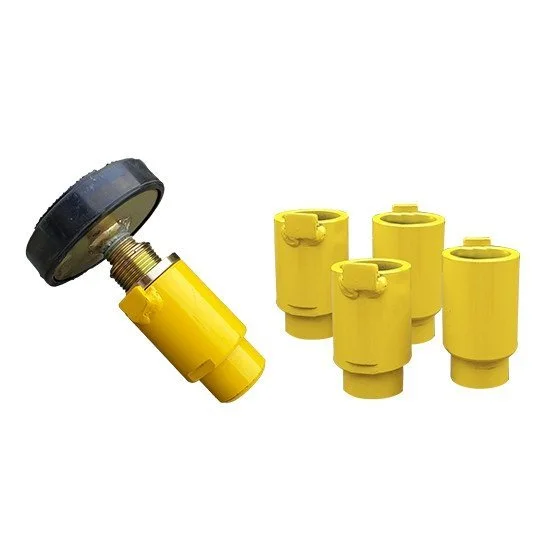

- 3" Extension Adapters to reach various lift points and undercarriage configurations
- 9,000 lbs Lifting capacity
- Commercial grade with enhanced structure, designed for professional workshops and home garages
- Symmetric four 3-stage retractable arms are suitable for more vehicles
- Automatic arms restraint
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
BP-9X |
| Condition |
New |
| Lifting Capacity |
9,000 lbs |
| A Max Lifting Height w/o Adapters |
76 3/8" ~ 78 1/4" |
| A Max Lifting Height w/Adapters |
79 3/8" ~ 81 1/4" |
| A Max Lock Height w/o Adapters |
74 13/16" ~ 76 11/16" |
| A Max Lock Height w/Adapters |
77 13/16" ~ 79 11/16" |
| B Overall Height |
111 7/8" |
| C Overall Width |
136 1/4" |
| D Drive-Thru Clearance |
100 13/16" |
| E Width Between Columns |
112 1/4" |
| F Minimum Pad Height |
3 9/16" |
| Lifting Time |
49 S |

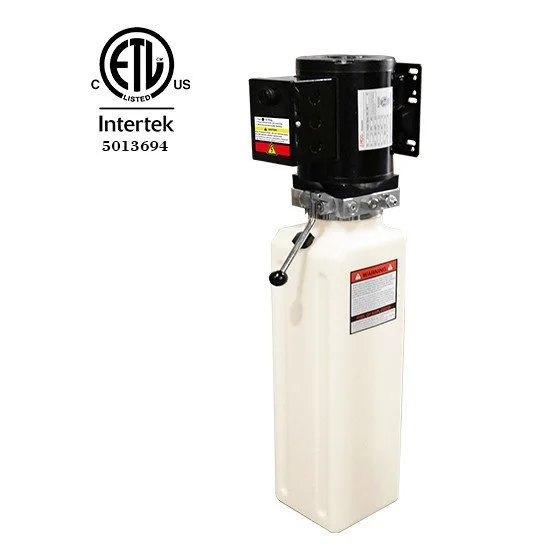

| Motor |
2 HP / 220V |
| Gross Weight |
1,563 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
