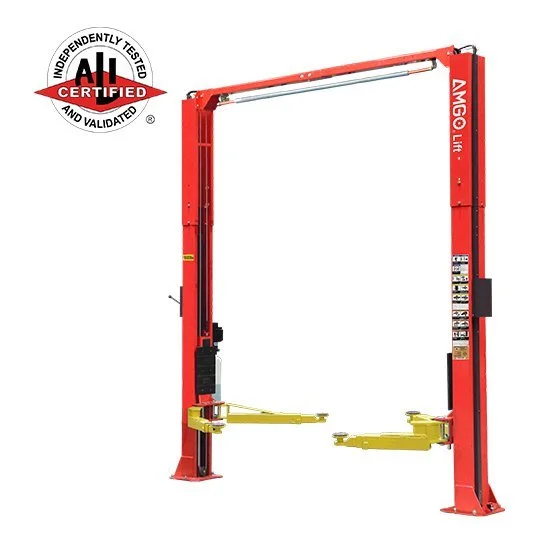

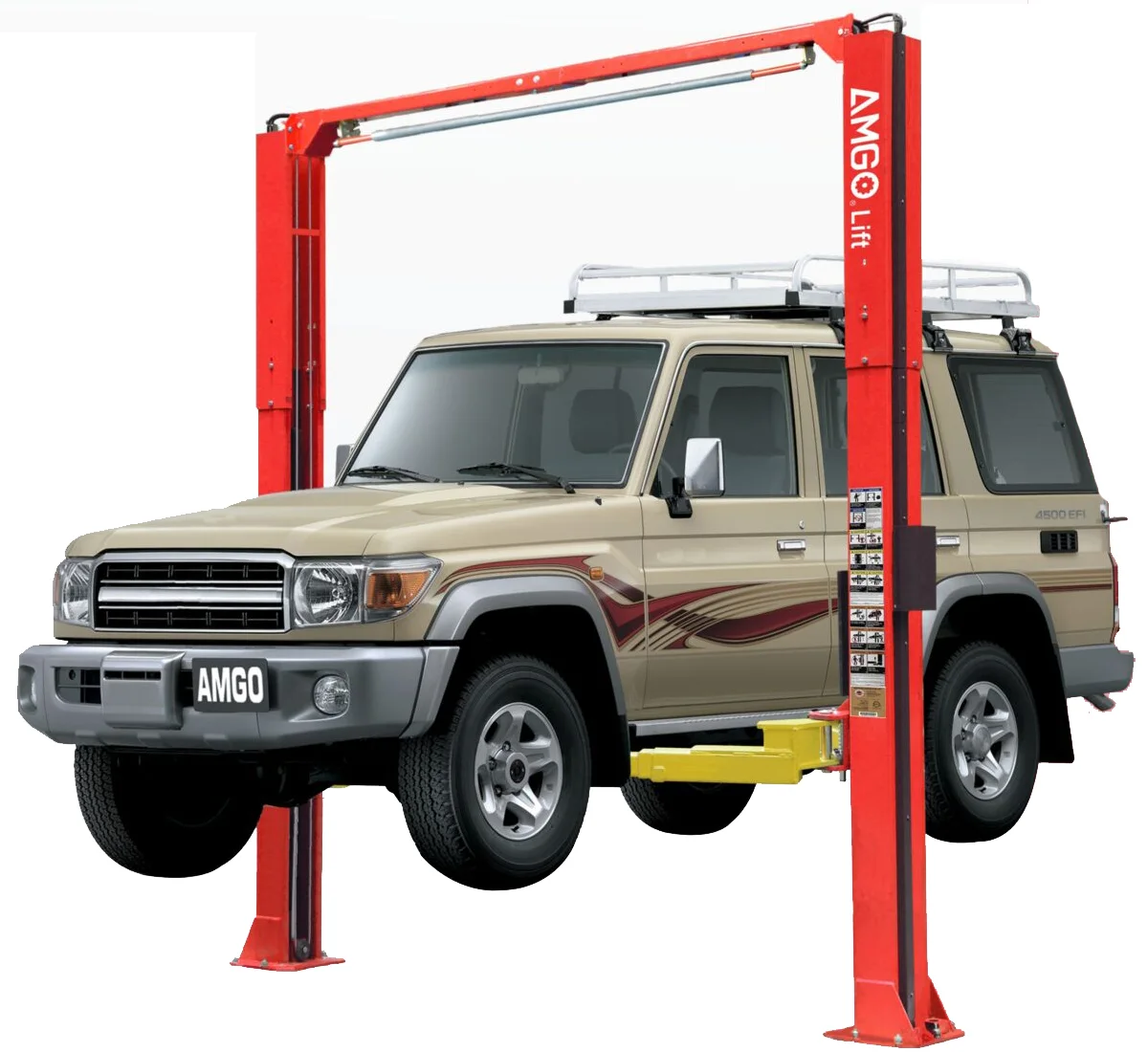

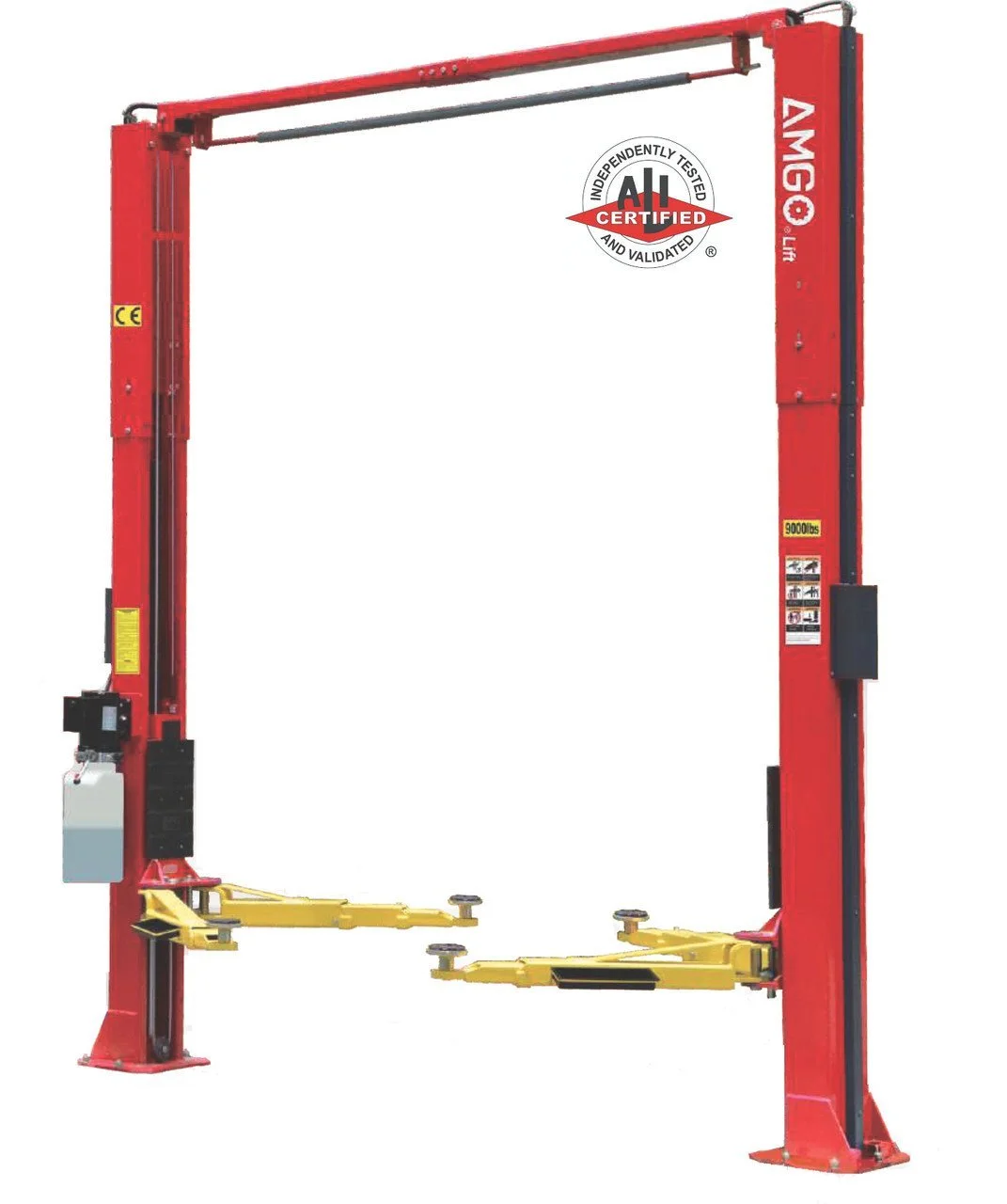

AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs
$4,395.00
AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 10000 lb
5 in stock
AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs
AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- ALI Certified Meets or exceeds stringent Automotive Lift Institute safety and performance standards

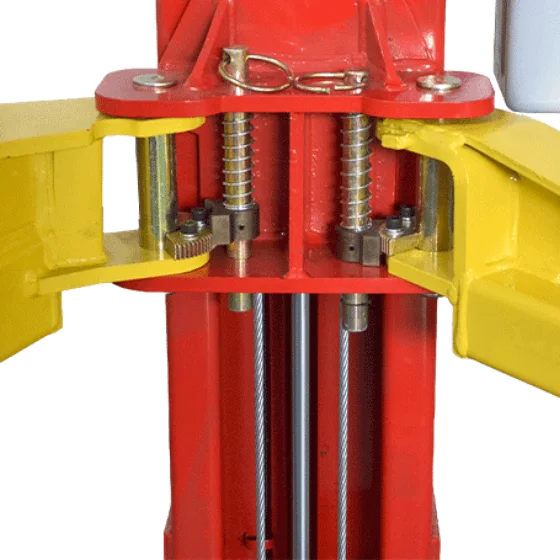

- Super-Asymmetric® flexibility Configure arms for asymmetric or symmetric loading to match any vehicle
- Fast 57-second lifting cycle Maximize shop productivity with quick, efficient operation

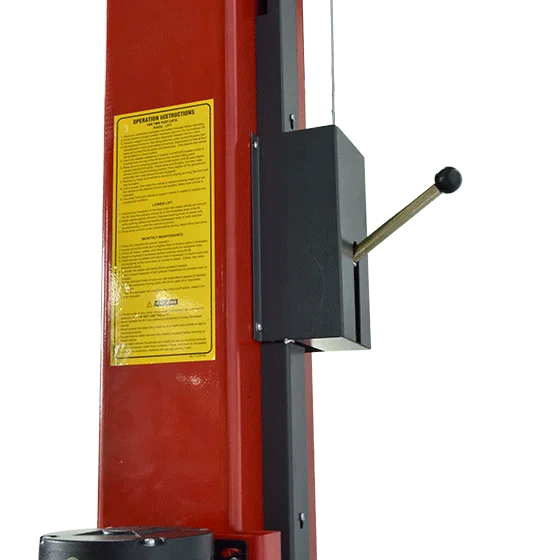

- Single-point safety release Disengage both columns simultaneously for faster, safer operation
- Adjustable height options Adapt to ceiling heights from 142 1/2" to 150 1/2" without compromise

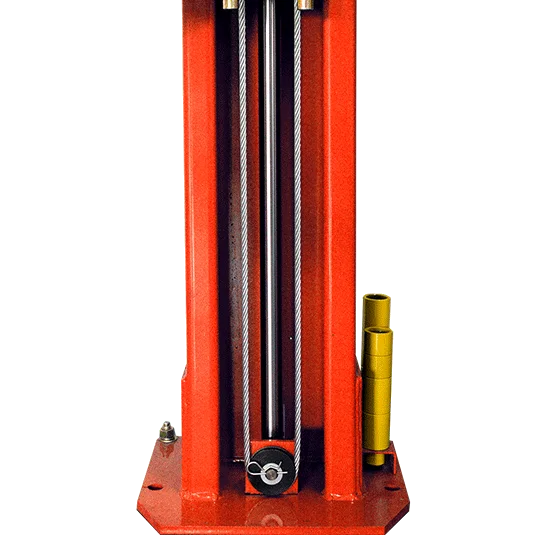

- Complete adapter set included Stackable rubber pads plus 1.5", 2.5", and 5" extension adapters for ultimate versatility
- 10,000 lbs Lifting capacity
- ALI Certified
- Dual hydraulic direct-drived cylinders made on high standard
- SuperAsymmetric arms allow an asymmetric or symmetric configuration/li>
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
OH-10ALI |
| Condition |
New |
| Lifting Capacity |
10,000 lbs |
| A Max Lifting Height w/o Adapters |
71 1/2" |
| A Max Lifting Height w/Adapters |
80 1/2" |
| A Max Lock Height w/o Adapters |
69 1/2" |
| A Max Lock Height w/Adapters |
78 1/2" |
| B Overall Height |
142 1/2" or 150 1/2" |
| C Overall Width |
135" |
| D Drive-Thru Clearance |
99 1/2" |
| E Width Between Columns |
112 3/16" |
| F Minimum Pad Height |
3 15/16" |
| Lifting Time |
75 S |

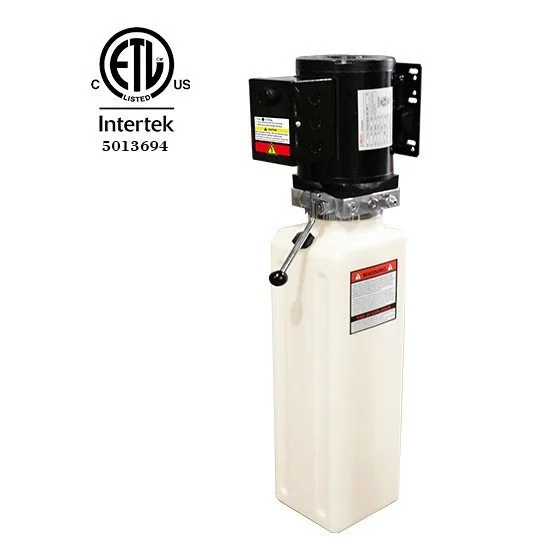

| Motor |
2 HP / 220V |
| Gross Weight |
1,645 lbs |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
