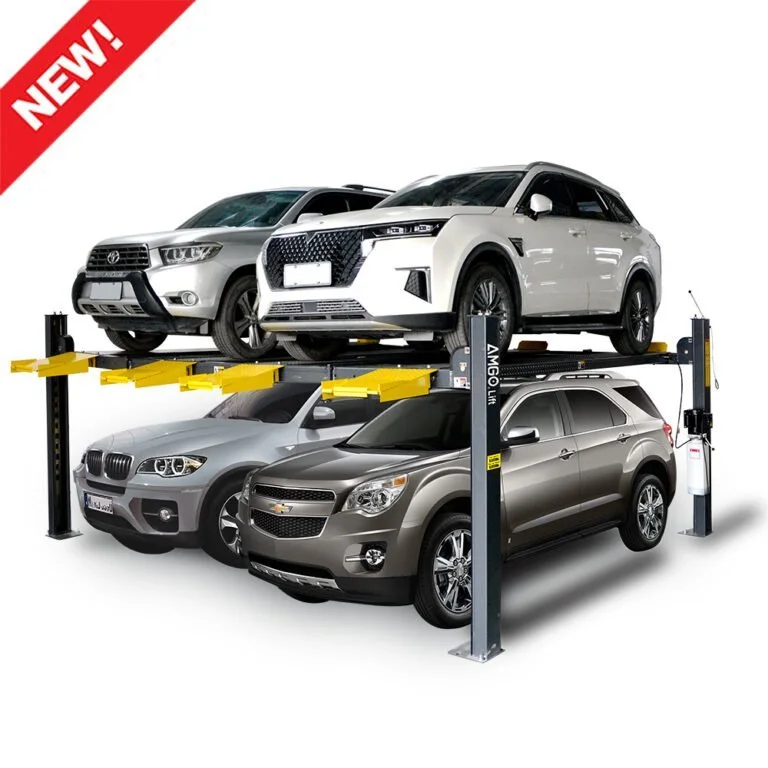

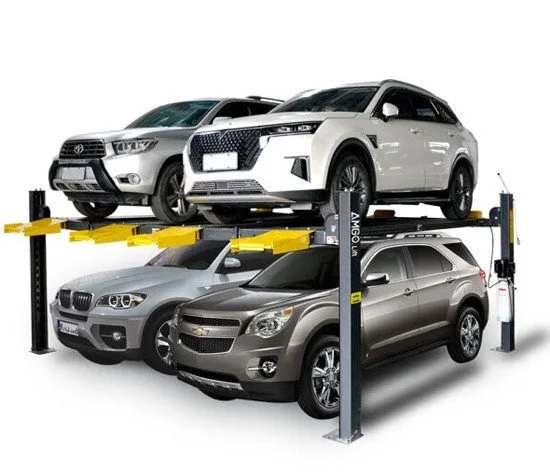

AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height
$7,550.00
AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height is part of our parking lifts selection from AMGO Hydraulics.
AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height
AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Extended maximum lifting height of 87 11/16" provides exceptional clearance for walk-under access and maintenance work

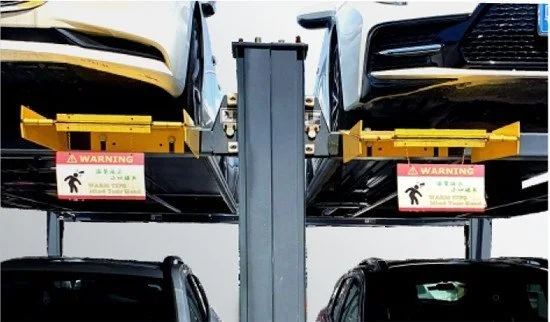

- Double S-shaped columns deliver superior structural strength and stability throughout the entire lift range
- Non-slip diamond plate platforms and adjustable multiple safety ladders ensure safe access and secure vehicle positioning

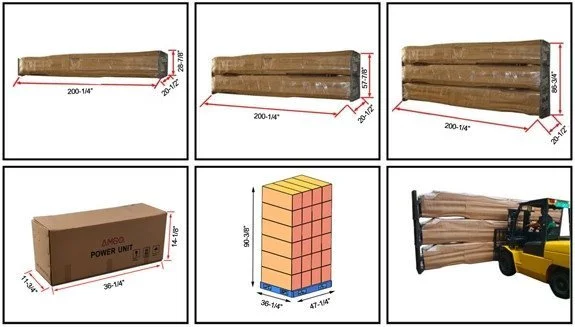

- Ingenious compact packaging design reduces shipping and storage costs—making transportation and installation more economical
- 9,000 lbs Lifting capacity, max. car weight 6,000lbs
- 87 7/8" Max lifting height
- Low profile design, provides easy load for low clearance vehicles

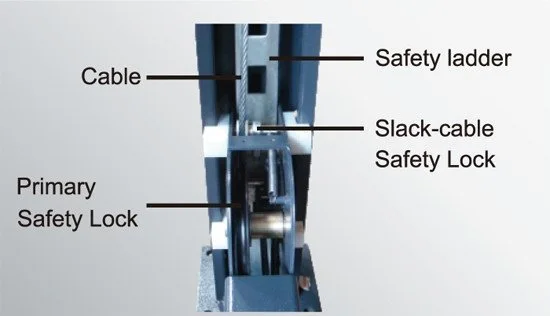

- Primary safety lock and cable-slack protection device come standard
- Exclusive Features:
- Double S Shaped columns for increased strength
Check the configuration

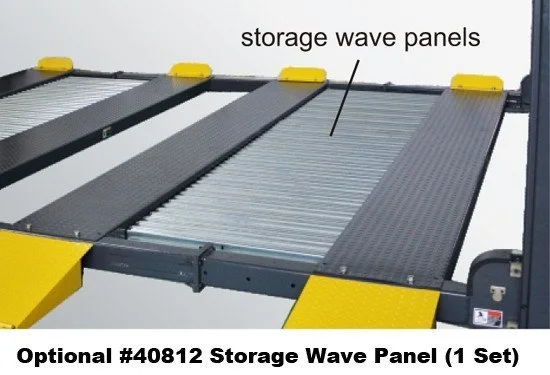

Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
409-DPX-V001 |
| Condition |
New |
| Lifting Capacity |
9,000 lbs |
| A Overall Length w/o Ramp |
205 1/16" |
| A Overall Length w/Ramp |
238 5/8" |
| B Outside Edge of Crossbeams |
198 1/8" |
| C Overall Width |
190 9/16" |
| D Width Between Columns |
181" |
| E Drive thru Width |
169 13/16" |
| F Overall Height |
96 5/8" |
| G Minimum Height |
5 15/16" |
| H Max Lifting Height |
87 7/8" |
| H Max Lock Height (to Top of Runway) |
85 1/8" |
| I Max Height Underneath Runway |
83 7/8" |
| I Max Lock Height Underneath Runway |
80 3/8" |
| J Width Between Columns |
37" |
| K Overall Width (Single Parking Unit) |
74 7/16" |
| L Width Between 2 Parking Units |
13 3/4" |
| Lifting Time |
57 S 220V / 120 S w/Optional 110V |
| Motor |

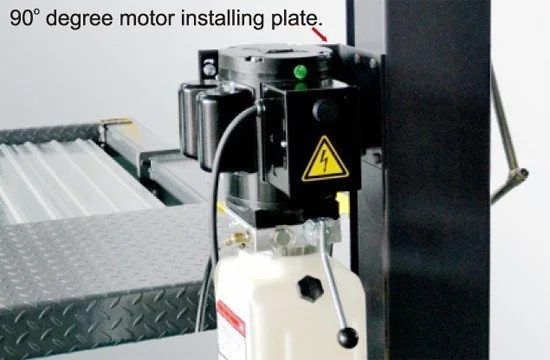

2.0HP 220V Single Phase / Optional 2 HP 110V |
| Gross Weight |
3,018 lbs |
| Lift type |
Parking Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
