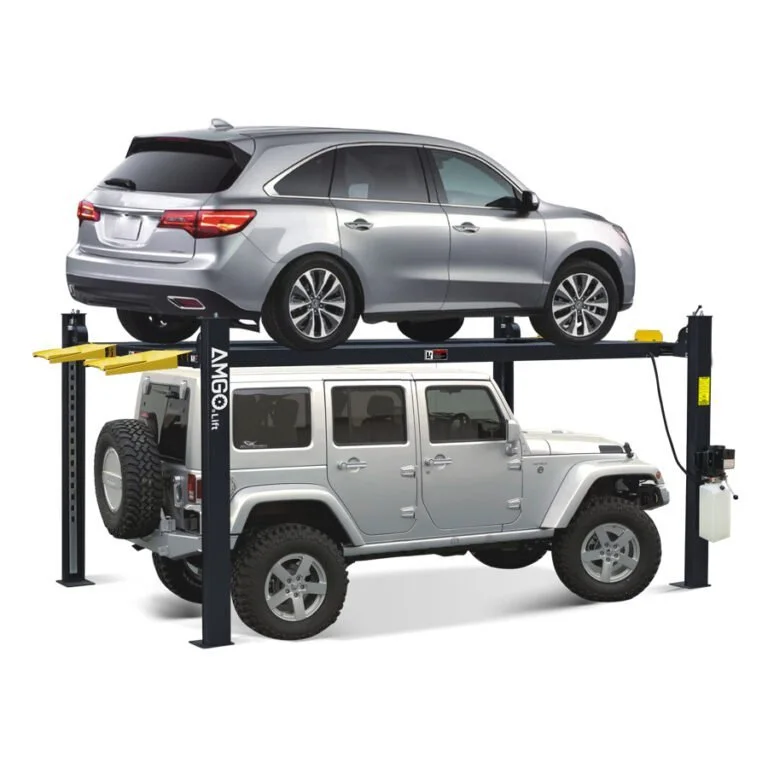

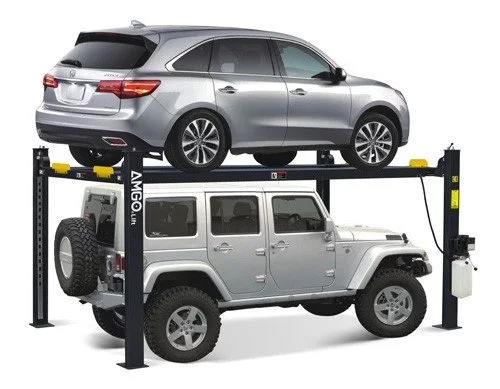

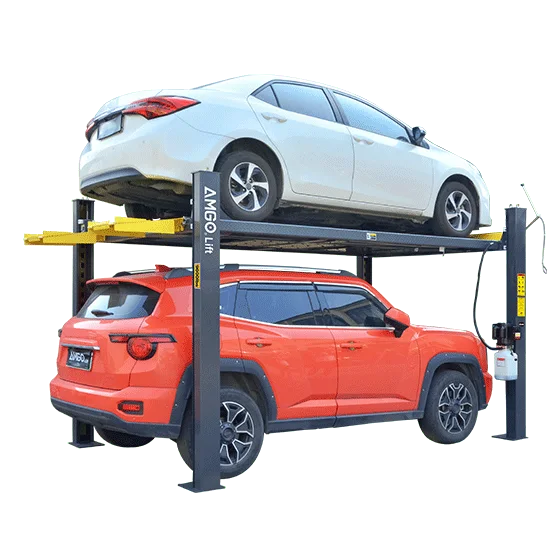

AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs
$4,695.00
AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs is part of our parking lifts selection from AMGO Hydraulics.
- Lifting capacity: 9000 lb
14 in stock
AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs
AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lbs lifting capacity handles a wide range of vehicles from passenger cars to light trucks
- 88 1/16″ maximum lifting height provides superior clearance for in-depth service and maintenance

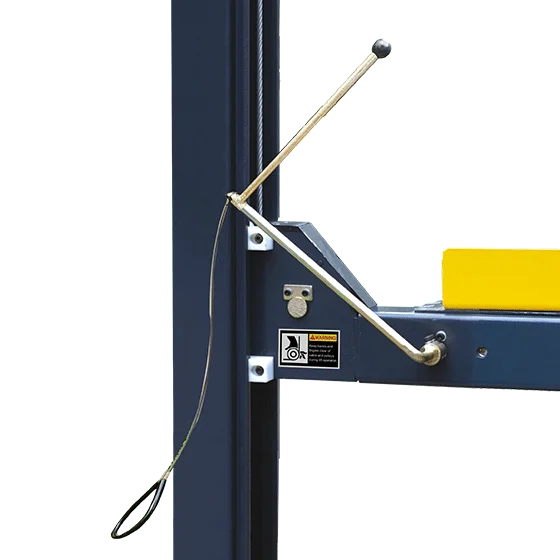

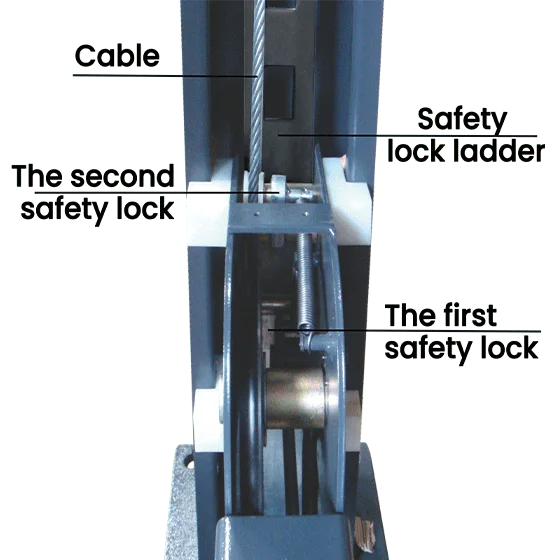

- AMGO exclusive hidden safety locks with manual single-point release unlock all four columns from one convenient location
- Double-S shaped columns engineered for enhanced strength and stability under load
- Flexible installation power side column can be positioned at any corner; optional caster kit available for portability
- Skid-proof diamond platform runways keep tires secure and in place during operation

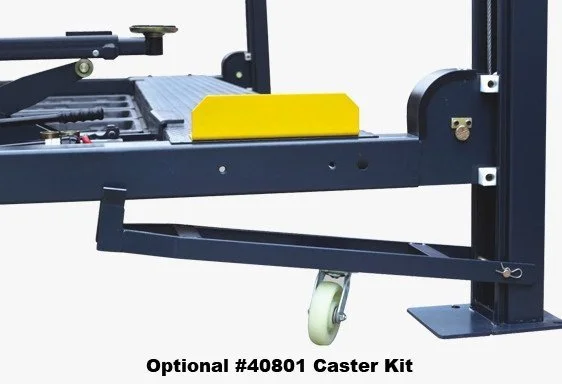

- #40801 Caster Kit add mobility and reposition your lift with ease
- #40807 Set of 4 Drip Trays catch fluids and keep your shop floor clean
- #40809 Jack Tray convenient storage for floor jacks and tools

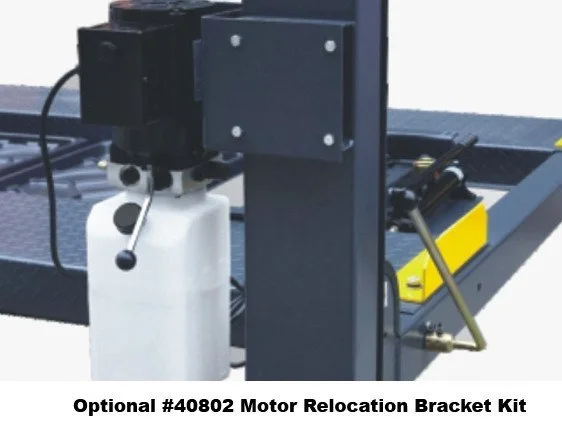

- #40802 Motor Fixing Bracket 90° installation plate for side-mounting the power unit on the column
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
409-HP-V001 |
| Condition |
New |
| Lifting Capacity |
9,000 lbs |
| A Overall Length w/Ramp |
208 1/16" |
| A Overall Length w/o Ramp |
204 3/4" |
| B Outside Edge of Crossbeams |
197 3/4" |
| C Overall Width |
109 5/16" |
| D Width Between Columns |
99 5/8" |
| E Max Lifting Height |
88 1/16" |
| E Max Lock Height |
85 5/16" |
| F Overall Height |
96 5/8" |
| G Minimum Height |
6 1/8" |
| H Max. Underneath Height |
82 9/16" |
| H Max. Lock Underneath Runway |
79 13/16" |
| K Outside Edge of Runways |
82 3/8" |
| Lifting Time |
143s 110v / 57s Optional 220V |
| Motor |
1.0HP, 110V/60Hz Single Phase – 30 amp Required / Optional 2.0HP 220V/60Hz |
| Gross Weight |
1,956 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
Parking Lifts |
| Phase |
Single phase |
| Voltage |
110 V |
