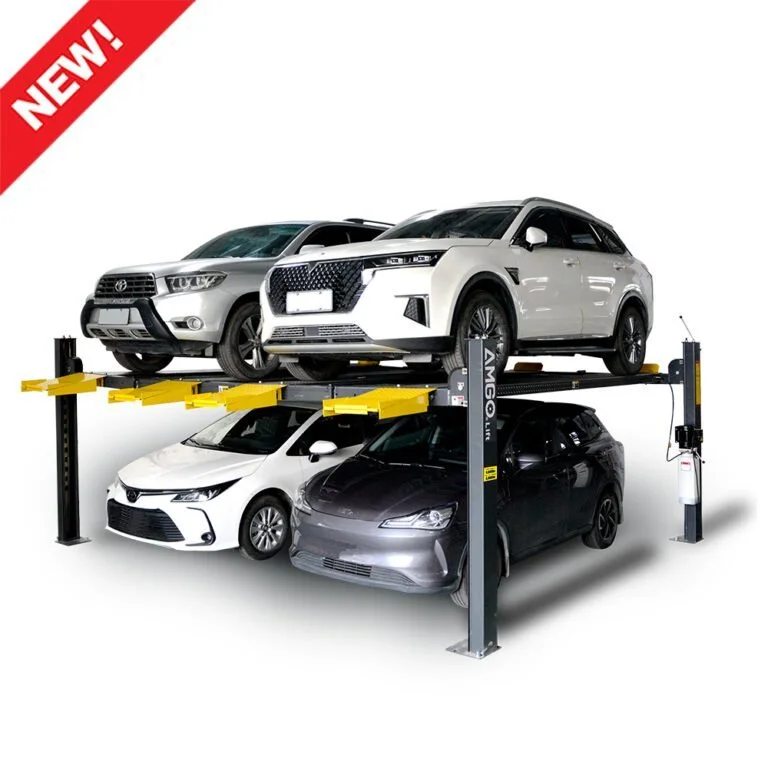

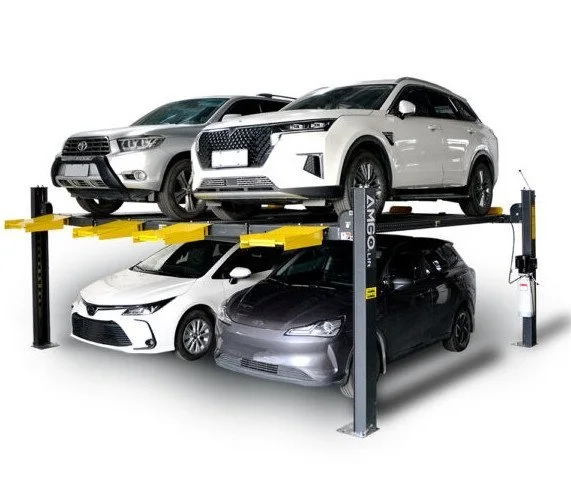

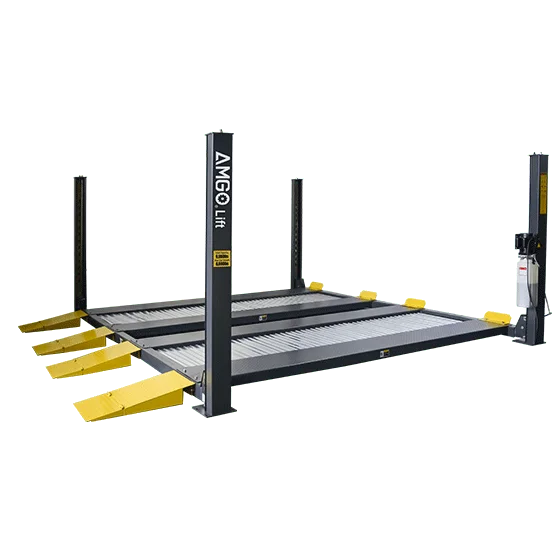

AMGO® Hydraulics 409-DP Double Parking 4 Post Lift
$6,850.00
AMGO® Hydraulics 409-DP Double Parking 4 Post Lift is part of our parking lifts selection from AMGO Hydraulics.
6 in stock
AMGO® Hydraulics 409-DP Double Parking 4 Post Lift
AMGO® Hydraulics 409-DP Double Parking 4 Post Lift is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lbs total lifting capacity accommodates up to 6,000 lbs per vehicle for true double parking capability
- Ultra-low 5 5/16" minimum height handles low-profile sports cars and exotics with ease
- 73 5/8" maximum lifting height provides ample clearance for service access or stacking vehicles

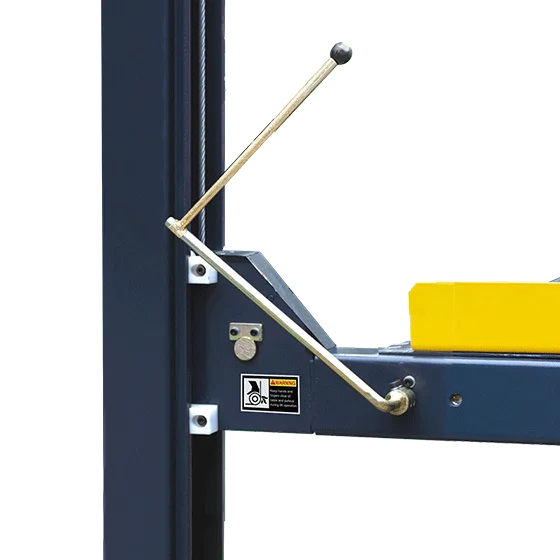

- Hidden safety locks with single-point release exclusive AMGO design for safety and convenience

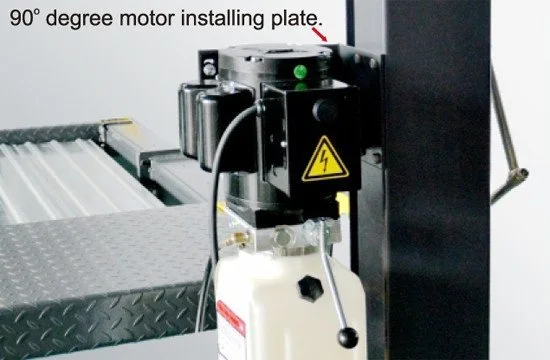

- Back-to-back installation capability with 90° motor mounting plate maximizes facility layout flexibility
- 9,000 lbs Lifting capacity, max. car weight 6,000lbs
- 73 5/8" Max lifting height
- Low profile design, provides easy load for low clearance vehicles

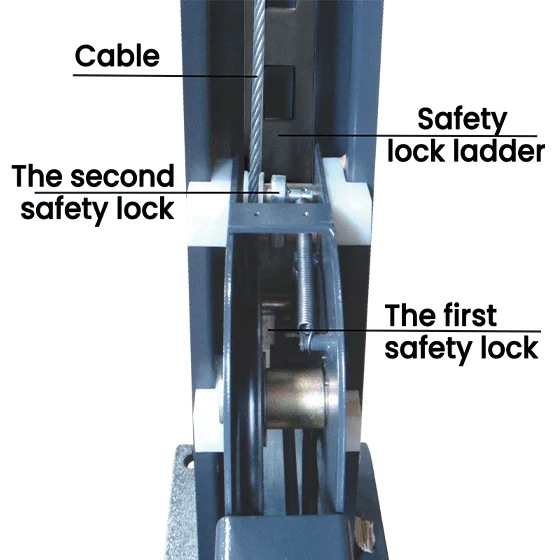

- Primary safety lock and cable-slack protection device come standard
- Exclusive Features:
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
409-DP-V001 |
| Condition |
New |
| Lifting Capacity |
9,000 lbs |
| A Overall Length w/o Ramp |
174 5/8" |
| A Overall Length w/Ramp |
208 1/16" |
| B Outside Edge of Crossbeams |
167 5/8" |
| C Overall Width |
190 9/16" |
| D Width Between Columns |
181" |
| E Drive thru Width |
169 13/16" |
| F Overall Height |
82 7/8" |
| G Minimum Height |
5 5/16" |
| H Max Lifting Height |
73 5/8" |
| H Max Lock Height (to Top of Runway) |
70 7/8" |
| I Max Height Underneath Runway |
69 7/8" |
| I Max Lock Height Underneath Runway |
66 1/8" |
| J Width Between Columns |
37" |
| K Overall Width (Single Parking Unit) |
74 7/16" |
| L Width Between 2 Parking Units |
13 3/4" |
| Lifting Time |
47 S 220V / 100 S w/Optional 110V |
| Motor |
2.0HP 220V Single Phase / Optional 2 HP 110V |
| Gross Weight |
2,771 lbs |
| Lift type |
Parking Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
