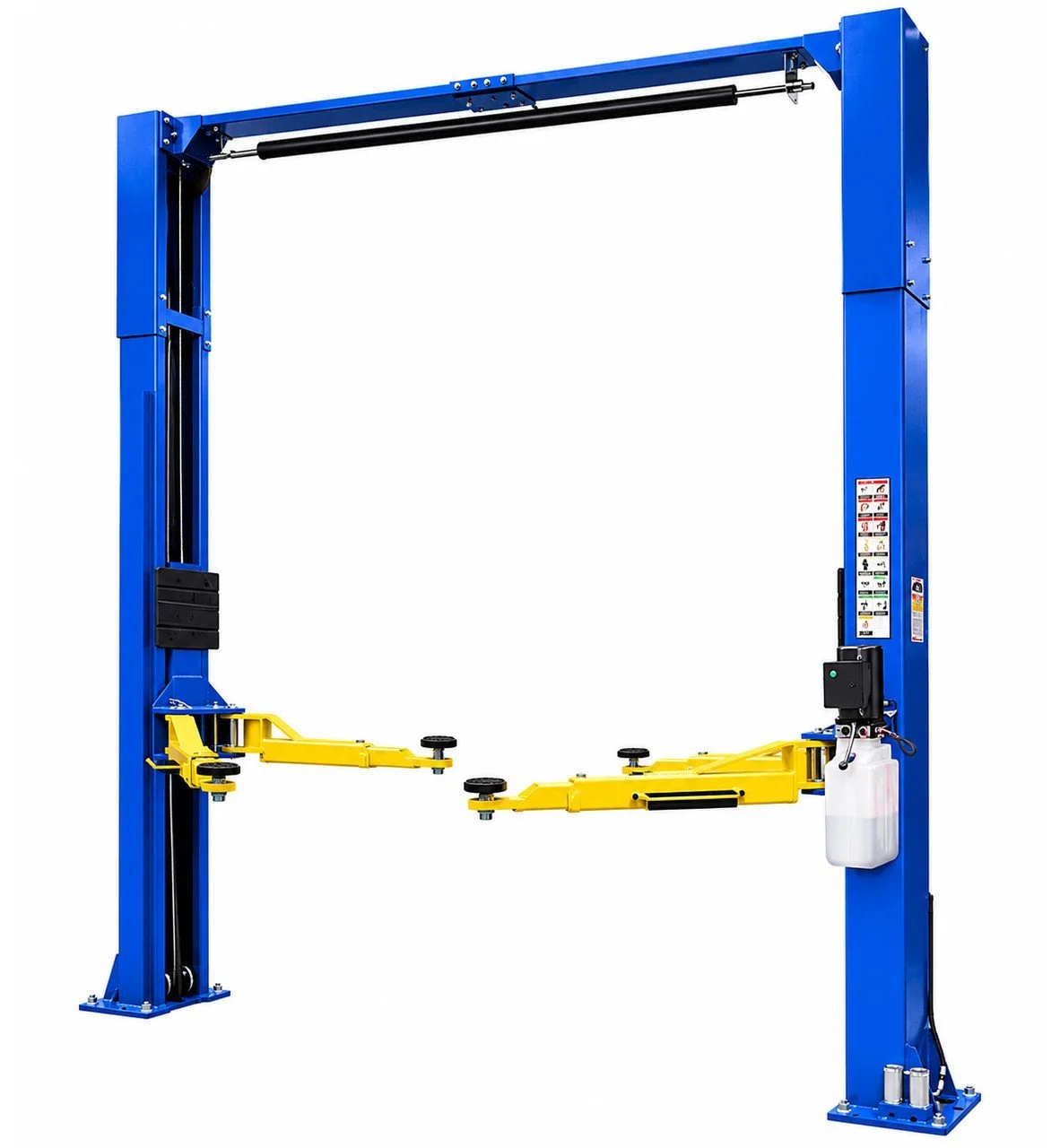

Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb.
$2,099.00
Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb. is part of our 2 post lifts selection from Torin USA.
- Voltage: 220V / 60hz
- Lifting capacity: 10000 lb
9 in stock
Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb.
Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb. is part of our 2 post lifts selection from Torin USA.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lb Lifting Capacity: Designed for cars, light trucks, and SUVs.
- 220V Power Unit: Features a reliable hydraulic system powered by dual hydraulic cylinders.
- Arm Configurations: This lift provides a symmetric and asymmetric configuration
- Overhead Clear-Floor Design: Provides open floor space between the columns for easier vehicle access.
- CE Certified: Built to meet CE safety and quality standards.
- Safety Tested: Standardized for 115% dynamic load capacity and tested to 150% static load capacity.
- Single-Point Lock Release: Single-sided unlocking system allows convenient operation from one side of the lift.
- Mechanical Safety Locks: Safety latches in each column help keep the vehicle securely raised.
- Chain-Type Lifting System: Uses steel wire rope equalizing cables for smooth, balanced lifting.

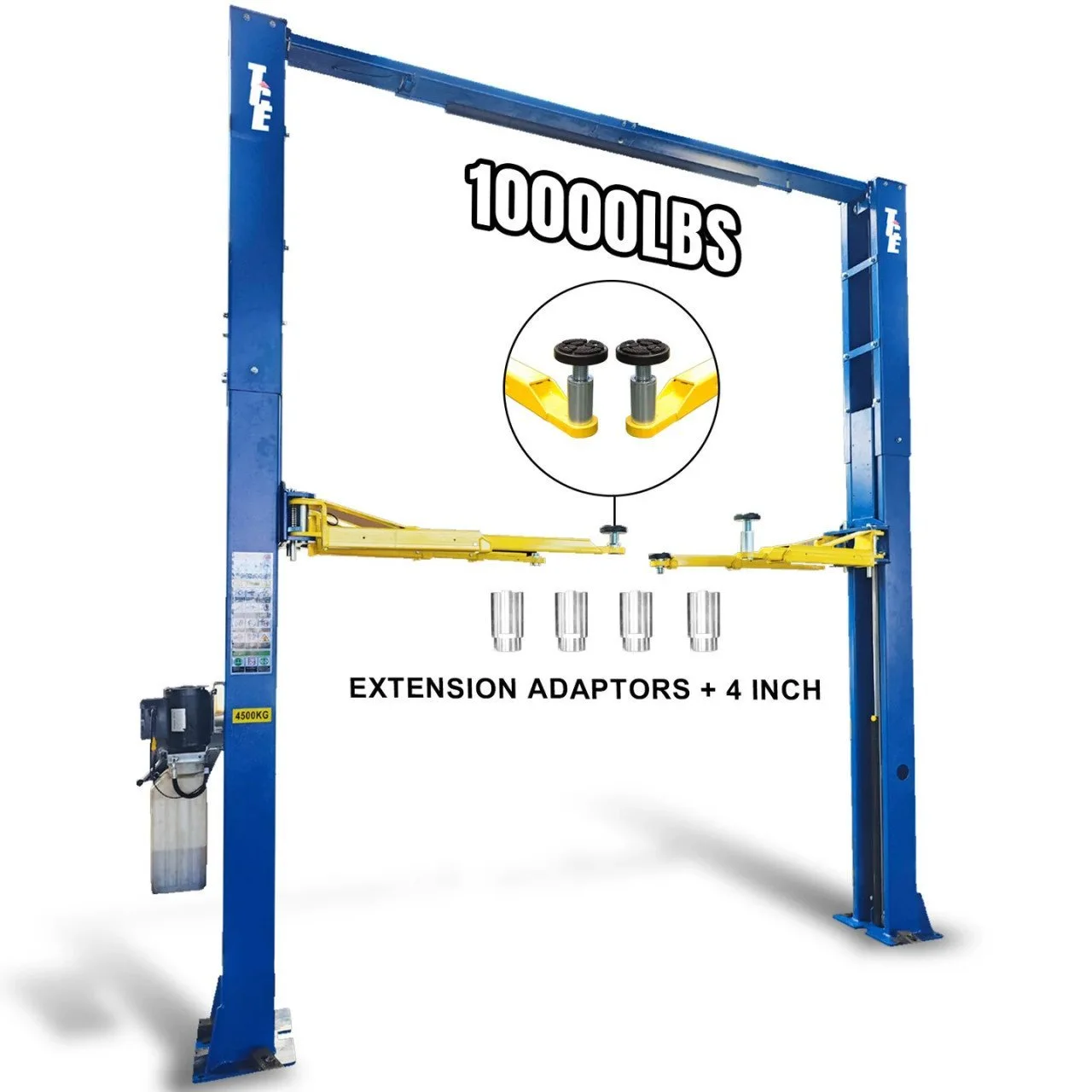

- Adjustable Lift Pads & Adapters: Helps accommodate a wide range of vehicle lifting points.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Torin USA |
|---|---|
| MPN / Model |
TRJR-245LD |
| Condition |
New |
| Capacity |
10,000 lbs. / 4.5 Tons |

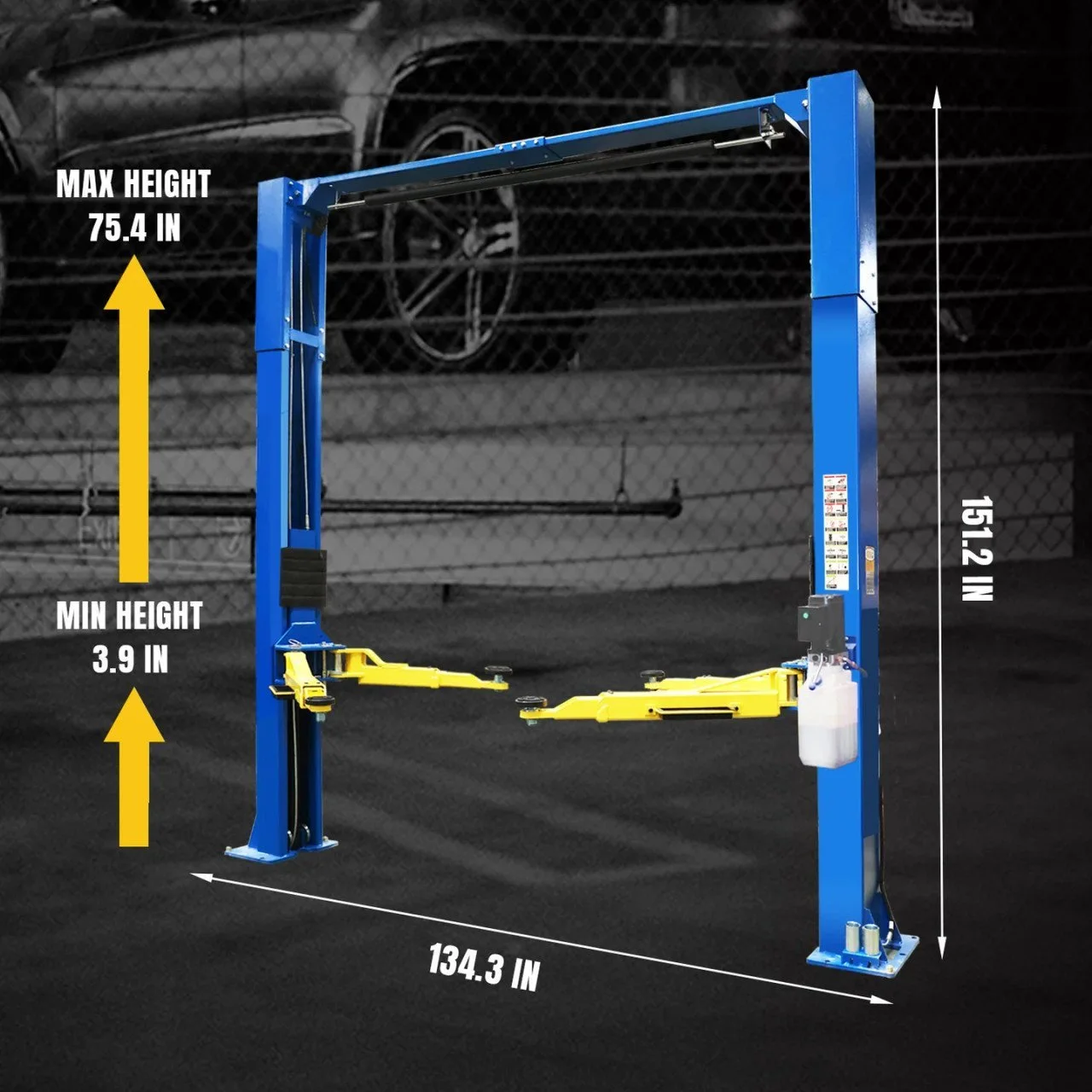

| Overall Height |
150.79" |
| Width Overall |
134.65" |
| Max Lift Height |
76.77" / 1950mm |
| Min. Height |
4.25" / 110mm |
| Inside Column |
102.76" / 2610mm |
| Rising Time |
45-50s |
| Chain Length |
90.94" / 2310mm (121 links) |
| Chain Width |
1.18" / 30mm |
| Diameter Dimension of the Steel Cable Wheel |
100mm |
| Voltage |
220 V / 60hz |
| Motor |
220VAC/60HZ/2.2KW |
| Shipping Dimensions |
118.11" x 17.72" x 34.45" |
| Shipping Weight |
1,437.4 lbs. / 652 kg |
| Net Weight |
1410.96 lbs. / 640 kg |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
