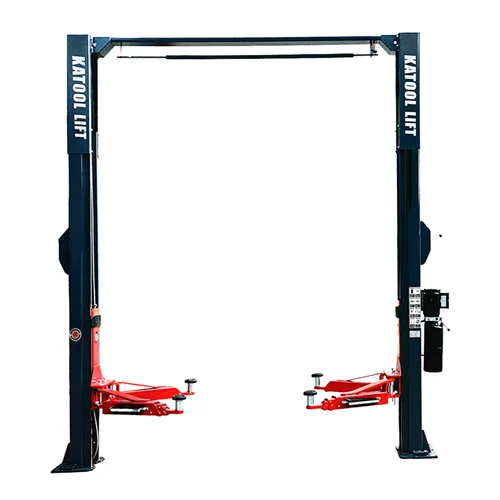

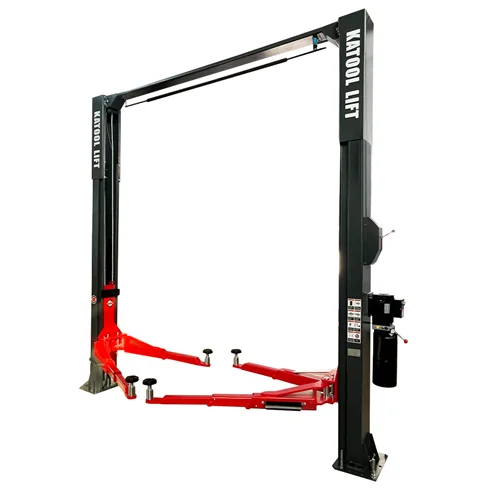

KATOOL KT-AS110D Asymmetric Direct-Drive Two-Post Lift, 11,000 lb.
$2,599.00
Asymmetric 11,000 lb. clear-floor lift with direct-drive cylinders, single-point lock release, overhead safety shutoff and a 70.75 in. maximum lifting height.
10 in stock
KATOOL KT-AS110D Asymmetric Direct-Drive Two-Post Lift, 11,000 lb.
The KATOOL KT-AS110D is an asymmetric clear-floor two-post lift for shops servicing passenger vehicles, SUVs and light-duty trucks within its 11,000 lb. rated capacity. KATOOL identifies direct-drive cylinders, a single-point lock release and an overhead safety shutoff bar for this model.
Verified KT-AS110D specifications
- 11,000 lb. lifting capacity

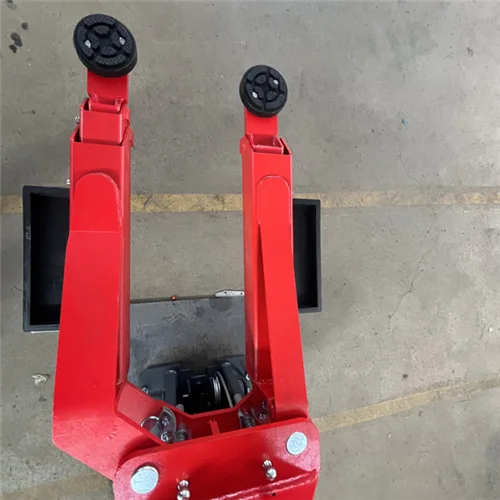

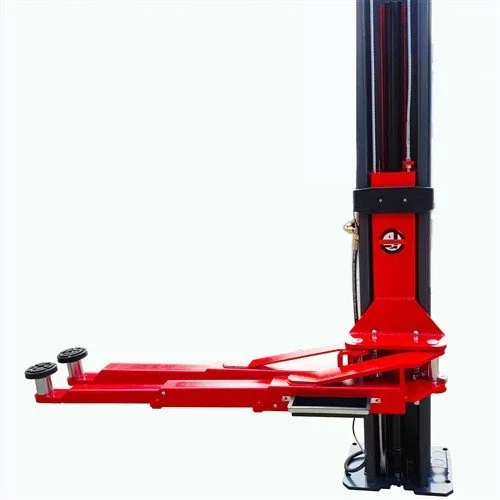

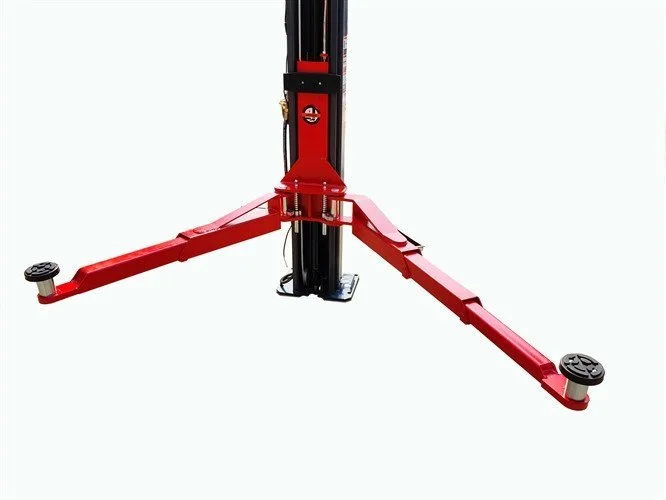

- Asymmetric arm configuration for vehicle positioning and door clearance

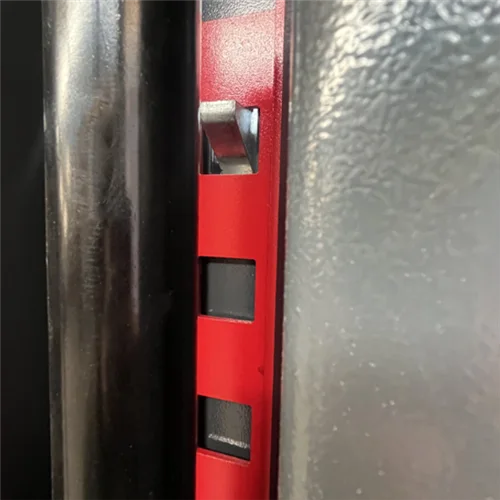

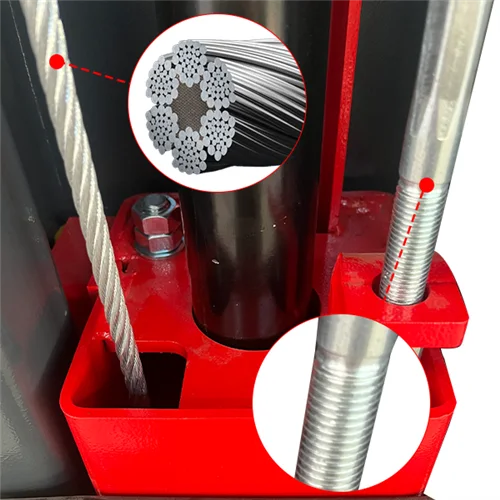

- Direct-drive hydraulic cylinders and single-point lock release
- 70.75 in. maximum lifting height and 3.74 in. minimum pad height
- 141.25 in. overall height, 134.65 in. overall width and 99.61 in. drive-through clearance
- 30–48.25 in. front arm reach listed in the installation documentation
- 220VAC, 60 Hz, single-phase electrical configuration; an optional 110V upgrade is listed by KATOOL
- Maximum rise time of 50 seconds listed in the installation documentation
- Overhead safety shutoff bar and rubber door-opening protection pads are listed model features
Confirm the installation

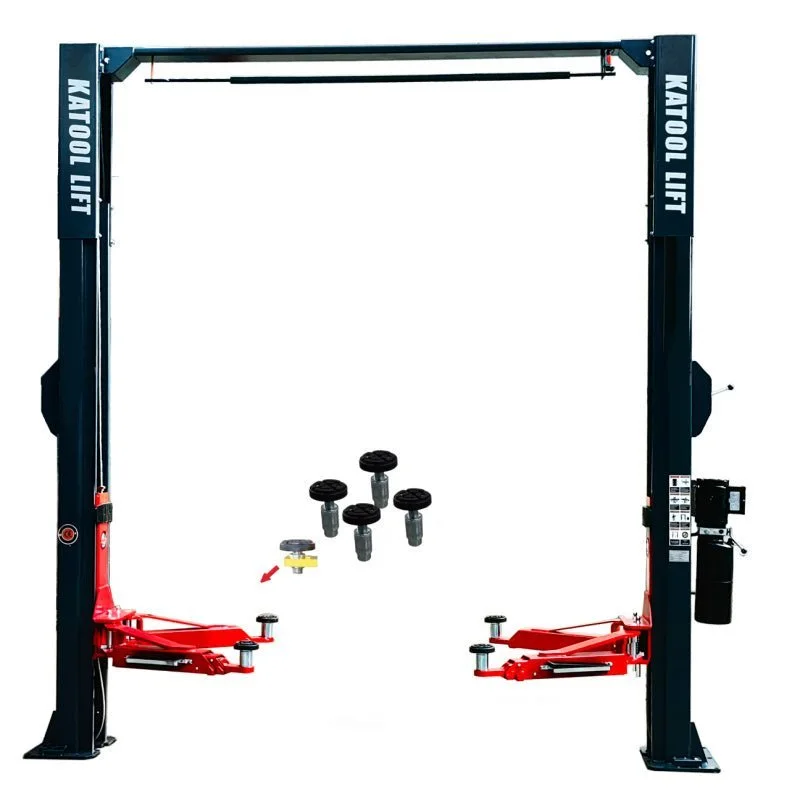

Verify the exact voltage, vehicle lift points, slab requirements, ceiling height, clearances and included components against the supplied KATOOL documentation before ordering. Adapter sets and other configuration-dependent items must be confirmed for the exact store record; product images alone do not establish what is included.
| Brand |
Katool |
|---|---|
| MPN / Model |
KT-AS110D-V001 |
| Condition |
New |
| Lifting Capacity |
11,000 lbs. |
| Max. Lifting Height |
70.75" / 1800mm |
| Min. Height |
3.74" / 95mm |
| Height Overall |
141.25" / 3587mm |
| Width Overall |
134.65" / 3420mm |
| Outside Column |
120.4" / 3058mm |
| Inside Column |
109.37" / 2778mm |
| Drive-Thru Clearance |
99.61" / 2530mm |
| Motor |
220VAC / 60HZ / 1PH |
| Net Weight |
1,323 lbs / 660KG |
| Lifting capacity |
11,000 lb |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
