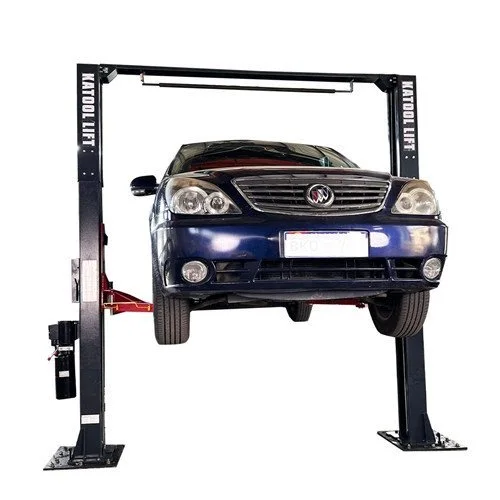

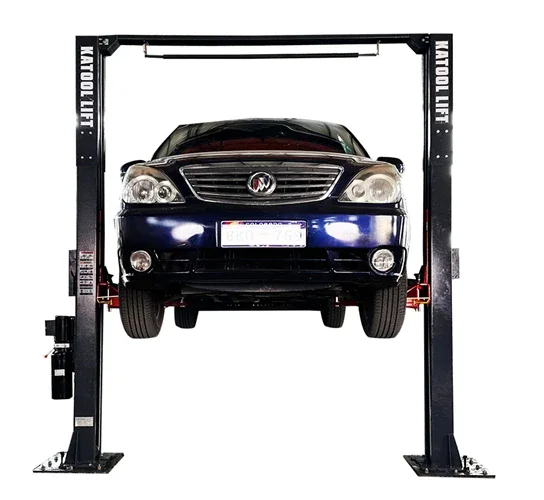

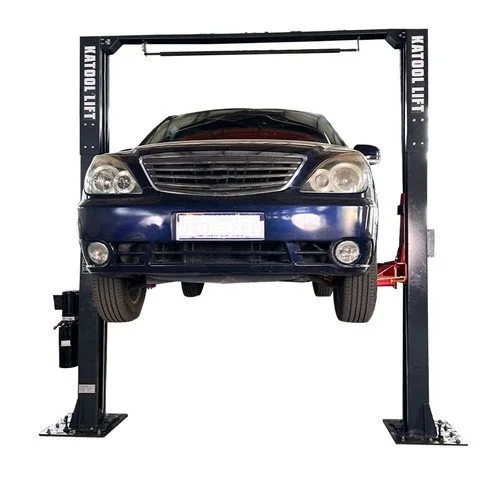

KATOOL KT-AM120SD Asymmetric Two-Post Lift, 12,000 lb.
$3,098.00
Asymmetric 12,000 lb. two-post lift with a single-point lock release, 70.87 in. maximum lifting height, and 220V power for demanding vehicle service.
9 in stock
KATOOL KT-AM120SD Asymmetric Two-Post Lift, 12,000 lb.
The KATOOL KT-AM120SD is a 12,000 lb. two-post lift for shops that need additional capacity for larger vehicles. Its asymmetric arm layout and single-point lock release are identified in the KATOOL product record, while the installation manual provides the model dimensions and lifting range below.
Verified KT-AM120SD specifications
- 12,000 lb. lifting capacity

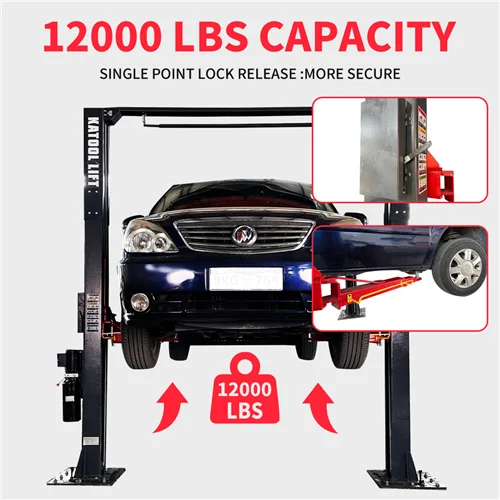

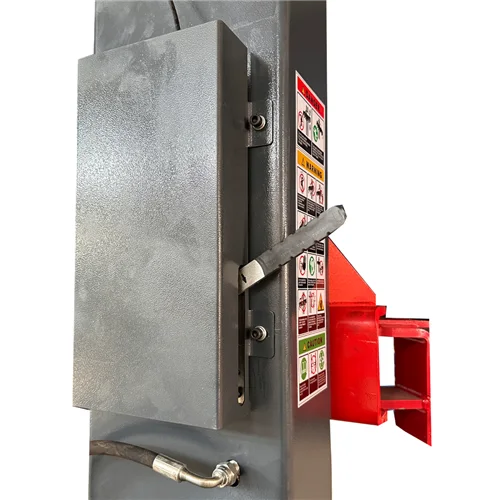

- Asymmetric two-post configuration with single-point lock release
- 70.87 in. maximum lifting height and 4.3 in. minimum pad height
- 144 in. overall height and 131.5 in. overall width
- 95 in. drive-through clearance

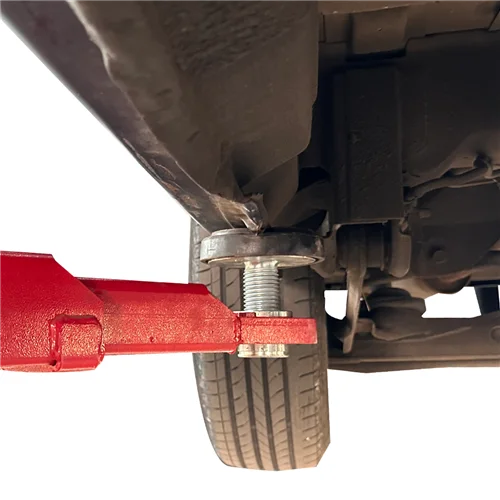

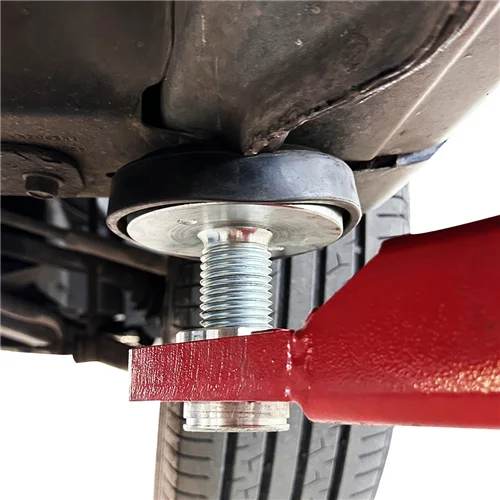

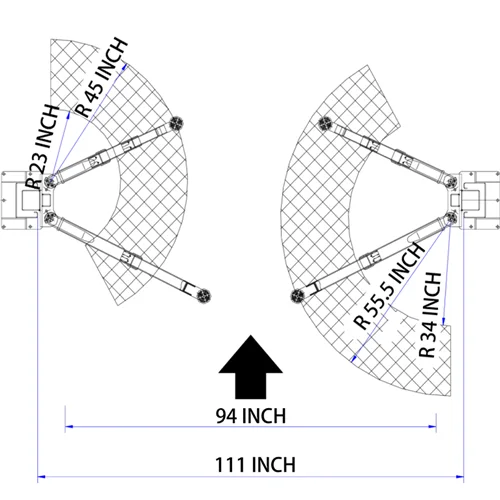

- 33.5–55.5 in. front arm reach listed for the 2-stage arms
- 220V electrical configuration identified in the KATOOL product title
- Maximum rise time of 50 seconds listed in the installation manual
Confirm the installation
Verify the exact electrical configuration, vehicle lift points, slab requirements, ceiling height, clearances and included components against the supplied KATOOL documentation before ordering. Accessories or configuration-dependent items must be confirmed for the exact store record; product images alone do not establish what is included.
| Brand |
Katool |
|---|---|
| MPN / Model |
KT-AM120SD-V001 |
| Condition |
New |
| Lifting Capacity |
12,000 lbs. |
| Max. Lifting Height |
70.87" / 1800mm |
| Height Overall |
144" / 3650mm |
| Min Height |
4.3" / 110mm |
| Overall Width w/o Power Unit |
131" / 3327mm |
| Inside Column |
110" / 2794mm |
| Drive-Thru Clearance |
94" / 2388mm |
| Lifting Time |
50s |
| Motor |
220VAC / 60HZ / 1PH / 2.2Kw |
| Net Weight |
1,234 lbs / 560KG |
| Lifting capacity |
12000 lb |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
