iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb
$8,180.00
iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb is part of our 4 post lifts – heavy-duty selection from iDeal Lift.
- Lifting capacity: 14000 lb
8 in stock
iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb
iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb is part of our 4 post lifts – heavy-duty selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

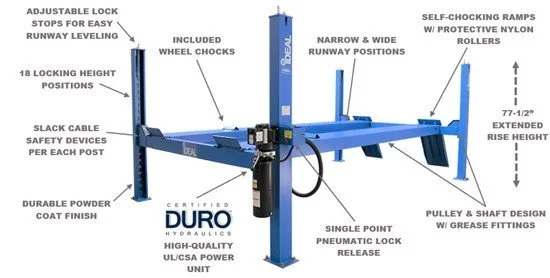

- 14,000 lb capacity handles cars, trucks, SUVs, and vans with ease
- Extended rise height (77 1/2") superior undercarriage access for detailed service work
- Modular design easily convert to an alignment lift and extend runways for longer vehicles
- Durable cable lift system with slack cable safety devices and convenient grease fittings for extended service life
- 18 locking height positions and single point pneumatic safety release for precise, efficient operation
- 20" wide runways with narrow and wide mounting positions to fit diverse vehicle track widths
- Self-chocking ramps with nylon rollers and included wheel chocks for safe, secure vehicle loading
- Powder-coated finish and high-quality DURO power unit for long-lasting performance and professional appearance
- 14,000 lb Lifting capacity
- High performance commercial service lift
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
FP14KC-X |
| Condition |
New |
| Capacity |
14,000 lbs. |
| Overall Length w/Ramp |
252 1/2" |
| Overall Width w/Power Unit |
142" |
| Overall Width w/o Power Unit |
131 7/8" |
| Overall Height |
92 1/2" |
| Max Rise Height |
77 1/2" |
| Min Height |
7 7/8" |
| Width Between Posts |
116 1/4" |
| Length Between Posts |
196" |
| Width Between Runways |
43" or 46" |
| Width of Runways |
20" |
| Max Wheelbase |
182 1/2" |
| Ramp Length |
44" |
| Max Clearance Under Runway |
69 5/8" |
| Drive-Thru Clearance |
96" |
| Base Plate |
10 1/2" x 9" |
| Power |
220V – 20 Amp – 1PH |
| Ship Weight |
2,690 lbs. |
| Min Bay Size |
16' x 25' |
| Lifting capacity |
14,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
