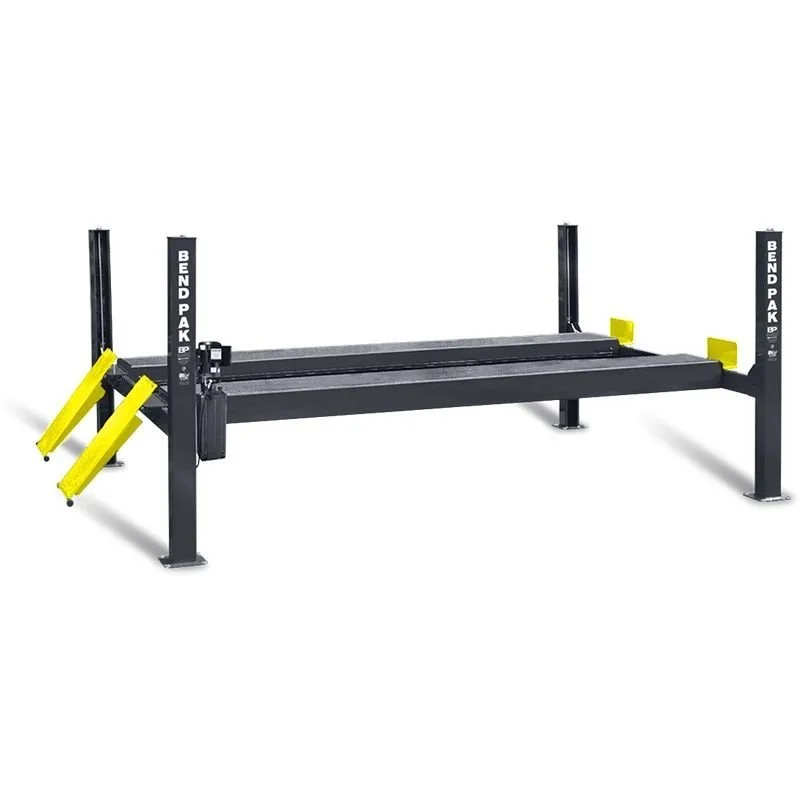

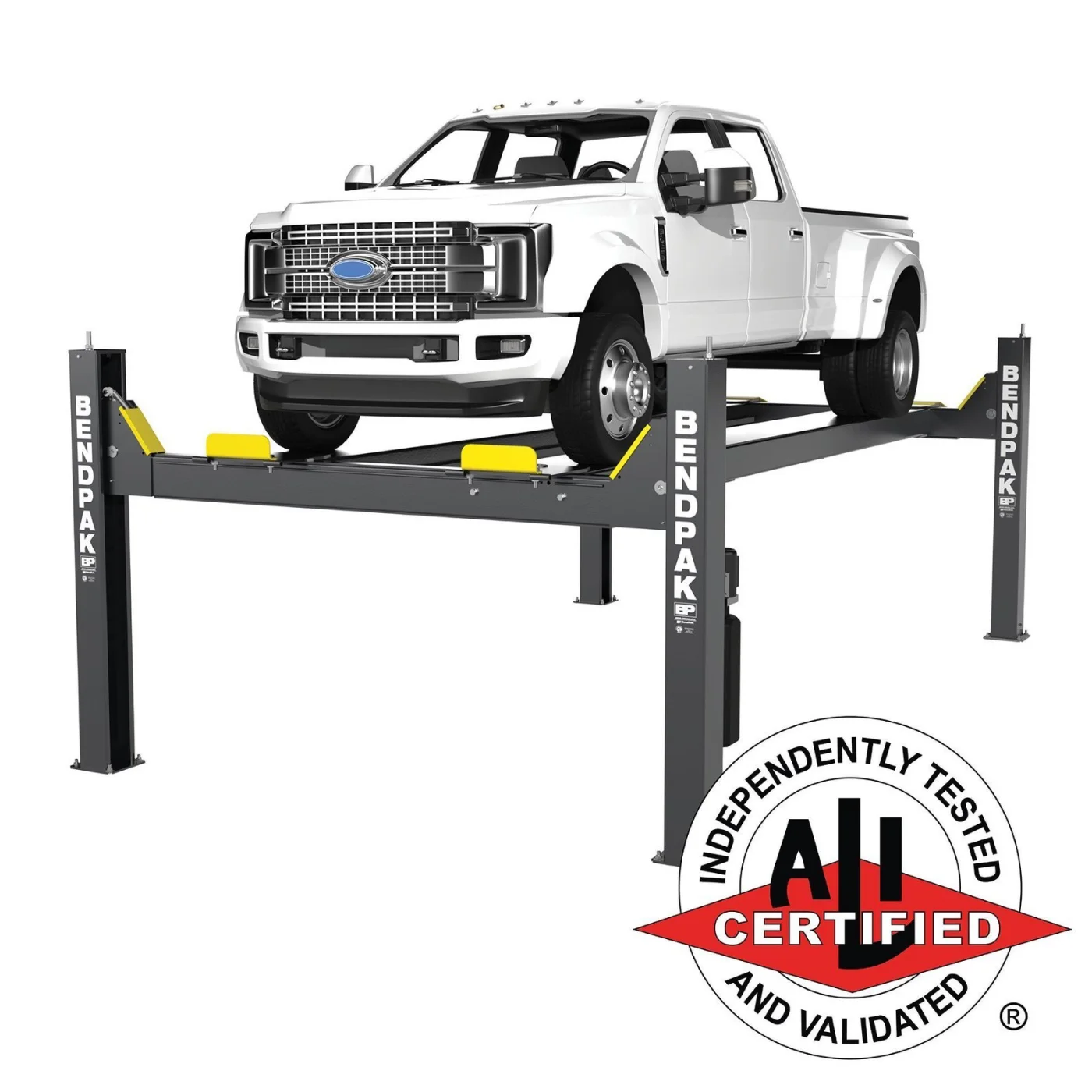

BendPak HDS-18E ALI Heavy Duty 4 Post Lift 18,000 lb. – New Gray
$21,595.00
BendPak HDS-18E ALI Heavy Duty 4 Post Lift 18,000 lb. – New Gray is part of our 4 post lifts – heavy-duty selection from BendPak.
- Lifting capacity: 18000 lb
11 in stock
BendPak HDS-18E ALI Heavy Duty 4 Post Lift 18,000 lb. – New Gray
BendPak HDS-18E ALI Heavy Duty 4 Post Lift 18,000 lb. – New Gray is part of our 4 post lifts – heavy-duty selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

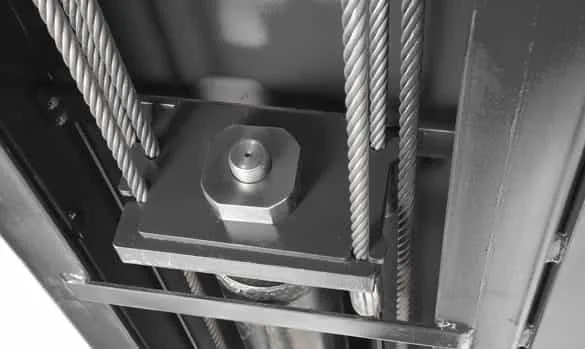

- BendPak's HDS-Truck Series lifts feature four stainless-steel lifting cables that provide a great balance between abrasion resistance and fatigue.

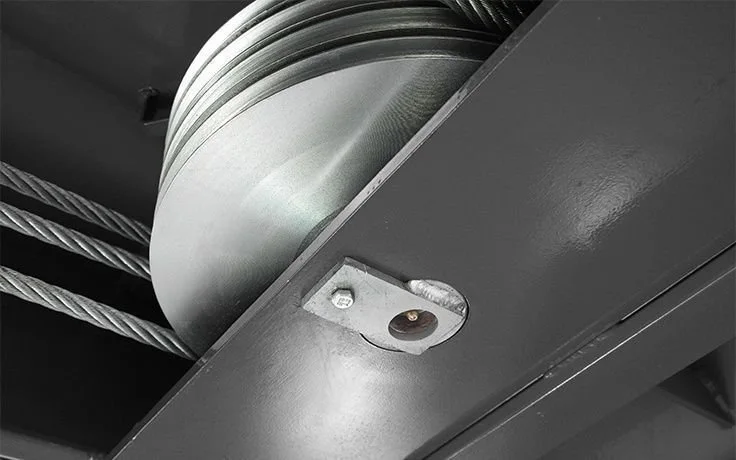

- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
- An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.
- A durable powder coat finish can withstand harsh environments and chemical spills and will provide years of protection.
- A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event of an unexpected cable failure.
- Lifting cables, airlines, safety latches and sheaves are all fully enclosed within lift structure.
- Features multiple adjustable height locking positions for variable-height parking and infinite leveling.
- A maintenance-free electric hydraulic power system assures ultimate dependability.
- All operator controls are conveniently located within easy reach.
- 12" x 12" base plates provide a solid foundation.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175968 |
| Condition |
New |
| Model |
HDS-18E |
| A Overall Width |
154" / 3,912 mm |
| B Outside Length |
309.25" / 7,856 mm |
| C Overall Length |
297" /,544 mm |
| D Height of Columns |
93" / 2,362 mm |
| E Min. Runway Height |
8-1/2" / 216 mm |
| F Max. Rise |
60" / 1,524 mm |
| G Max. Lifting Height |
68-1/2" / 1740 mm |
| H Width Between Columns |
134" / 3404 mm |
| I Runway Width |
22" / 559 mm |
| J Min Width Between Runways (*) |
38" / 965 mm (min) |
| J Max Width Between Runways (*) |
56" / 1,422 mm |
| K Min Runway Centerline (*) |
60" / 1,524 mm |
| K Max Runway Centerline (*) |
78" / 1,981 mm |
| L Min Outside Edge of Runways (*) |
82" – 100" / 2,083 mm – 2,540 mm |
| L Max Outside Edge of Runways (*) |
100" / 2,540 mm |
| M Drive-Thru-Clearance |
109" / 2,769 mm |
| N Length of Runways |
263" / 6,680 mm |
| Min Wheelbase @ Rated Capacity |
185" / 4,699 mm |
| Min Wheelbase @ 75% Capacity |
160" / 4,064 mm |
| Min Wheelbase @ 50% Capacity |
135" / 3,429 mm |
| Min Wheelbase @ 25% Capacity |
110" / 2,794 mm |
| Locking Positions |
9 |
| Lock Spacing |
Every 6" / 152 mm. |
| Lifting Time |
75 Sec |
| Standard Motor (***) |
220 VAC / 60 Hz. 1Ph. |
| Lifting capacity |
18,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
